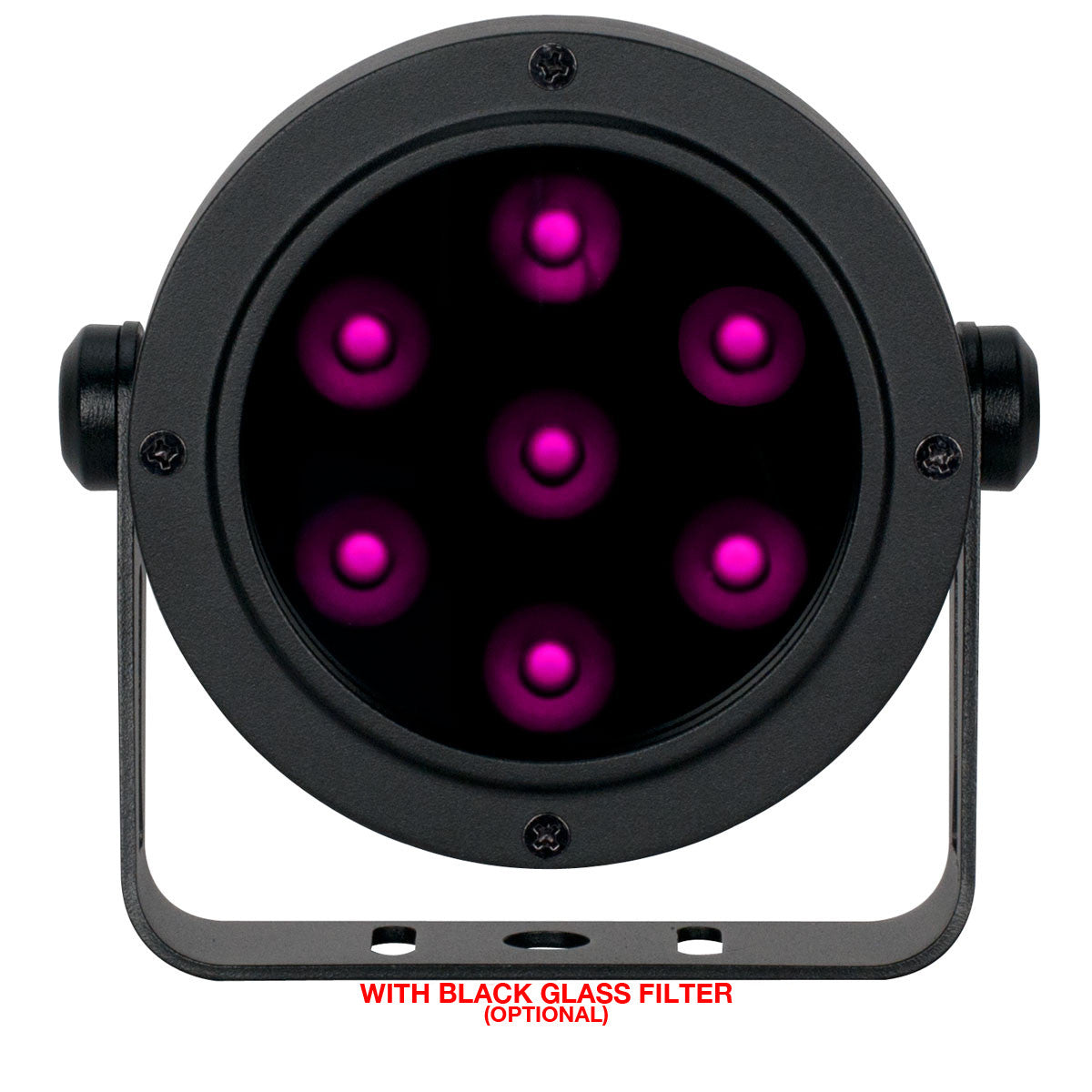

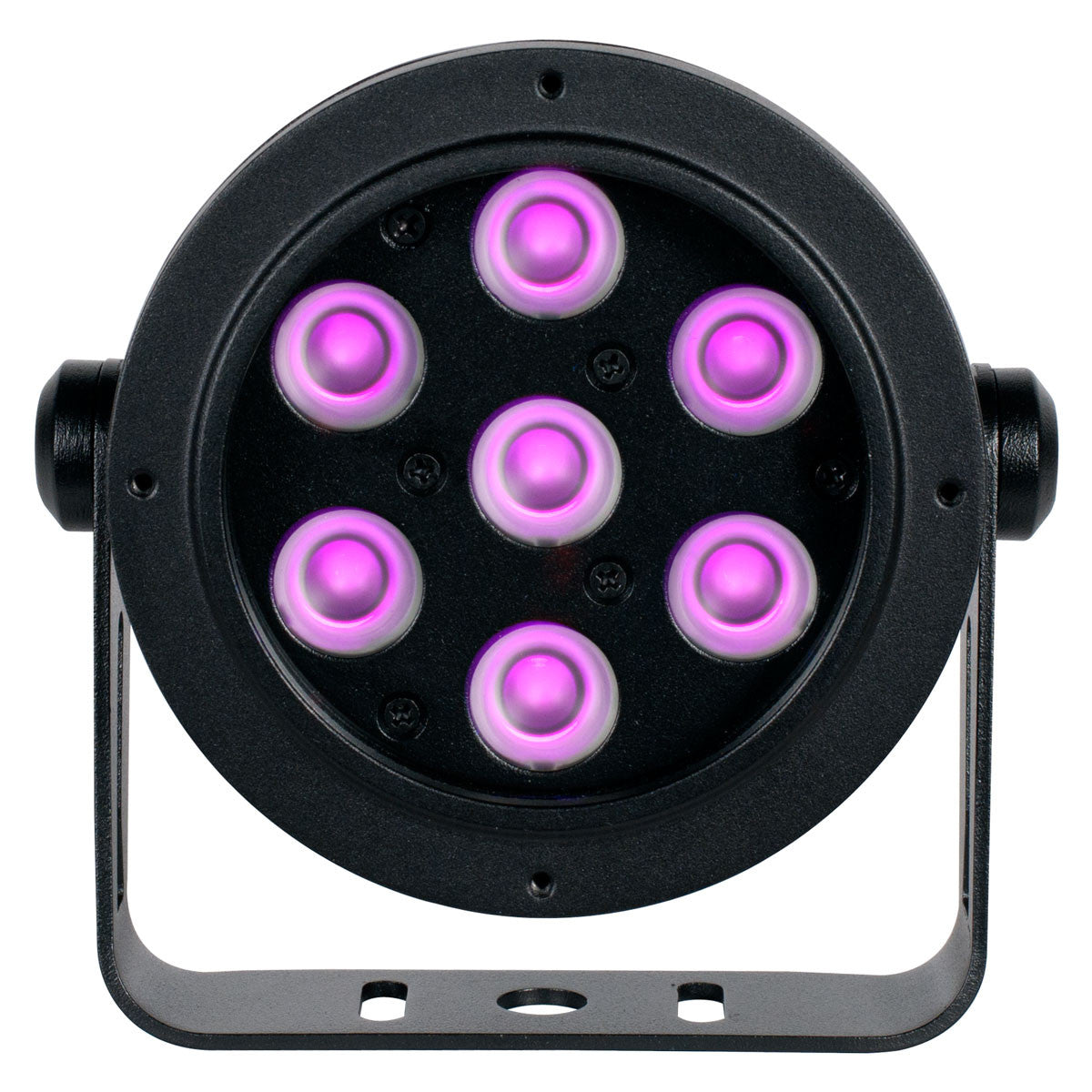

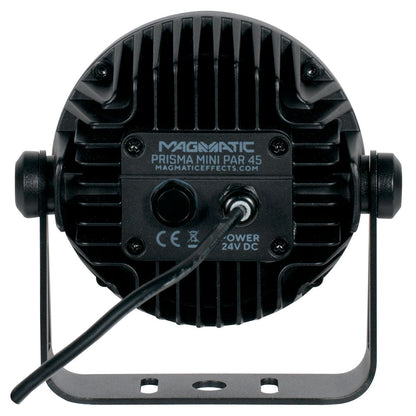

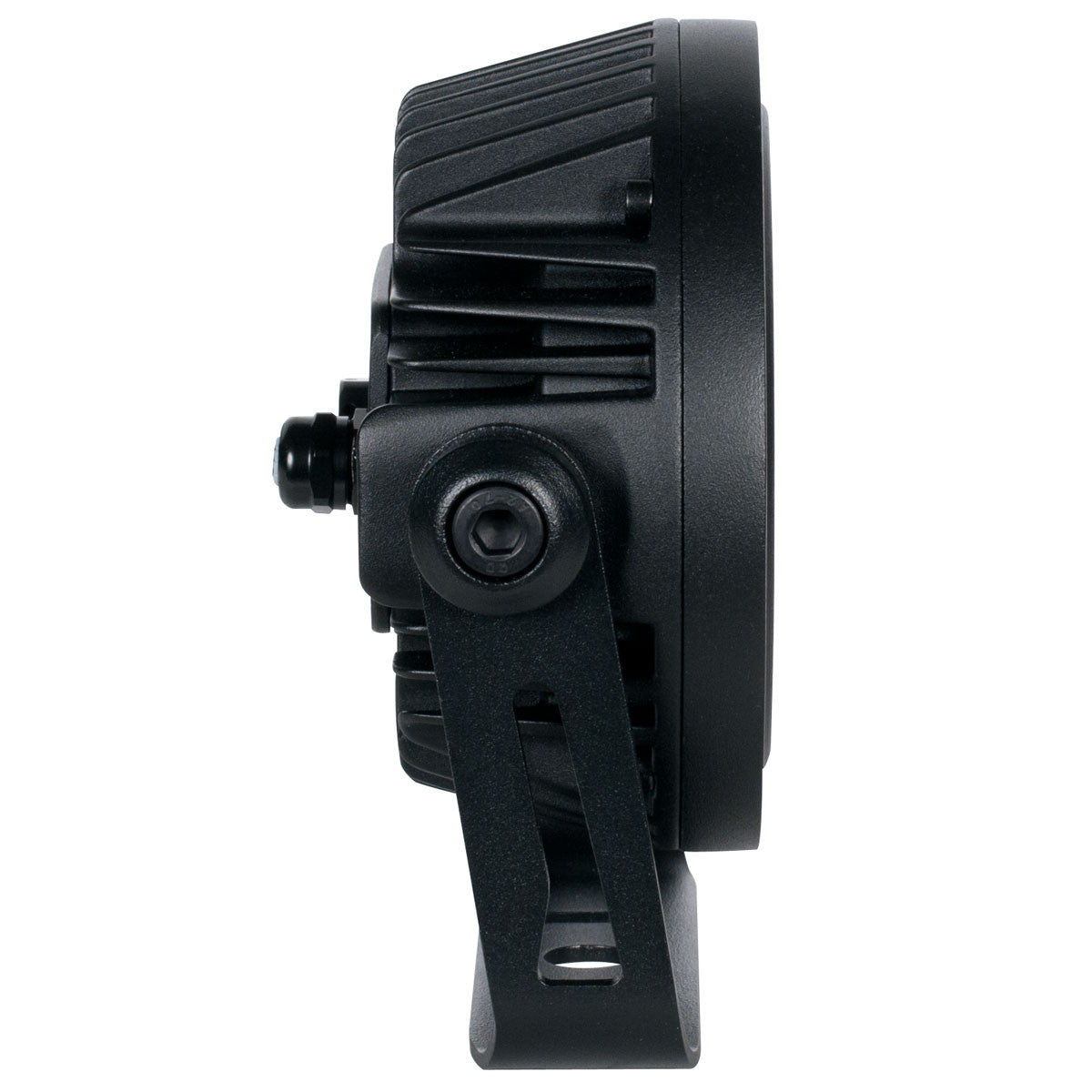

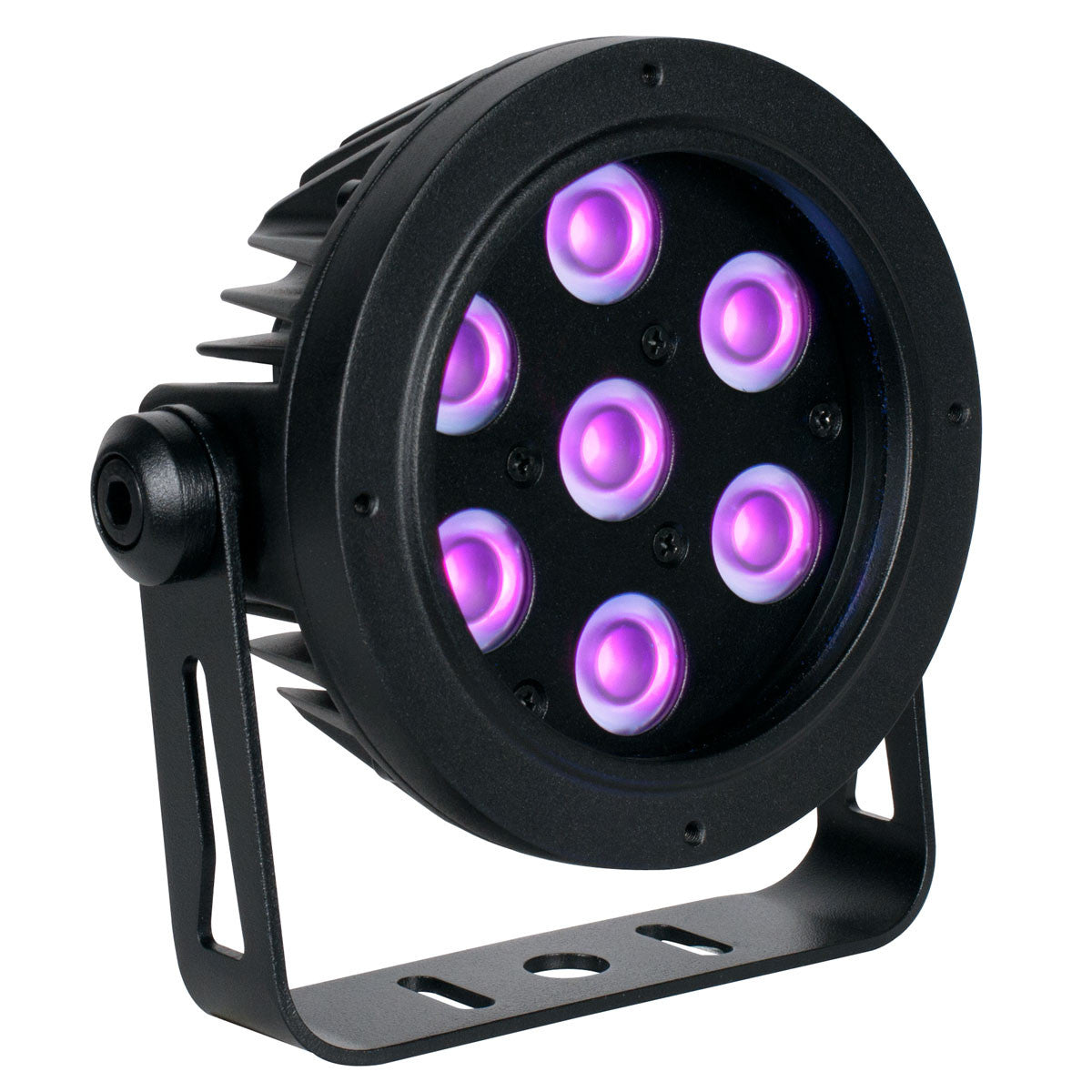

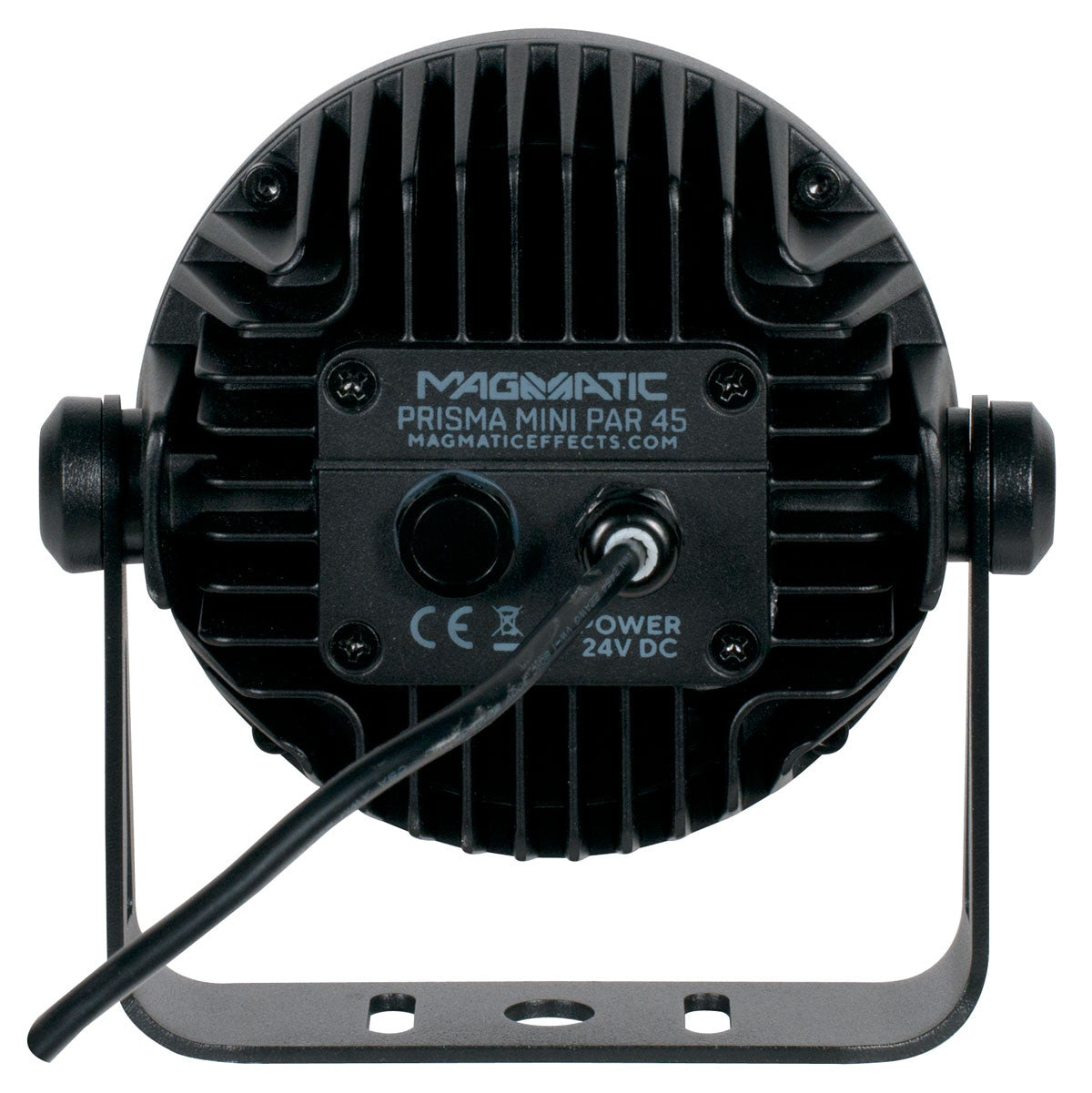

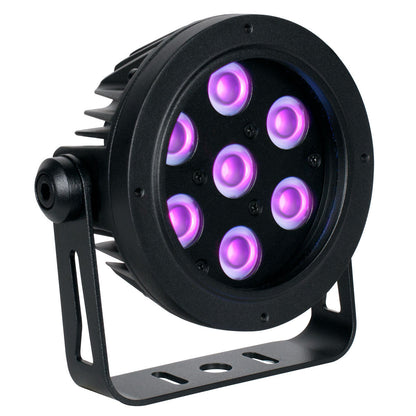

Elation Prisma Mini Par 45;10X2W 45° lens UV LED

Elation Prisma Mini Par 45;10X2W 45° lens UV LED

Features

• IP65 Rated Exterior High-Power UV Wash Par Luminaire
• 7x 2 Watt LEDS
• 19 Watt Max Power Consumption
• 9' 22 Gauge 2 Conductor wire with Phoenix connector
• 45 Degree Wide Beam Angle
• 365nm True UV Peak Wavelength
• Zero Visible Light Output

Specifications

• SOURCE
  • 7x 2W High Power UV Diode LEDs
  • 20,000 Hour Average LED Life*

• _{*Test lab conditions. May vary depending on several factors including but not limited to:}

  _{Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.}



• PHOTOMETRIC DATA
  • 45 Degree Wide Beam Angle
  • 365nm True UV Peak Wavelength
• EFFECTS
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes
• CONSTRUCTION
  • Rugged IP65 Rated Aluminum Housing
  • Adjustable Mounting Yoke
• CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
  • Multiple DMX Channel Modes
  • DMX-512 and RDM Protocol Support
• CONNECTIONS
  • 9' 22 AWG 2 Conductor wire with Phoenix connector
  • Minimum Cable Requirement: 22 AWG
  • Maximum Distance From Driver to Fixture: 40'
• SIZE / WEIGHT
  • Length: 5.66 in. (144mm)
  • Width: 2.86 in. (72.8mm)
  • Vertical Height: 5.64 in. (143.3mm)
  • Weight: 1.98 lbs. (0.9kg)
• ELECTRICAL
  • DC 25V (Via Pixel Driver 8)
  • 19 Watt Max Power Consumption
• THERMAL
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled
• APPROVALS / RATINGS
  • CE | cETLus | IP65
  • Specifications and documentation subject to change without notice.
