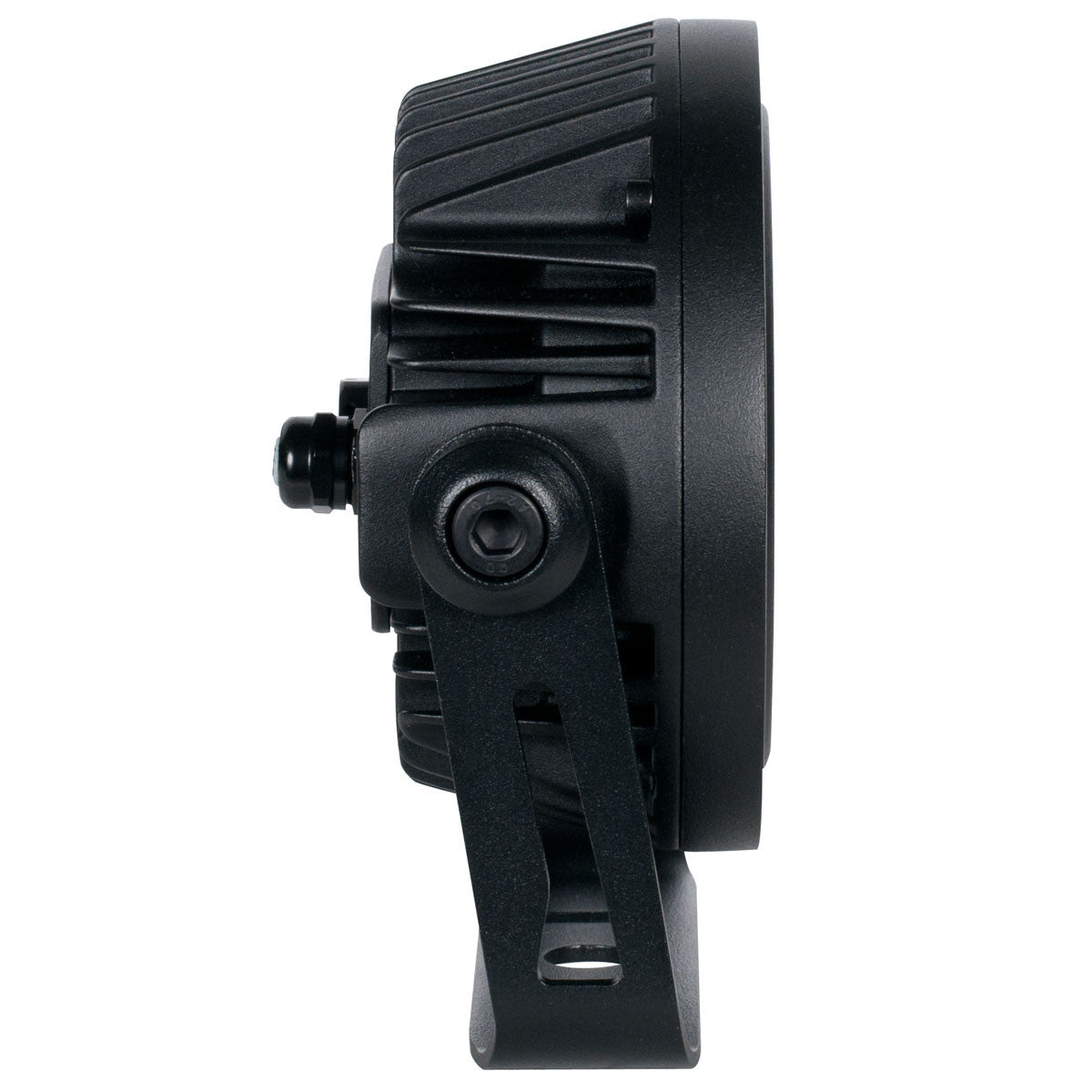

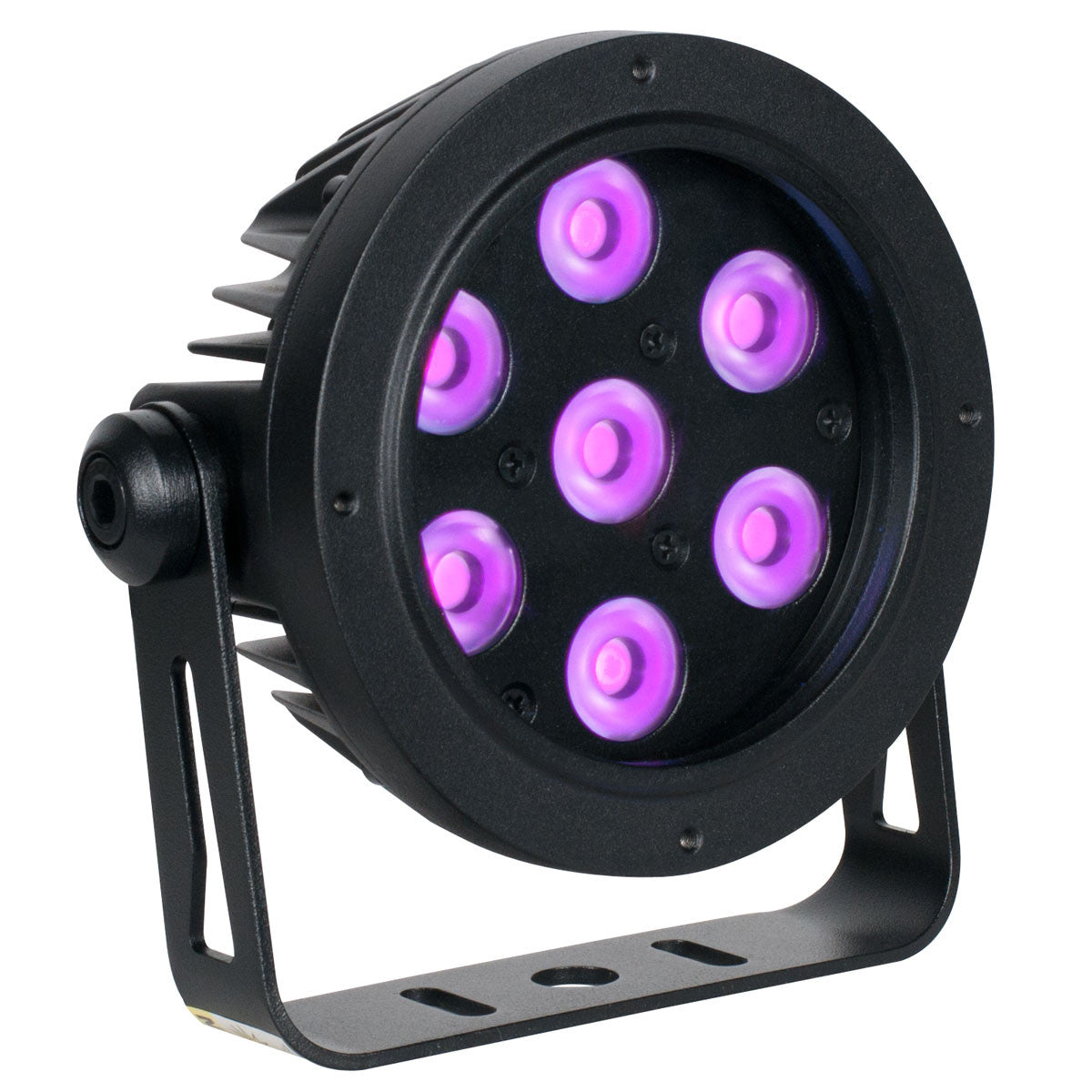

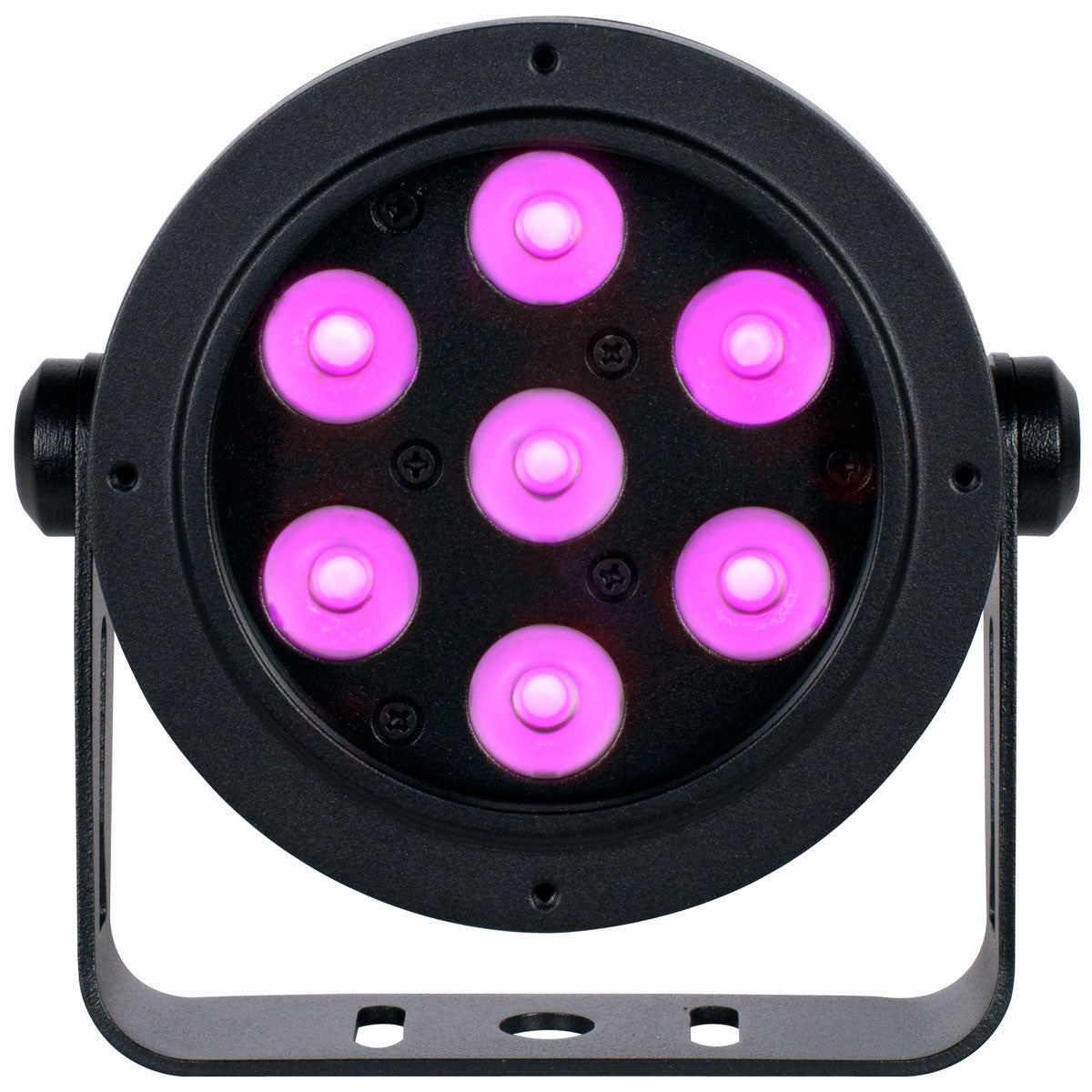

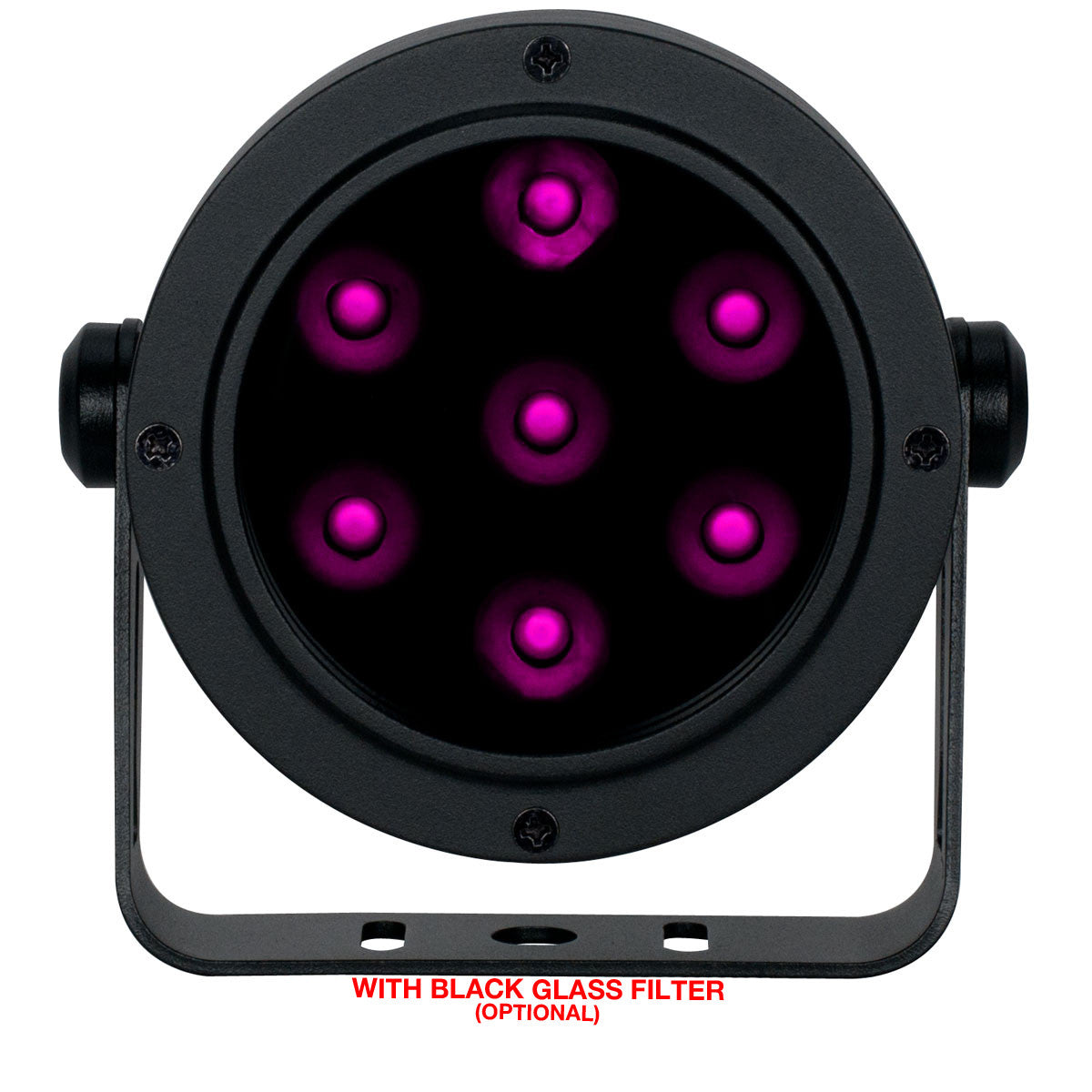

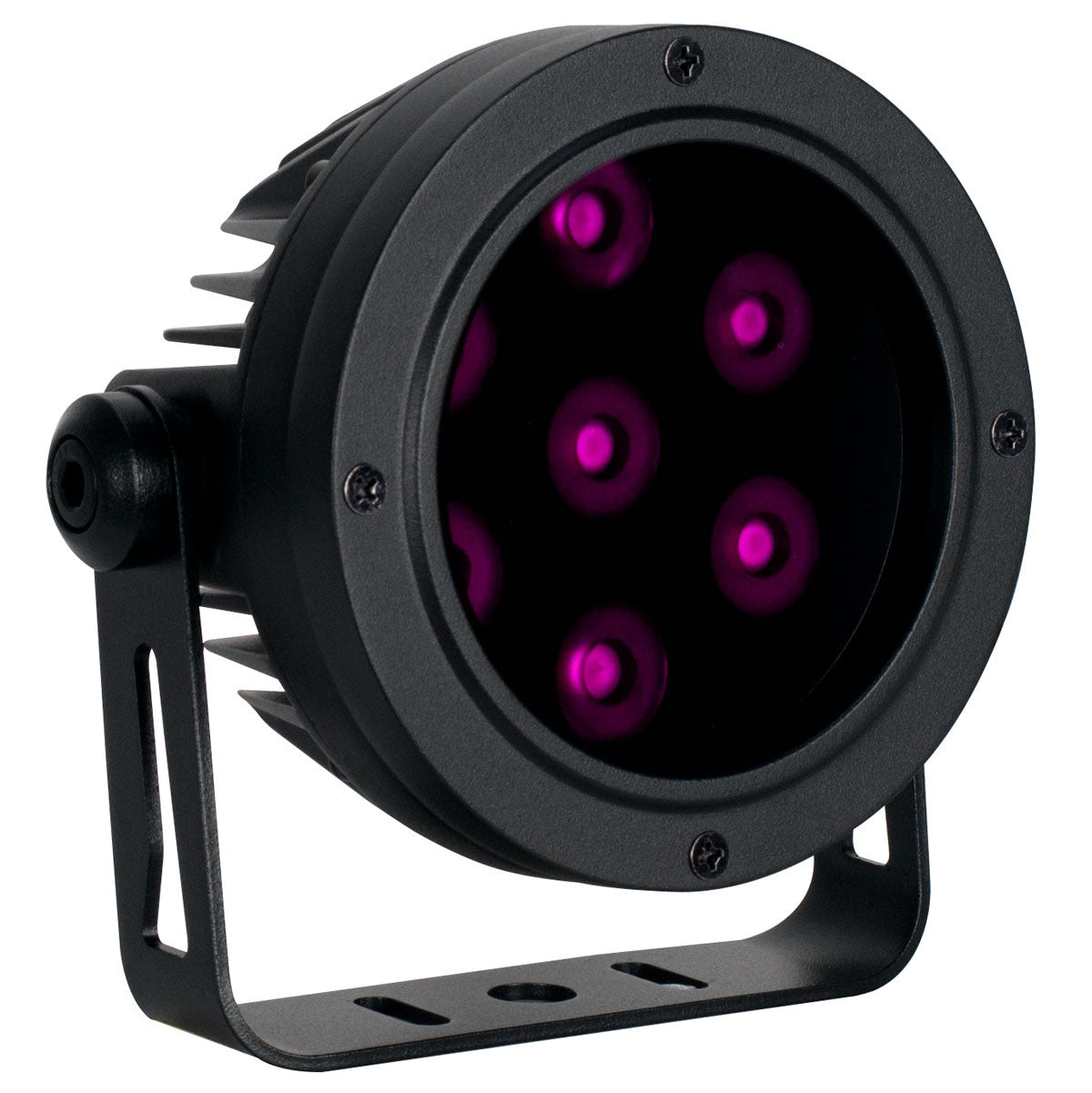

Elation Prisma Mini Par 20;10X2W 20° lens UV LED

Elation Prisma Mini Par 20;10X2W 20° lens UV LED

Features

• IP65 Rated Exterior High-Power UV Wash Par Luminaire

• 20 Degree Narrow Beam Angle
• 7x 2 Watt LEDS
• 365nm True UV Peak Wavelength
• 9' 22 Gauge 2 Conductor wire with Phoenix connector
• Zero Visible Light Output
• 19 Watt Max Power Consumption

Specifications

• SOURCE

  • 7x 2W High Power UV Diode LEDs

  • 20,000 Hour Average LED Life*

• _{*Test lab conditions. May vary depending on several factors including but not limited to:}

  • _{Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.}

• PHOTOMETRIC DATA
  • 20 Degree Narrow Beam Angle
  • 365nm True UV Peak Wavelength
• EFFECTS
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes
• CONSTRUCTION
  • Rugged IP65 Rated Aluminum Housing
  • Adjustable Mounting Yoke
• CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
  • Multiple DMX Channel Modes
  • DMX-512 and RDM Protocol Support
• CONNECTIONS
  • 9' 22 AWG 2 Conductor wire with Phoenix connector
  • Minimum Cable Requirement: 22 AWG
  • Maximum Distance From Driver to Fixture: 40'
• SIZE / WEIGHT
  • Length: 5.66 in. (144mm)
  • Width: 2.86 in. (72.8mm)
  • Vertical Height: 5.64 in. (143.3mm)
  • Weight: 1.98 lbs. (0.9kg)
• ELECTRICAL
  • DC 25V (Via Pixel Driver 8)
  • 19W Max Power Consumption
• THERMAL
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled
• APPROVALS / RATINGS
  • CE | cETLus | IP65
• Specifications and documentation subject to change without notice.
