Description

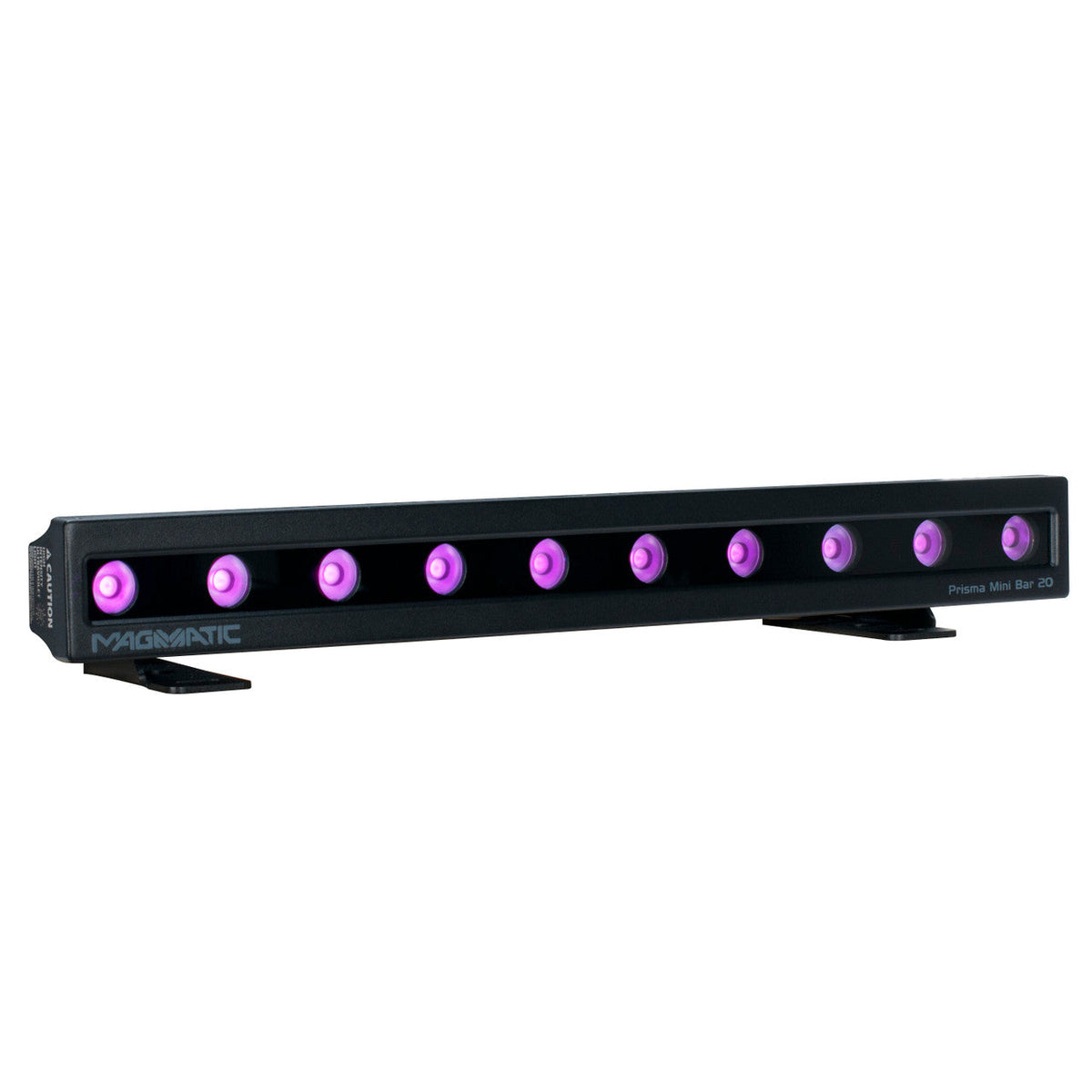

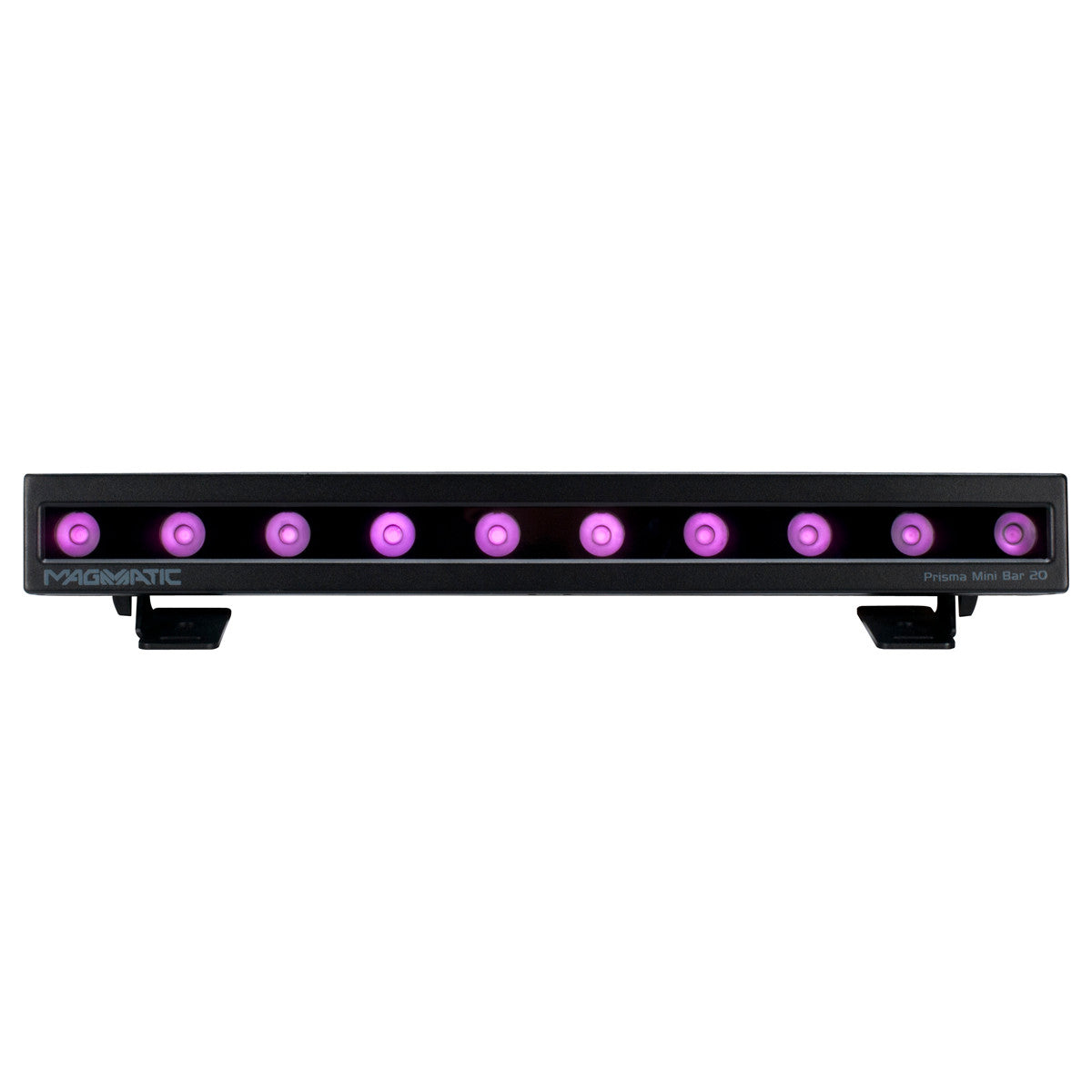

Elation Prisma Mini Bar 20; 10X2W 45° lens UV LE
PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included'
Features
- IP65 Rated Exterior High-Power UV Wash Bar Luminaire
- 10x 2 Watt LEDS
- 36.7 Volts
- 24.3W Max Power Consumption
- 20 Degree Narrow Beam Angle
- 19' 22 Gauge 2 Conductor wire with Phoenix connector
- Zero Visible Light Output
Specifications
-
SOURCE
- (10) 2W High Power UV Diode LEDs
- 20,000 Hour Average LED Life*
-
*Test lab conditions. May vary depending on several factors including but not limited to:
-
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
-
PHOTOMETRIC DATA
- 20 Degree Narrow Beam Angle
- 365nm True UV Peak Wavelength
-
EFFECTS
- High Speed Electronic Strobe
- Variable Dimming Curve Modes
-
CONSTRUCTION
- Rugged IP65 Rated Aluminum Housing

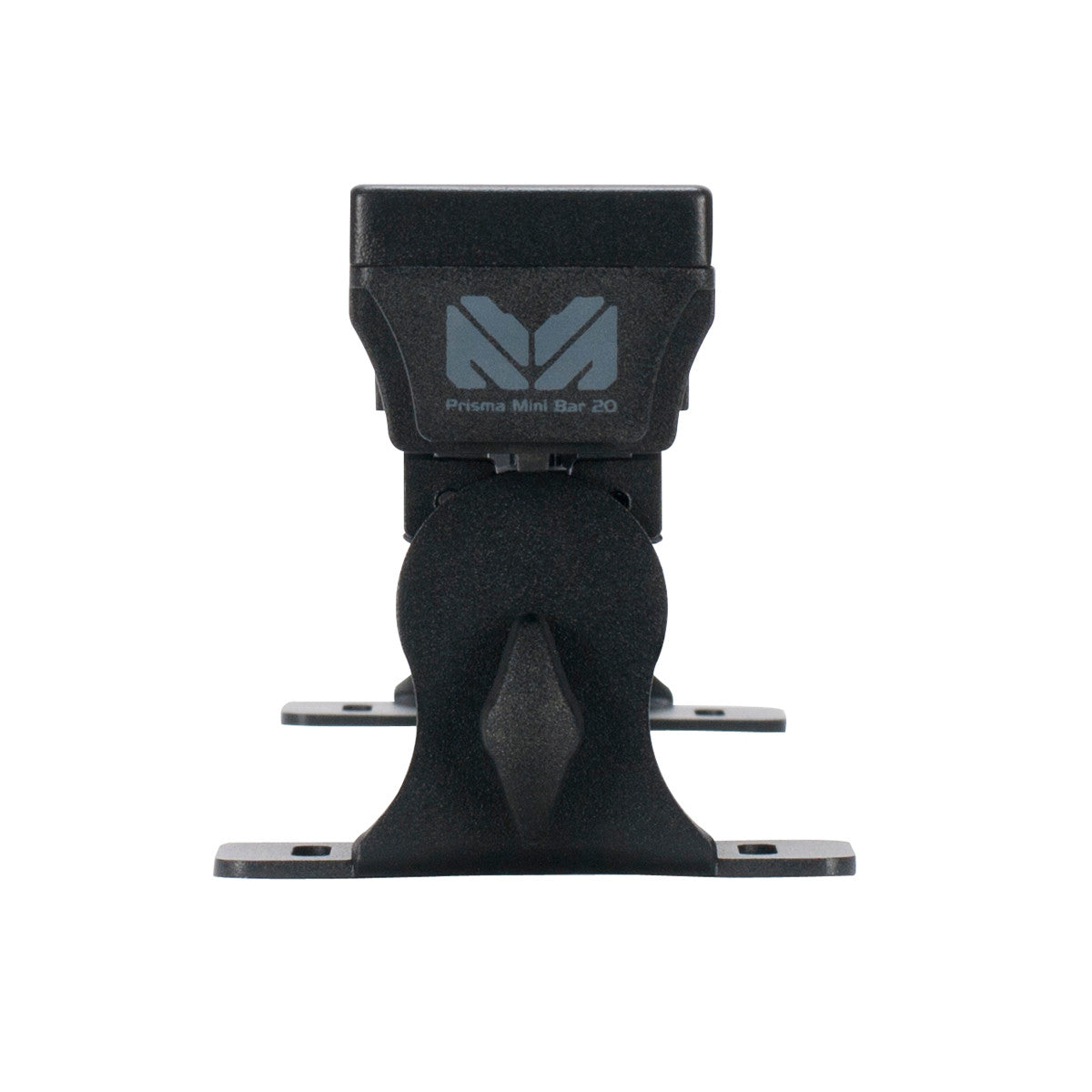

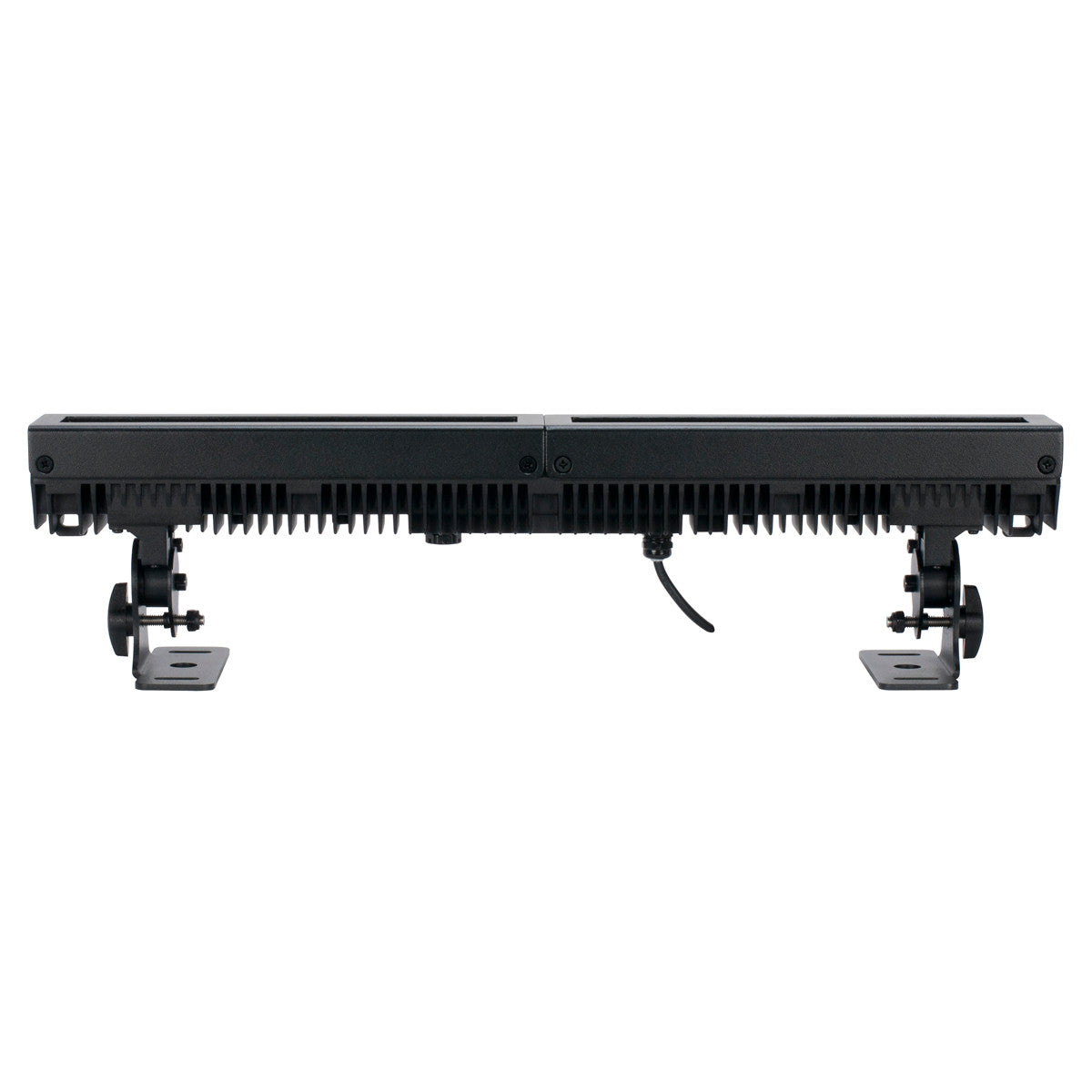

- Adjustable Mounting Brackets (x2)
-
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
- Multiple DMX Channel Modes
- DMX-512 and RDM Protocol Support
-
CONNECTIONS
- 19' 22 AWG 2 Conductor wire with Phoenix connector
- Minimum Cable Requirement: 22 AWG
- Maximum Distance From Driver to Fixture: 40'
-
SIZE / WEIGHT
- Length: 3.97 in. (100mm)
- Width: 18.9 in. (480mm)
- Vertical Height: 4.19 in. (106.5mm)
- Weight: 4.2 lbs. (1.90kg)
-
ELECTRICAL
- DC 36.7V (Via Pixel Driver 8)
- 24.3W Max Power Consumption
-
THERMAL
- 14°F to 113°F (-10°C to 45°C)

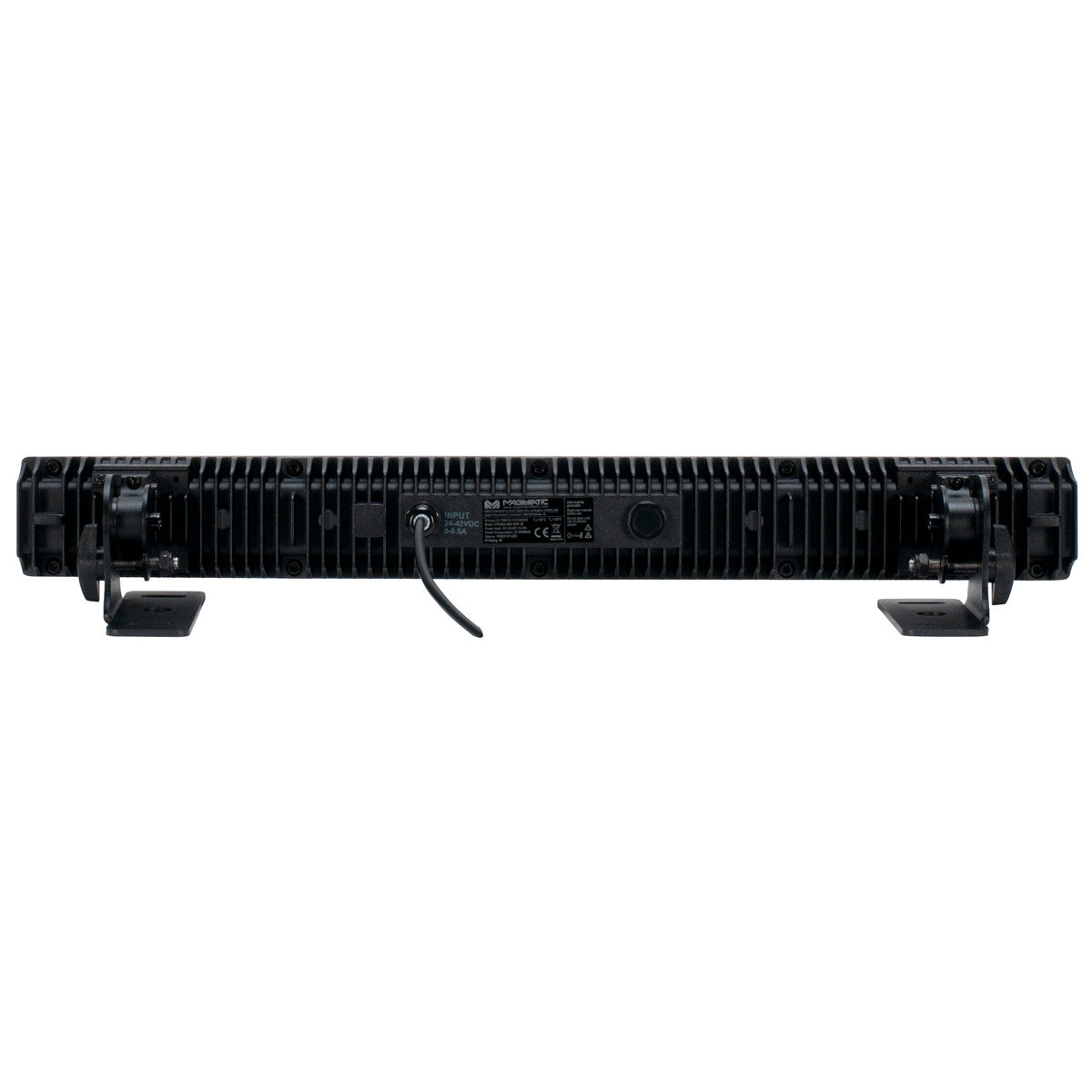

- Air Cooled
-
APPROVALS / RATINGS
- Specifications and documentation subject to change without notice.
