Description
Elation Prisma Driver 8 Prisma Driver 8; 300W UV LED power and driver
PRISMA DRIVER 8™ is an easy to use 48VDC driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™, and the PRISMA MINI BAR 20™.
Features include a rugged aluminum housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 2pin bare wire terminal blocks, DMX 5pin locking XLR in/out, and locking power in/out.
- 48VDC Power Driver for up to 8 PRISMA MINI UV LED Fixtures
- 2pin Bare Wire Block Terminal Connections (x8)
- DMX-512 and Manual Control
Specifications
-
CONSTRUCTION
- Rugged Aluminum Housing

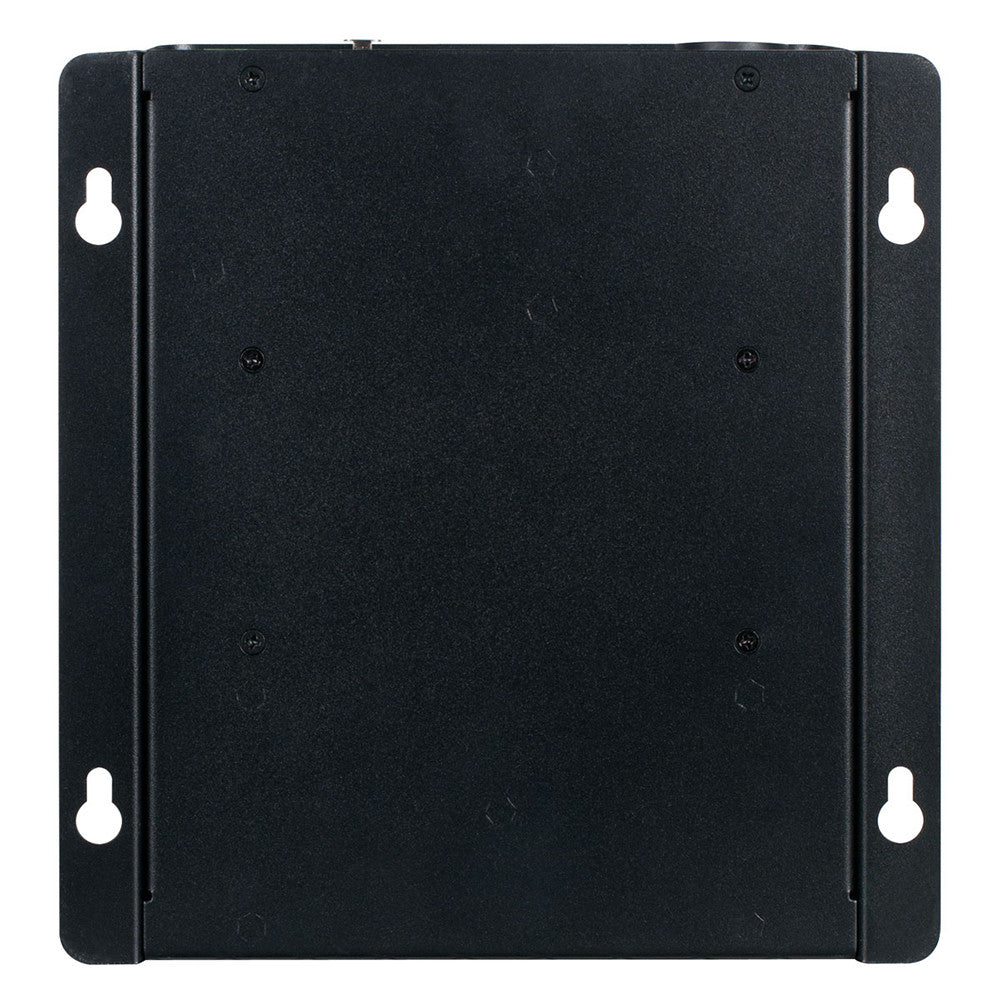

- Easy Keyhole Slots for Wall/Surface Mounting
-
CONTROL
- Multiple DMX Channel Modes

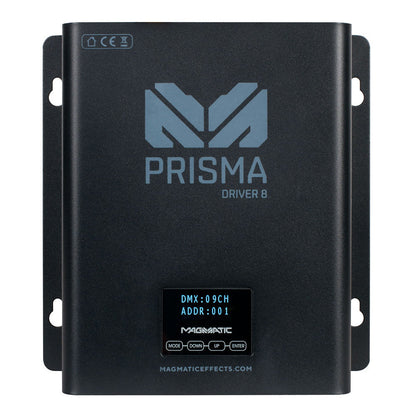

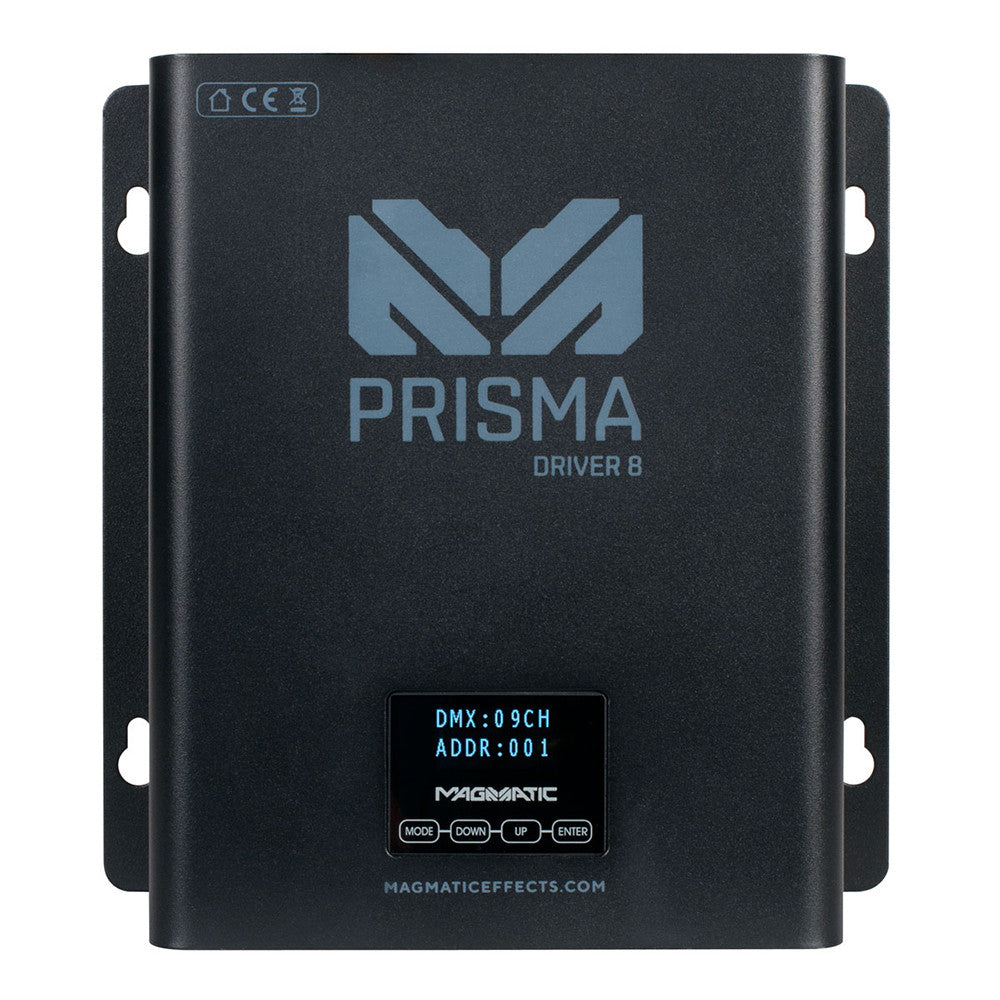

- Onboard 4 Button Touch Control Panel
- DMX-512 and RDM Protocol Support
-

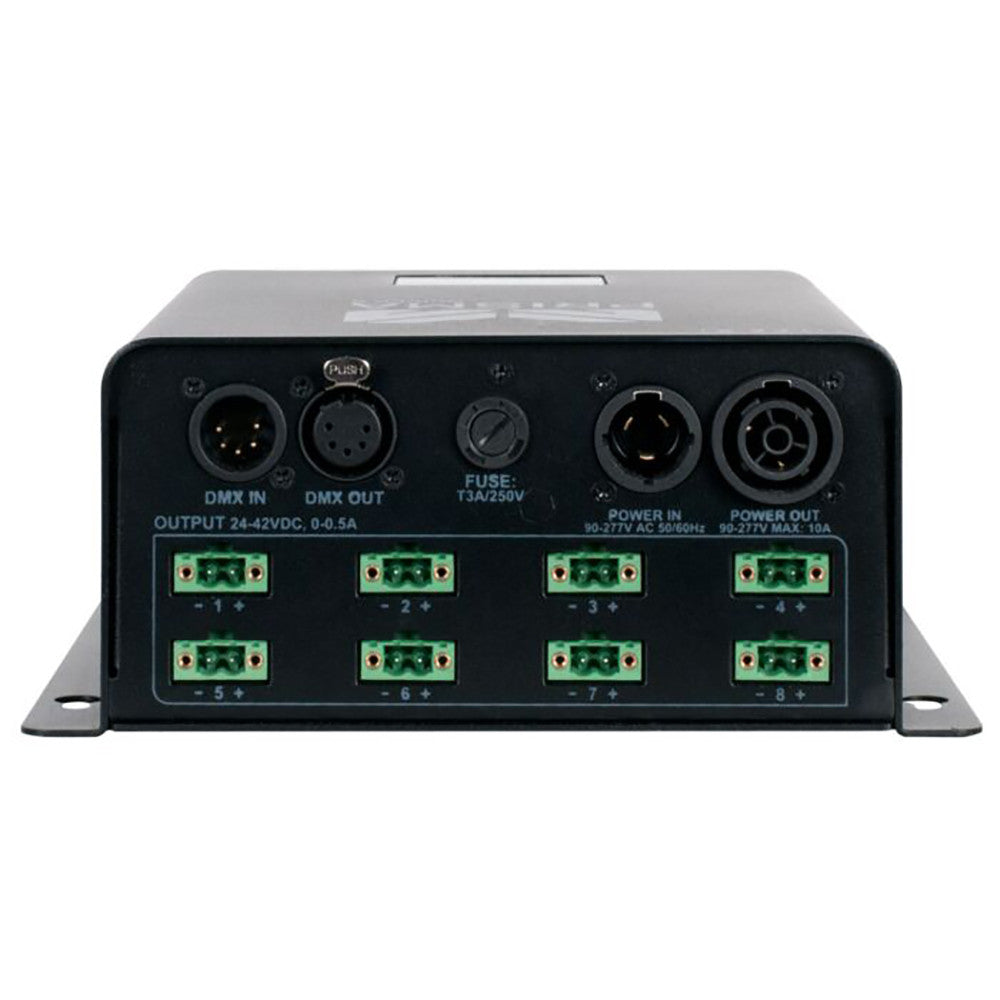

CONNECTIONS
- 8x 2pin Bare Wire Block Terminals (8 PRISMA MINI fixtures max)
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out
- With Wired Digital Communication Network
-
SIZE / WEIGHT
- Length: 8.9 in. (225mm)
- Width: 8.4 in. (212mm)
- Vertical Height: 3.5 in. (88mm)
- Weight: 5.7 lbs. (2.6 kg)
-
ELECTRICAL
- AC100-240V 50-60Hz
- 48VDC 8.3A
- 167W Max Power Consumption
-
THERMAL
- Maximum Temperature (Ambient): 113° F (45° C)
- Minimum Temperature (Ambient): 14° F (-10° C)
-
APPROVALS / RATINGS
- CE | cETLus | IP20
- Specifications and documentation subject to change without notice.
