Description

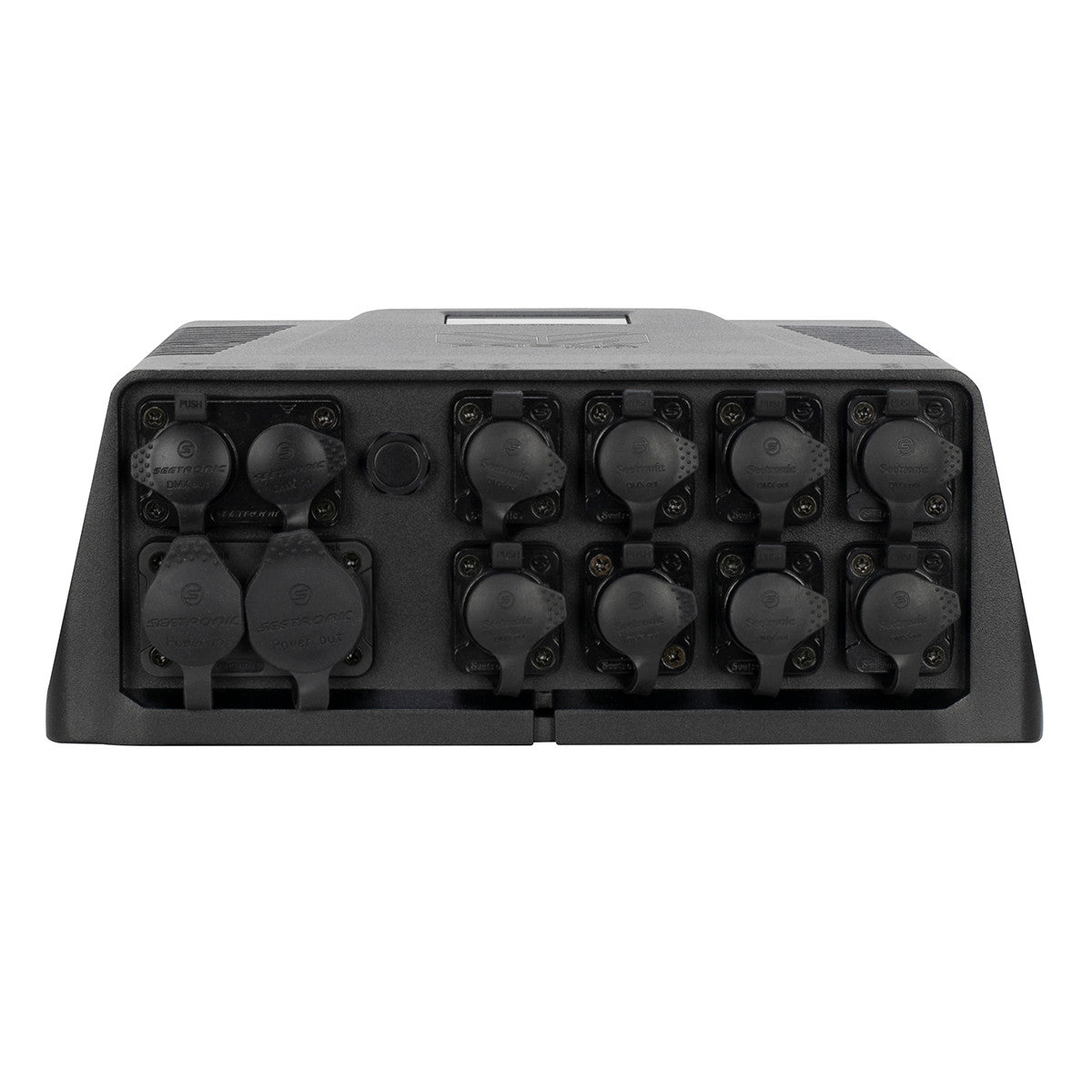

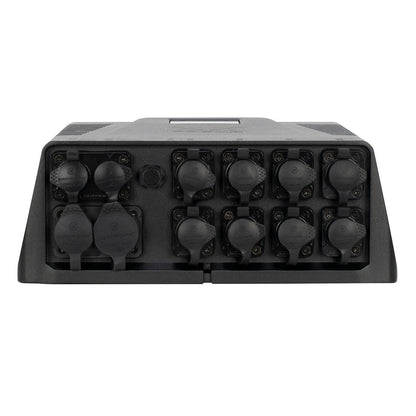

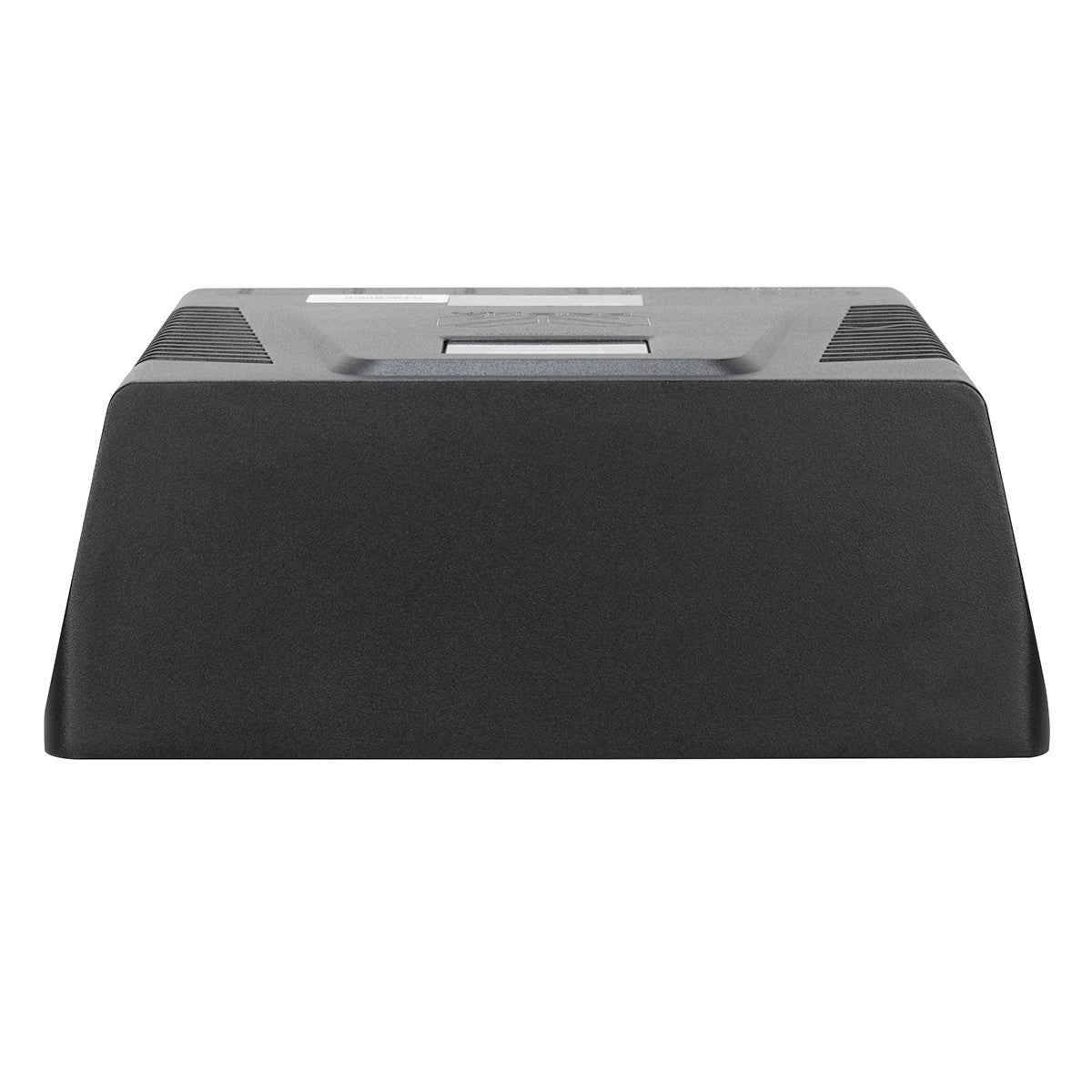

Elation PRISMA DRIVER 8 IP
PRISMA DRIVER 8IP™ is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™ and the PRISMA MINI BAR 20™, and comes with 8x 4pin Connection Kits
Features include a rugged IP65 housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 4pin locking output sockets, DMX 5pin locking XLR in/out and locking power in/out. The Prisma Driver 8IP also comes with 8x 4pin Connection Kits included in the box.
Specifications
-
CONSTRUCTION

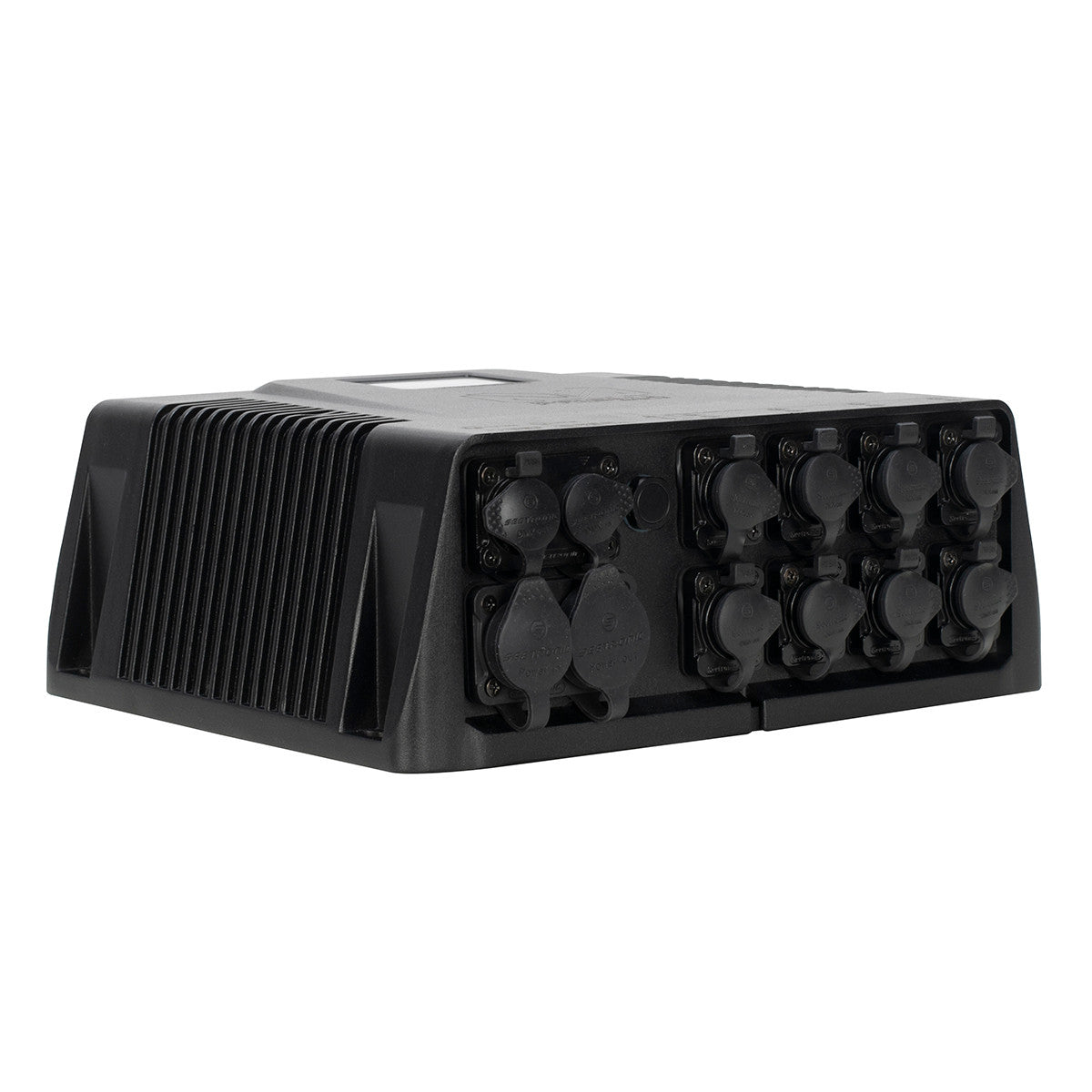

- Rugged IP65 Housing

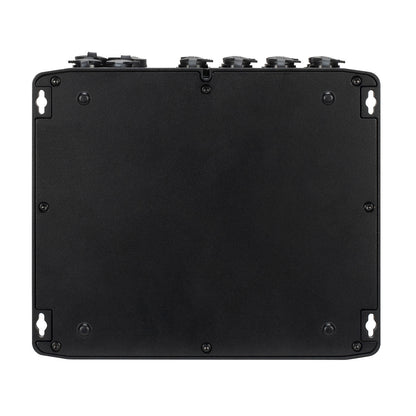

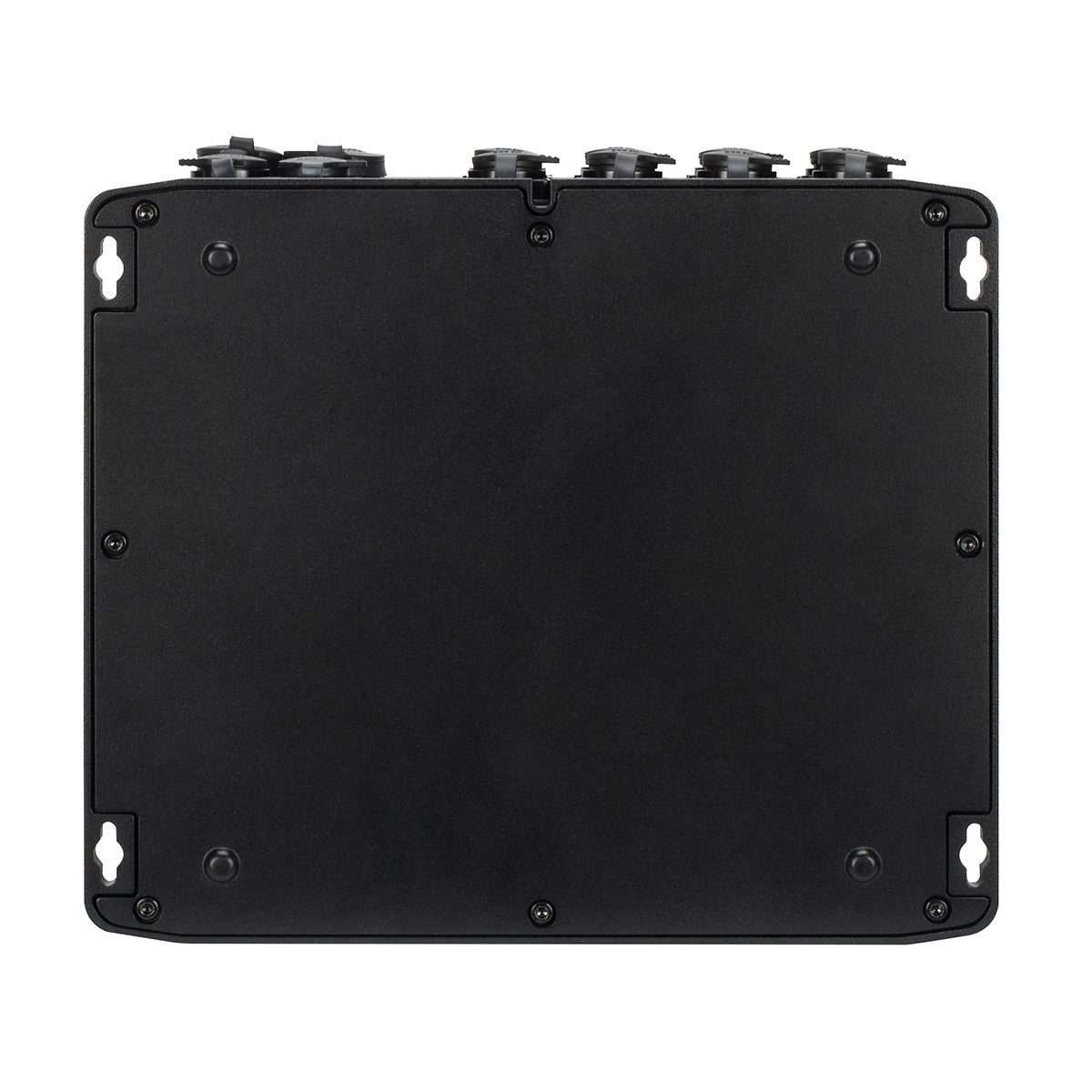

- Easy Keyhole Slots for Wall/Surface Mounting
-
CONTROL
- Multiple DMX Channel Modes

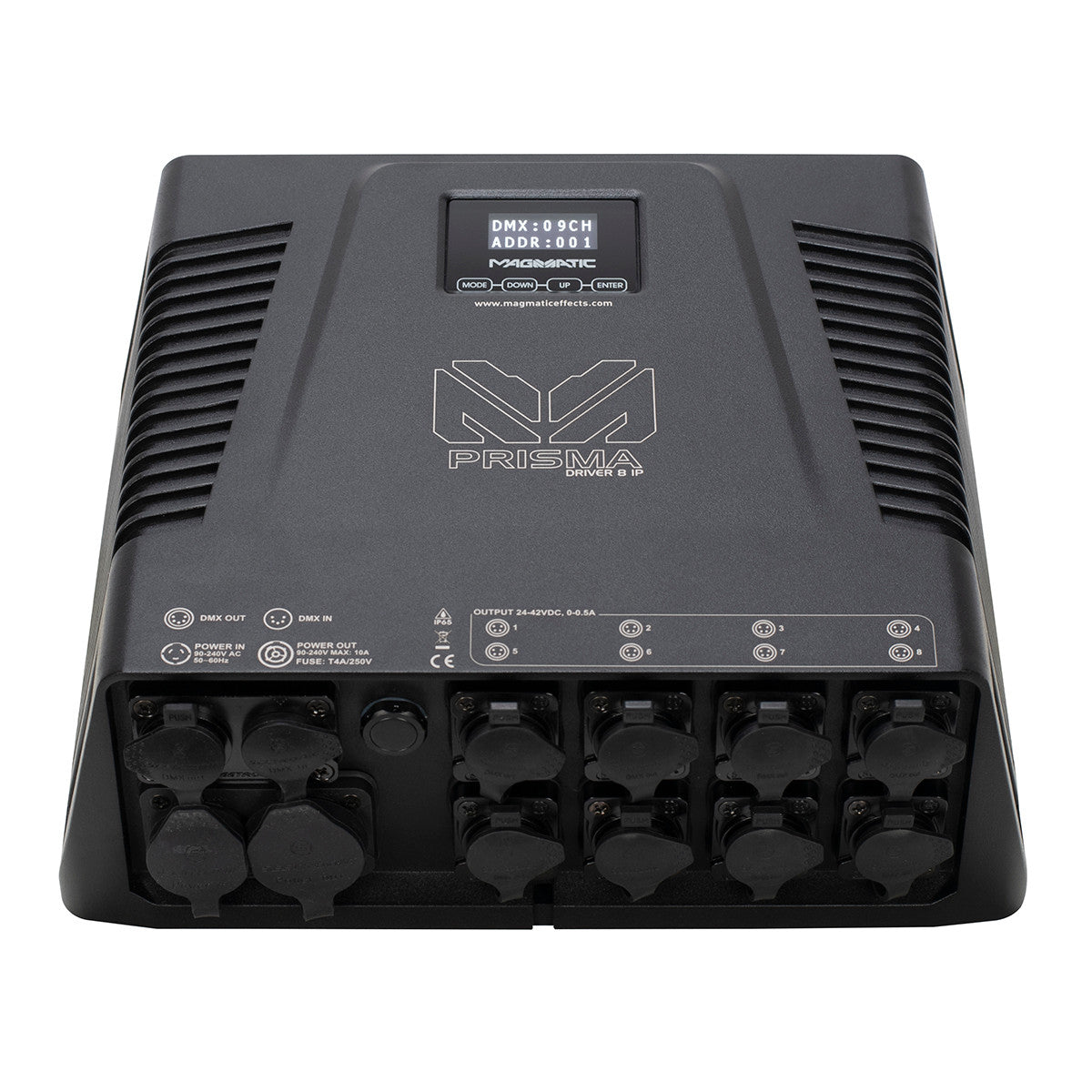

- Onboard 4 Button Touch Control Panel
- DMX-512 and RDM Protocol Support
-
CONNECTIONS

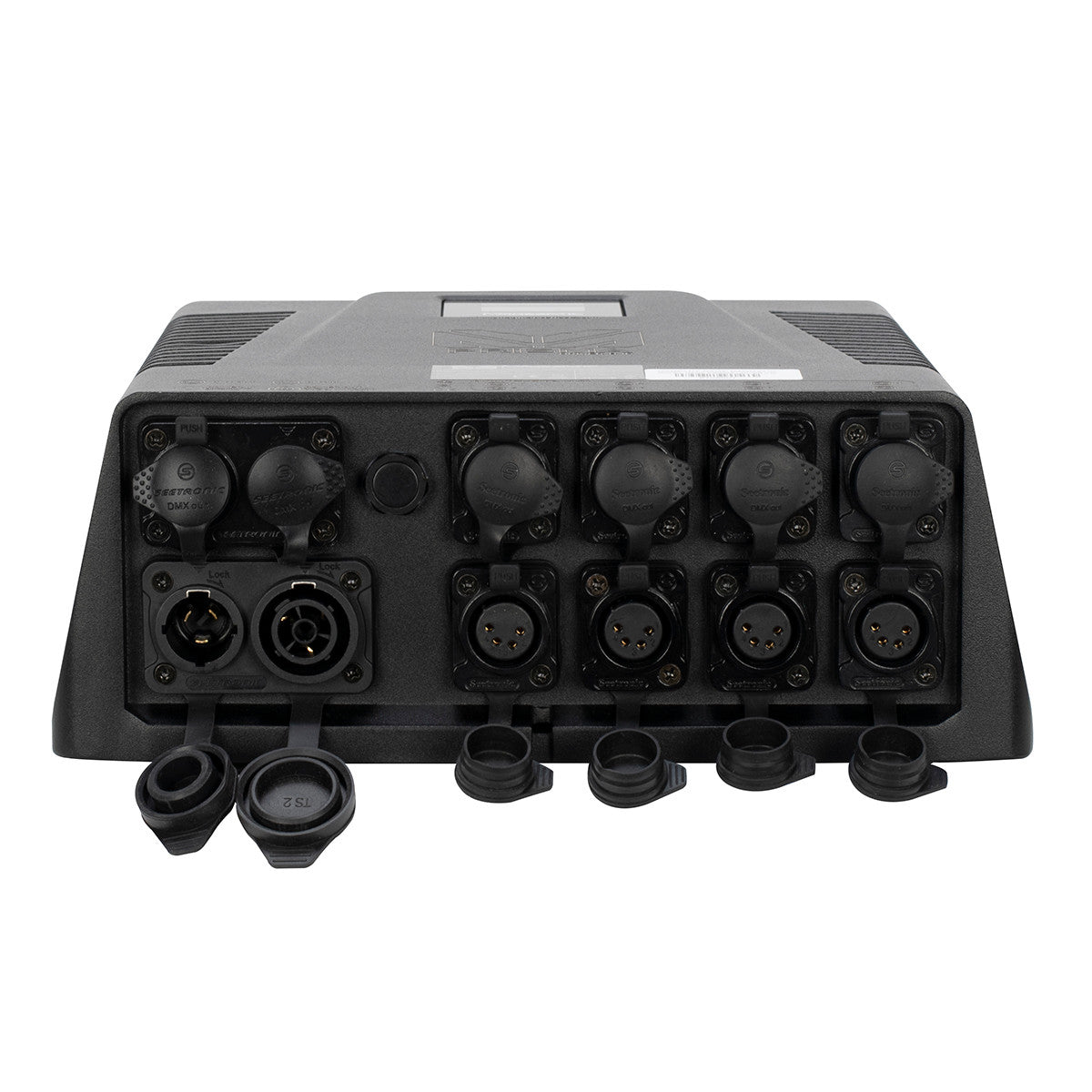

- 8x 4pin locking output sockets (8 PRISMA MINI fixtures max)

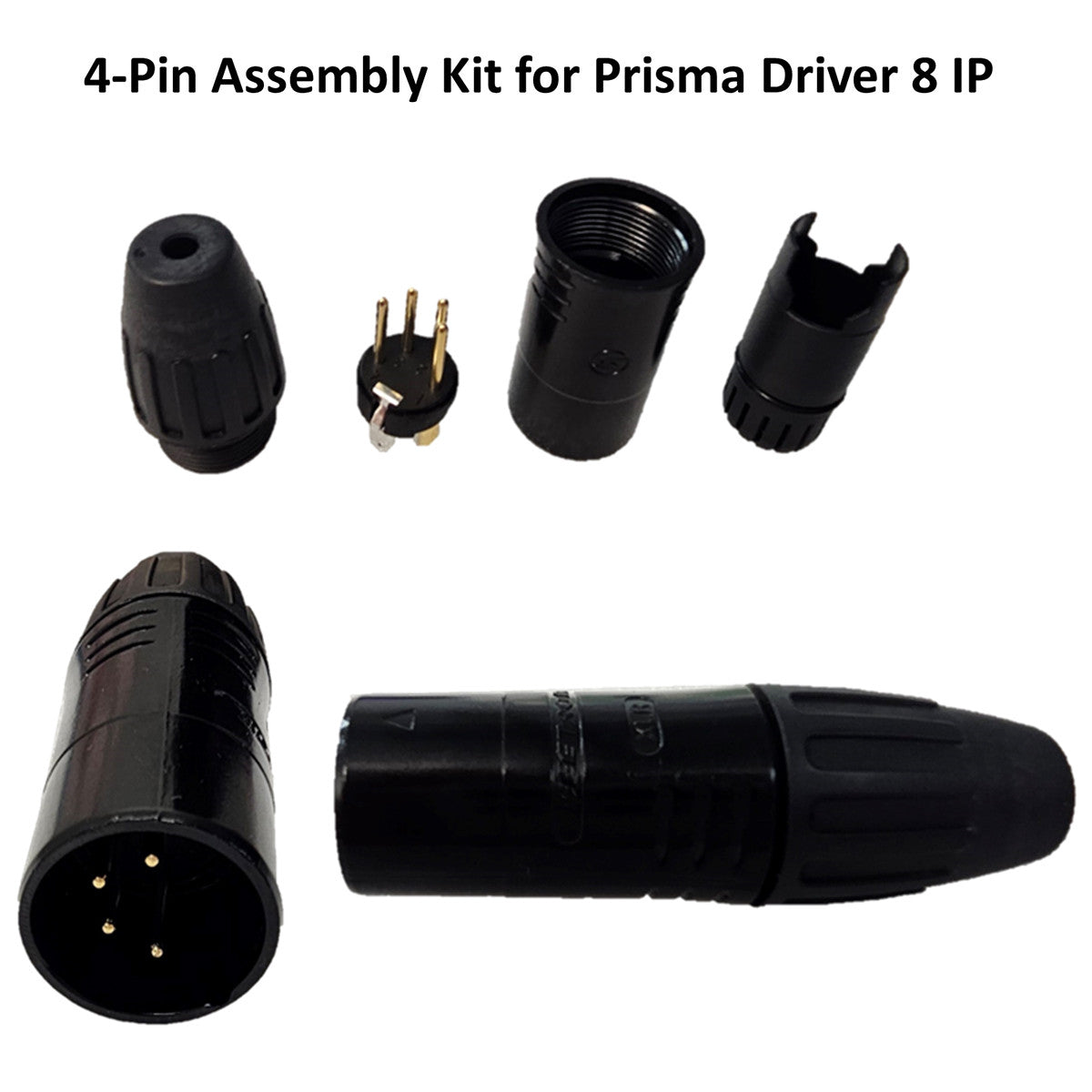

- "Includes 8x 4pin Connection Kits"

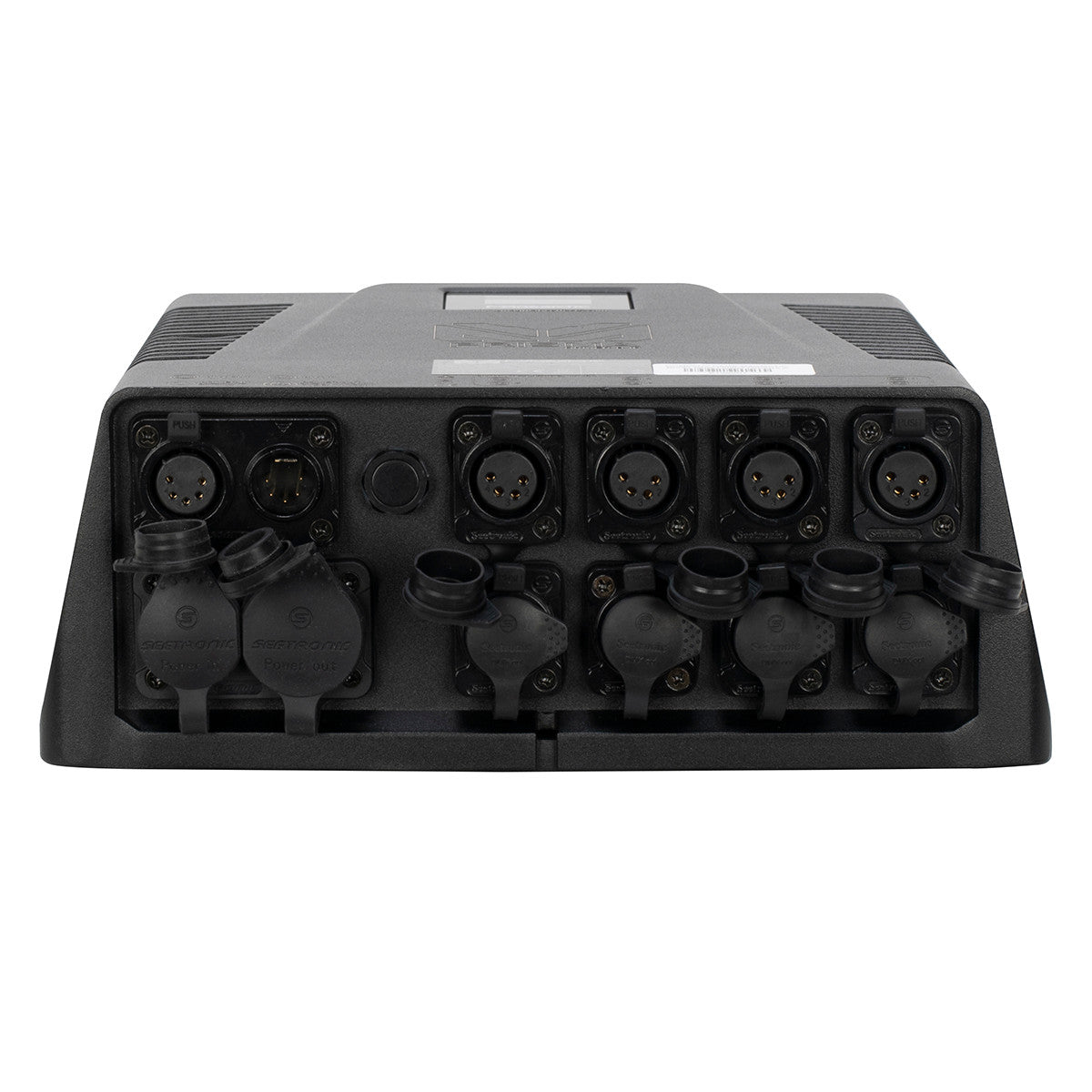

- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out
- With Wired Digital Communication Network
-
SIZE / WEIGHT
- Length: 9.0 in. (227.8mm)
- Width: 10.4 in. (264mm)
- Height: 4.2 in. (105.9mm)
- Weight: 8.05 lbs. (3.65 kg)
-
ELECTRICAL
- AC90-240V, 50-60Hz
- 48VDC 8.3A
- 167W Max Power Consumption
-
THERMAL
- Maximum Temperature (Ambient): 113° F (45° C)
- Minimum Temperature (Ambient): 14° F (-10° C)
- APPROVALS / RATINGS
- CE | cETLus (Control #4010765) | IP65 (Temporary outdoor use only)
-
OPTIONAL ACCESSORIES
- STR501, STR514, STR527
- PIXEL BC2, PIXEL BC3, PIXEL BC5
- SIP064, SIP113, SIP126
- SIP1MPC10, SIP1MPC15, SIP1MPC25
- additional lengths available
- Specifications and documentation subject to change without notice.
