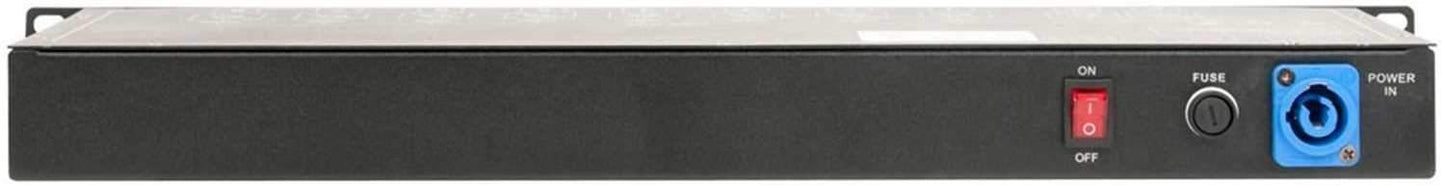

Elation Opto Branch 8 8-Way DMX Distributor
The Opto Branch is an 8-way 5-pin DMX opto isolator and distributor.
Features:- 8 Way DMX data splitter
- Fully DMX-512 (1990) compliant
- Buffers and distributes DMX data reliably
- DMX status indicator
- 5 pin Neutrik XLR input and passive loop through
- 8, 5 pin Neutrik XLR, isolated outputs
- Input is isolated from all outputs
- All outputs are isolated from each other
- Power: Auto Switching, 100-240V 50/60Hz
- Powercon, power input
- On/Off power switch
- 1U 19" rack mount
- Dimensions (L x W x H): 19" x 1.75" x 5.71" (482.5 x 44.5 x 145mm)
- Weight: 4.4lbs (2kg)
