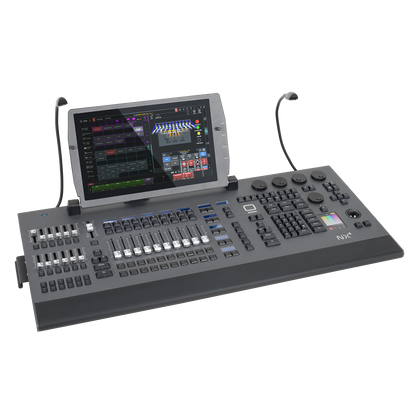

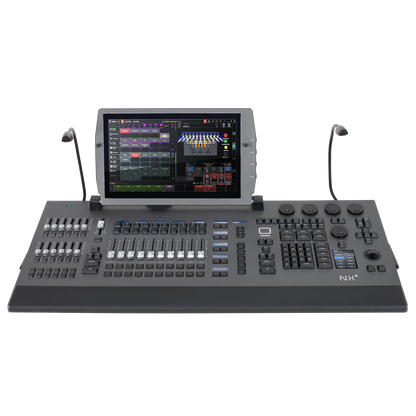

Elation NX4 NX4; 64U Console, 10 Motorfader, 4xDMX

Elation NX4 NX4; 64U Console, 10 Motorfader, 4xDMX

Adjustable 15.6” Full HD multi touch screen, 2x external 4K Touch Displays
44 playbacks (10 Motorized, 12 Sub, 22 Playback Executors)
9 Encoders, Keypad, Trackball, 14 Function keys, assistive 3.5" touchscreen
64 Universe integrated processing
Network, DMX, Timecode and Midi Connectivity
CAPTURE Duet Edition License

Features

• Adjustable 15.6” Full HD multi-touch screen, 2x external 4K Touch Displays
• 44 playbacks (10 Motorized, 12 Sub, 22 Playback Executors)
• 9 Encoders, Keypad, Trackball, 14 Function keys, assistive 3.5" touchscreen
• ONYX License (64 Universes)
• Fully integrated processing
• Network, DMX, Timecode, and Midi Connectivity
• CAPTURE Duet Edition License

Specifications

• Surface
  • 10x 60 mm motorized playback faders, each with 4x function-assignable buttons, digital backlit labels
  • 12x 45mm Sub Playback Fader with Flash keys
  • 22x Playback Executors
  • 14x customizable multi-function keys
  • Playback Select button
  • 2x Master Go section with Go, Pause, Snap and Release
  • 4x digital rotary encoders with push function and status LED for fixture parameter control
  • 4x screen mounted digital rotary encoders with push
  • 1x digital intensity Encoder with push
  • 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
  • 1x 60mm Grandmaster with Flash/DBO
  • Blind/HighLight/Last/Next buttons
  • Full numerical keypad and command keys
  • Industrial Trackball
• Hardware
  • Industrial 15.6" TFT 16:9 touchscreen (1920x1080px)
  • 250 GB NVMe M.2 storage drive
  • Industrial motherboard with Intel i5 Hexa-Core CPU
  • Quiet thermal design using advanced copper heat pipe coolers
  • 16 GB DDR4 RAM
  • Integrated graphics processor
  • Windows 10 IoT Embedded Operating System
  • OS installation by USB 3.0 storage device
  • Supports Windows USB touchscreens

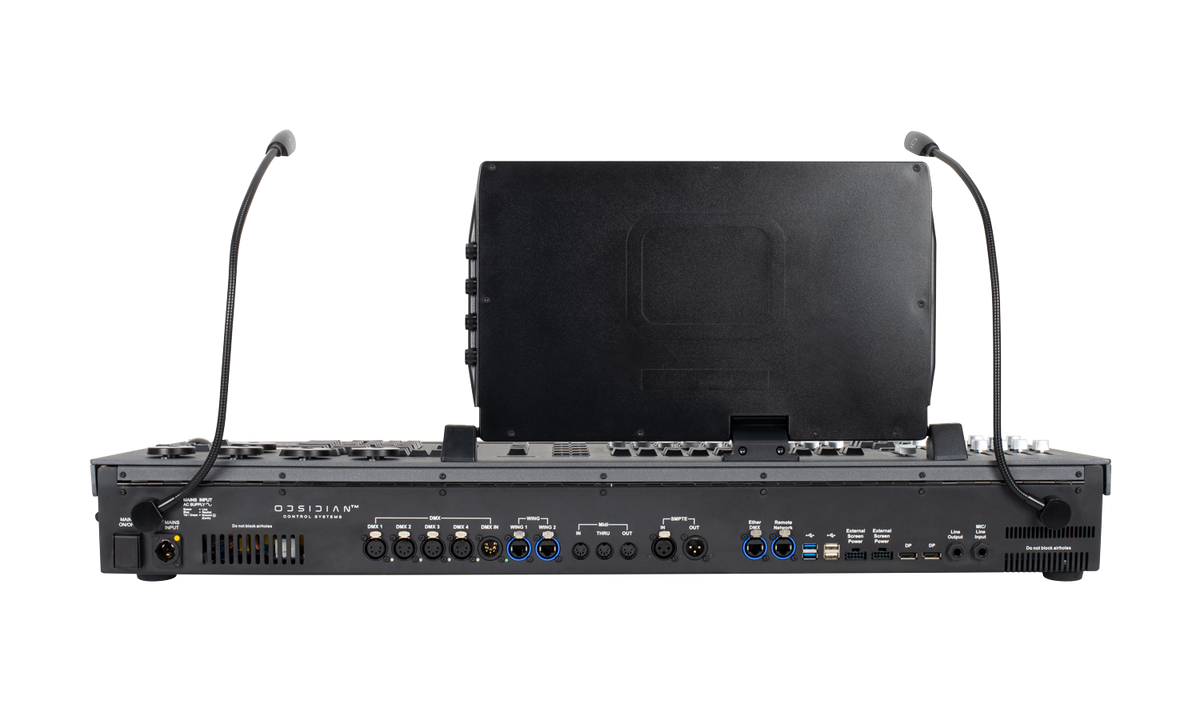

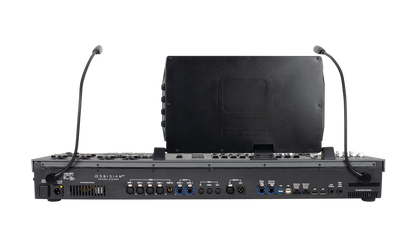

• Connections
  • 4x DMX / RDM Universe In/Out: 5pin locking XLR
  • External Display: 2x DisplayPort (up to 4k)
  • External Display Power: 12V, 2x Molex 8pin
  • Network: 2x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
  • Storage and Peripherals: 3x USB 3.0, 3x USB 2.0
  • Audio Out, Mic In: 2x 6.3mm Jack
  • MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI timecode): 5pin DIN
  • SMPTE Timecode In/Out: 3pin XLR
  • Locking Power In
  • Desk Lamp: 2x RGB LED, integrated
• Physical
  • Length: 431 mm (16.9 in.)
  • Width: 928 mm (36.5 in.)
  • Height: 149mm (5.8 in.)
  • Weight: 16.4 kg (36.1 lbs.)
• Electrical
  • 100-240 V nominal, 50/60 Hz, 140W
• Included Items
  • ONYX NX4 Console
  • 2x Integrated RGB Desk Lamp
  • Dust Cover
  • 1.5 m power cable (EU or US version)
  • USB 3.0 Recovery stick
