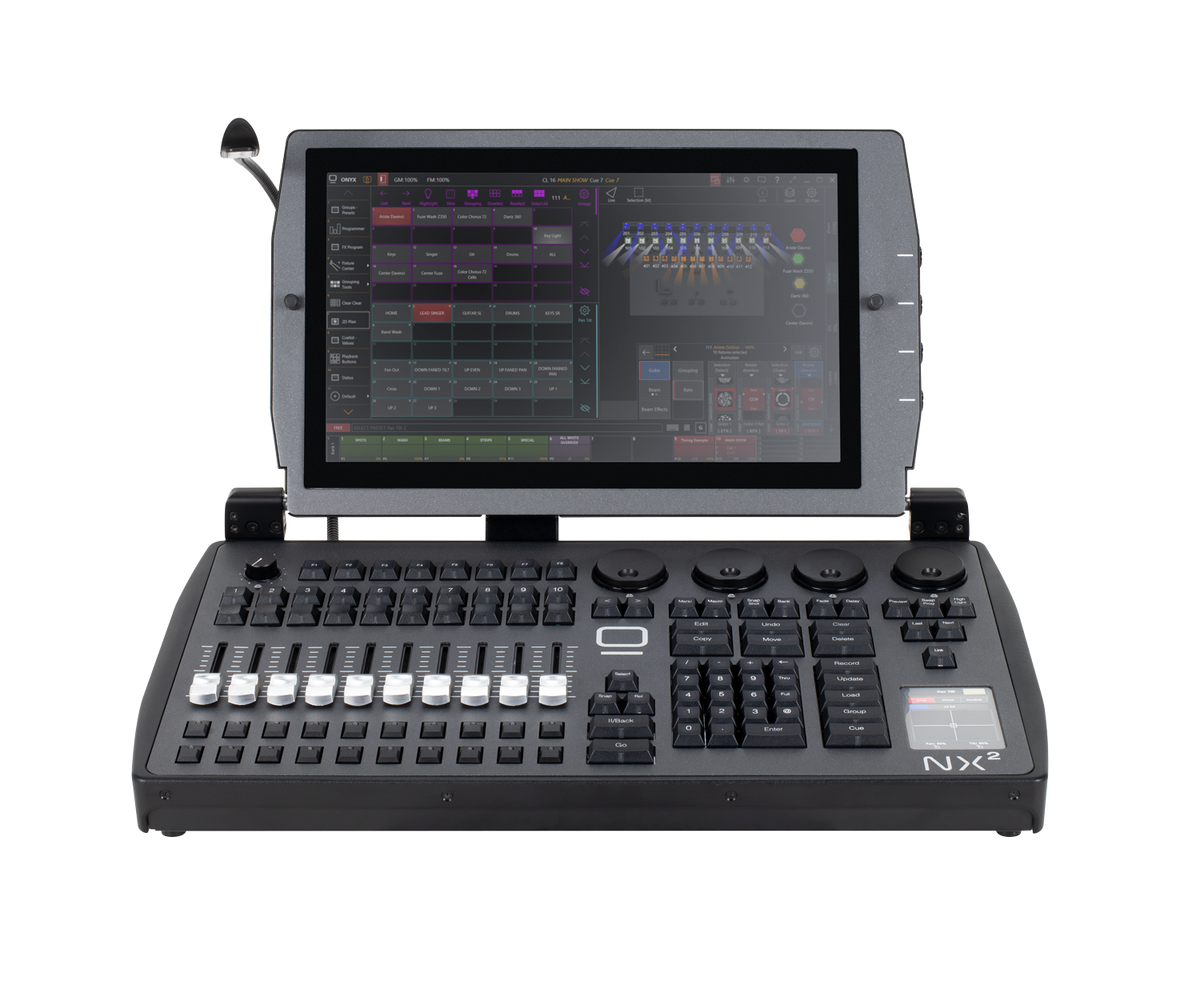

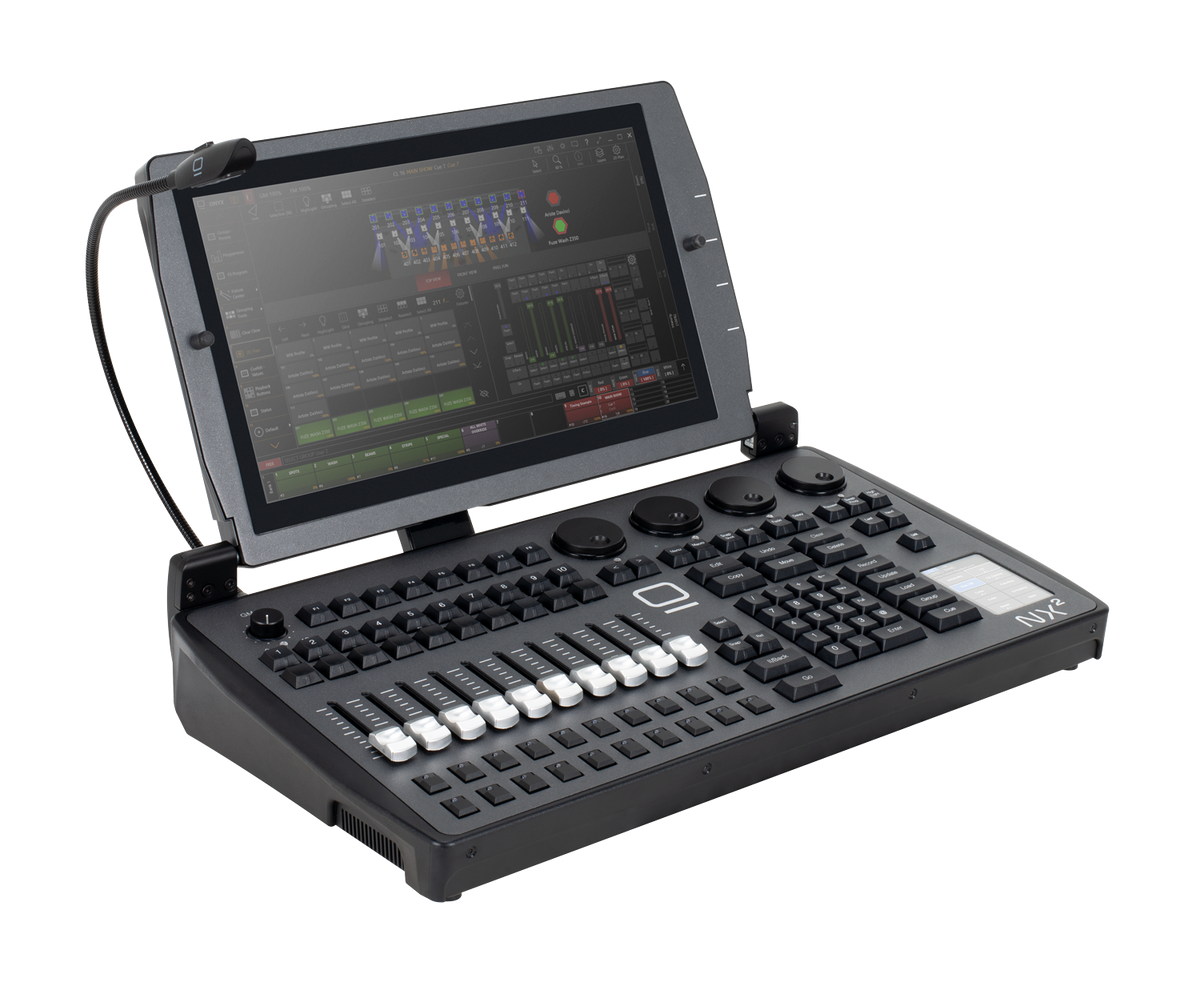

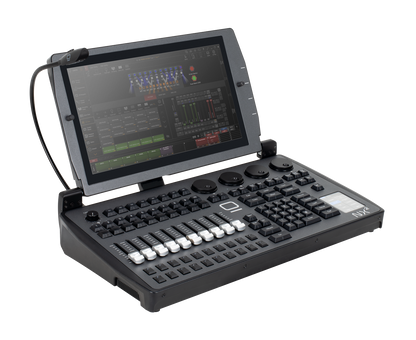

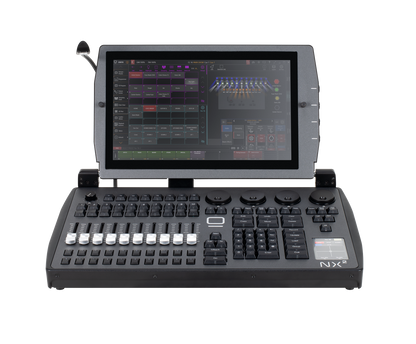

Elation NX2; 64U Console, 10 Fader, 4xDMX

Elation NX2; 64U Console, 10 Fader, 4xDMX

Features

• Portable and compact, fully featured lighting console
• Adjustable 15.6” Full HD multi-touch screen, 2x external 4K Touch Displays
• ONYX License (64 Universes)
• Fully integrated processing
• 10 Playbacks, 8 Encoders, Keypad, and internal 3.5" touchscreen
• Network, DMX, Timecode, and Midi Connectivity
• CAPTURE Solo Edition License

Specifications

Surface

• 10x 60 mm playback faders, each with 4x function-assignable buttons
• 8x customizable multi-function keys
• Playback Select button
• Master Go section with Go, Pause, Snap and Release
• 4x digital rotary encoders with push function and status LED for fixture parameter control
• 4x screen-mounted digital rotary encoders with push function
• 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
• Grand master rotary fader and button
• Blind / HighLight / Last / Next buttons
• Full numerical keypad and command keys

Hardware

• Industrial 15.6" TFT 16:9 touchscreen, 1920 x 1080 px
• 250 GB NVMe M.2 storage drive
• Industrial motherboard with Intel i5 Hexa-Core CPU
• Quiet thermal design using advanced copper heat pipe coolers
• 16 GB DDR4 RAM
• Integrated graphics processor
• Windows 10 IoT Embedded Operating System
• OS installation by USB 3.0 storage device
• Supports Windows USB touchscreens

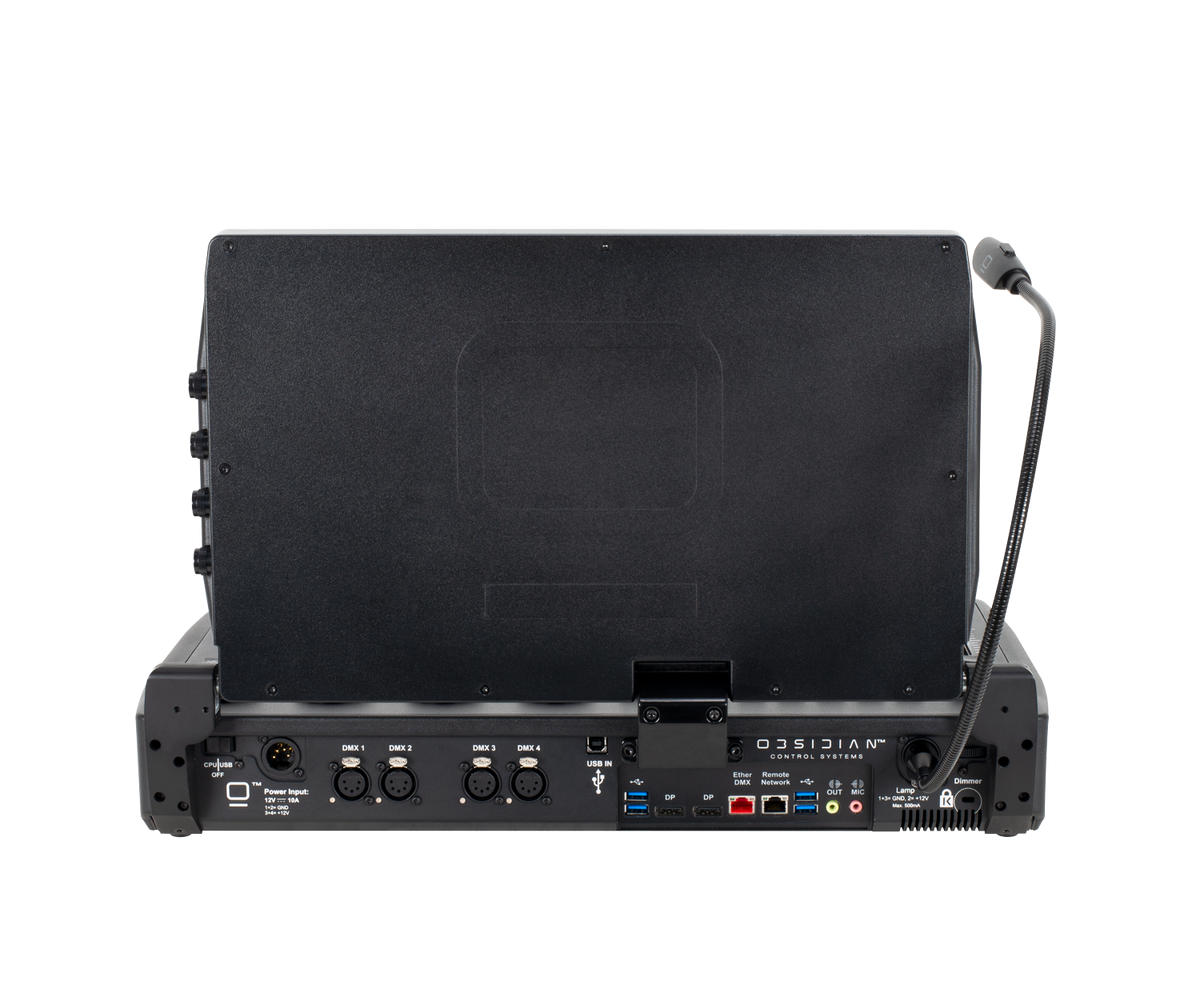

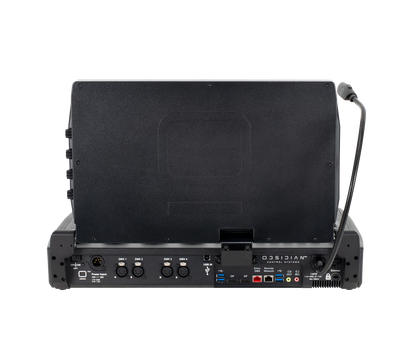

Connections

• 4x DMX / RDM Universe In/Out: 5-pin locking XLR
• External Display: 2x DisplayPort, up to 4K
• Network: 2x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
• Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
• Audio Out, Mic In: 2x 3.5 mm jack

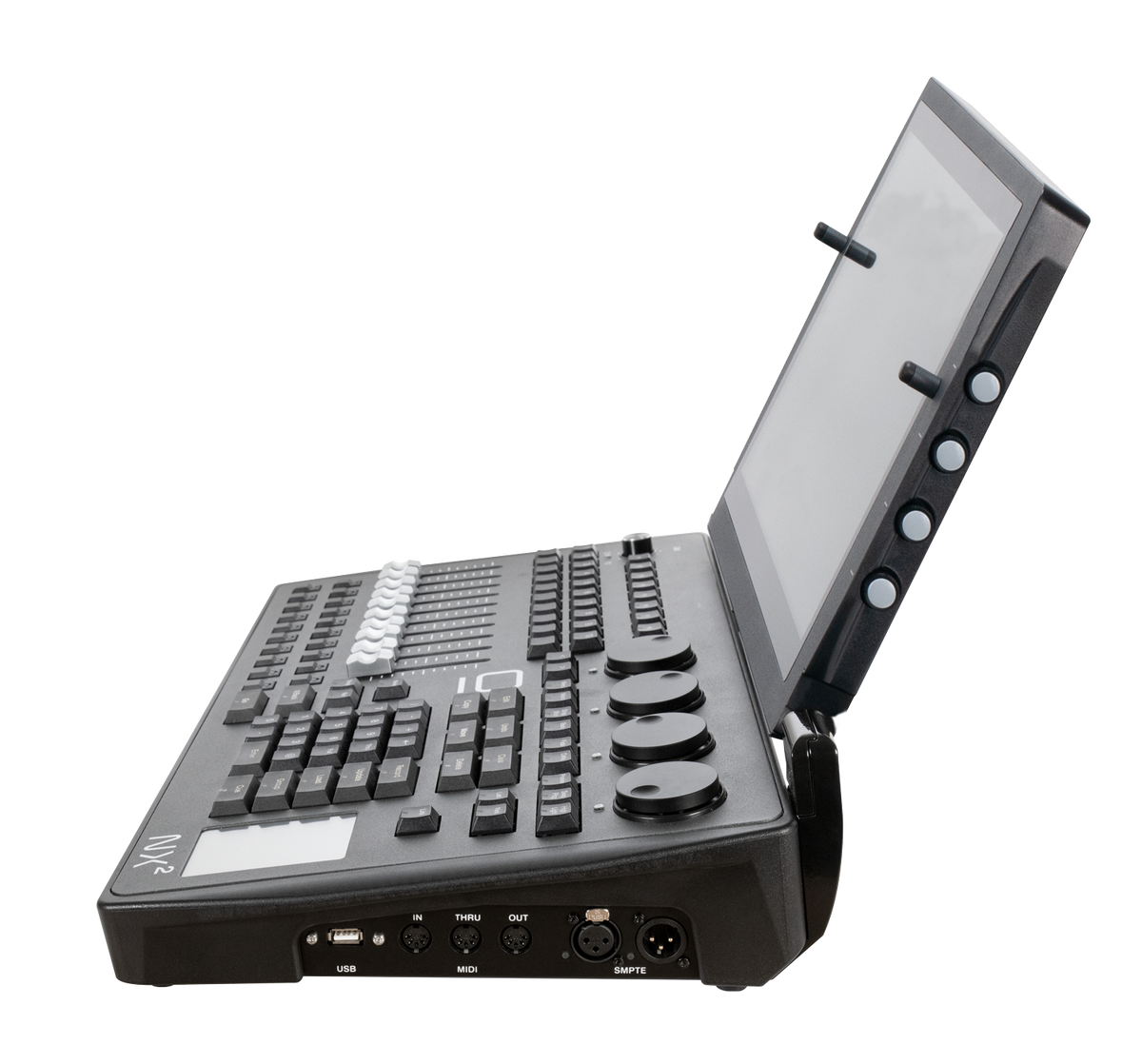

• MIDI In / Out / Thru: 5-pin DIN, supporting MIDI Show Control, MIDI Notes and MIDI Timecode
• SMPTE Timecode In/Out: 3-pin XLR
• 12 VDC power supply input: 4-pin XLR
• Desk Lamp: XLR 12V
• USB In: USB 2.0 Type-B


Physical

• Length: 300 mm / 11.9 in.
• Width: 540 mm / 21.3 in.
• Height: 121 mm / 4.8 in.
• Weight: 9 kg / 19.8 lbs.


Electrical

• AC mains power to 12 VDC external PSU, included
• 100–240 V nominal, 50/60 Hz
• Maximum current: 3A
• 12 VDC output: 11A, 132W max.


Included Items

• RGB LED desk lamp, angular XLR connector, 13"
• Dust cover
• Obsidian USB cable
• External PSU, 12V 11A
• 1.5 m power cable, 3-pin IEC
• USB 3.0 recovery stick
