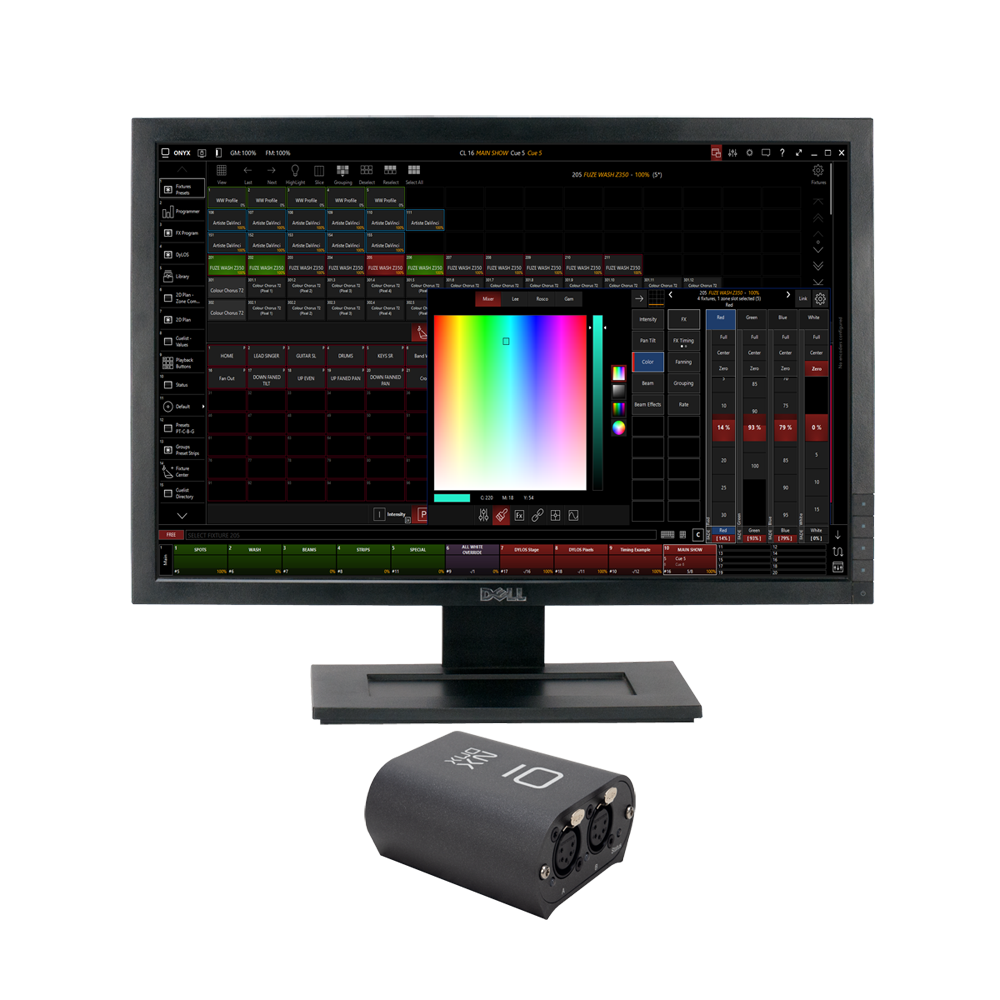

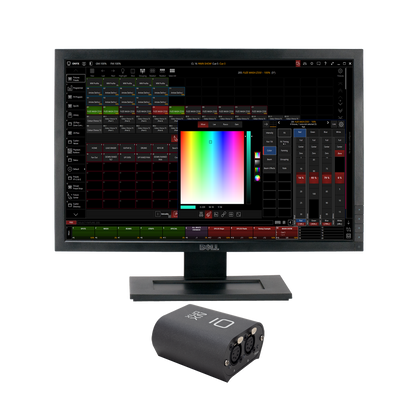

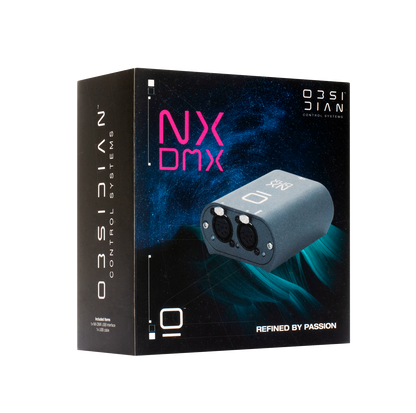

Elation NX DMX; 2-Port USB to DMX Interface

Elation NX DMX; 2-Port USB to DMX Interface

• ONYX NOVA License (4 Universes)
• Plug and Play 2 Port DMX Node for ONYX
• USB powered
• DMX In/Out and RDM support

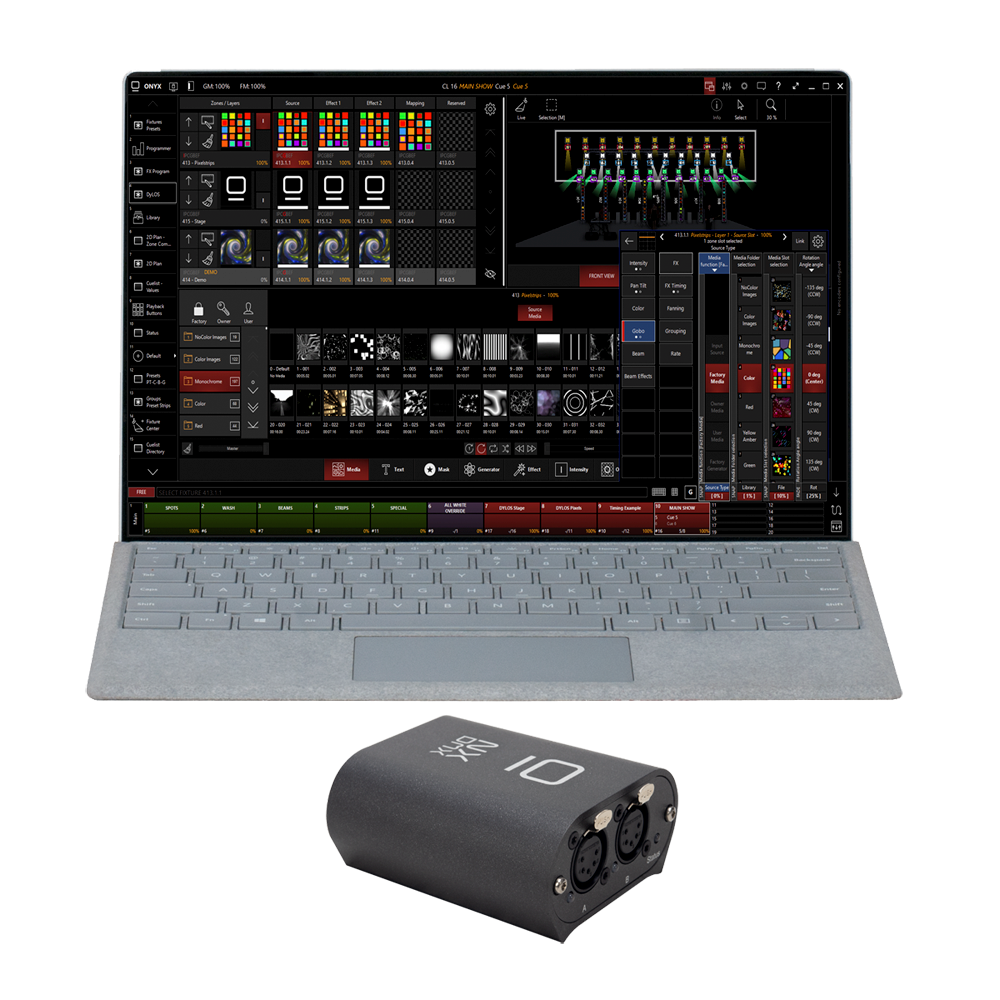

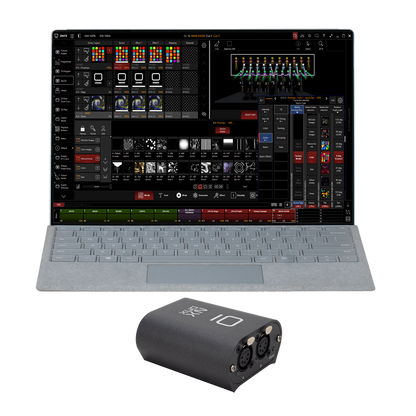

  Expand any ONYX console or PC system

• Rugged design

Specifications

• Connections

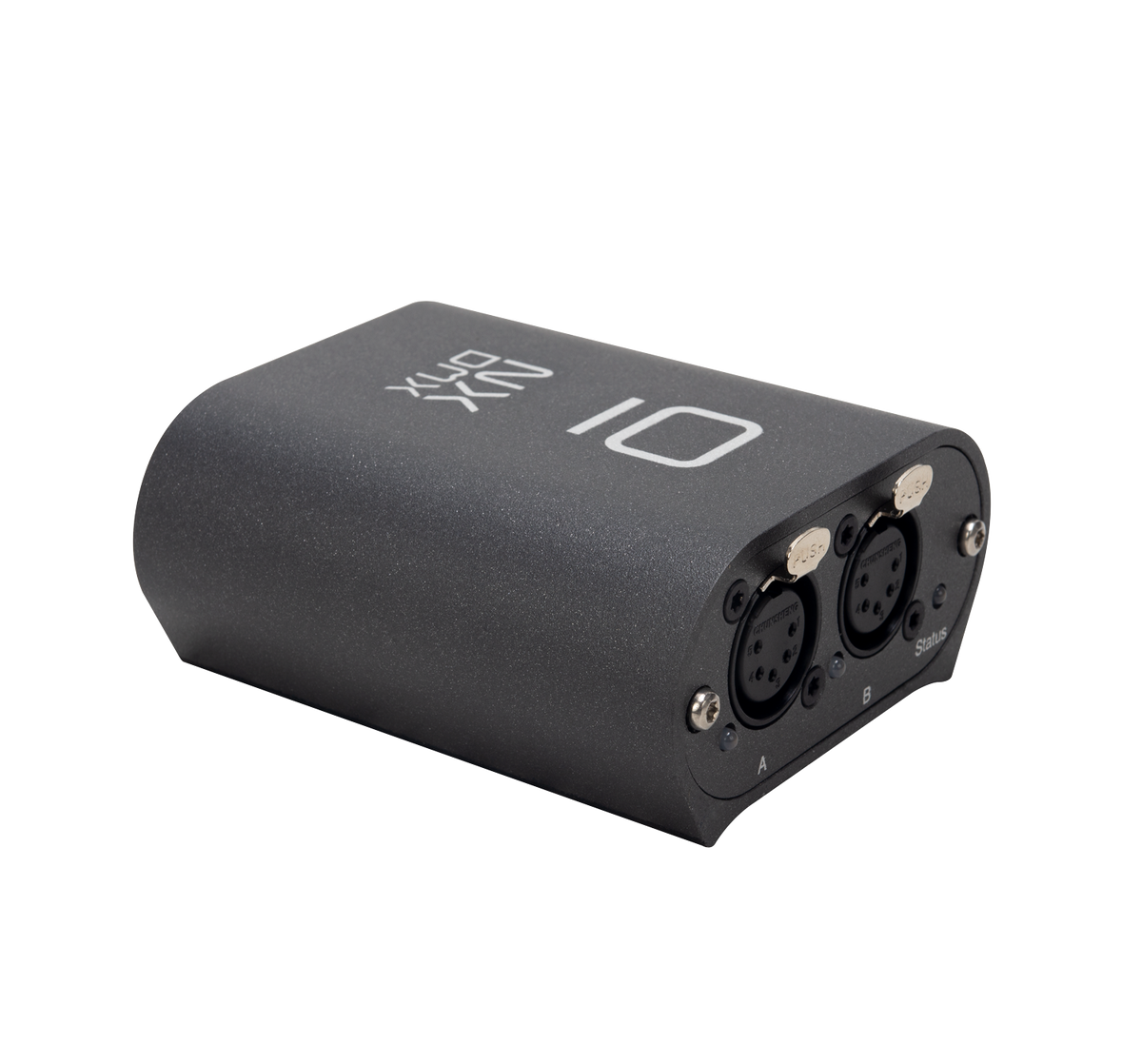

  • 2x DMX / RDM Universe In/Out: 5pin locking XLR

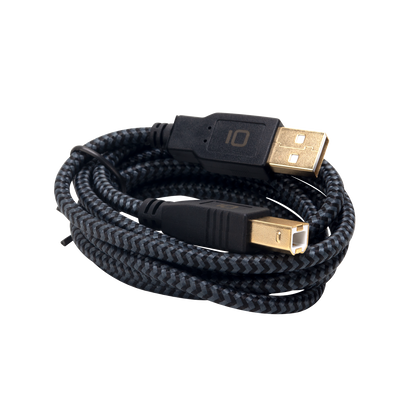

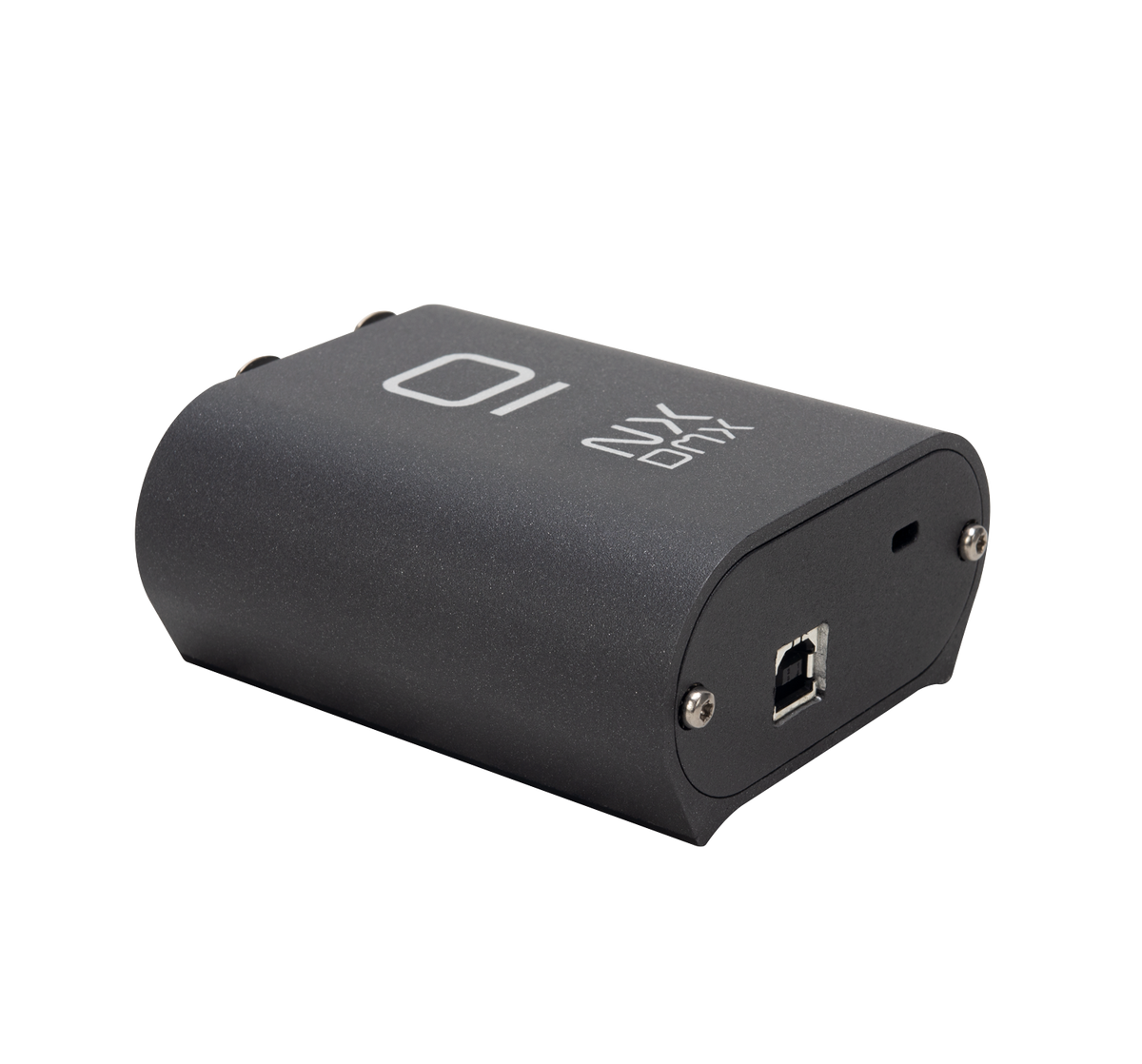

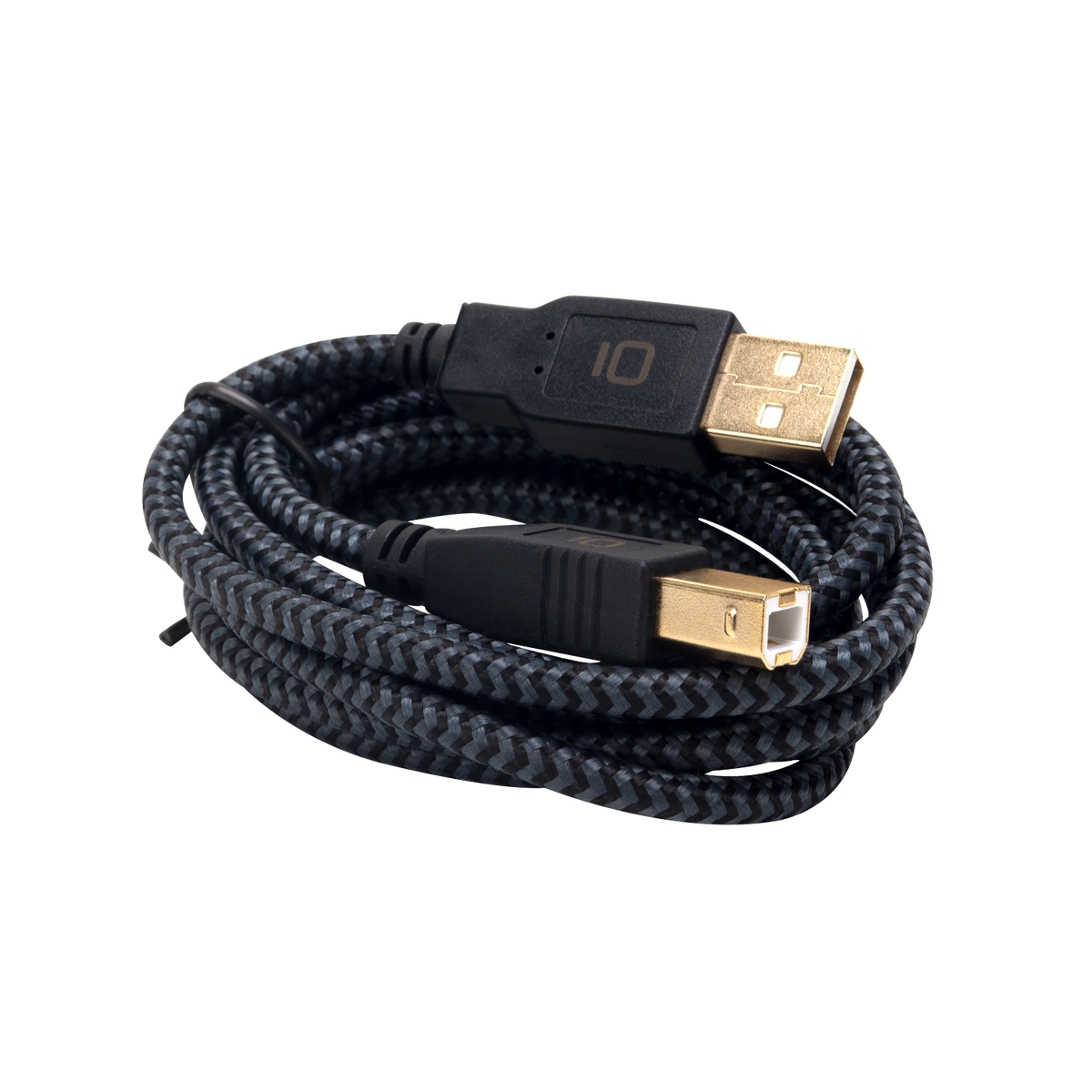

  • USB In: USB 2.0 B
• Requirements
  • ONYX 4.8 or higher
  • Windows 10
  • Intel Core i3 processor 6th Generation+
  • 8 GB RAM
  • SSD Drive
  • 40 GB available disk space
  • Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
  • USB 2.0 port for Onyx Key and optional USB to DMX devices
  • 10/100 Ethernet port for Art-Net DMX output
  • 100/1000 Ethernet port for X-Net, Remote operation and sACN
• Physical
  • Length: 92 mm (3.7 in.)
  • Width: 82 mm (3.3 in.)
  • Height: 41mm (1.7 in.)
  • Weight: 245g (0.6 lbs.)
• Electrical
  • 5V over USB
  • 100-240V nominal, 50/60 Hz
  • Maximum current: 300 mA
