Elation NFS116 FS16; Netron FS16 Fiber Switch; 12+4 Fiber Network Switch with POE

Elation NFS116 FS16; Netron FS16 Fiber Switch; 12+4 Fiber Network Switch with POE

Write a review

SKU: NFS116

$2,300.00
$2,300.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

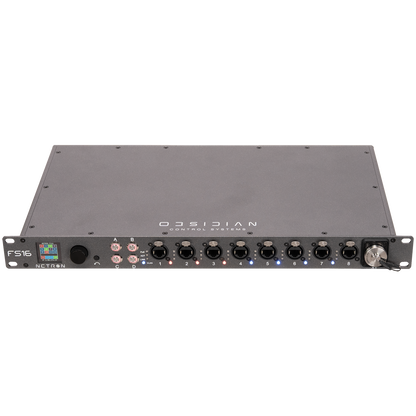

Elation NFS116 FS16; Netron FS16 Fiber Switch; 12+4 Fiber Network Switch with POE

The NETRON FS16 is a powerful rackmount network switch featuring 12 Gigabit ports, 4x fiber ports, and PoE+ support. With a total PoE power budget of 180W, the FS16 is ideally suited to distribute data and power to NETRON nodes or any other PoE+ compatible network appliance.

Highly optimized for processing the high data volume found in today’s ever-growing lighting systems, the NETRON FS16 distributes a variety of entertainment protocols without delay, ensuring instant reaction times and flawless execution.

The FS16 incorporates four dedicated preset buttons on the front, which are ideally positioned to work as a Network Selector switch. Instant recall of signal routing allows main and backup consoles or various front-of-house setups to be activated at a moment’s notice and without delay. Instant network selections are also possible using an external remote control over a simple RJ45 cable, or the remote web interface.

Designed for live production and installations, the 1U rack-mount housing is convection cooled and offers direct settings from the integrated OLED display.
Remote configuration is possible using the integrated web interface or the NETRON Central Utility (CLU) for easy discovery, status feedback, and feature management.

Features

  • 1U Full-width Network Switch optimized for data-intensive entertainment applications
  • 12 Gigabit Locking RJ45 Ports
  • 4 D-Sized Swappable ports preinstalled w/ SEETRONIC Duplex Fiber ports (S02DF, D-Size)
  • 4 SFP, preconfigured with
    • (1) 10Gbps MMF 850nm
    • (3) 1.25Gbps MMF 850nm
  • Art-Net and sACN support
  • X-Net, HogNet, MA-Net, ETC Net3 and various other protocols
  • Factory and user presets for plug-and-play setups
  • Preset Recall for Network Selection, Setting, and Routings
  • PoE and PoE+ support
  • PoE power switch
  • OLED display for direct feature adjustments
  • Remote configuration via internal webpage
  • Convection-cooled design
  • Powder-coated aluminum 1U rack housing

Specifications

  • Mounting
    • 1U rackmount
  • Connections

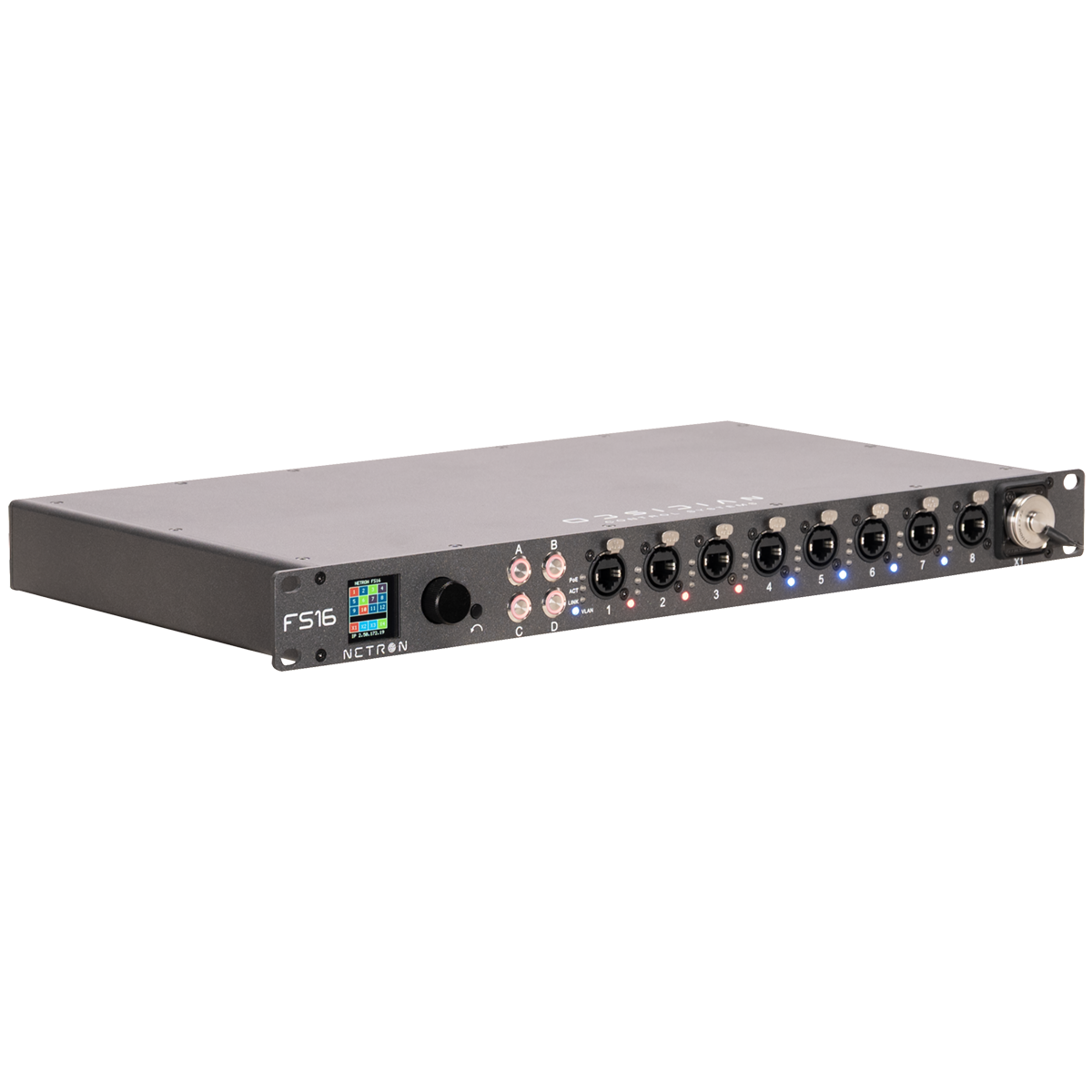

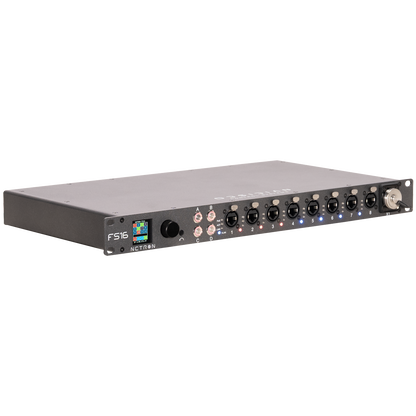

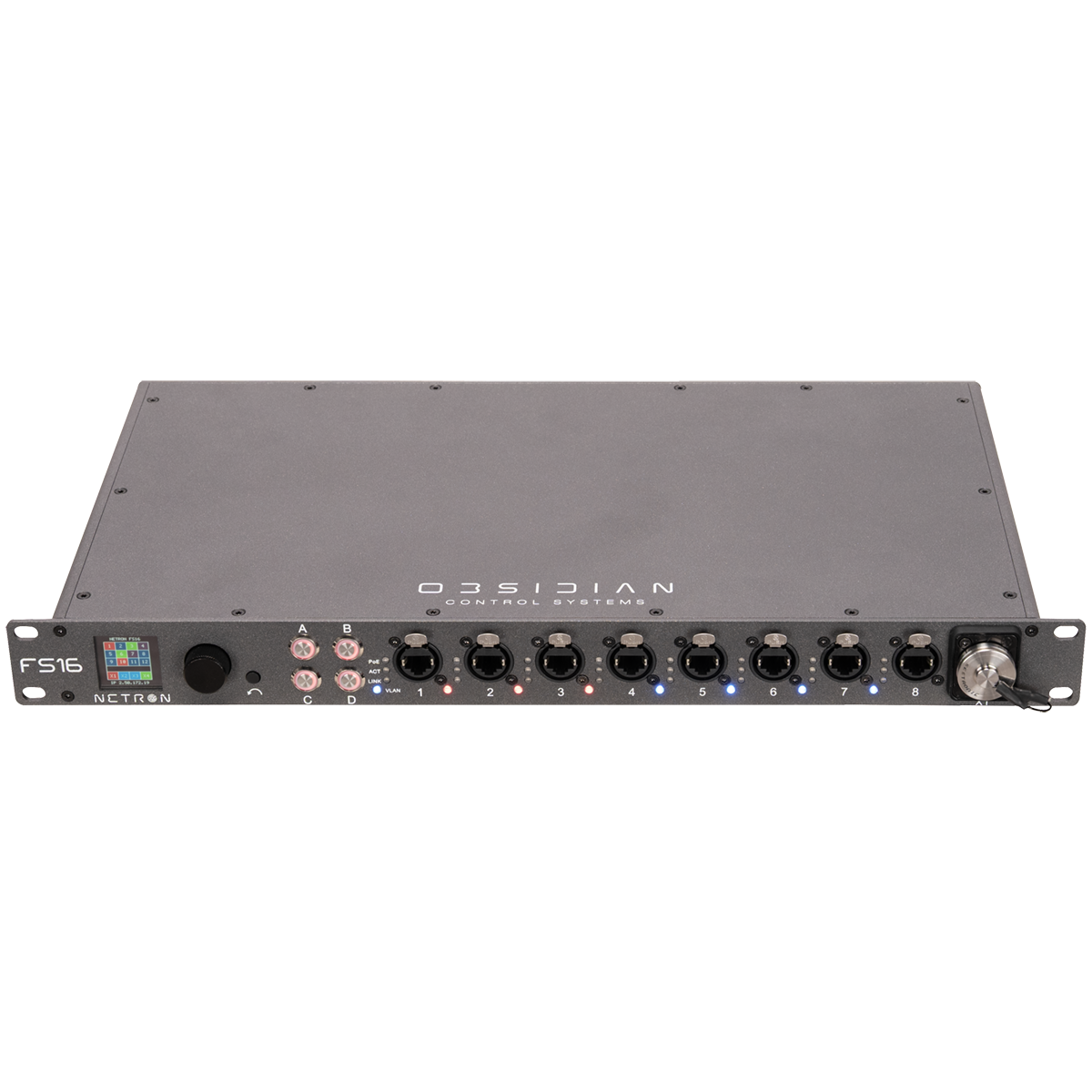

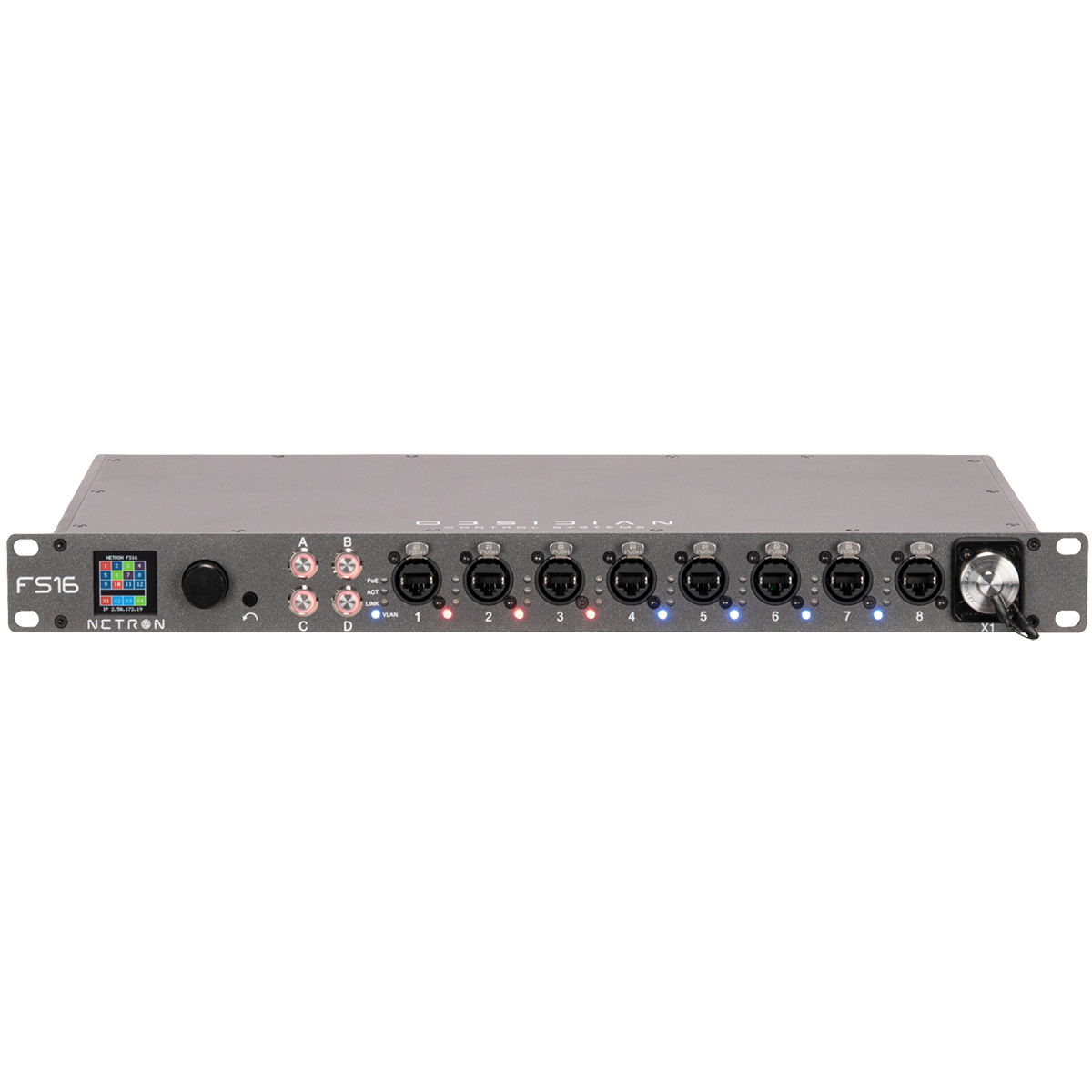

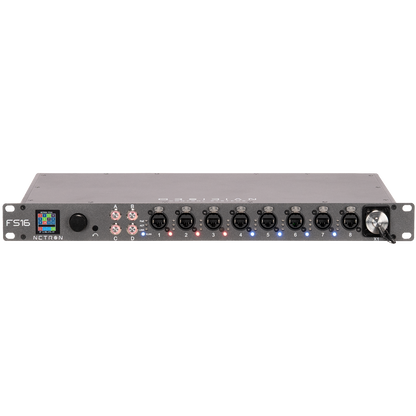

  • Front
    • (8) Locking RJ45 Ethernet network connections
    • (1) SEETRONIC SO2DF (LC and DUO compatible)
    • 10 Gbps Multimode
    • 850nm
    • 300m
    • Per Port LED Feedback for Activity, PoE, VLAN
    • Full color OLED display
    • Encoder w/ Push to Select / Exit Button
    • (4) Network Selector / Preset Recall Buttons

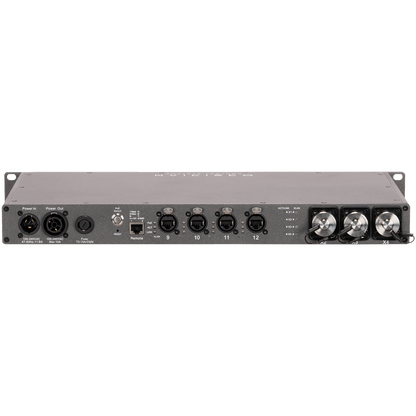

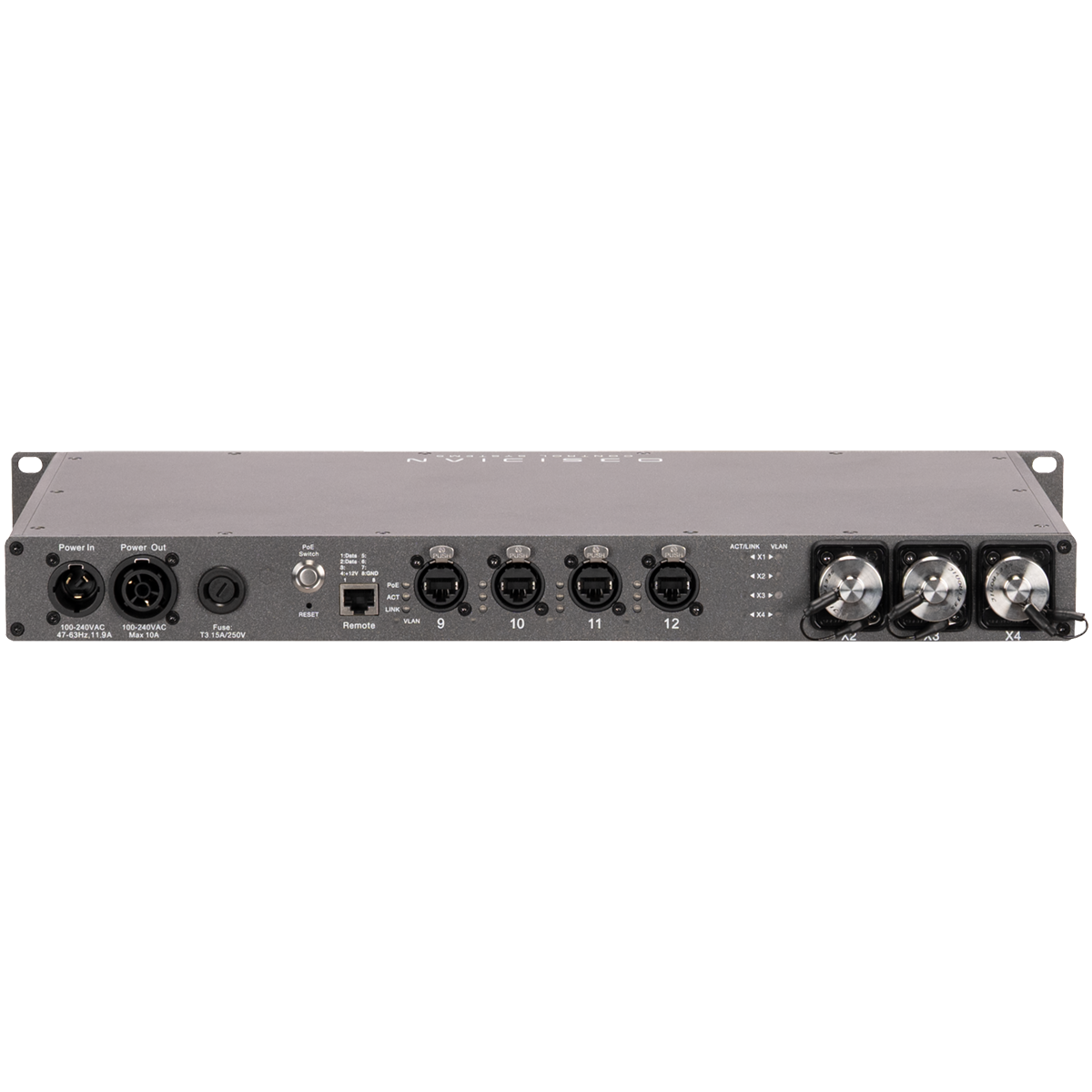

  • Rear
    • IP65 Locking Power In/Thru
    • (4) Locking RJ45 Ethernet network connections
    • (3) SEETRONIC SO2DF (LC and DUO compatible)
    • 1.25Gbps Multimode
    • 850nm
    • 300m
    • RJ45 Remote Port for optional Button Station
    • Per Port LED Feedback for Activity, PoE, VLAN
    • PoE Power Switch
    • Reset Button
  • Protocols
  • Support
    • sACN, Art-Net
    • ONYX X-Net, MANet2, MA-Net3, HogNet, ETC Net3
    • Dante
    • Broadcast, Unicast, Multicast
    • IEEE 802.3, 802.3ab, 802.3x, 802.1p, 802.3at, 802.3af, 802.1Q, IGMPv2, IGMPv3
  • Ethernet Features
    • PoE (15W), PoE+ (30W), Max power per port setting
    • IGMP Querier, IGMP Snooping
    • VLAN (6 Groups, Trunk, Color Coding)
    • DHCP Server per VLAN
    • Dante compliant QoS Preset
    • Total Switching Capacity: 48 Gbps
  • Specifications
  • Physical
    • Depth: 10.33 in. (262.3 mm)
    • Width: 19 in. (482.5 mm)
    • Height: 1.4 in. (44 mm)
    • Weight: 7.05 lbs (4.2 kg)
  • Electrical
    • PoE 802.3at (max 30W per port)
    • 100–240 V nominal, 50/60 Hz
    • 180W Max Power Consumption
    • PoE, PoE+
  • Approvals / Ratings
    • CE | cETLus | FCC | UKCA | IP20
  • Ordering
  • Included Items
    • 5ft (1.5m) locking IP65 power cable (EU or US version)
