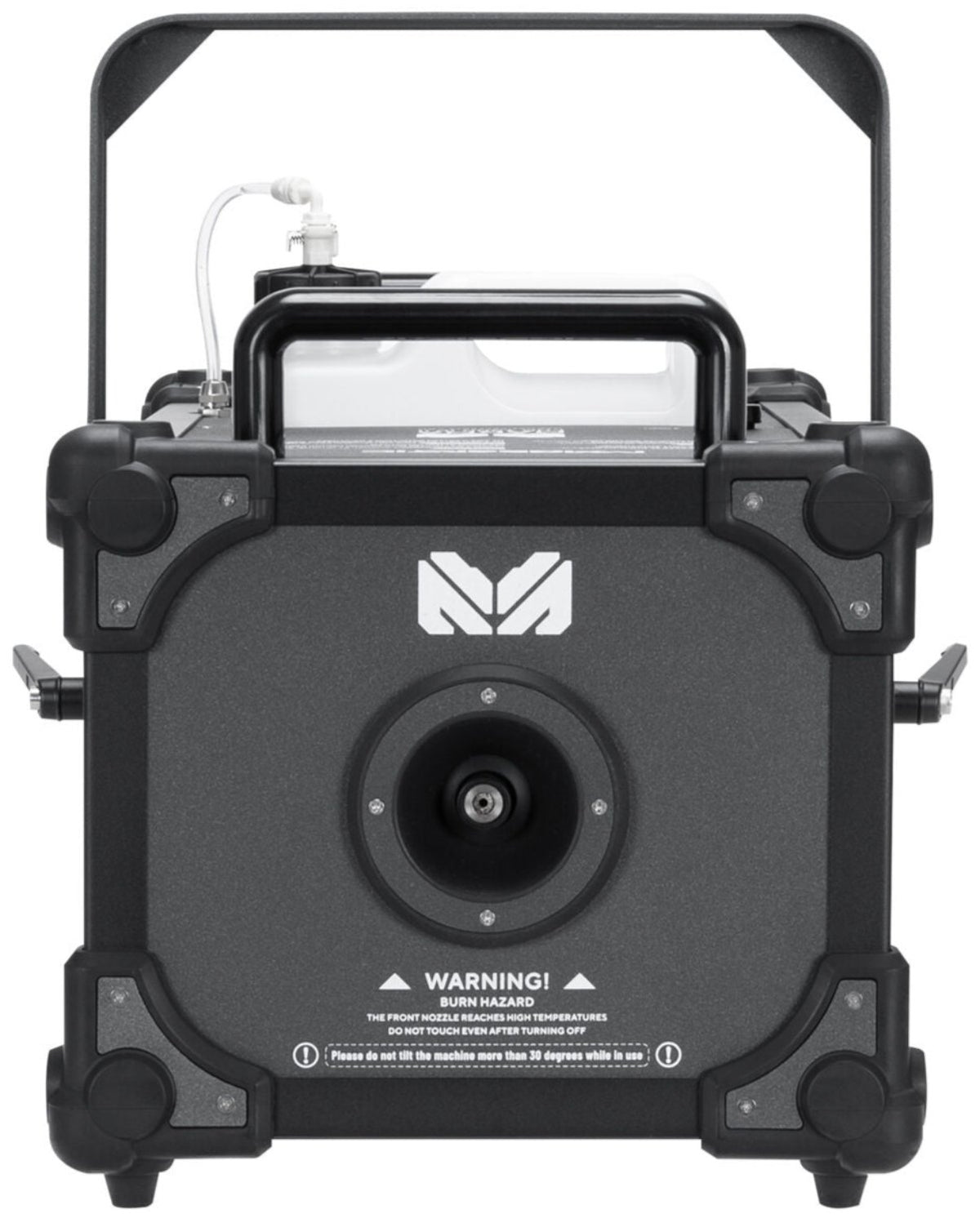

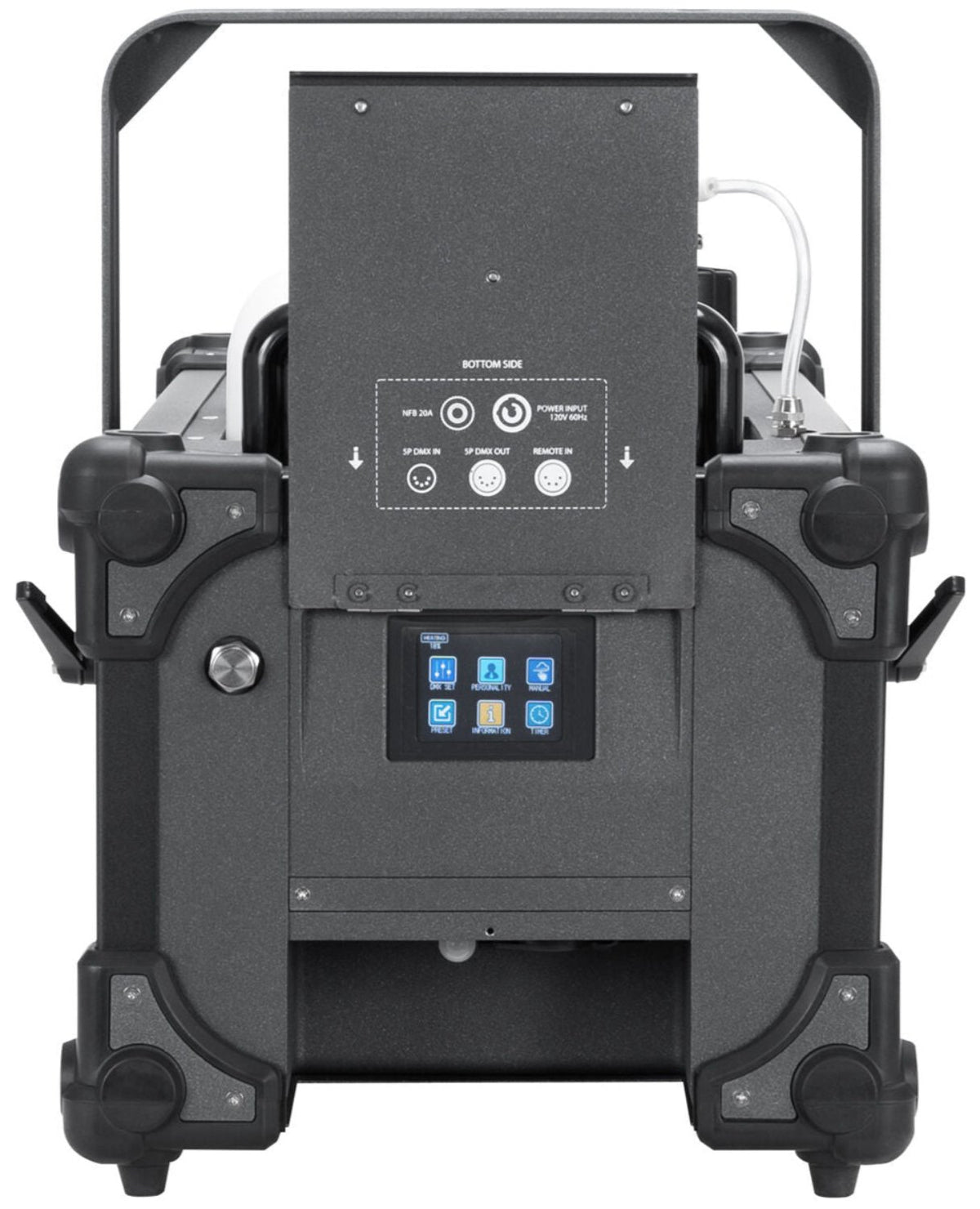

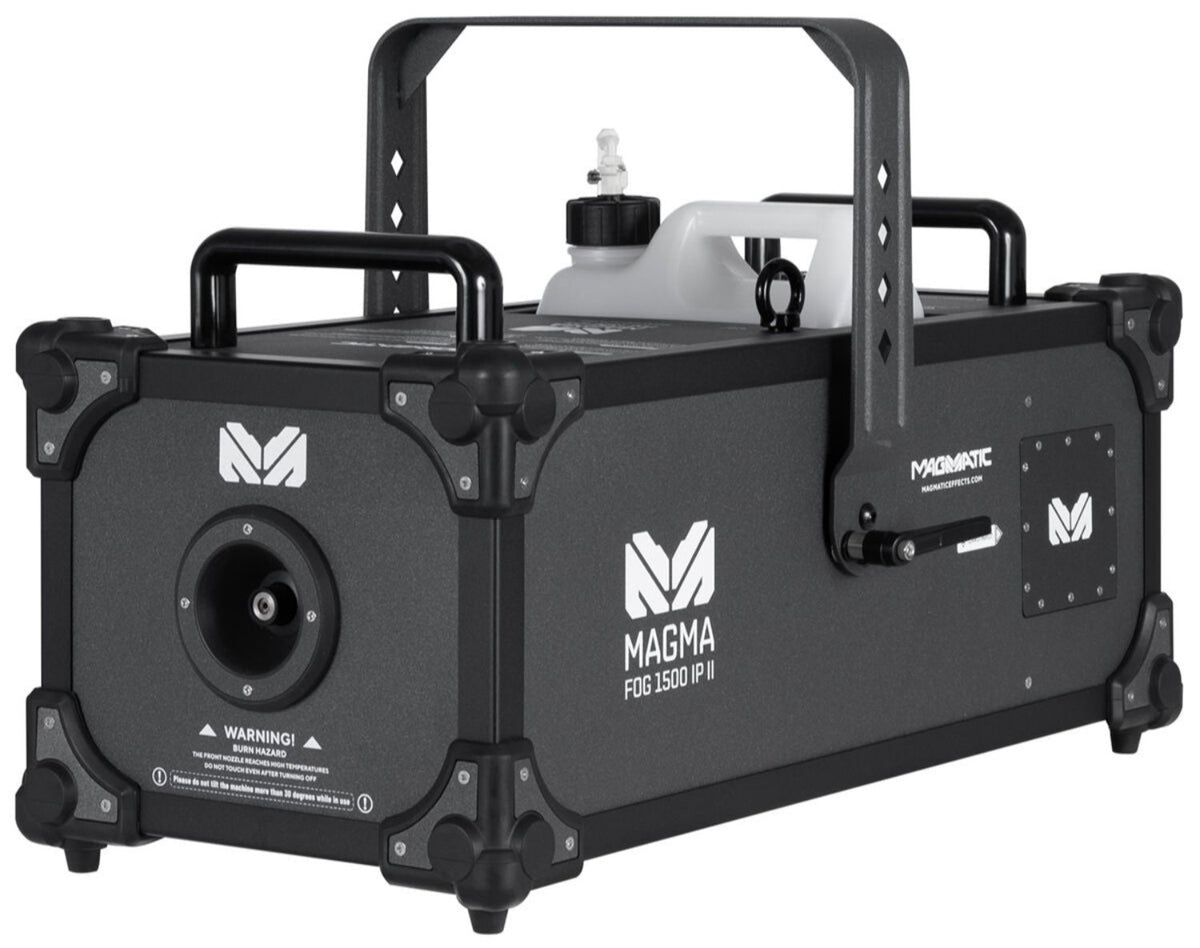

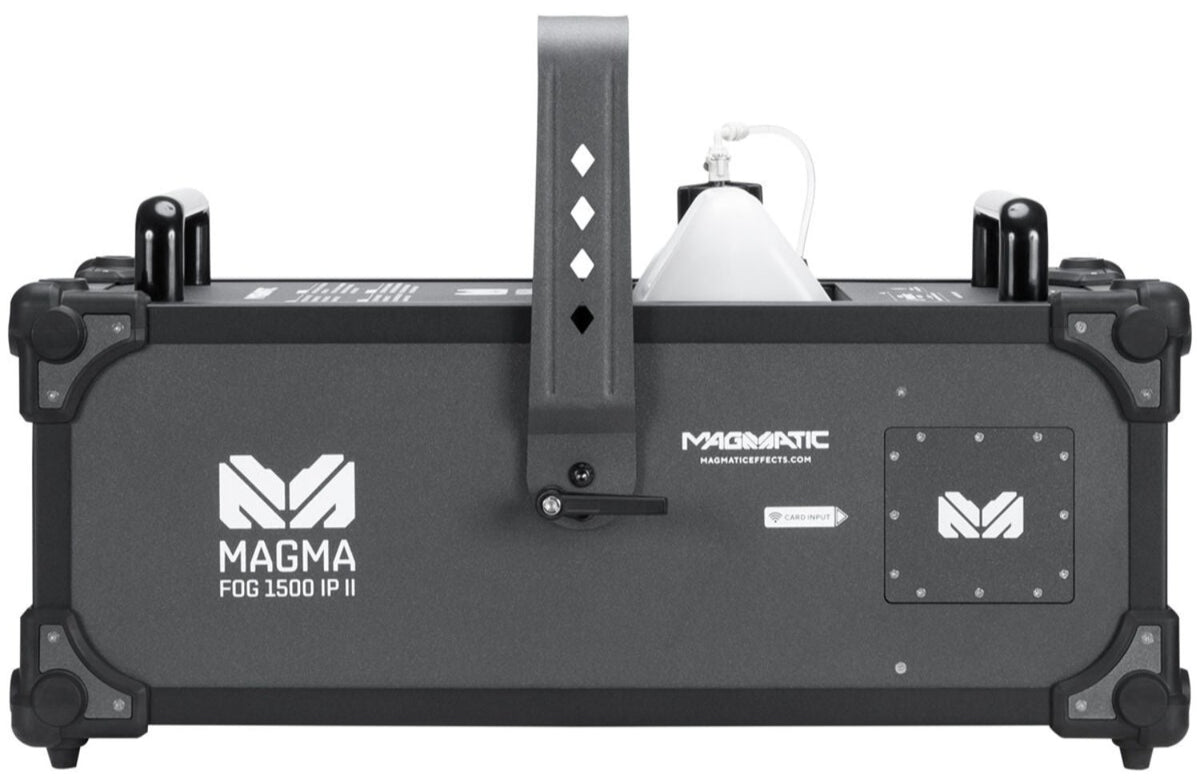

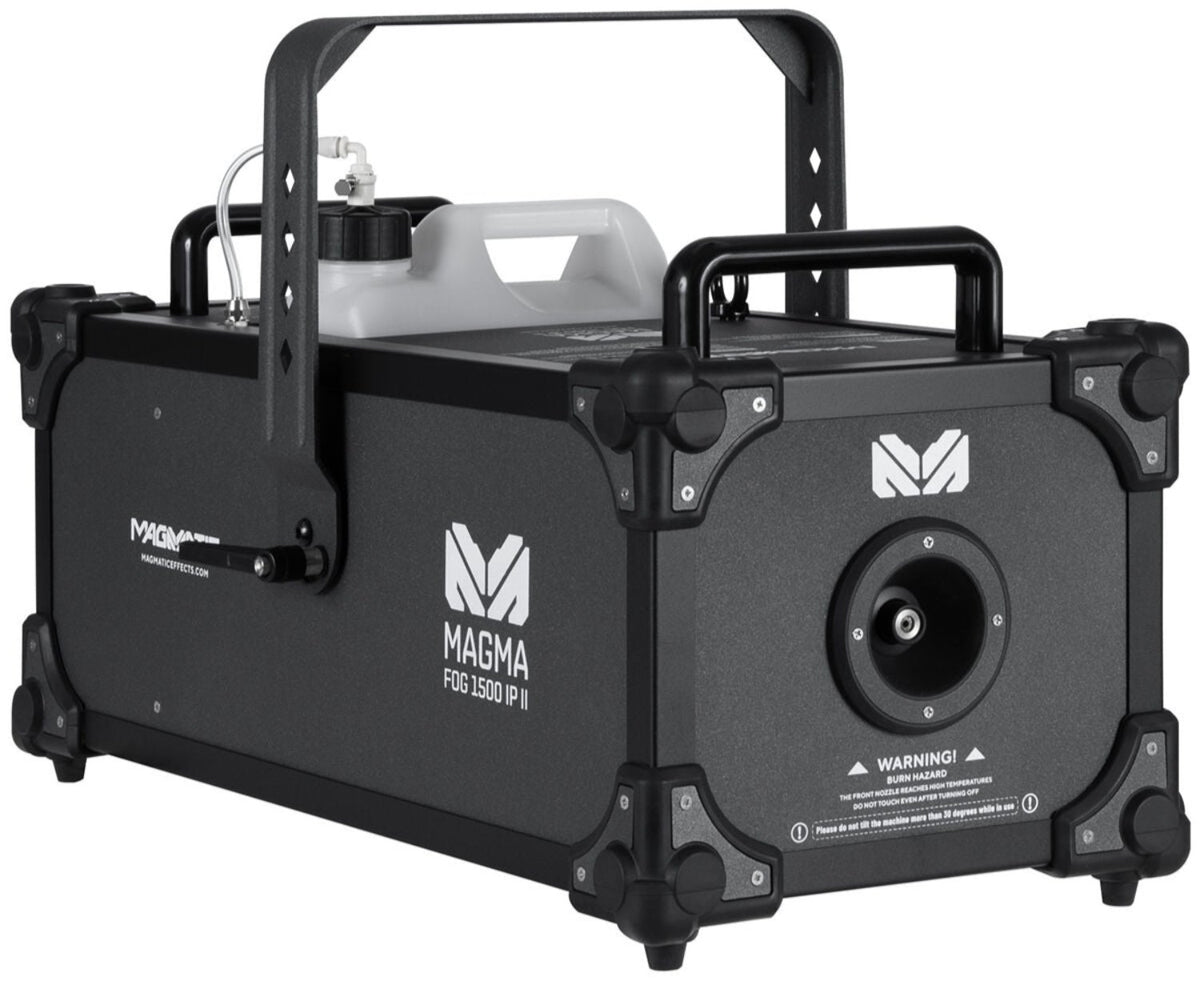

Elation MSF047 Magma Fog 1500IP-II Fog Machine
The Magma Fog 1500IP-II by Elation is a powerful 1500W, IP67-rated fog machine engineered for both indoor and outdoor use. This fogger produces a maximum output of 60,000 CFM, making it ideal for high-impact visual effects. Equipped with an easy-to-use LCD touch screen and DMX-512/RDM control, the Magma Fog 1500IP-II offers flexible control options, including optional wired and wireless remote-control capabilities. Constructed with durable aluminum housing and featuring IP65-rated locking power and DMX connections, this fog machine is designed to withstand demanding environments. Its 5-liter tank capacity, heavy-duty carry handles, and hanging bracket add to its versatility.
Features:
- 1500W IP67 water-resistant fogger
- High fog output of 60,000 CFM
- Thermally protected heat exchanger with 14-minute warm-up time
- DMX-512 and RDM protocol support
- Onboard LCD touchscreen for easy operation
- Optional wireless and wired remote controls
Specifications:
- Performance:
- Rated Power: 1500W
- Max Output: 60,000 CFM (approx.)
- Warm-Up Time: 14 minutes
- Fluid Capacity: 5 liters (1.32 gallons)
- Fluid Consumption Rate: 6.76 oz/min (200 ml/min)
- Compatible Fluid: Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)
- Construction:
- Thermally Protected Heat Exchanger
- Rugged aluminum case design
- Heavy-duty carry handles and truss-mounting bracket
- Control:
- 3 DMX Channel Modes (1 / 2 / 4)
- LCD Touch Control Panel
- Supports DMX-512 and RDM protocols
- Optional MAGFLY Wireless DMX Transceiver, MAGRF Wireless and MAGREMOTE Wired Remotes
- Connections:
- Locking 5-pin XLR Connector for DMX In/Out
- IP67 Locking Power Connector In
- Size / Weight:
- Length: 25.5 in. (648mm)
- Width: 14.6 in. (372mm)
- Height: 16.2 in. (411mm)
- Weight: 74.3 lbs. (33.7kg)
- Electrical:
- AC120V 60Hz (US) / AC230V 50Hz (EU)
- Max Power Consumption: 1600W
- Thermal:
- Max Ambient Temperature: 104°F (40°C)
- Exterior Surface Temperature: 149°F (65°C)
