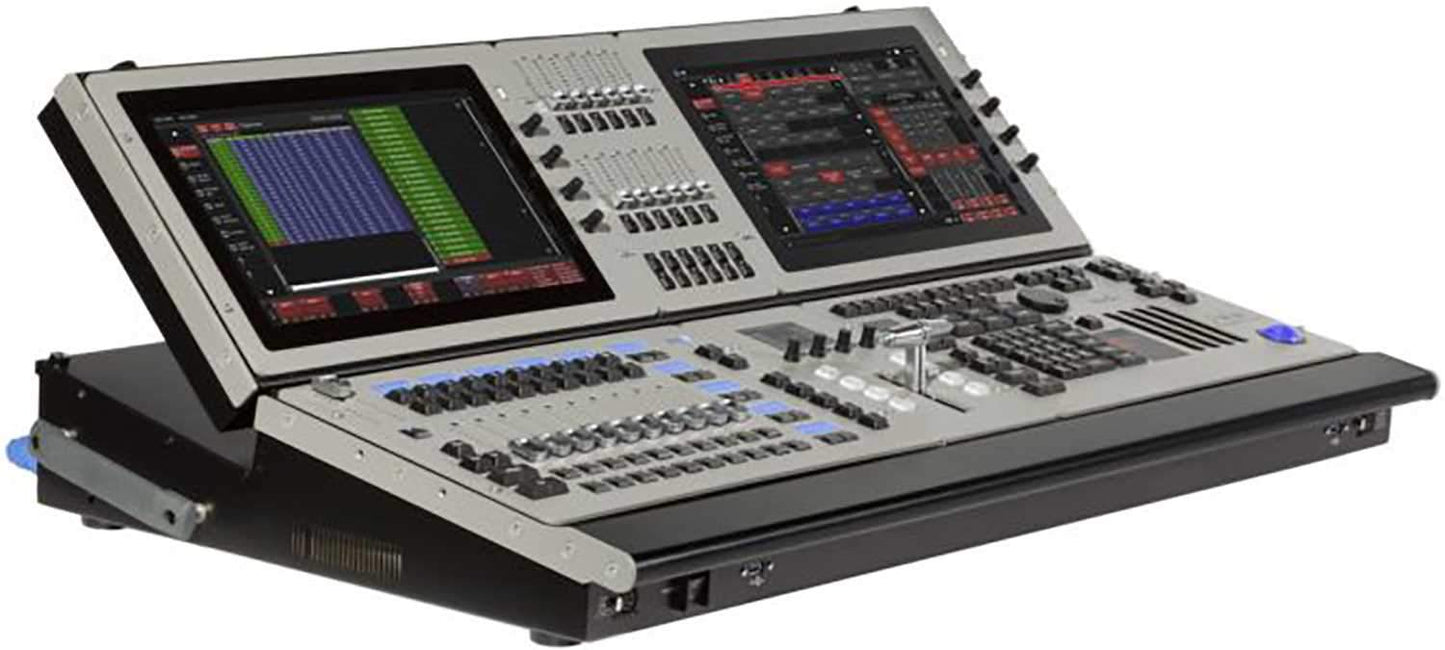

Elation M6 Lighting Controller With Flight Case

The M6 is a state-of-the-art lighting console that functions as a highly advanced visual control surface. Designed to control everything from conventional and moving lights to the most advanced media server, the M6 has been designed for today’s demanding multimedia shows and tomorrow’s challenges.

Based on the well-proven M-Series software platform, the M6 provides users the ultimate control surface for fast programming and extensive playback control all from one console. Incorporating the latest available technologies with an industrial multi-core processor, solid-state drives and custom-designed high-brightness touch screens, the M6 is capable of delivering 64 DMX universes directly from the console’s network ports without using costly external processors.

Advanced features like a LiveBlender T-Bar, FastDial rotary encoders, Paired Playback buttons and BriteTouch display make the M6 the most advanced console design ever. It offers a total of 44 playbacks, including dual Main Go sections, 10 motorized faders and 12 additional faders, as well as a total of 17 encoders for parameter access.

M-Series Licensing

• 4 DMX 5pin XLR ports
• 64 Universes (Artnet, sACN)

Features:

• 2 x Positionable BriteTouch™ Widescreens (sunlight readable, multi-touch)
• 2 x External DisplayPort Touchscreens up to 1920x1080 per Output
• FastTouch™ 3.5" Touchscreens
• 1 x LiveBlender™ Split T-Bar with 8 x FastBlend™ RGB Buttons
• 4 x FastTrack™ linear Encoders
• 12 x FastDial™ Rotary Encoders
• 1 x Dedicated Dimmer Wheel
• 10 x Motorized Playbacks with LCD Displays and
• 4 x Customizable Buttons
• 10 x PlayPairs™ Buttons with LCD Displays
• 12 x Sub Playback Faders and 12 x Sub Playback Buttons
• 2 x Main Go Sections
• 12 x F-Keys and 5 x FastKeys™
• Low-Profile Housing with Adaptable Module Layout
• Show-Ready Boot up in under a Minute
• 64 DMX Universes Directly from the Console Network Ports

Specifications:

Physical

• Length: 668 mm (26.3 in.)
• Width: 1058 mm (41.7 in.)
• Height: 204 mm (8.1 in.)
• Weight: 37.5 kg (82.7 lbs.)
• Shipping weight (in flightcase): TBA

Control and Progamming

• Protocol: DMX512A (RDM), Art-Net, sACN
• 64 DMX universes, 32768 channels
• No limit to number of DMX channels per fixture
• Extensive fixture library for all known manufacturers
• 65000 presets for each group of functions (P/T, color, gobo, etc.)
• Effect generator for automated programming of complex effects
• Relative or absolute programming
• Fan function for all channels (including timing parameters)
• On-the-fly global timing changes
• Virtual cuelists
• Macros
• Wait, follow and link cues
• HTP, LTP, chase, timecode, submaster and group master playback functionality
• Individual parameter timings
• Intuitive patch feature
• Fixture type cloning
• All channels with 16-bit resolution

Control/User Interface

• 2 x positionable 15.6" BriteTouch™ widescreens (sunlight readable, multi-touch), 1376x768
• 2 x external DisplayPort touchscreens, both up to 1920x1080
• 2 x FastTouch™ 3.5" touchscreens, 320x240
• 1 x LiveBlender™ split T-bar
• 8 x FastBlend™ RGB buttons
• 4 x FastTracks™ linear encoders with LED feedback
• 12 x FastDial™ rotary encoders
• 1 x dedicated dimmer wheel
• 10 x motorized playbacks with LCD displays and 4 x customizable buttons with LCD displays
• 10 x PlayPairs™ buttons with LCD displays
• 12 x sub playback buttons
• 12 x sub playback faders
• 12 x F-keys
• 5 x Fastkeys™
• 2 x independent Main GO sections
• Bank navigation with digital display
• Numerical keypad
• Command buttons
• Trackball with two selection buttons

Playback

• Assign a cue, cuelist or effect to any playback fader
• 500 playback banks, each containing 20 playbacks
• 100 sub playback banks, each containing 24 playbacks
• 100 pages of 100 playbacks activated by touchscreen button
• No limit to cues per cuelist
• Full 16-bit fading for high-resolution fixtures
• Individual fade in/fade out times for all playbacks
• Manual override available at all times
• Live 0-100% override of global cue timings
• Live programmer timing ("Sneak")
• Cuelists can be executed in tracking or non-tracking mode

Hardware

• Industrial motherboard, IntelCore i7 Quad-Core processor
• 16 GB RAM
• 64 GB SSD storage drive
• Dedicated graphics processor
• Up to 64 DMX universes directly from the console network ports

Software

• Windows 7 embedded
• OS installation by USB storage device
• Show backup on hard disk or USB storage device (not included)
• Support for ELO USB touchscreens

Connections

• 4 x DMX universe outputs: 5-pin locking XLR
• 1 x DMX input: 5-pin locking XLR
• 2 x external touchscreens (both up to 1920x1080): DisplayPort
• Art-Net (up to 64 universes): Gigabit Ethercon RJ-45
• MaxNet controller link: Gigabit Ethercon RJ-45
• Peripherals and USB memory devices: 2 x USB 3.0, 8 x USB 2.0
• SMPTE In/Out: 3-pin locking XLR
• VITC In/Out: BNC
• MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5-pin DIN
• Stereo audio In/Out: 3-pin locking XLR
• Microphone: 3-pin locking XLR
• 2 x desk lamps (optional accessories): 3-pin locking XLR
• AC power input: Neutrik PowerCon

Electrical

• AC power: 100-240 V nominal, 50/60 Hz
• Maximum current: 4 A at 115 V, 2 A at 230 V

Included Items

• Neutrik PowerCon NAC3FCA power input connector, cable mount
• 2 x integrated LED desk lamps
• USB flash recovery drive
• Dust cover
• One-Key™ with ShowDesigner 6 Lite™ one-year license and M-PC 64 universes license
• Specifications and documentation subject to change without notice.
