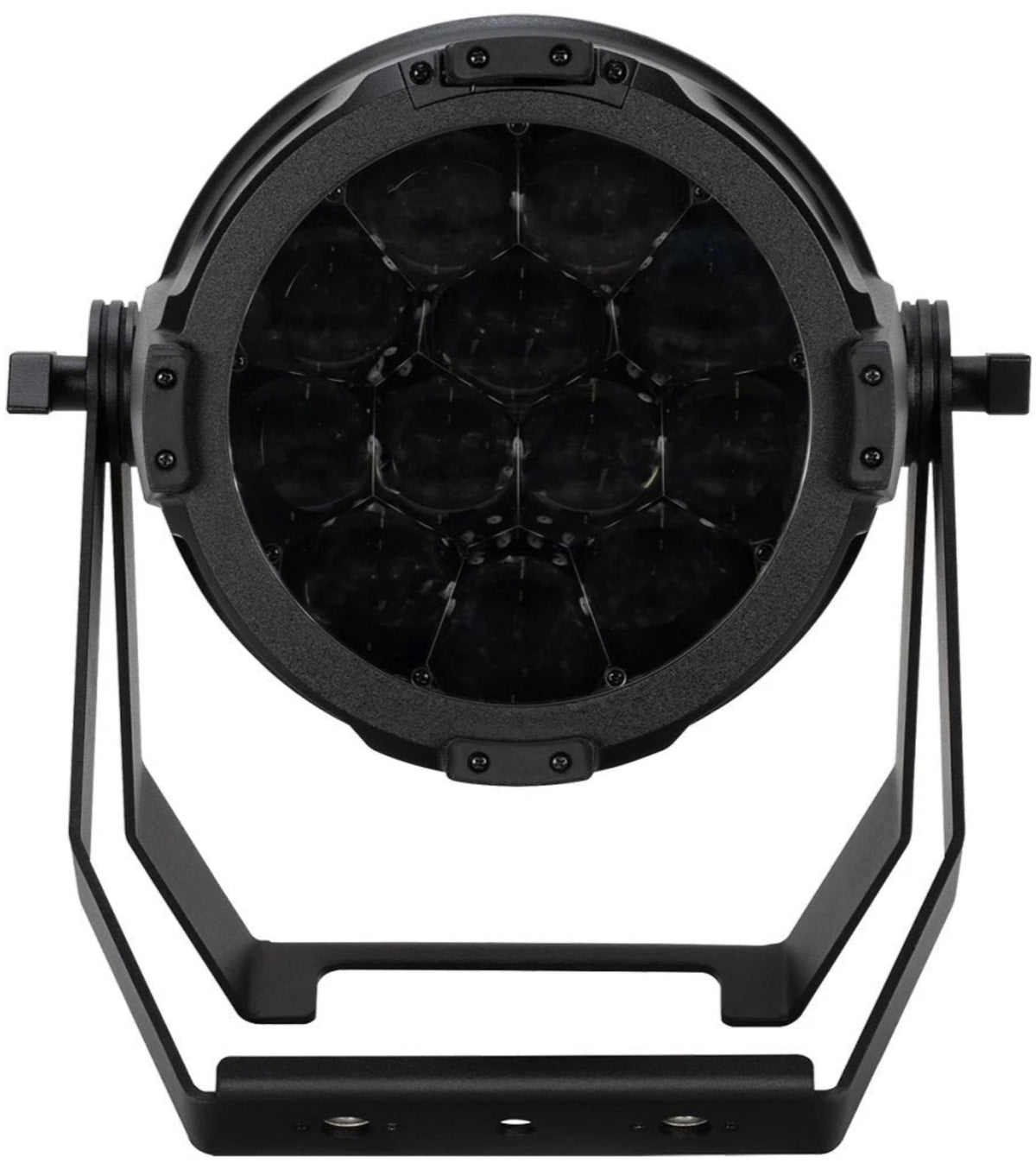

Elation LLP312 Limelight PAR L (12x) 60 Watt RGBL LED Light with Zoom

Elation LLP312 Limelight PAR L (12x) 60 Watt RGBL LED Light with Zoom

The LIMELIGHT PAR L is a full-sized and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. Its IP65 rating allows it to be used in any environment, indoors or out.

The LIMELIGHT PAR L engine features (12) 60W RGBL LEDs, capable of producing 8,213 lumens, providing high output for saturated color mixing. It also delivers the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture features a wide zoom range from 5° to 40°, providing a smooth and responsive effect with a well-defined narrow beam for mid-air effects and long throw distances, as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.

To expand the control capabilities of the LIMELIGHT PAR L, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users who are more familiar with that color mixing system. Additionally, an integrated library of calibrated color presets that match the most popular gel filters has been included.

The IP65 housing includes an integrated gel frame holder that can accommodate optional accessories. The dual yoke design allows the fixture to be mounted on the floor, or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.

The LIMELIGHT PAR L is the ideal solution for touring applications, theme parks, live events, theater, houses of worship, and cruise ships.

Features:

• (12) 60W RGBL LED Array
• 8,213 Total Fixture Lumen Output (Sphere) Lumens
• 5°- 40° Beam Angle
• Smooth 16-bit Selectable Dimming Modes and Curves
• Remote LED Refresh Rate
• Flicker Free Operation for TV and Film
• IP65 Rated

Specifications:

• Source:
  • (12) 60W RGBL LEDs
  • 30,000 Hour Average LED Life
  • May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

• Photometric Data:
  • Total Lumen Output:
    • 8,213 (Integrating Sphere)
    • 7,922 (Goniometer)
  • CRI: 83.4
  • TLCI: 67
  • Zoom Range: 5° - 40°
  • Beam Angle: 5° - 40°
  • Field Angle: 8.5° - 56.5°

• Effects:
  • Dual Zone LED Control
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

• Color:
  • RGBL Color Array
  • CMY Emulation
  • Variable CCT 2400K - 8500K
  • Virtual Gel Swatch Book

• Control / Connections:
  • 7 DMX Channel Modes:
    • 4ch
    • 12ch
    • 15ch
    • 13ch
    • 17ch
    • 17ch
    • 25ch
  • Manual and DMX Controlled Dimmer and Color
  • 4 Button Control Panel, LED Display
  • Aria x2 Wireless Device Management
  • RDM (Remote Device Management)
  • 5pin DMX and IP65 Locking Power Cable In/Out

• Size / Weight:
  • Length: 13.4" (341mm)
  • Width: 9.8” (248mm)
  • Vertical Height: 17.8” (451mm)
  • Weight: 21.8 lbs. (9.9kg)

• Electrical / Thermal:
  • AC 100-240V - 50/60Hz
  • 570W Max Power Consumption
  • Power Thru Capacity:
    • @110V: 2 Units
    • @240V: 6 Units
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) 1943.7

• Included Items:
  • IP65 Locking Power Cable
  • Safety Cable

• Optional Items:
  • Gel Frame
  • Black Barndoor (LLP332)
  • # 8050000053 - Omega Bracket

• Approvals / Ratings:
  • CE
  • cETLus
  • IP65
  • FCC
  • UKCA
