Description

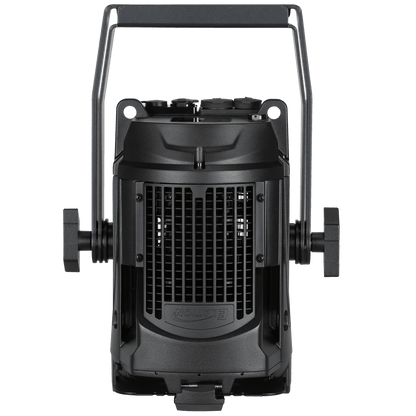

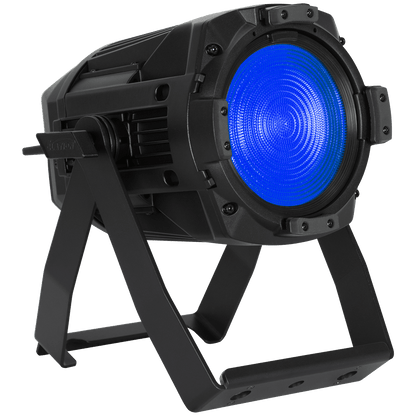

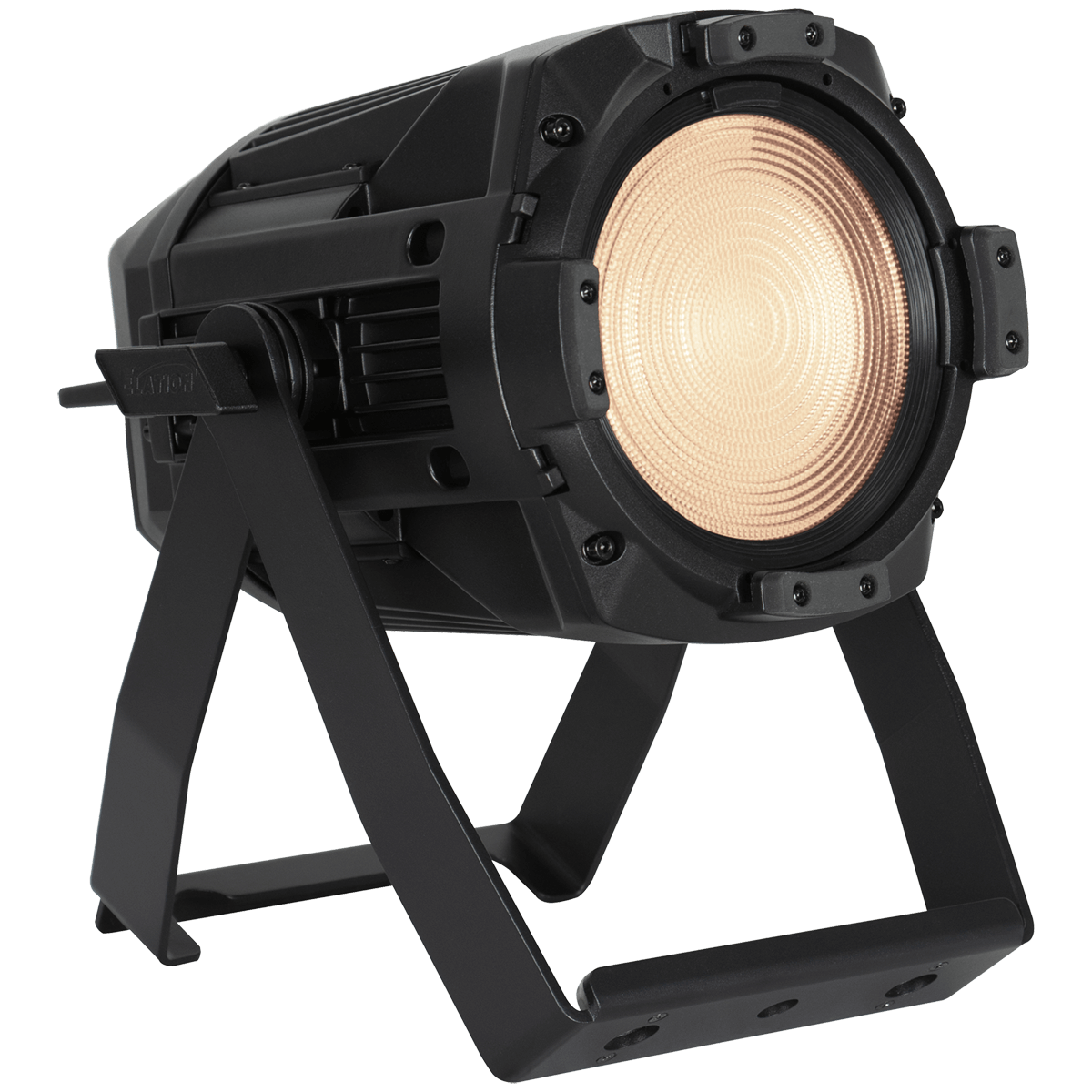

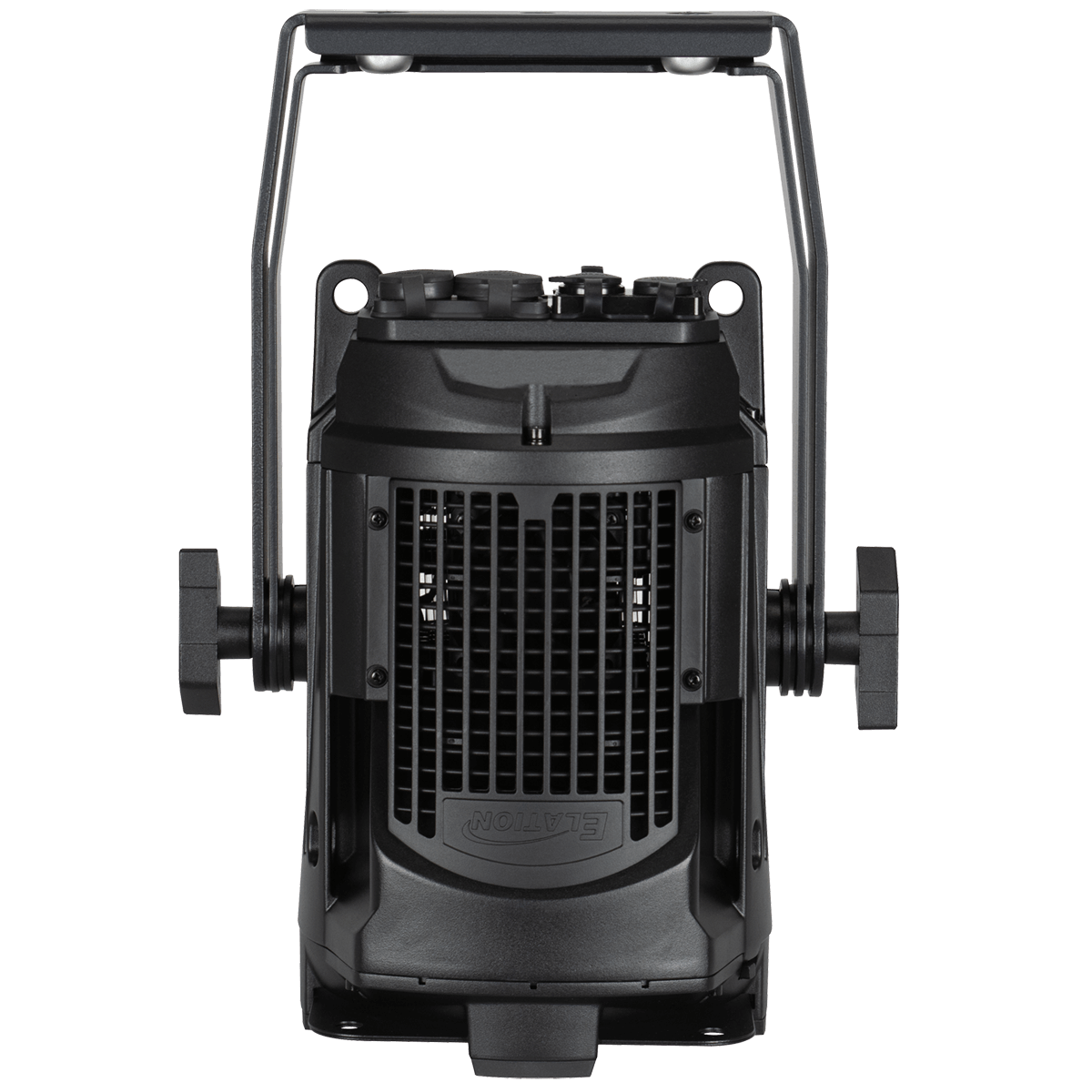

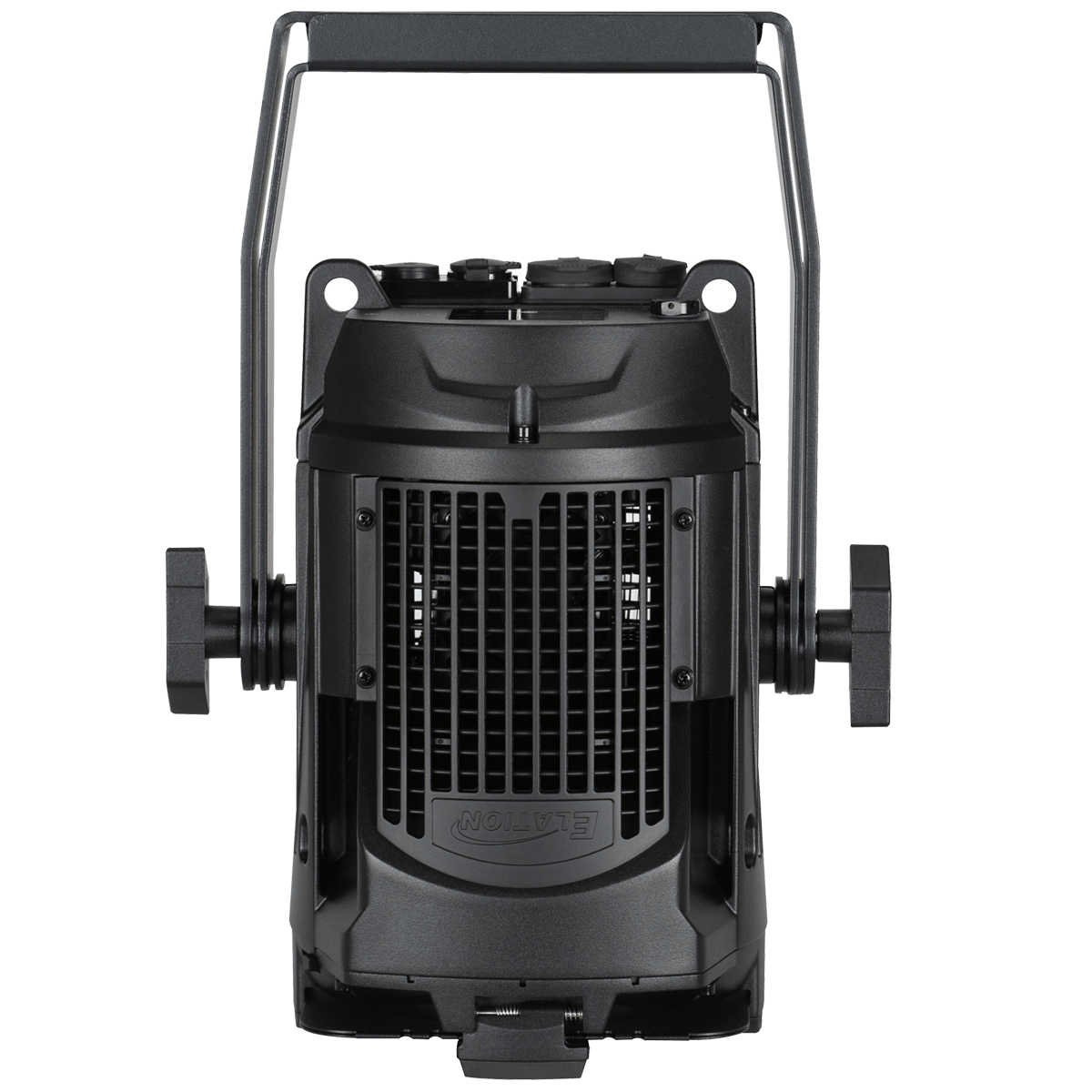

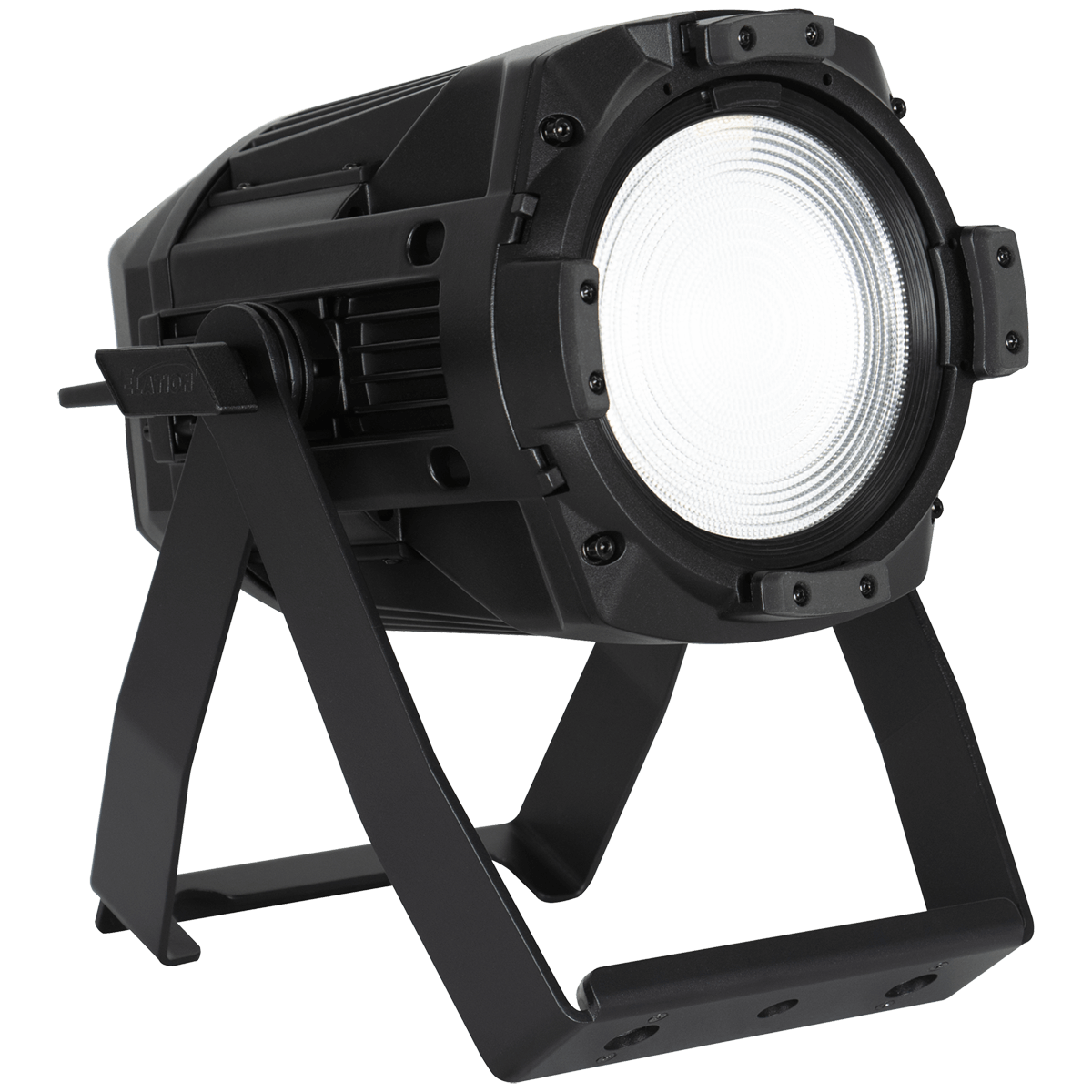

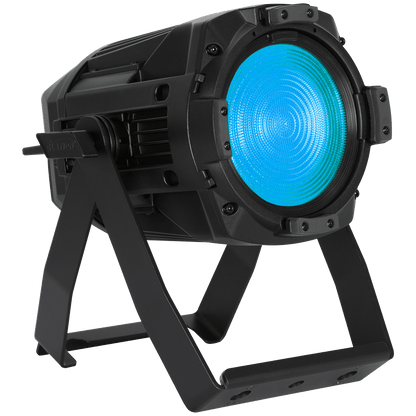

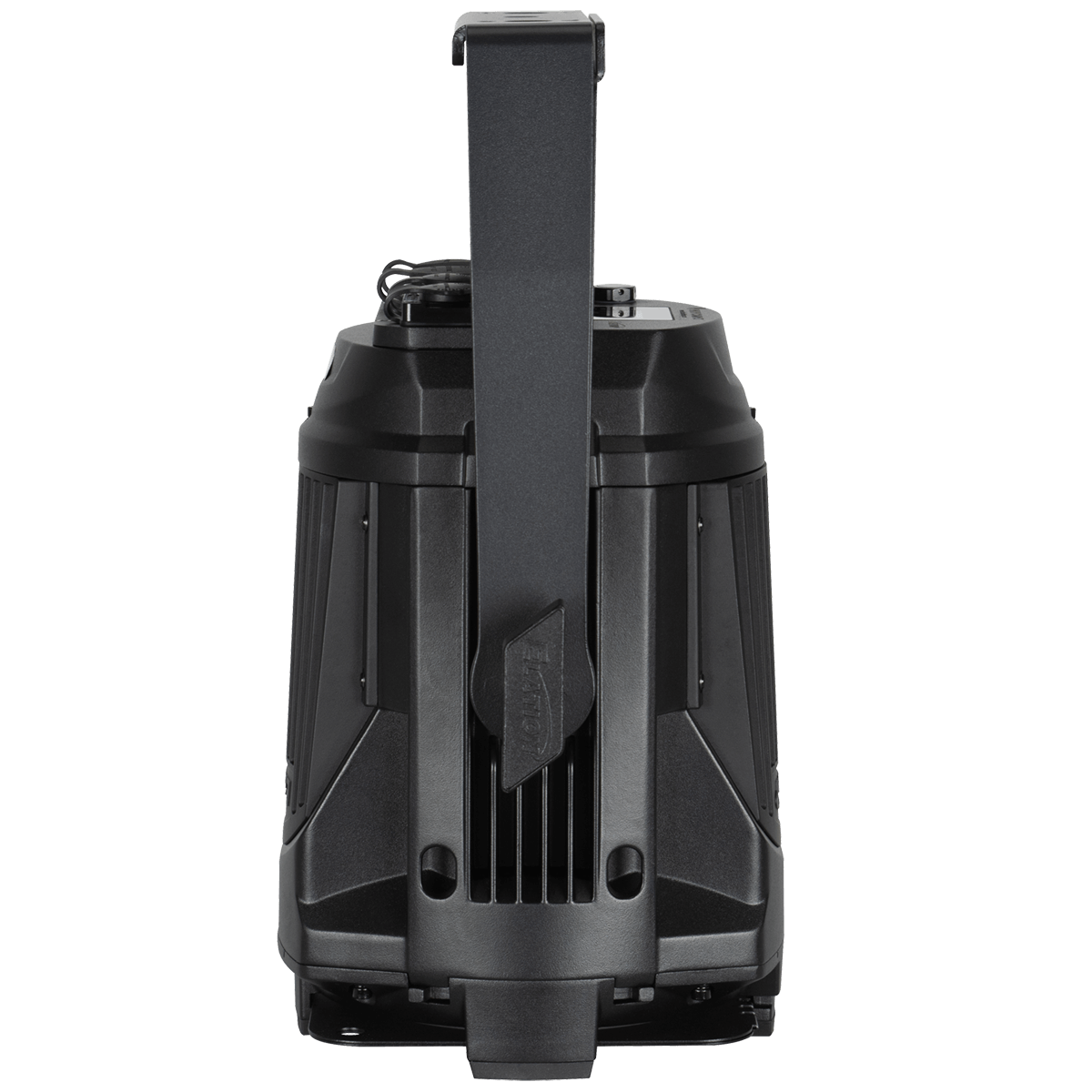

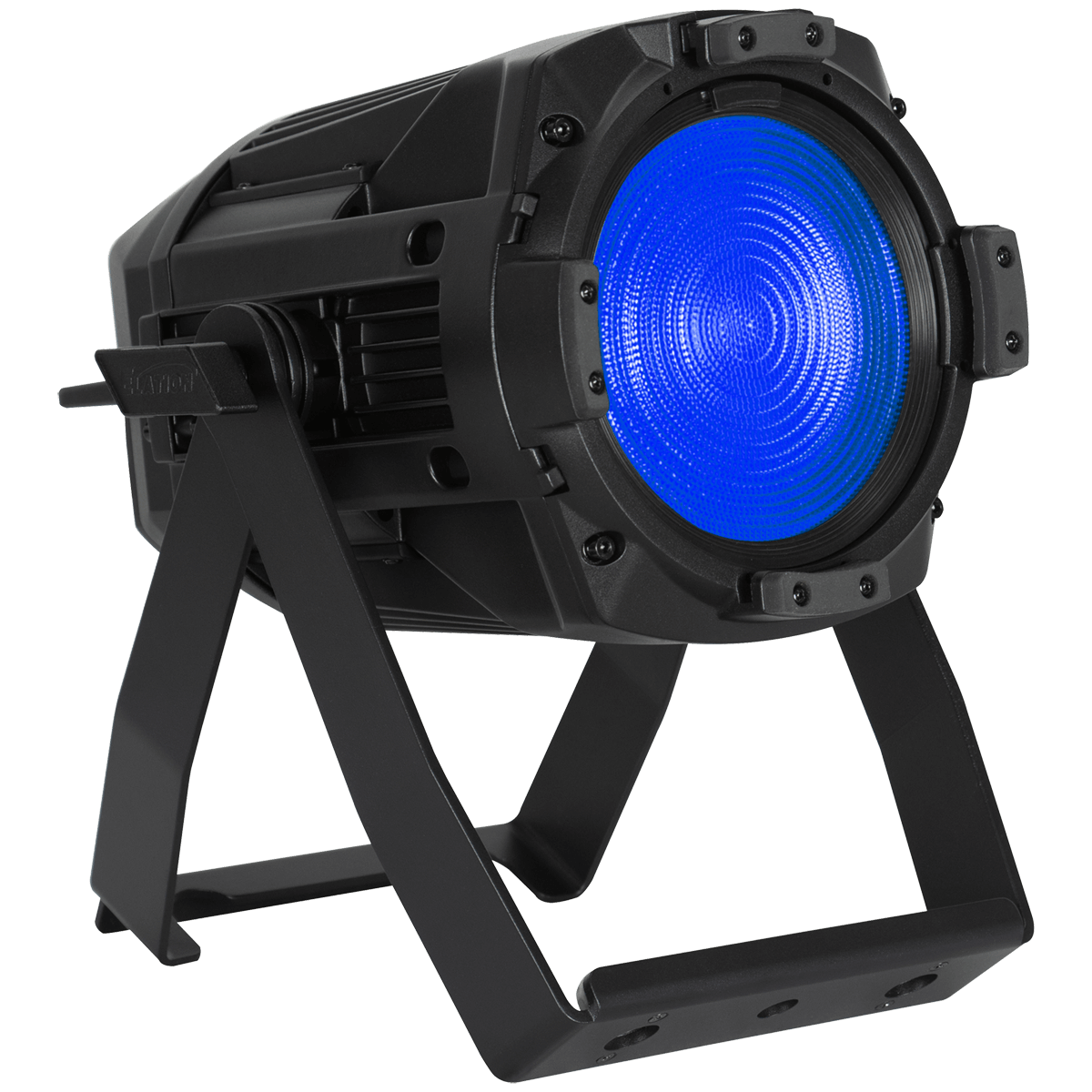

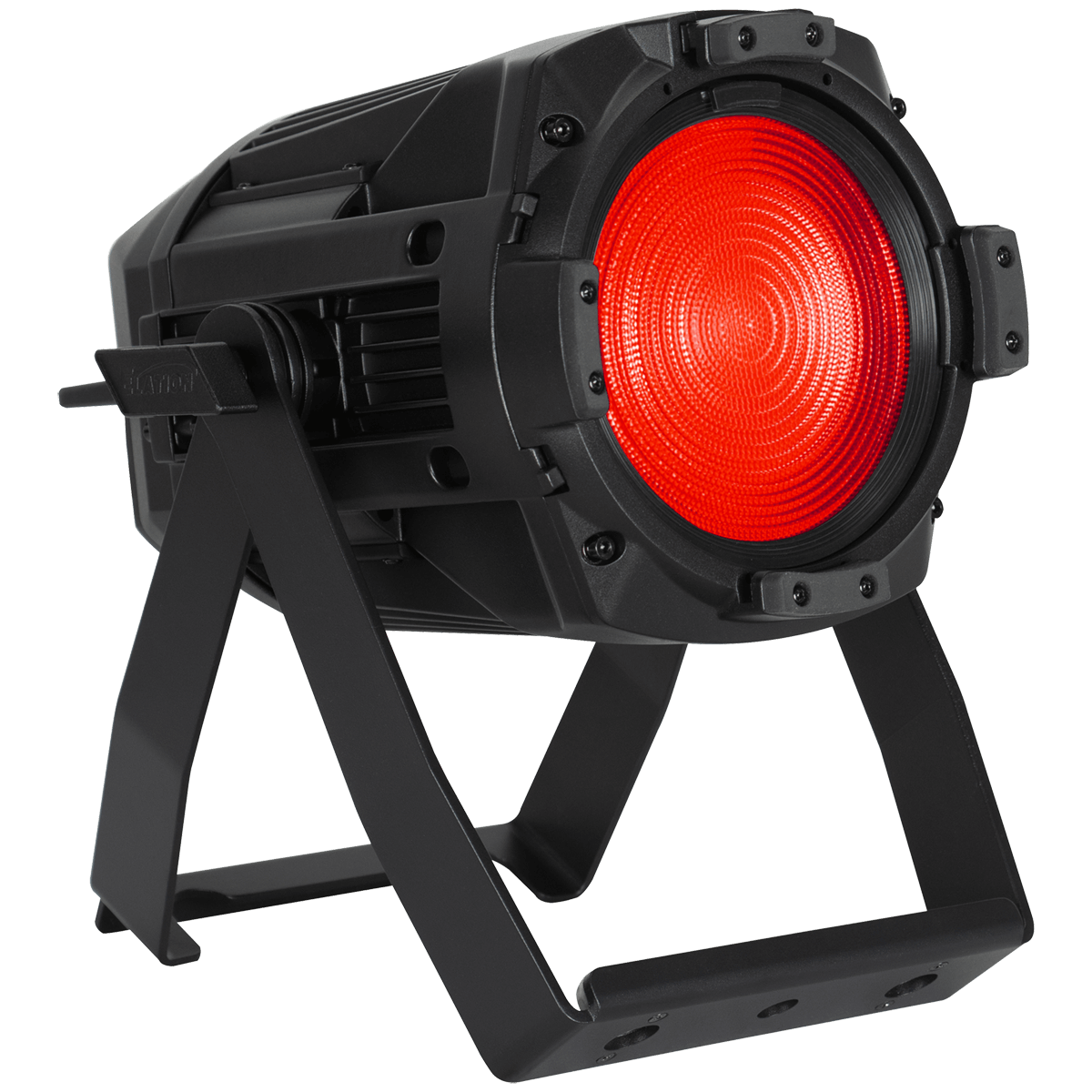

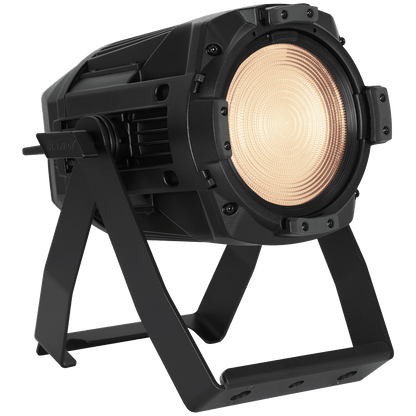

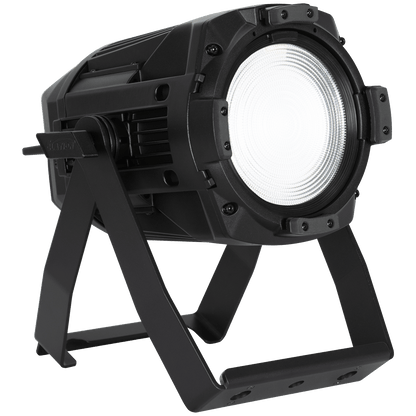

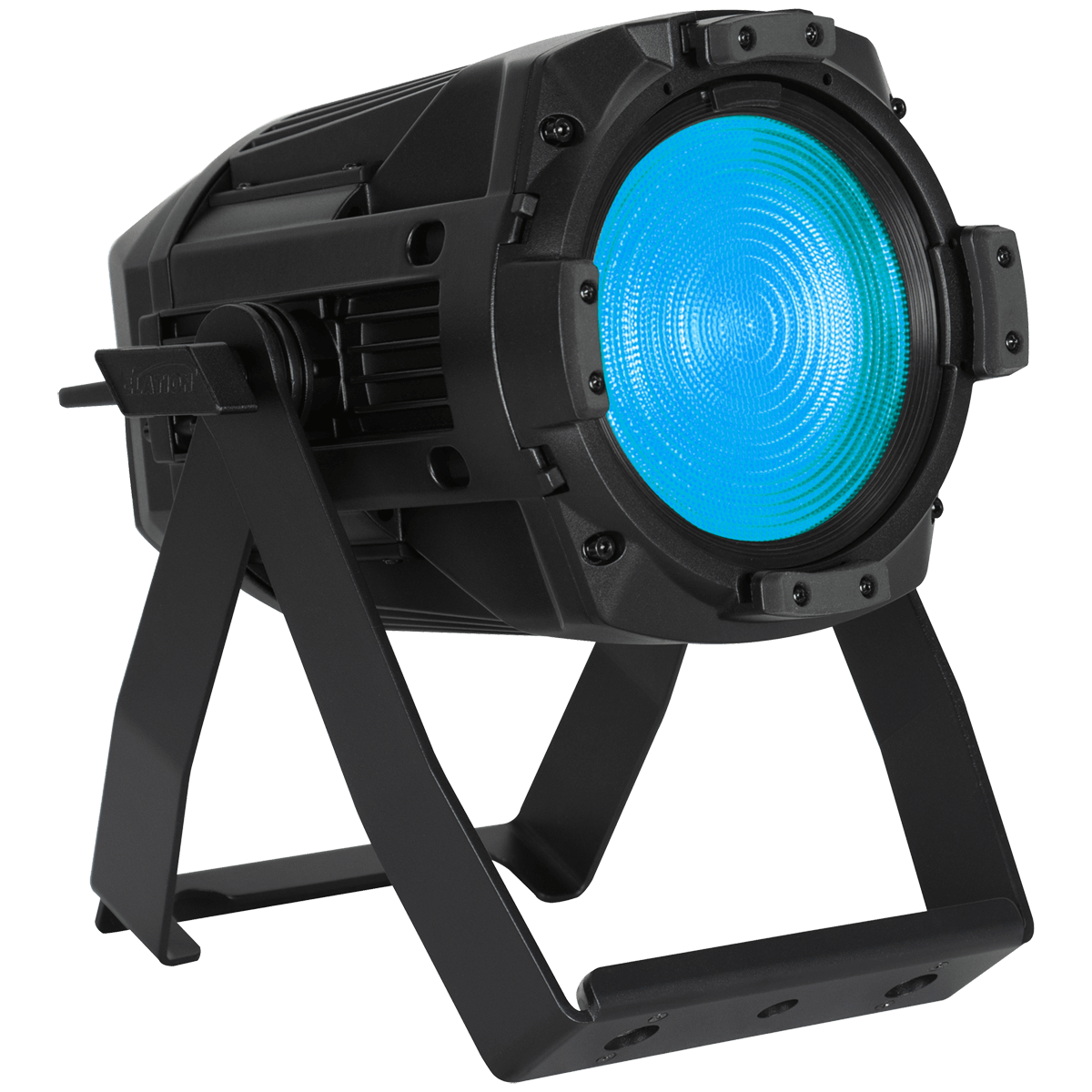

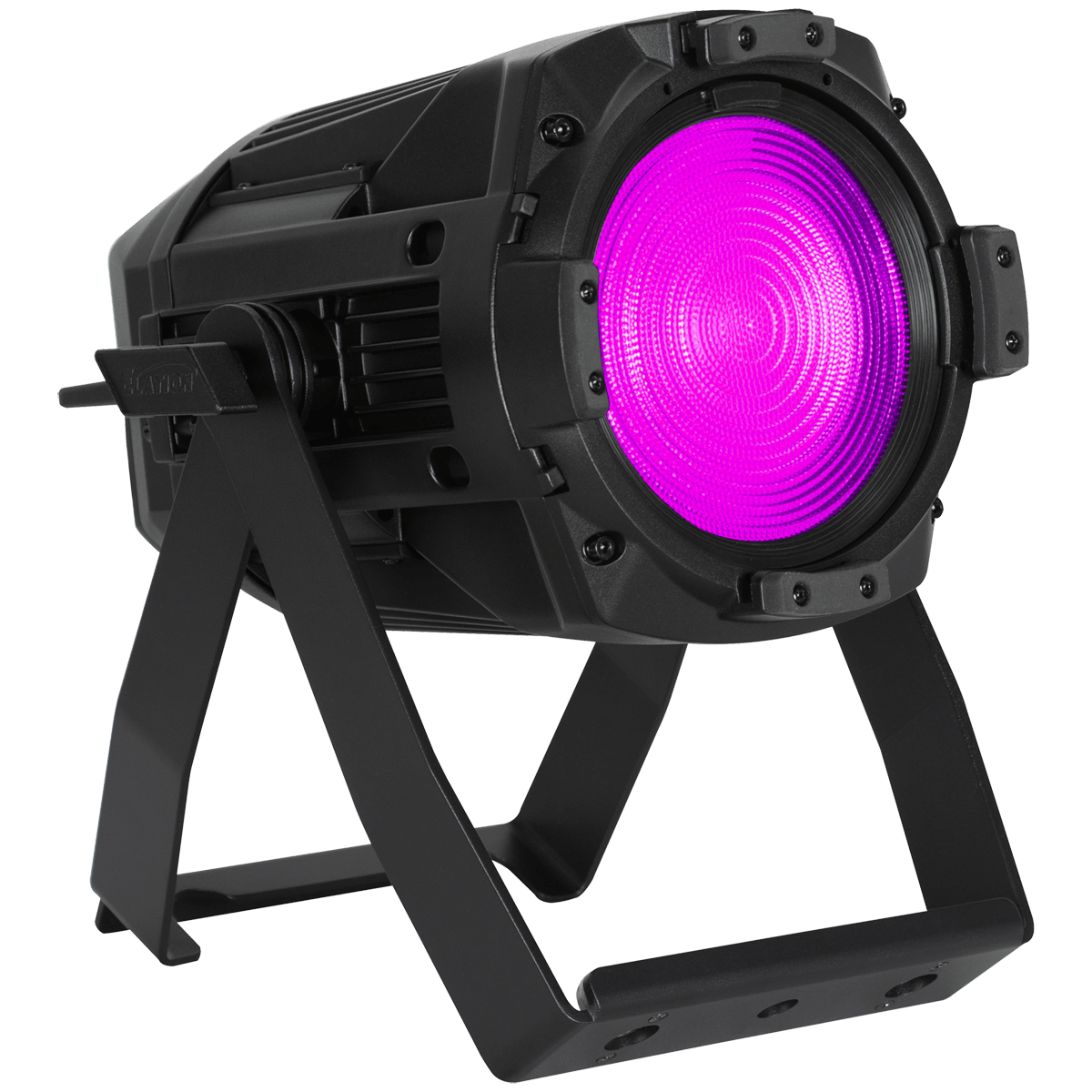

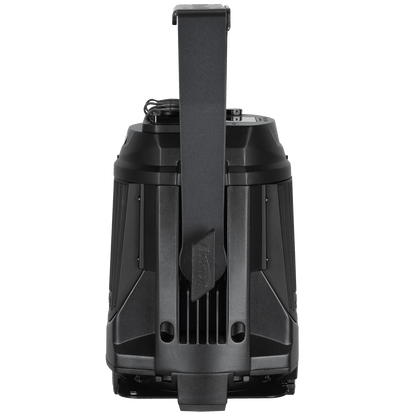

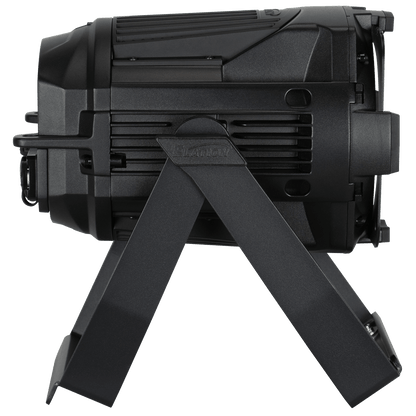

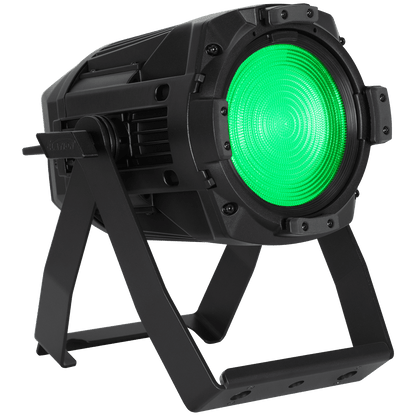

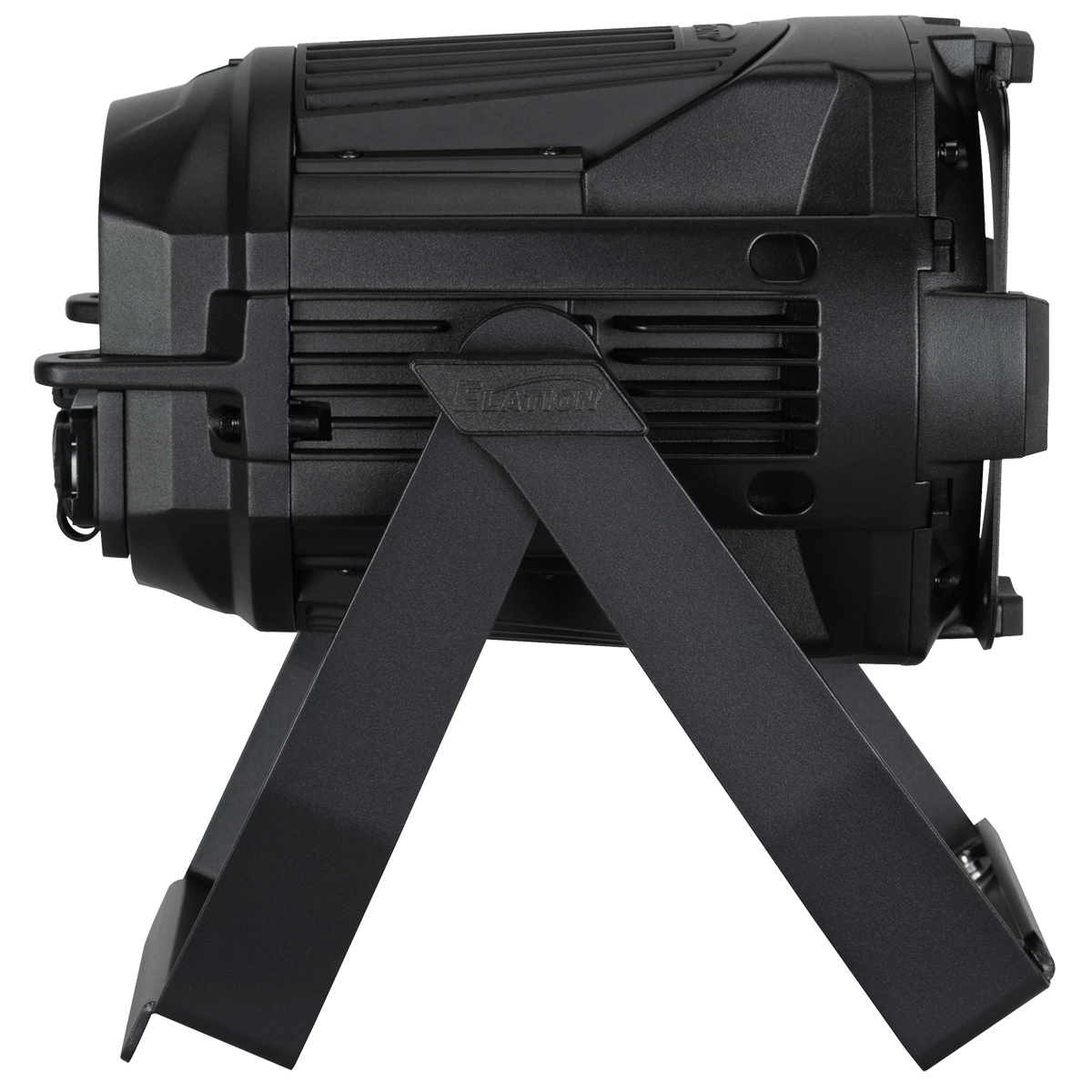

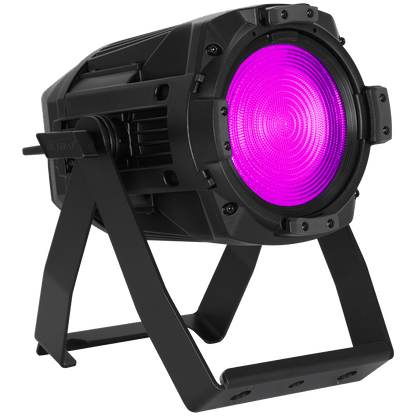

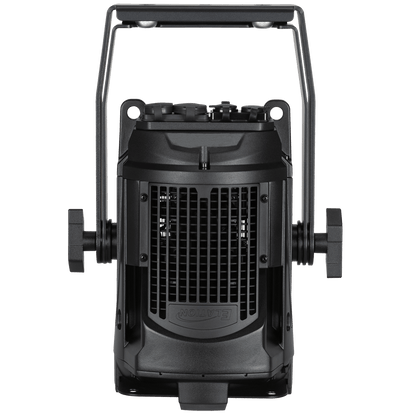

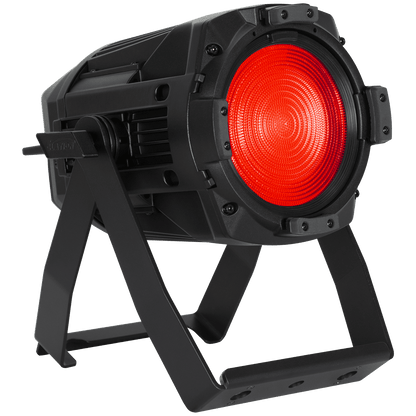

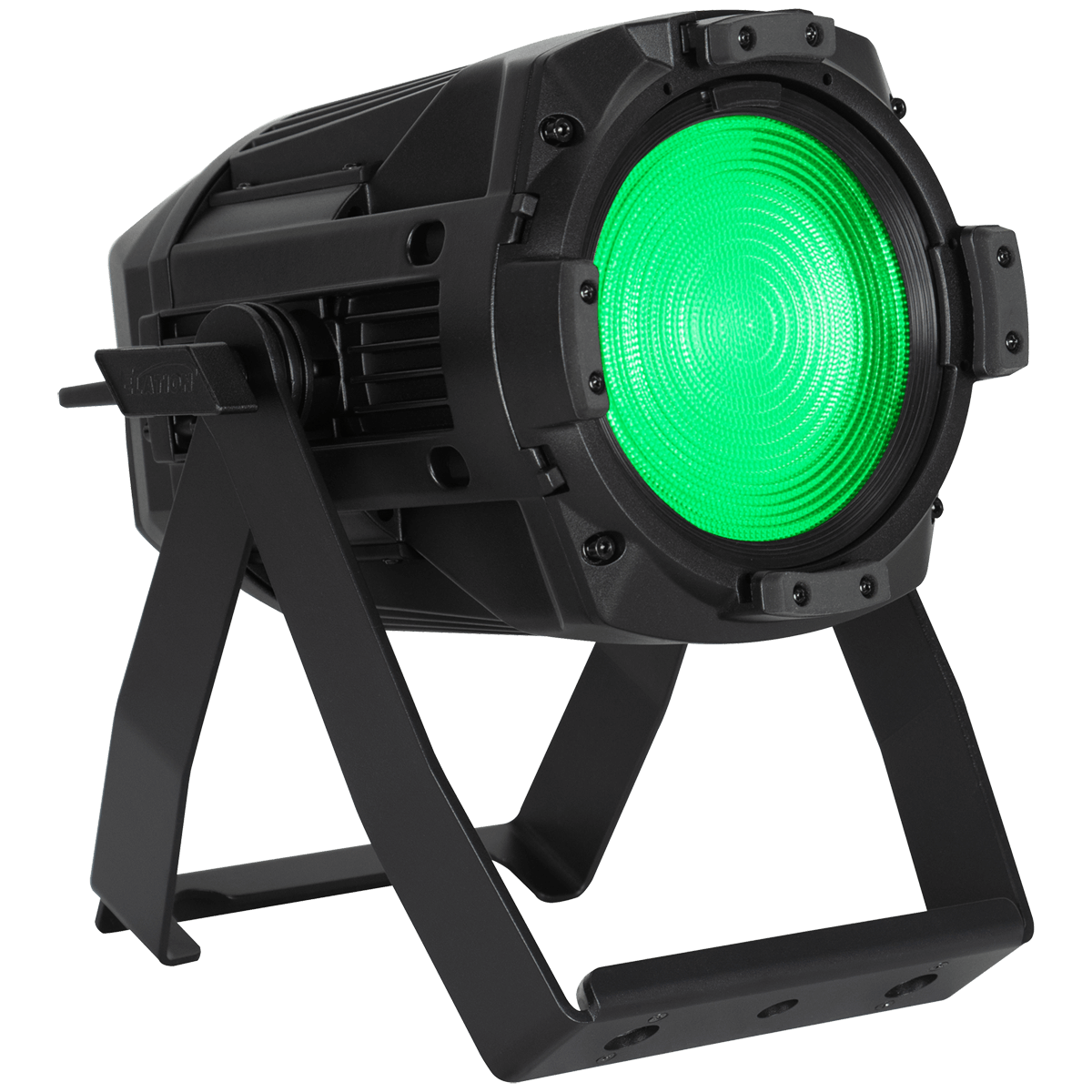

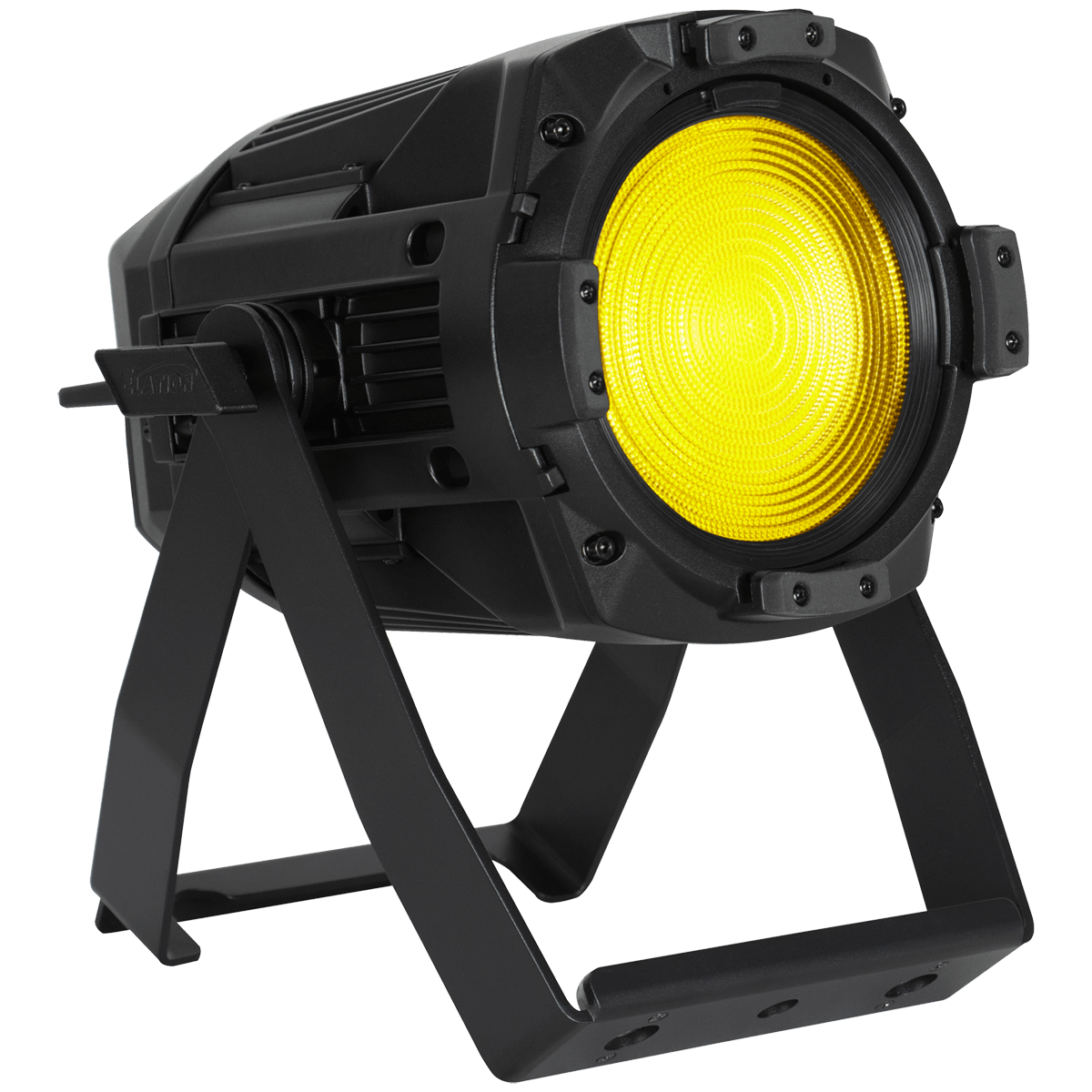

Elation KL PAR IP Compact; 150W RGBMA IP65 LED PAR
Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.
Its advanced control software delivers exceptional color accuracy (CRI 94.9, TLCI 95), 16-bit variable CCT control, and adjustable LED refresh frequency, making it perfect for film, television, and live events. With multiple lens options, DMX/RDM compatibility, and a touch bar encoder for instant adjustments, it’s ready for any production need.
Streamline your lighting setup and discover how the KL PAR IP COMPACT can elevate your next production.
Features
- 150W RGBMA LED Engine
- 5,474 Total Fixture Lumen Output (Sphere)
- Field Replaceable Lenses
- Stand-Alone Control with Touch Encoder and OLED Display
- Smooth 16-bit Selectable Dimming Modes and Curves
- RDM (Remote Device Management)
- NFC & Aria x2 Wireless Device Management
- 6.25" Gel Frame and Four Lenses (11°, 22°, 30°, 52°) Included
- IP65 Rated
Specifications
-
SOURCE
- 150W 6000K RGBMA LED Engine
- 30,000 Hour Average LED Life*
-
*May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
- PHOTOMETRIC DATA
- Total Lumen Output:
- 5,474 (Integrating Sphere)
- 4,722 (Goniometer)
- CRI 94.9
-
TLCI 95
-

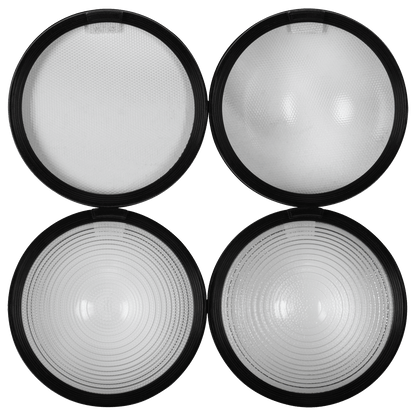

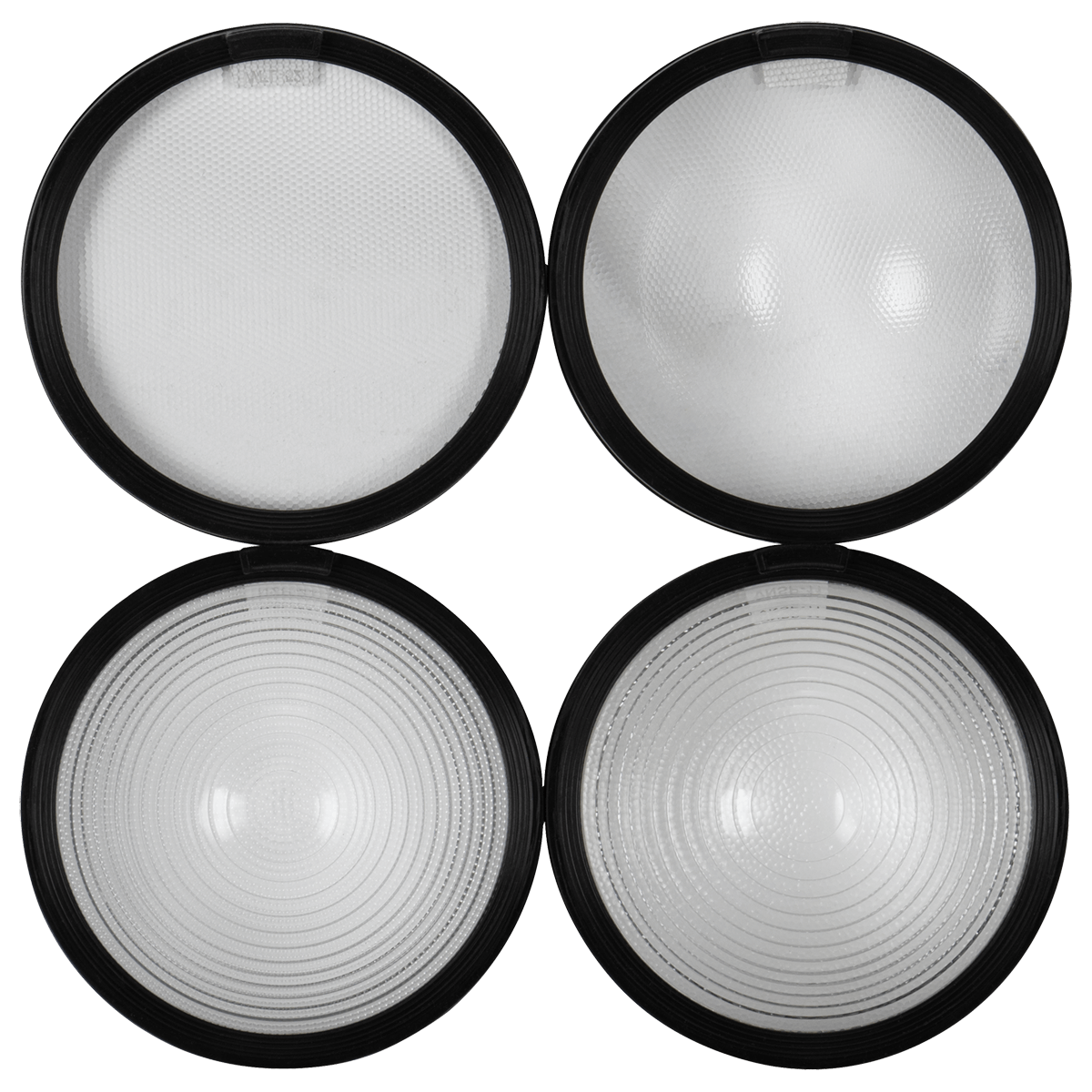

INCLUDED LENSES
-
VNSP (11°)
- NSP (22°)
- MFL (30°)
- WFL (52°)
-
EFFECTS
- Variable Strobe Rate: 1- 20Hz
- Dim-to-Warm/ Red Shift Emulation
- Variable 16-bit Dimming Modes and Curves
-
COLOR
- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
-

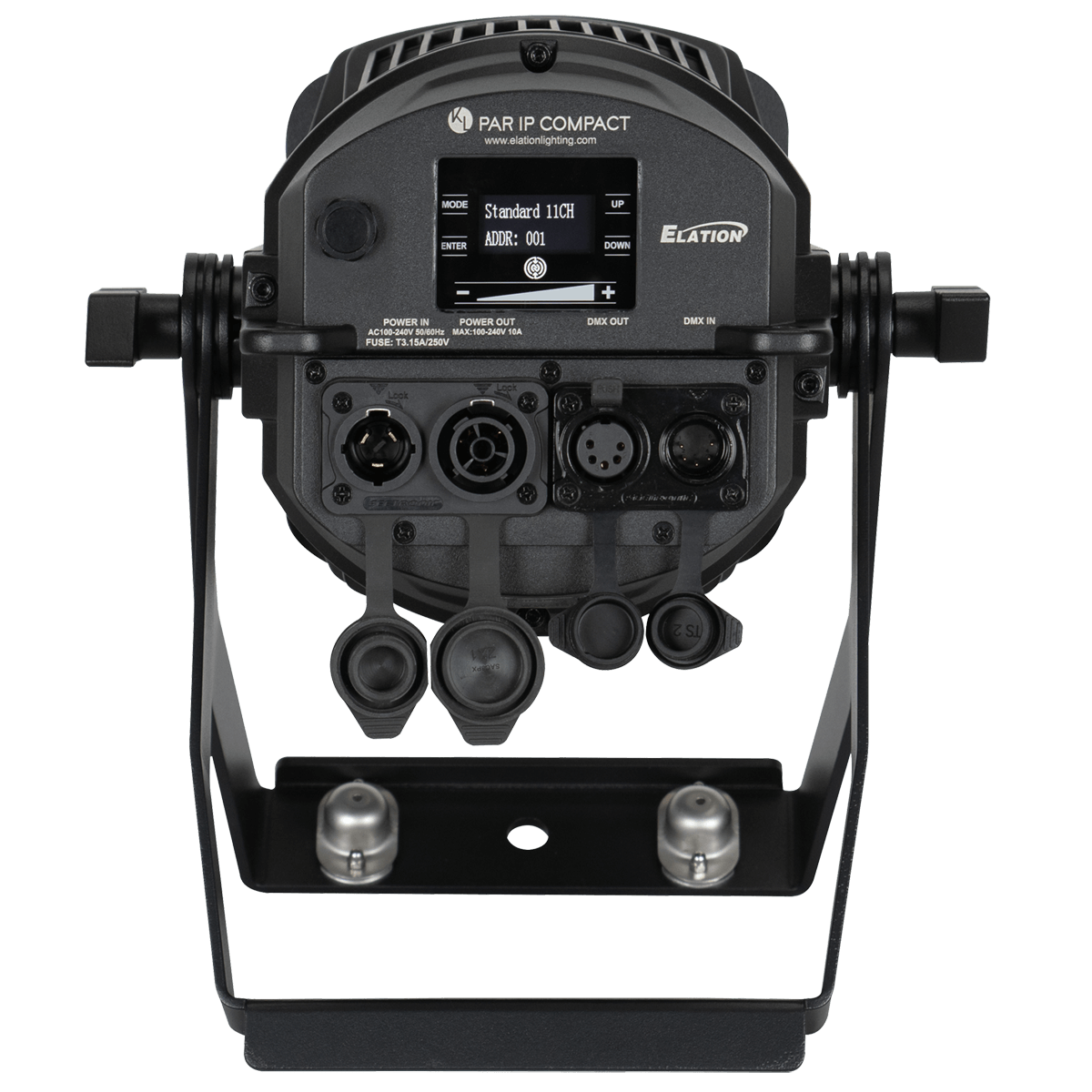

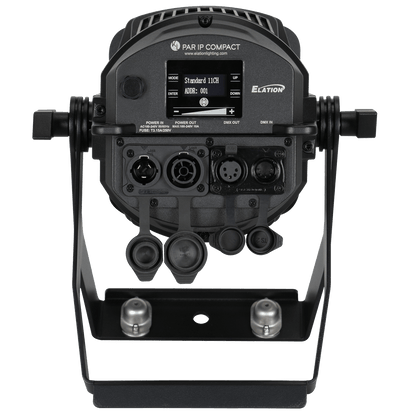

CONTROL / CONNECTIONS
-
8 DMX Channel Modes (1, 4, 6, 10, 11, 19, 9, 15)
- Manual and DMX Controlled Dimmer and Color
- Single Touch Bar Encoder
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin DMX and IP65 Locking Power Cable In/Out
-
SIZE / WEIGHT
- Length: 7.2” (183mm)
- Length (Yoke 0°): 14.25" (362mm)
- Width: 10.1" (257mm)
- Height (Fixture Body): 7.2" (183mm)
- Height (Yoke 90°): 14.2" (361mm)
- Weight: 12.1 lbs (5.5kg)
-
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 200W Max Power Consumption
- Power Thru Capacity: 10A (6 units @115V, 12 units @240V)
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 682
-

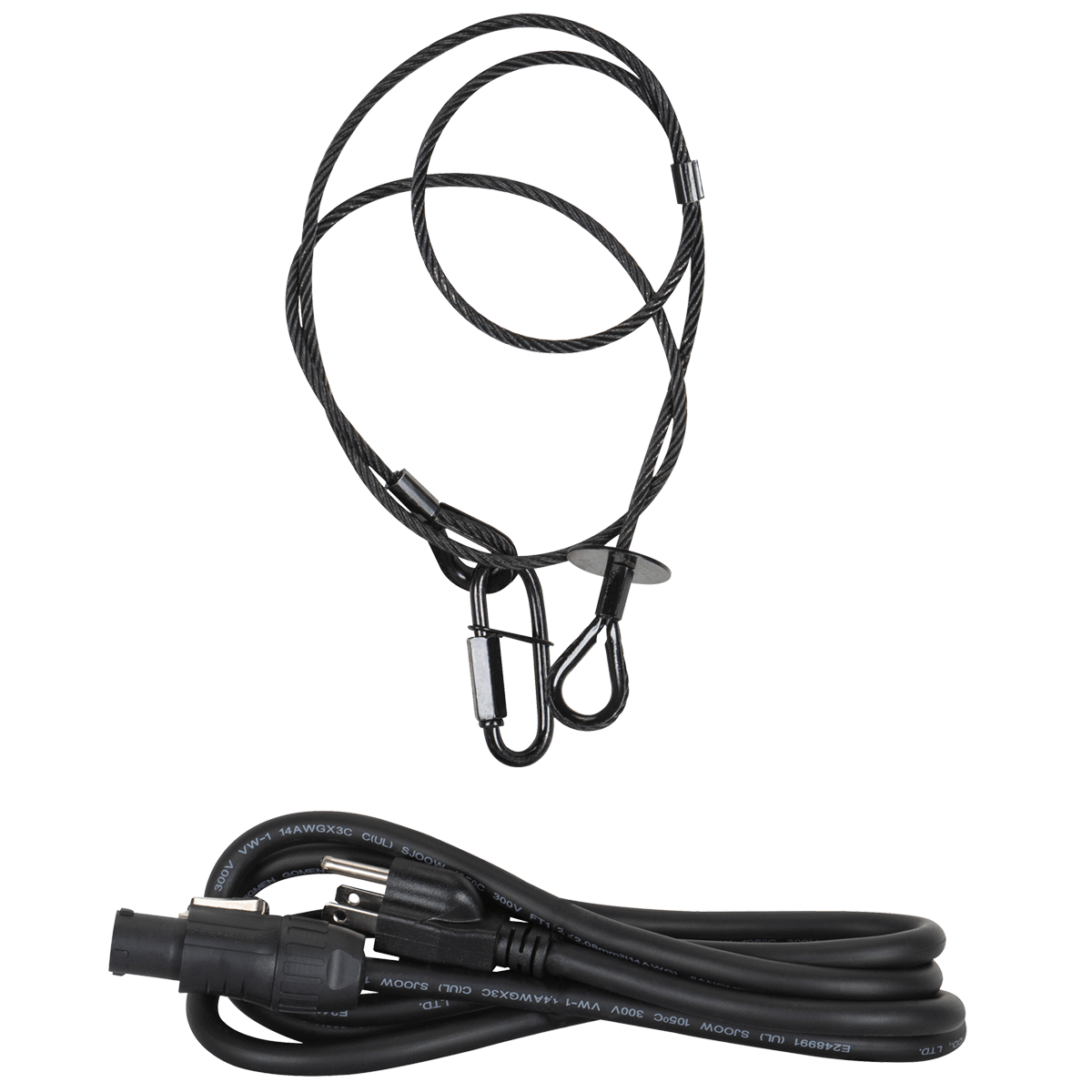

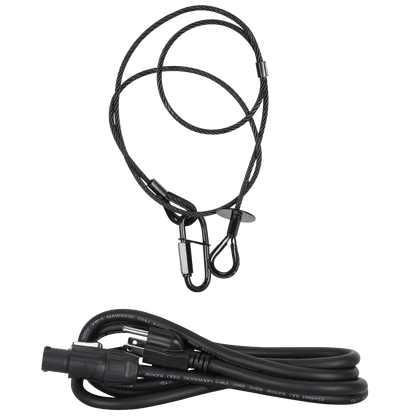

INCLUDED ITEMS
- Gel Frame
- Safety Cable
- 4 Lenses (11°, 22°, 30°, 52°)
- IP65 Locking Power Cable
-
OPTIONAL ITEMS
- 6.25" Barndoors
- Omega Bracket
- 4 Wire Hardwire Installation Plate (HWP404)
- 2 Wire Hardwire Installation Plate (HWP202)
