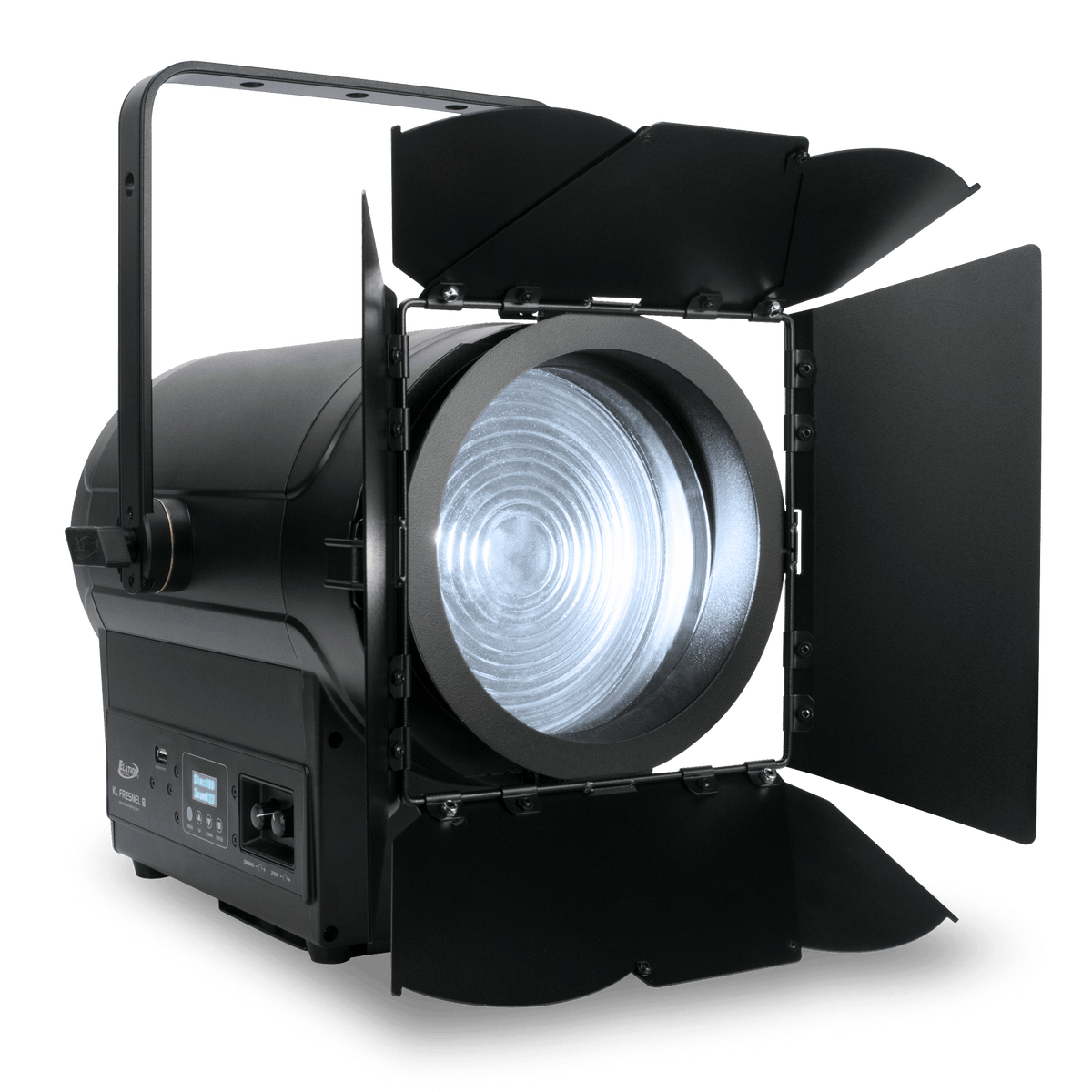

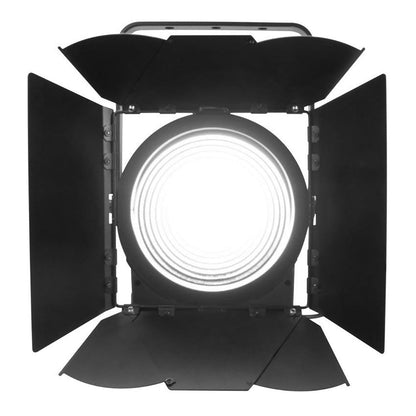

Elation KL Fresnel 8 CW; 350W CW 8" LED Fresnel

Elation KL Fresnel 8 CW; 350W CW 8" LED Fresnel

KL FRESNEL 8 CW™ is a 350W 5,600K >97CRI Cool White LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).

• 5,600K Cool White LED Fresnel Luminaire

• 350W Single Source LED

• Manual and DMX Controlled Dimming

• Quick Single Press Light Output for Focusing

• 11° - 56° Motorized Zoom

• Including 8-Leaf Barn Doors and Gel Frame Holder

• Adjustable Refresh Frequency

• Silent Operation

• Variable Dimming Curves, Dim Modes and Dimming Delays

• Flicker Free Operation for Broadcast TV and Film

• RDM (Remote Device Management)

• Gel Frame and Rotating Barn Doors (included)

• 3 Clamp Position Adjustable Mounting Yoke

Specifications

• SOURCE
  • 350W Cool White LED Engine, 5,600K, 97CRI
  • 50,000 Hour Average LED Life*
• PHOTOMETRIC DATA
  • up to 14,000 Total Lumen Output
  • 16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)
  • 1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)
  • Zoom Range 11° - 56°
  • Beam Angle 11° - 56.2°
  • Field Angle 17.9° - 77°
• EFFECTS
  • Motorized Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves
• COLOR
  • 5,600K Cool White LED
• CONTROL / CONNECTIONS
  • Manual and DMX Controlled Dimmer, Shutter and Zoom
  • Dimmer and Zoom Rotary Dials
  • (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
  • 4 Button Control Panel LCD Menu Display
  • RDM (Remote Device Management)
  • 3/5pin DMX and IP65 Locking Power In/Out Connection
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 17.5” (445mm)
  • Width: 12.89” (327.5mm)
  • Vertical Height: 17.95” (456mm)
  • Weight: 28.0 lbs. (12.7kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 430W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

  • Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

• INCLUDED ITEMS
  • Gel Frame and Rotating Barn Doors
  • IP65 Locking Power Cable
