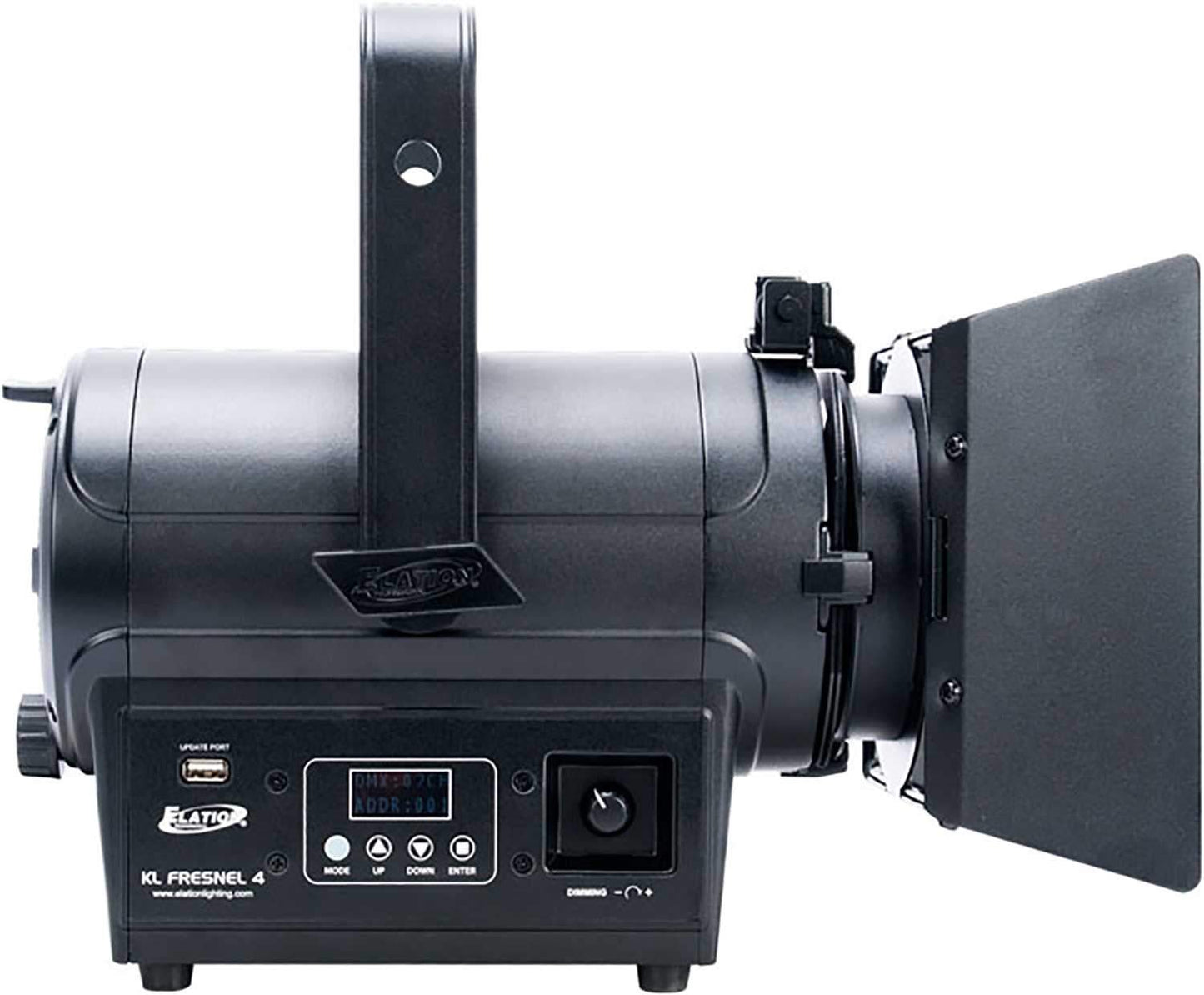

Elation KL Fresnel 4 50W 3K WW LED Fresnel Light

Elation KL Fresnel 4 50W 3K WW LED Fresnel Light

KL Fresnel 4™ is a 50W 3,000K >97CRI Warm White LED fresnel, producing over 1,900 total lumen output, on par with compatible tungsten halogen models. Features include 14° to 30° wide manual zoom, manual and DMX controlled dimmer and shutter, rotary dimmer and zoom dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and Film, RDM (remote device management) protocol support, 5pin DMX and powerCON True1 in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating barn doors (included), and a 3 clamp position adjustable mounting yoke.

Features:

• 50W 3,000K >97CRI Warm White LED Engine
• 1,900+ Total Lumen Output
• On Par with Tungsten Halogen Models
• 14° to 30° Wide Manual Zoom
• Manual and DMX Control
• Rotary Dimmer Dial
• Smooth 16-bit Selectable Dimming Modes and Curves
• LED Refresh Rate Adjustment
• Flicker Free Operation for TV and Film
• RDM (Remote Device Management)
• Gel Frame and Rotating Barn Doors (included)
• 3 Clamp Position Adjustable Mounting Yoke

Specifications:

Source

• 50W 97CRI 3,000K Warm White LED
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

• 1,900+ Total Lumen Output
• 6,837 LUX 635 FC @6.6’ (2m) (Min Zoom / Full On)
• 1,791 LUX 166 FC @6.6’ (2m) (Max Zoom / Full On)

Effects

• 14° - 30° Manual Zoom
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Color

• Warm White 3,000K

Control / Connections

• Manual and DMX Controlled Dimmer and Shutter
• Dimmer Rotary Dial
• (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)
• 5pin DMX and powerCON True1 In/Out
• With Wired Digital Communication Network

Size / Weight

• Length: 13.6" (345mm)
• Width: 7.9" (201mm)
• Vertical Height: 11.4" (289mm)
• Weight: 9.0 lbs. (4.08 kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 50W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)

Included Items

• Gel Frame and Rotating Barn Doors
• powerCON True1 Power Cable
• Barn Doors and Fixture Safety Cables

Approvals / Ratings

• CE | cETLus | IP30
