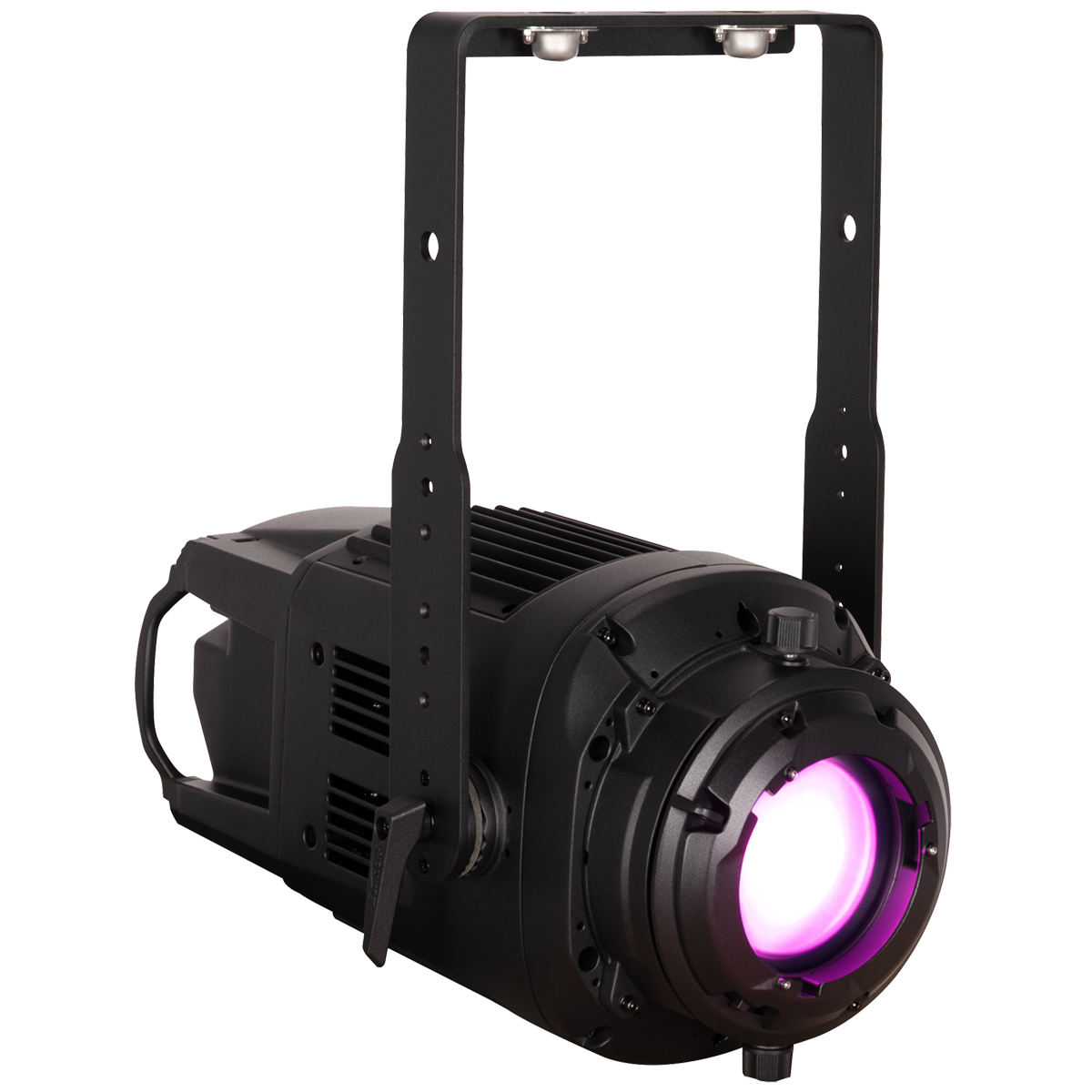

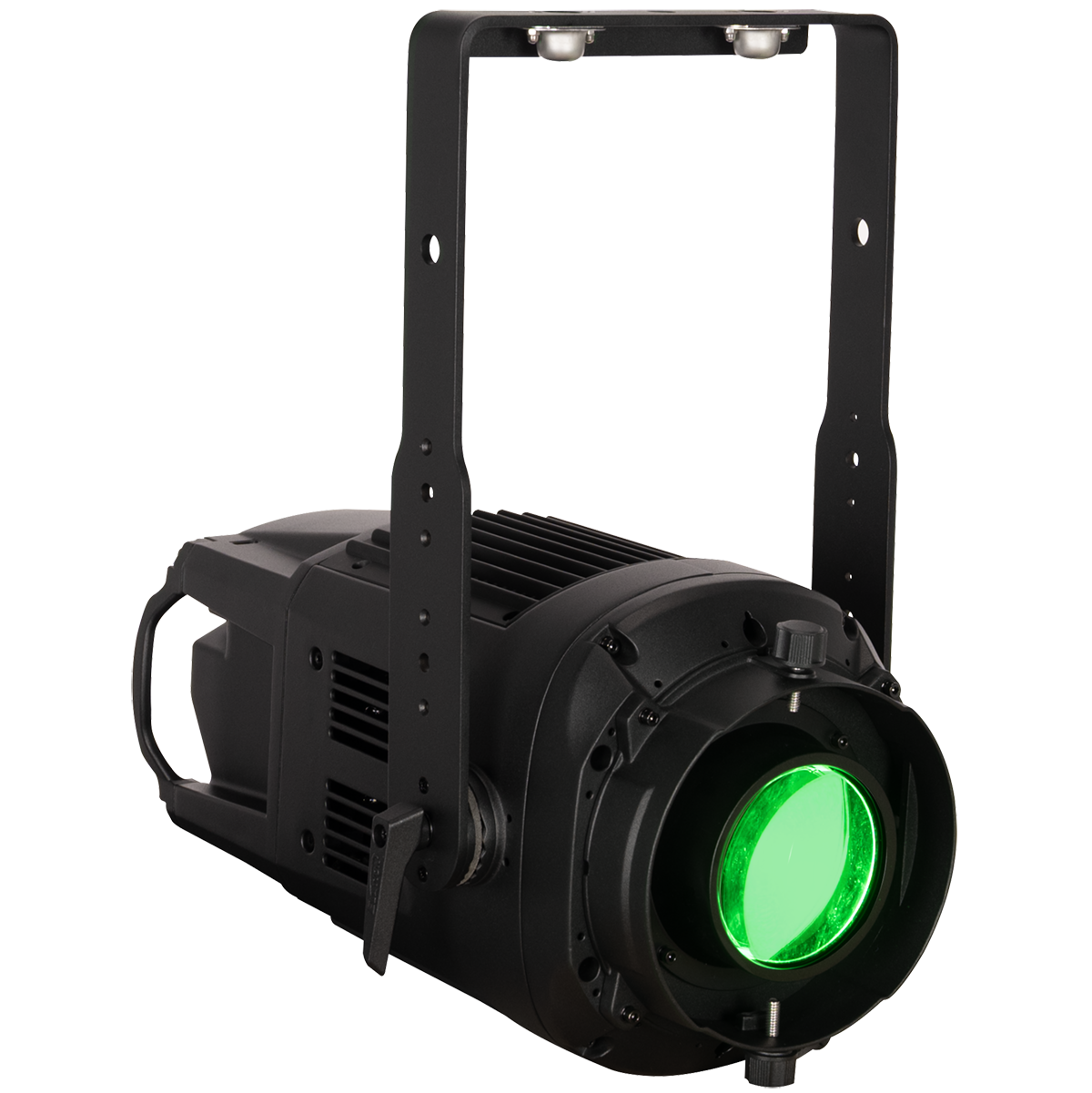

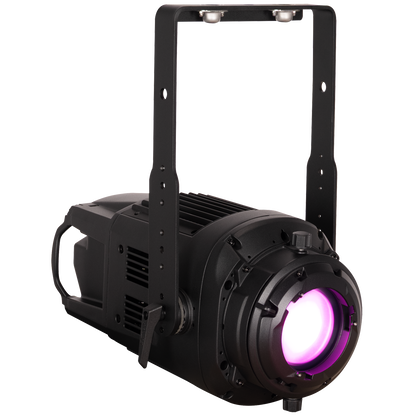

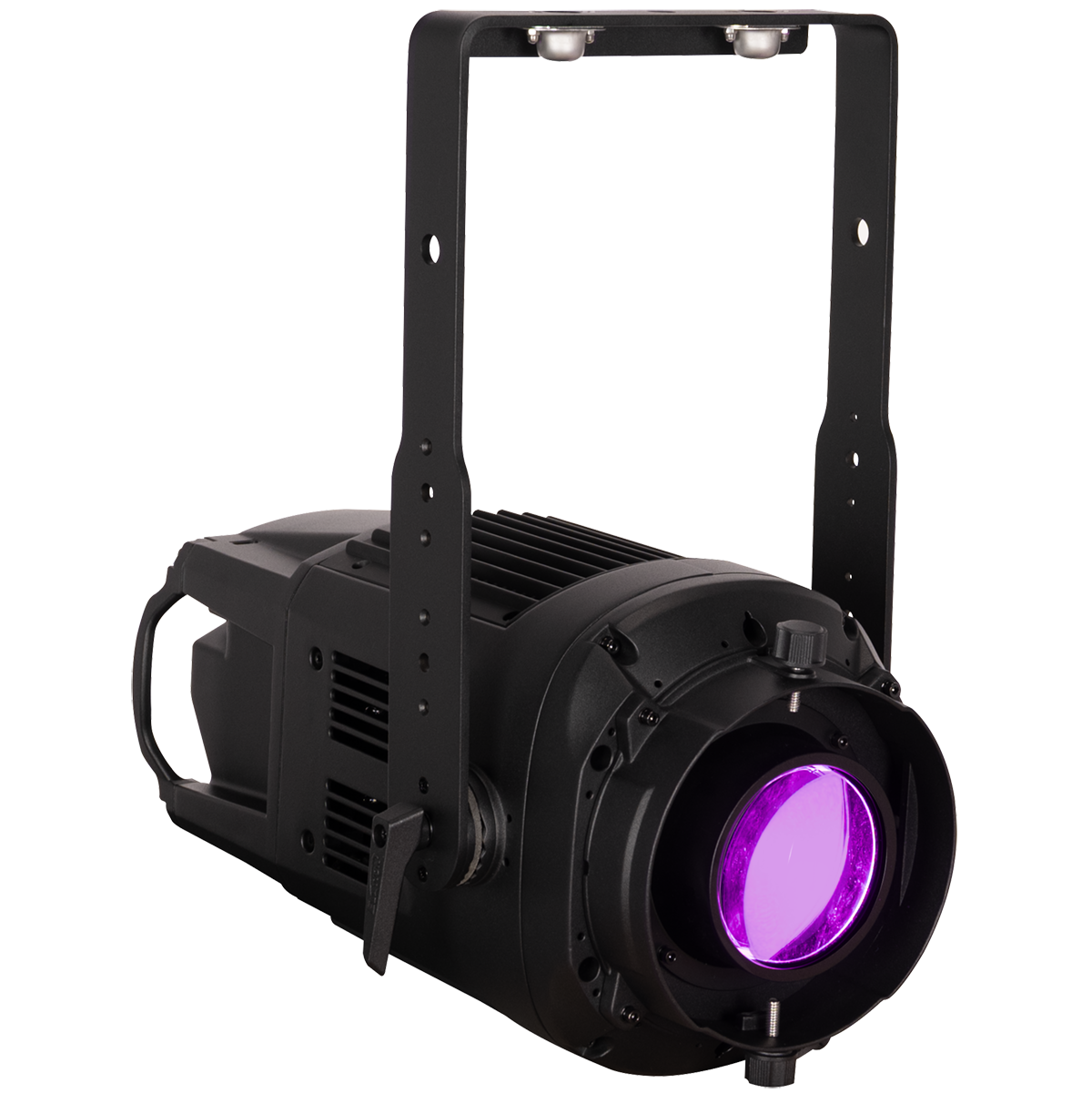

Elation KL CORE IP 450W RGBMA IP65 Engine

Elation KL CORE IP 450W RGBMA IP65 Engine

Write a review

SKU: KLC102

$2,622.00
$2,622.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

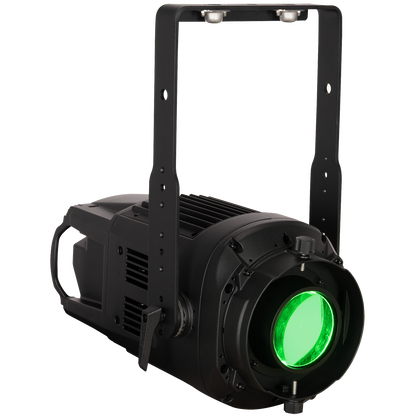

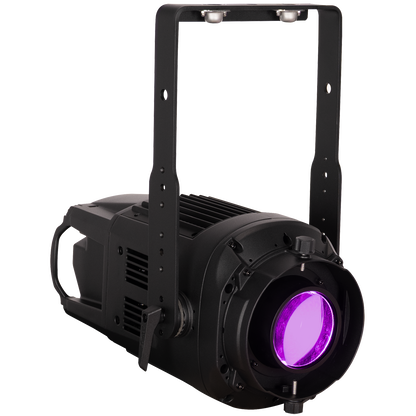

Elation KL CORE IP; 450W RGBMA IP65 Engine

The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.

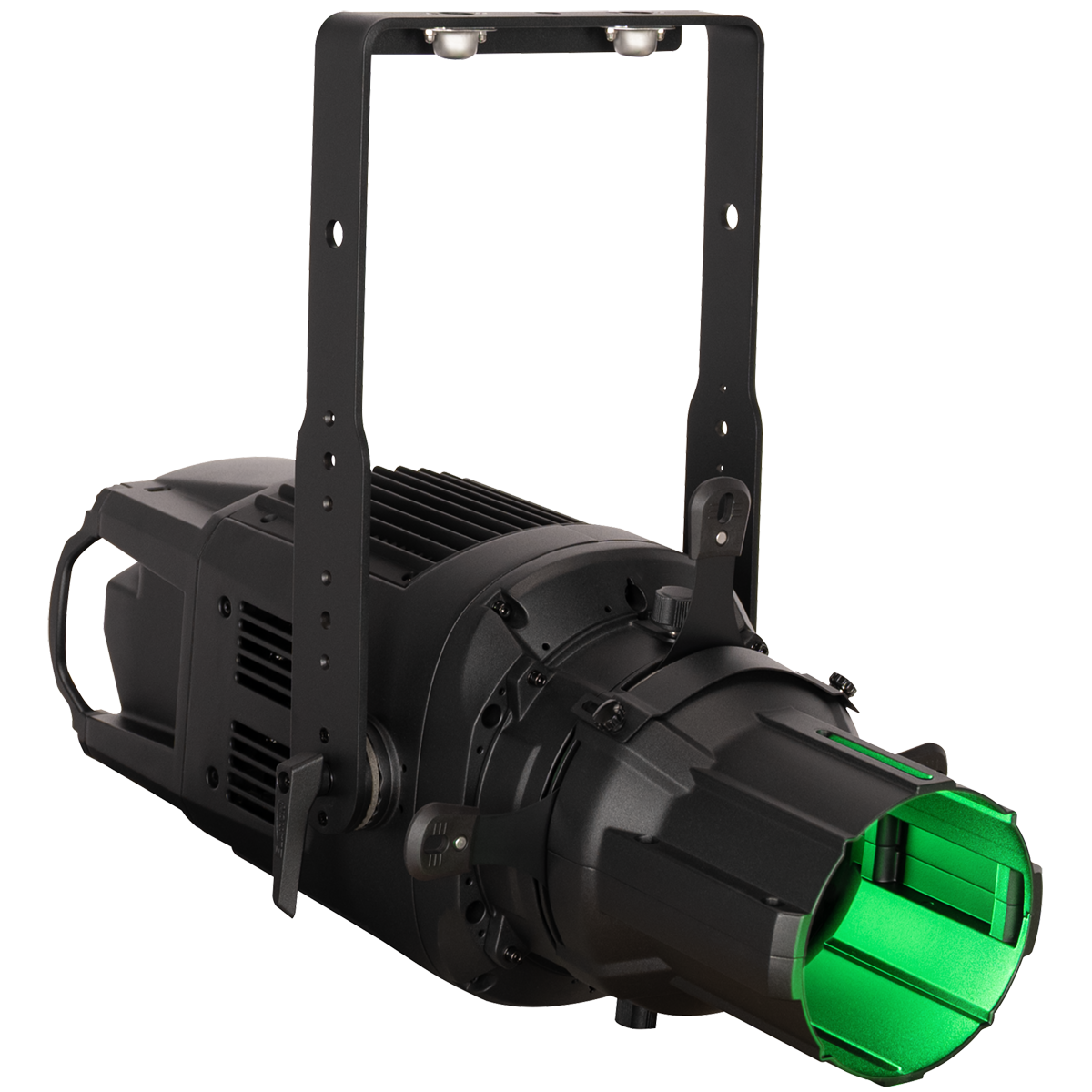

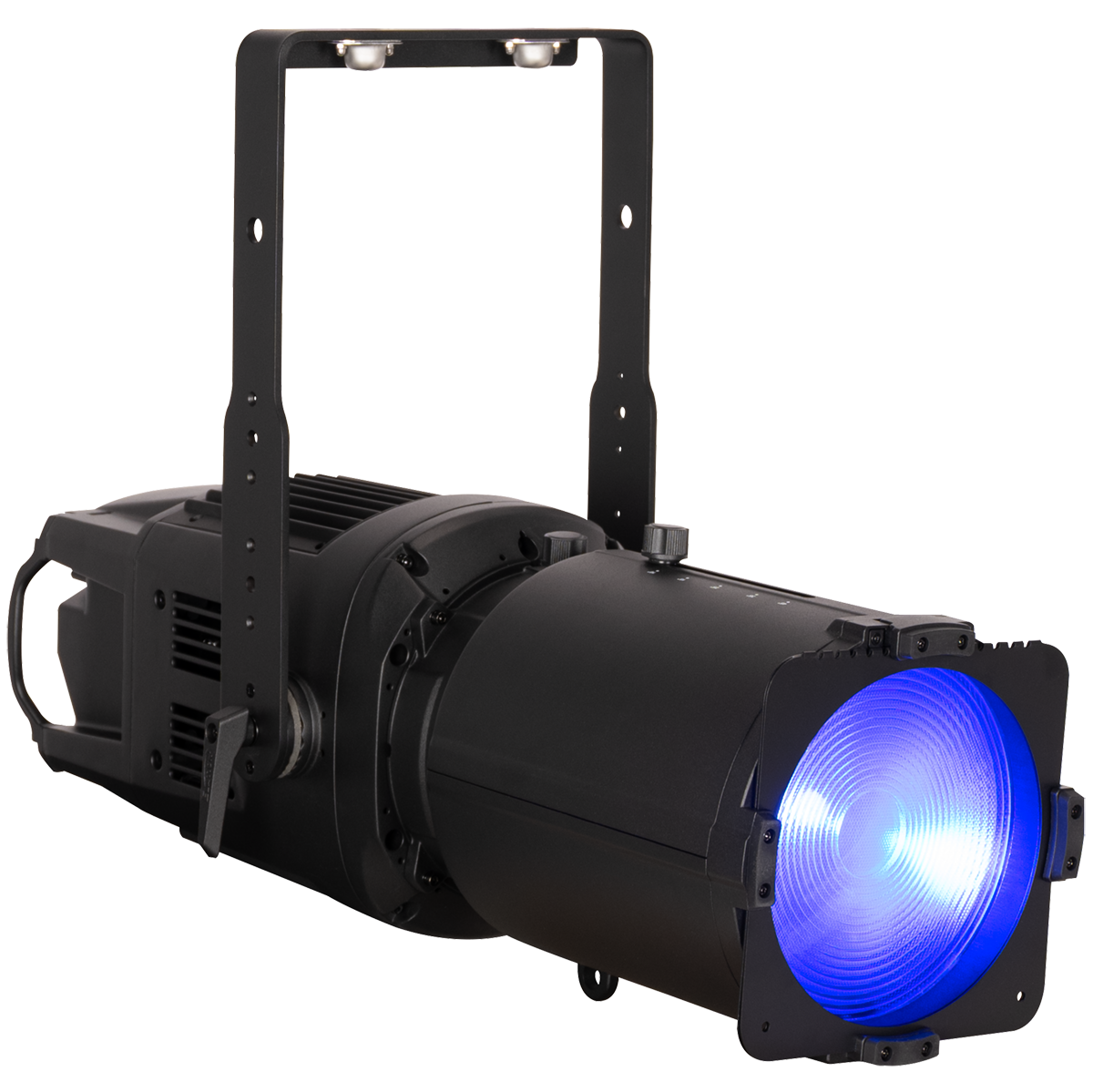

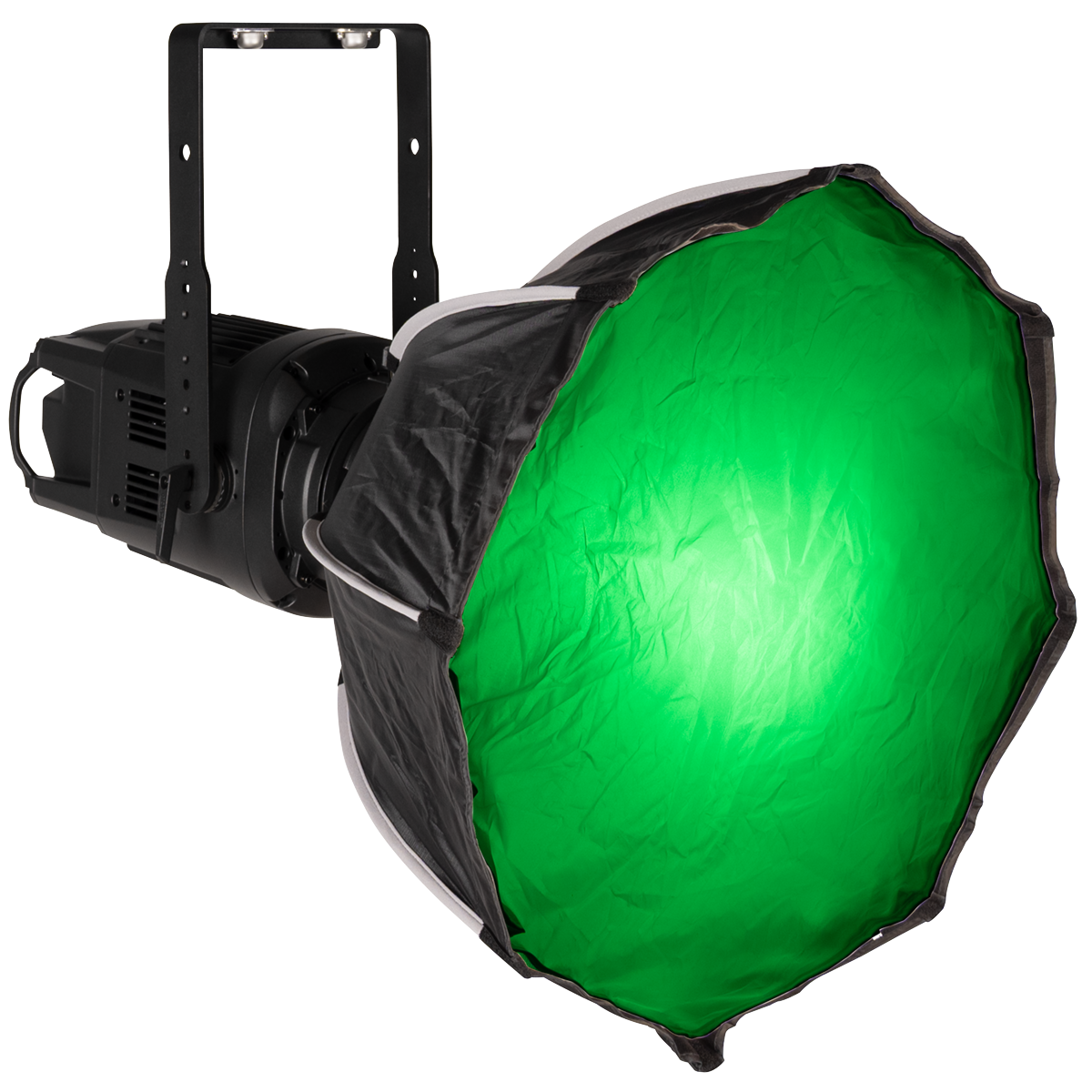

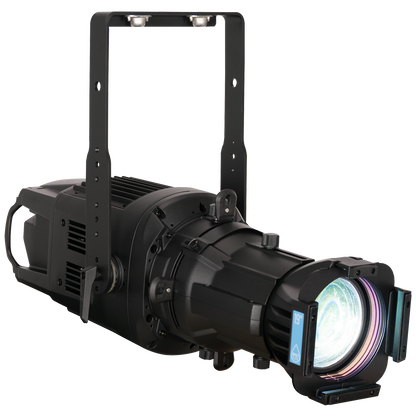

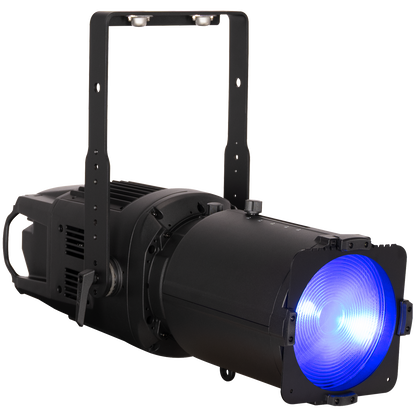

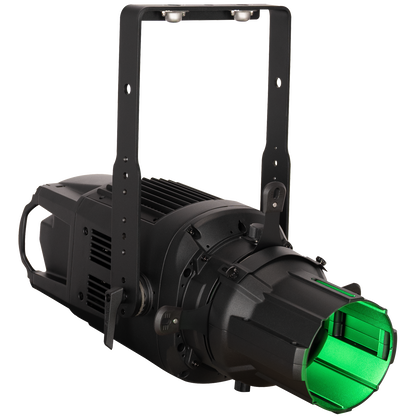

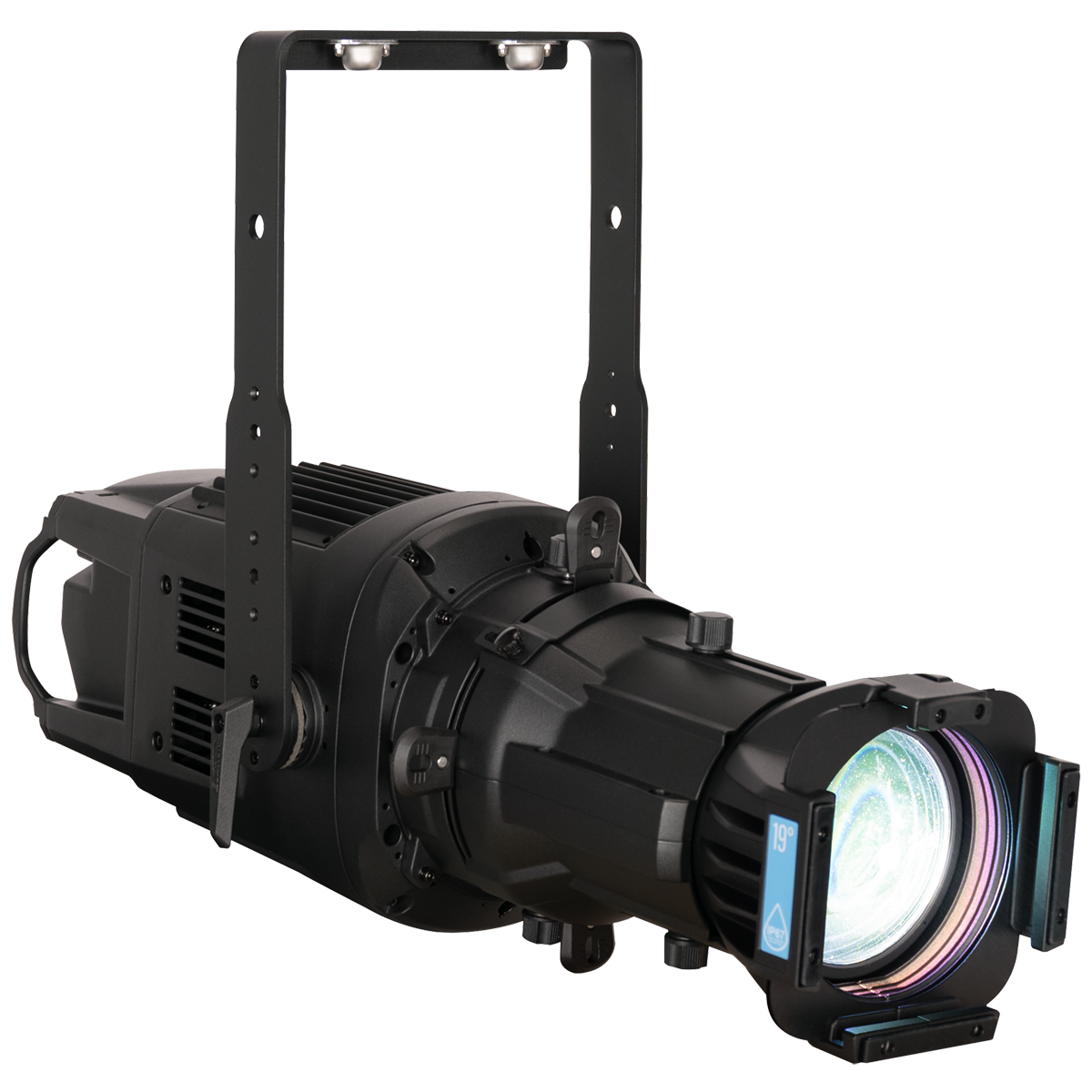

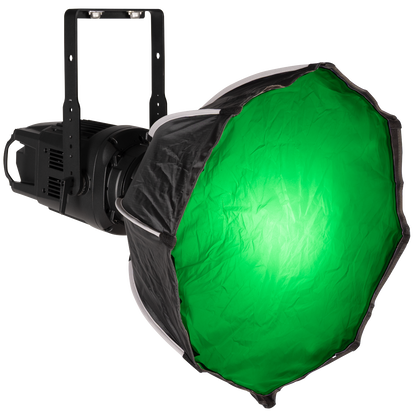

The KL CORE IP’s fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal. The design is also compatible with most 3rd party shutter barrel assemblies, allowing seamless integration with existing setups. Further expanding its flexibility, the optional KL CORE IP Fresnel Lens transforms the fixture into a zoomable Fresnel, while the optional KL CORE IP Bowens Mount allows it to function as a monolight or lamp head for use with softboxes, lanterns, open-face reflectors, or other beam modifiers, making it ideal for TV/film and broadcast applications.
The KL CORE IPe offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency. The integrated touch bar encoder allows the device to be easily controlled in stand-alone applications, and the Aria x2 wireless device management integration also offers additional control options. Configuration is made simple with the use of onboard NFC.
While the IP65-rating of the KL CORE IP keeps it safe in the harshest outdoor environments, it also ensures the device will work well for any indoor application too- helping to keep the fixture cleaner and dust free over long periods of time.
With its exceptional light quality, robust design, and unmatched flexibility, the KL CORE IP is the ultimate fixture for professionals who need a high-performance solution that adapts to a wide range of lighting requirements.
  • 400W RGBMA LED Engine
  • 15,588 Total Fixture Lumen Output (Sphere)
  • Accepts 3rd Party Ellipsoidal Shutter Barrels

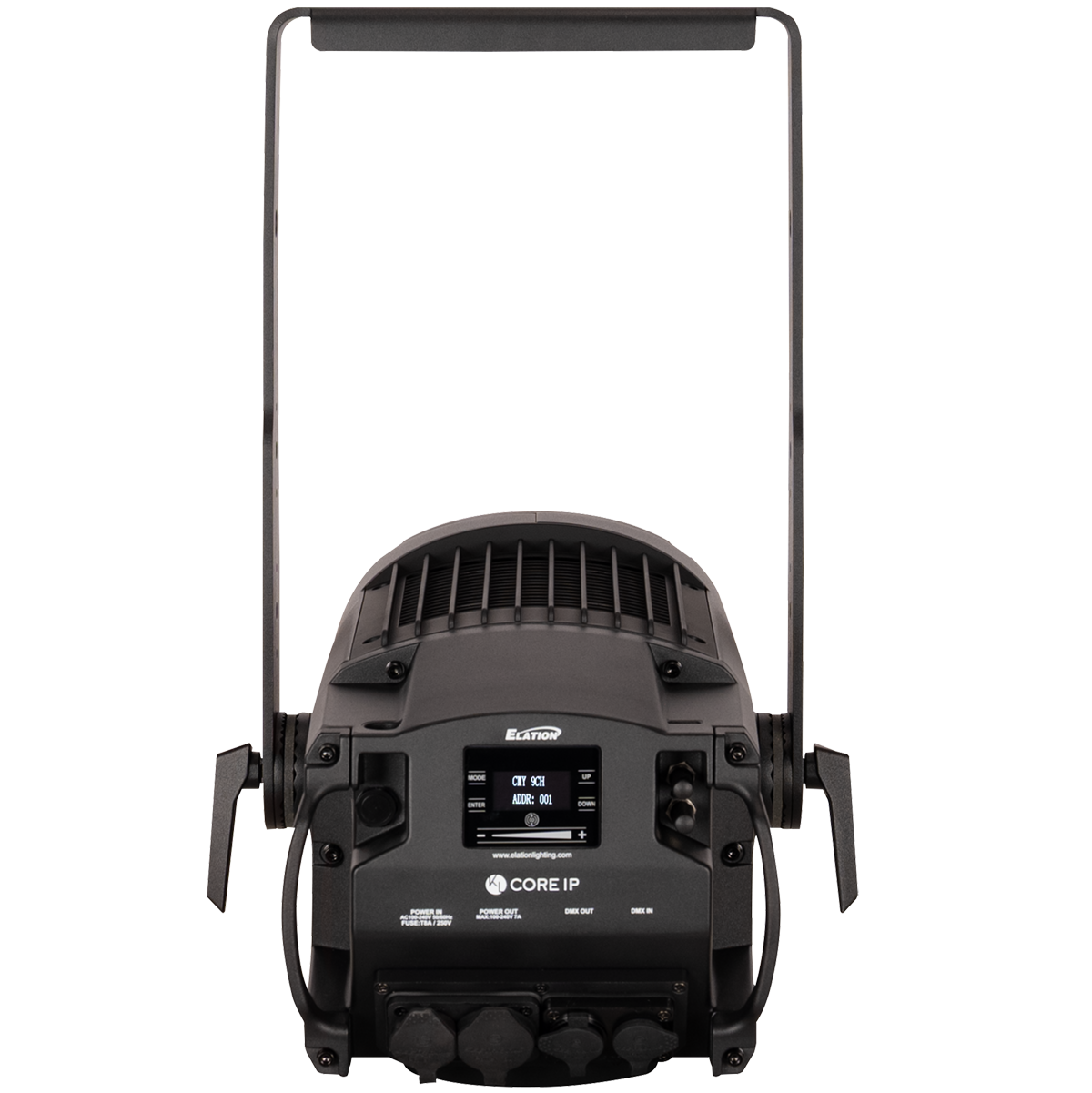

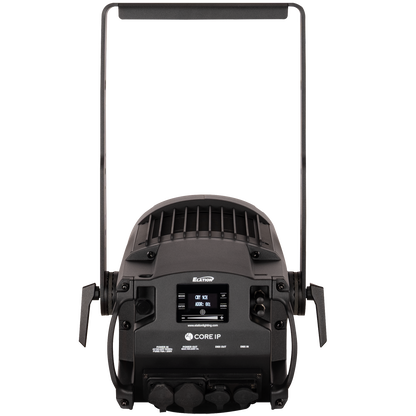

  • Stand-Alone Control with Touch Encoder and OLED Display
  • Direct Connection & Control for optional IP65 Gobo Rotator
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated

Specifications

  • SOURCE

    • 400W 6,000K RGBMA LED Engine
    • 20,000 Hour Average LED Life*

    • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:
    • 15,588 (Integrating Sphere)
    • CRI 94.9
    • TLCI 95

  • EFFECTS

    • Variable Strobe Rate: 1- 20Hz
    • Dim-to-Warm/ Red Shift Emulation
    • Variable 16-bit Dimming Modes and Curves

  • COLOR

    • High Brightness and High Fidelity Output Options
    • RGBMA Color Array
    • CMY Emulation
    • 16bit Fully Variable CCT 2400K - 8500K
    • Green/Magenta Shift
    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 9 DMX Channel Modes (1, 4, 6, 10, 11 19, 9, 15, 13)
    • Manual and DMX Controlled Dimmer and Color
    • Single Touch Bar Encoder
    • 4 Button Control Panel, LED Display
    • Integrated IP65 Gobo Rotator Connector and Control
    • RDM (Remote Device Management)
    • Aria x2 Wireless Device Management
    • NFC Configuration
    • IP65 5pin DMX and IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT

  • Engine Dimensions:

    • Length: 9.1” (230 mm)

    • Length (Yoke 0°): 18.5” (469.8 mm)

    • Width: 11.5" (292 mm)

    • Height (Fixture Body): 8.9" (227.5 mm)

    • Height (Yoke 90°): 18.5" (471 mm)

    • Weight: 22.0 lbs (10.0 kg)

  • Assembled Dimensions:

    • KL CORE w/ Shutter 14° Lens

    • Weight: 32.6 lbs (14.8 kg)

    • KL CORE w/ Shutter 19° or 26° Lens

    • Weight: 31.5 lbs (14.3 kg)

    • KL CORE w/ Shutter 36° Lens

    • Weight: 30.9 lbs (14 kg)

    • KL CORE w/ Shutter 50° Lens

    • Weight: 30 lbs (13.6 kg)

    • KL CORE w/ Shutter 70° Lens

    • Weight: 33.3 lbs (15.1 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 520W Max Power Consumption

    • Power Thru Capacity: 7A (1 units @115V, 4 units @240V)

    • 5°F to 113°F (-15°C to 45°C)

    • BTU/hr (+/- 10%) 1773.2

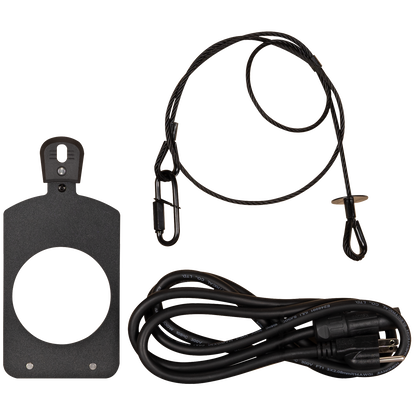

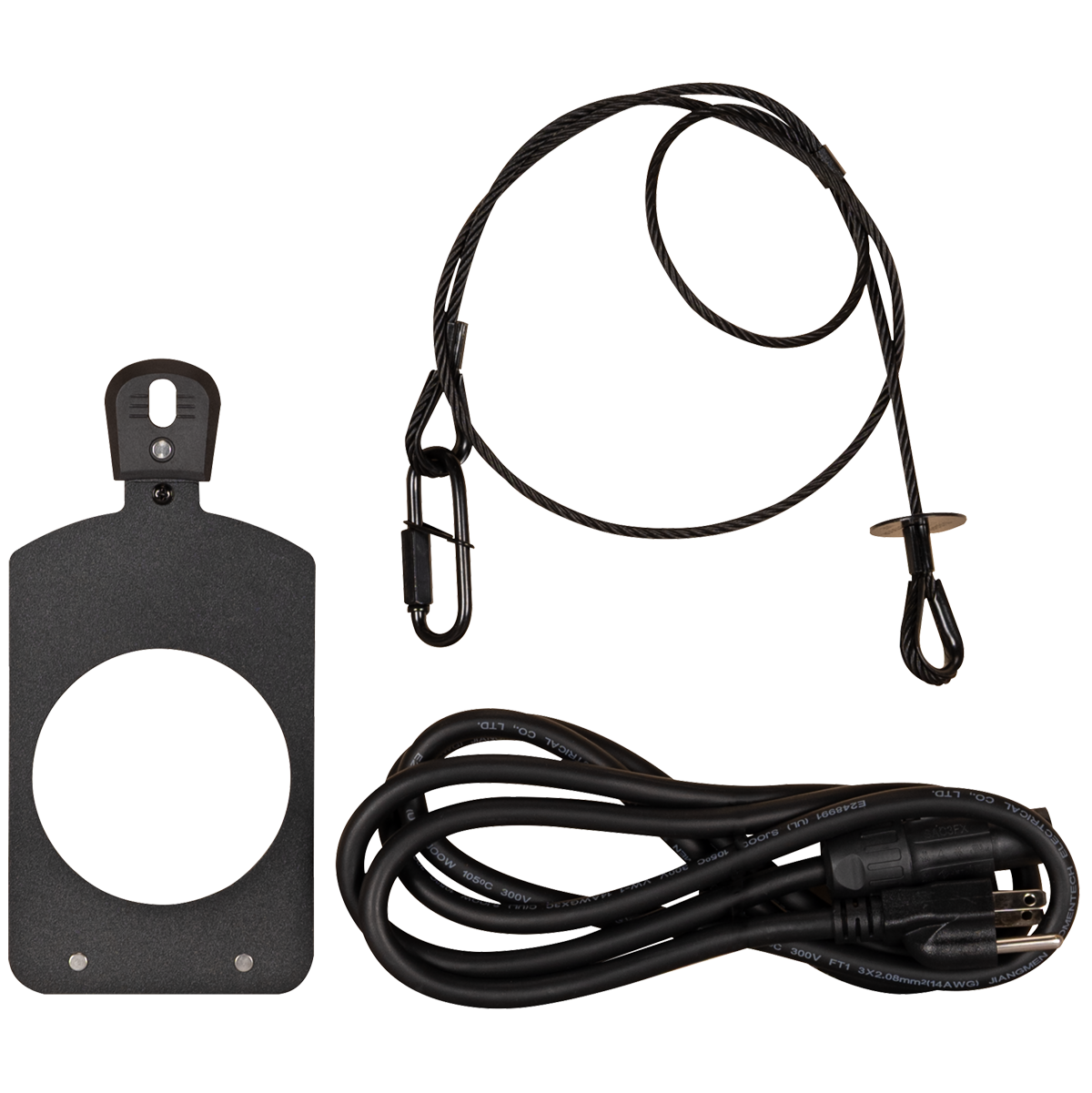

  • INCLUDED ITEMS

    • Size 'A' Metal Gobo Holder
    • Safety Cable
    • IP65 Locking Power Cable
