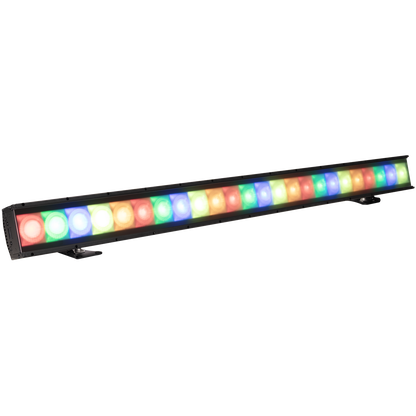

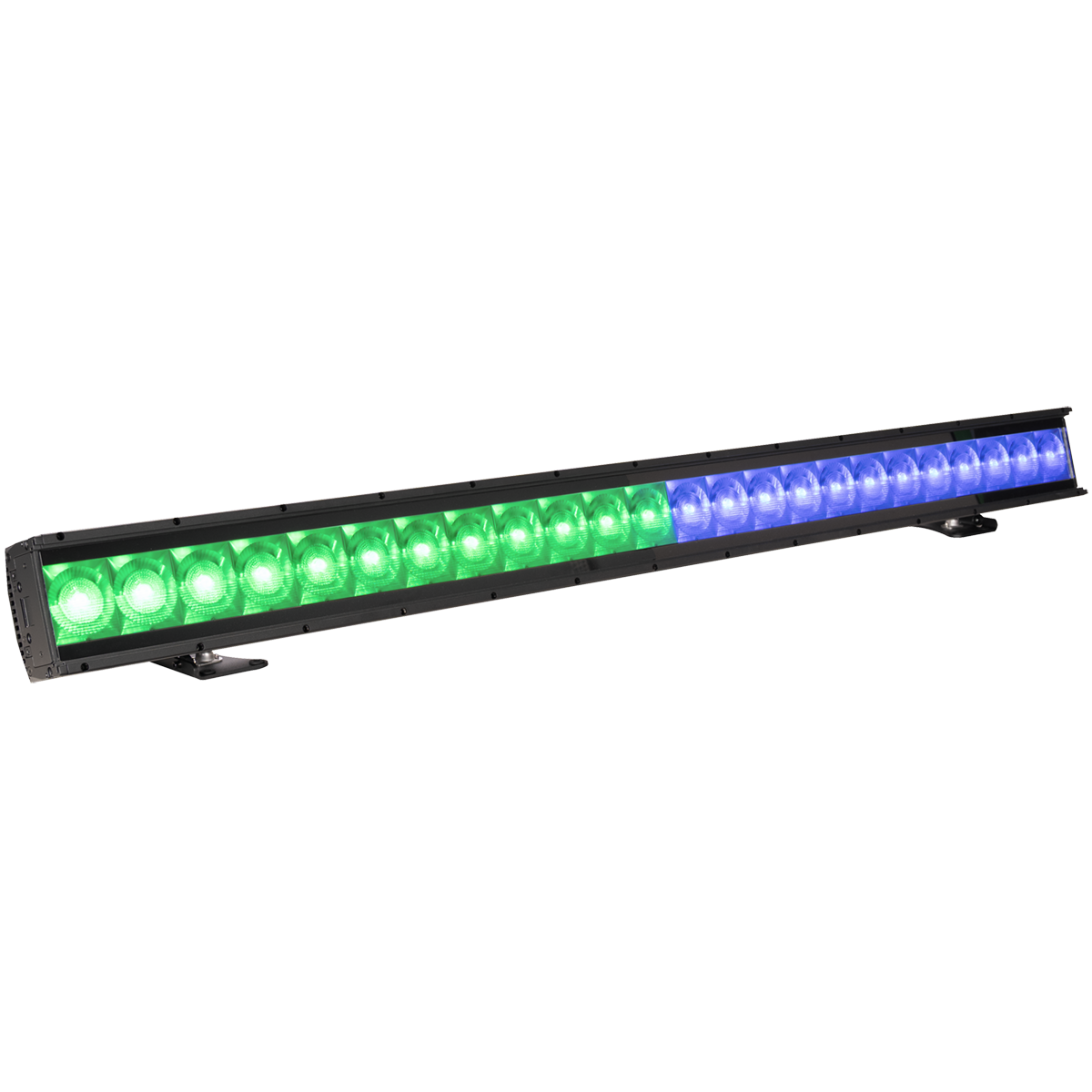

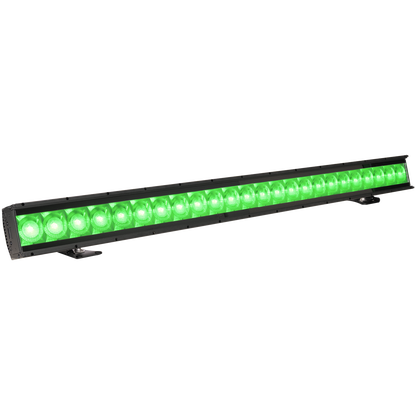

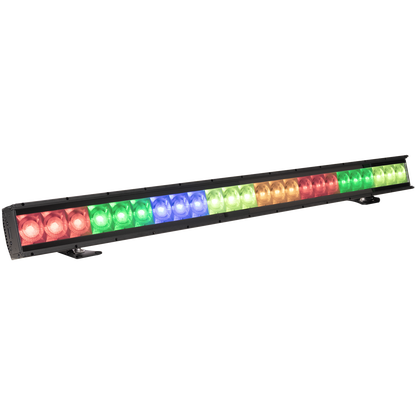

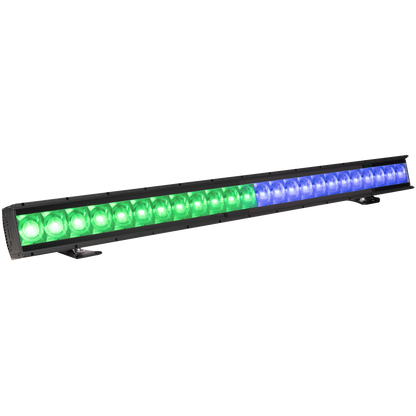

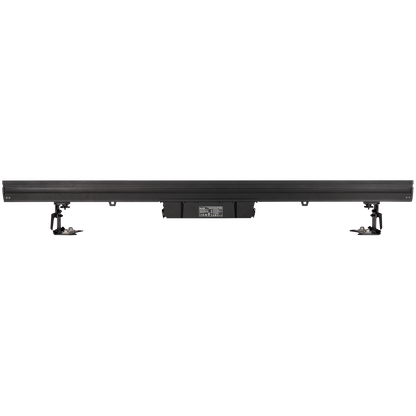

Elation KL BATTEN 72; 24x100W RGBMA 72" IP65 Batten

Elation KL BATTEN 72; 24x100W RGBMA 72" IP65 Batten

Write a review

SKU: KLB372

$6,800.00
$6,800.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation  KL BATTEN 72; 24x100W RGBMA 72" IP65 Batten

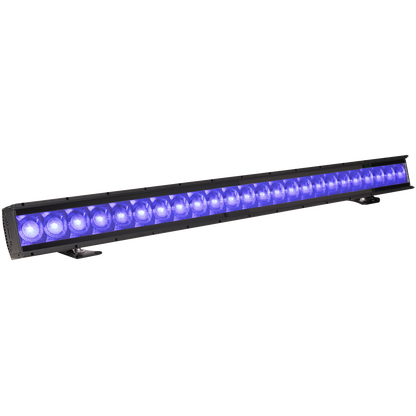

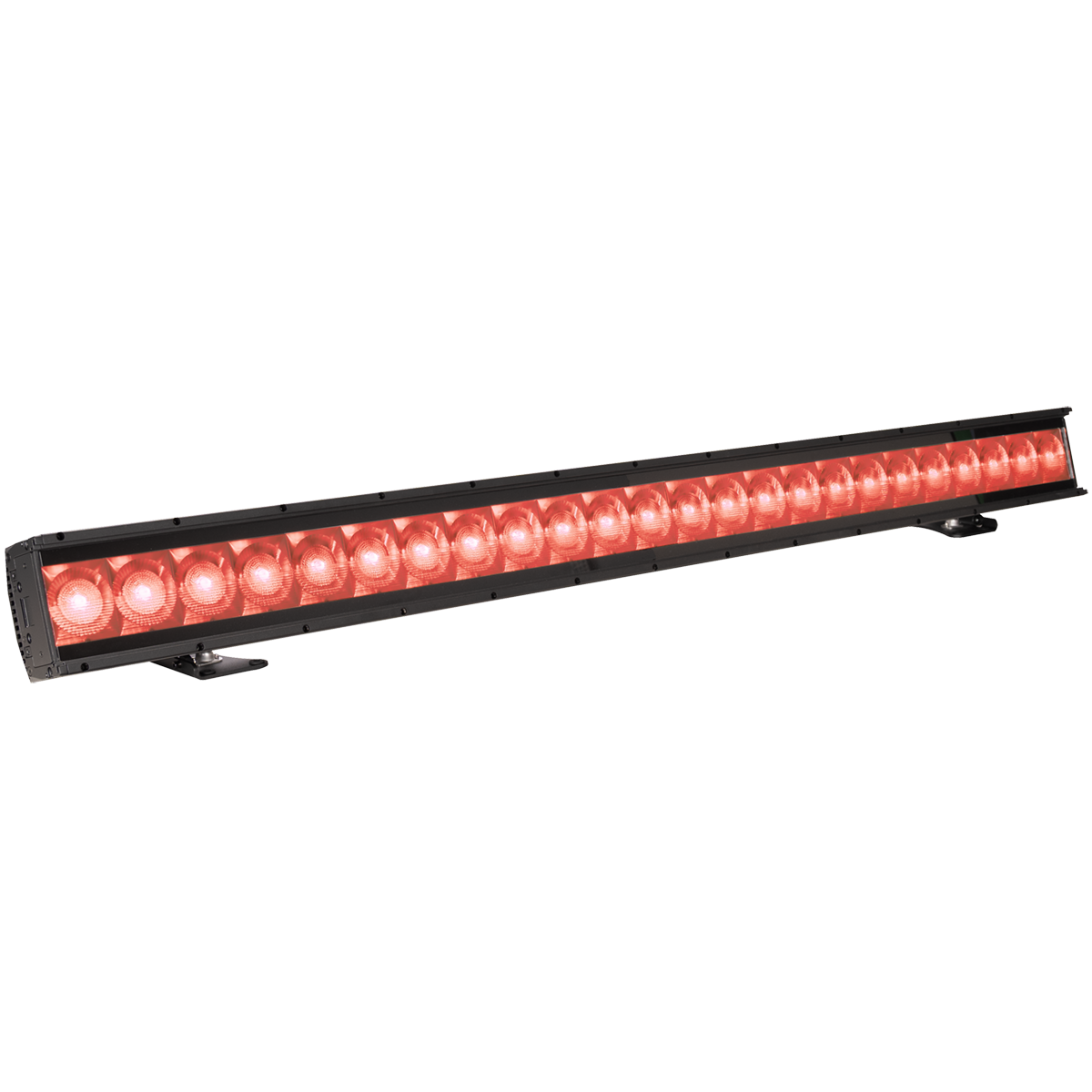

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output.

Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.
A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects.
For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.
Features
  • (24) 100W RGBMA LED Array
  • 61,275 Total Fixture Lumen Output (Sphere)

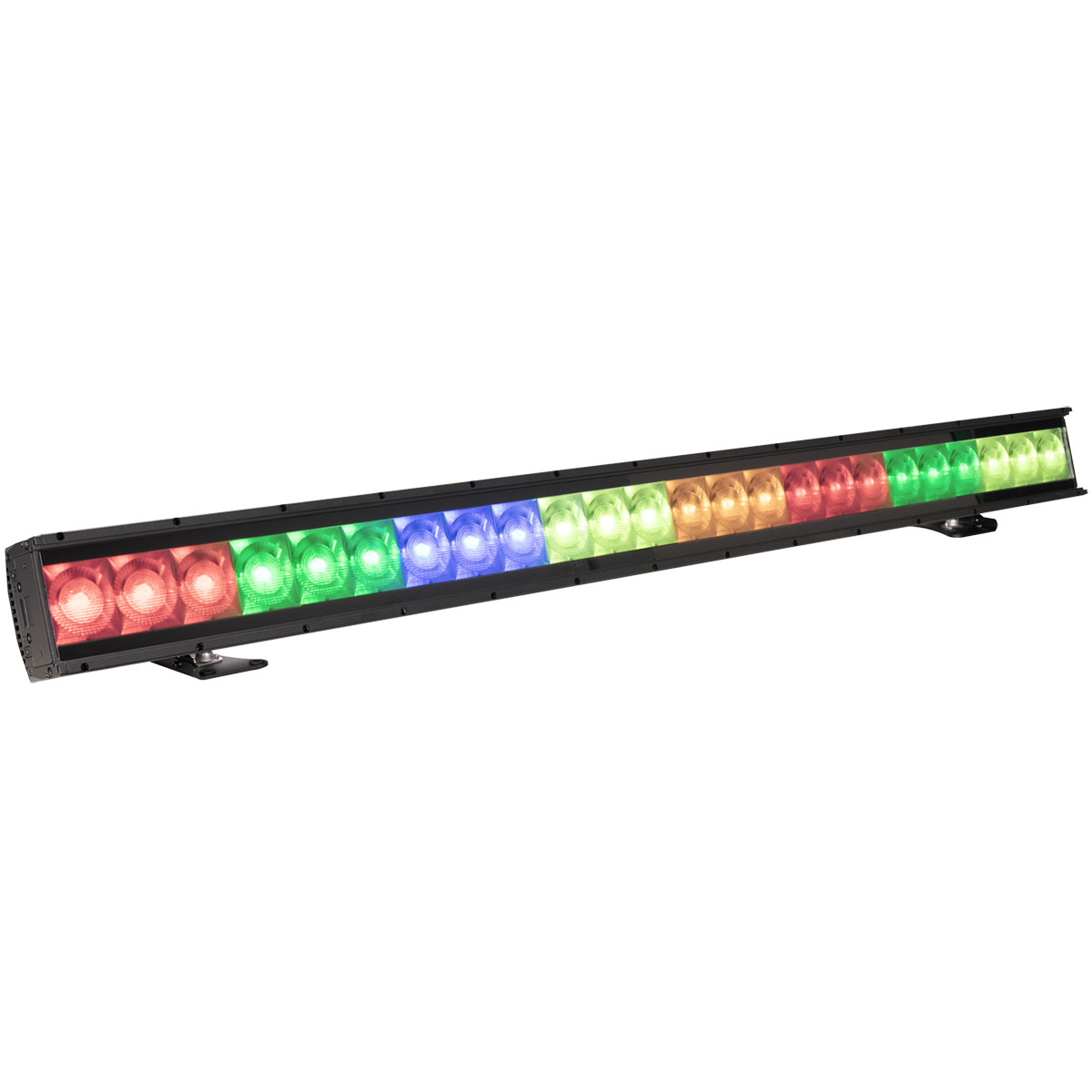

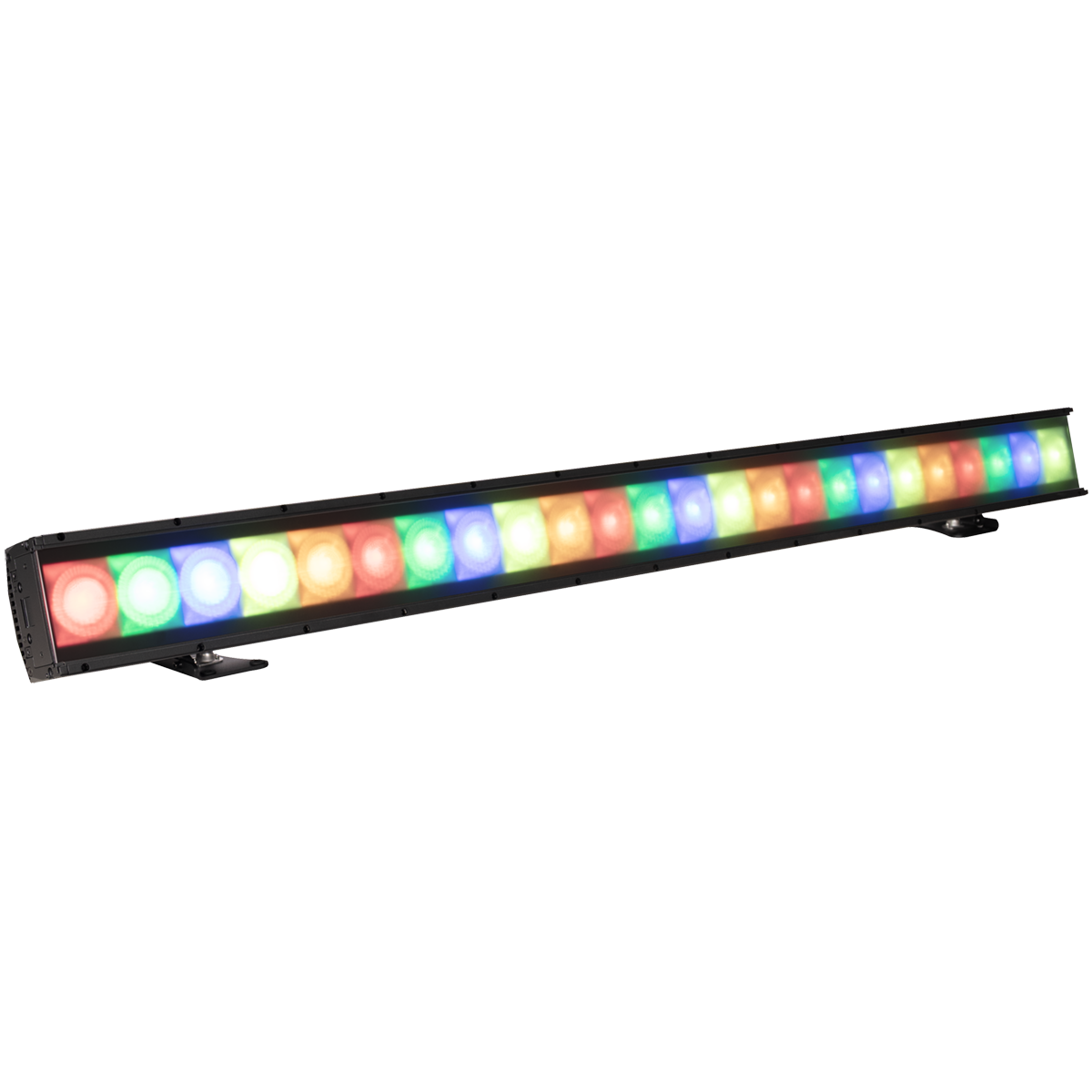

  • Full Pixel Control
  • Integrated Lens and Accessory Slots
  • Art-Net & sACN Support

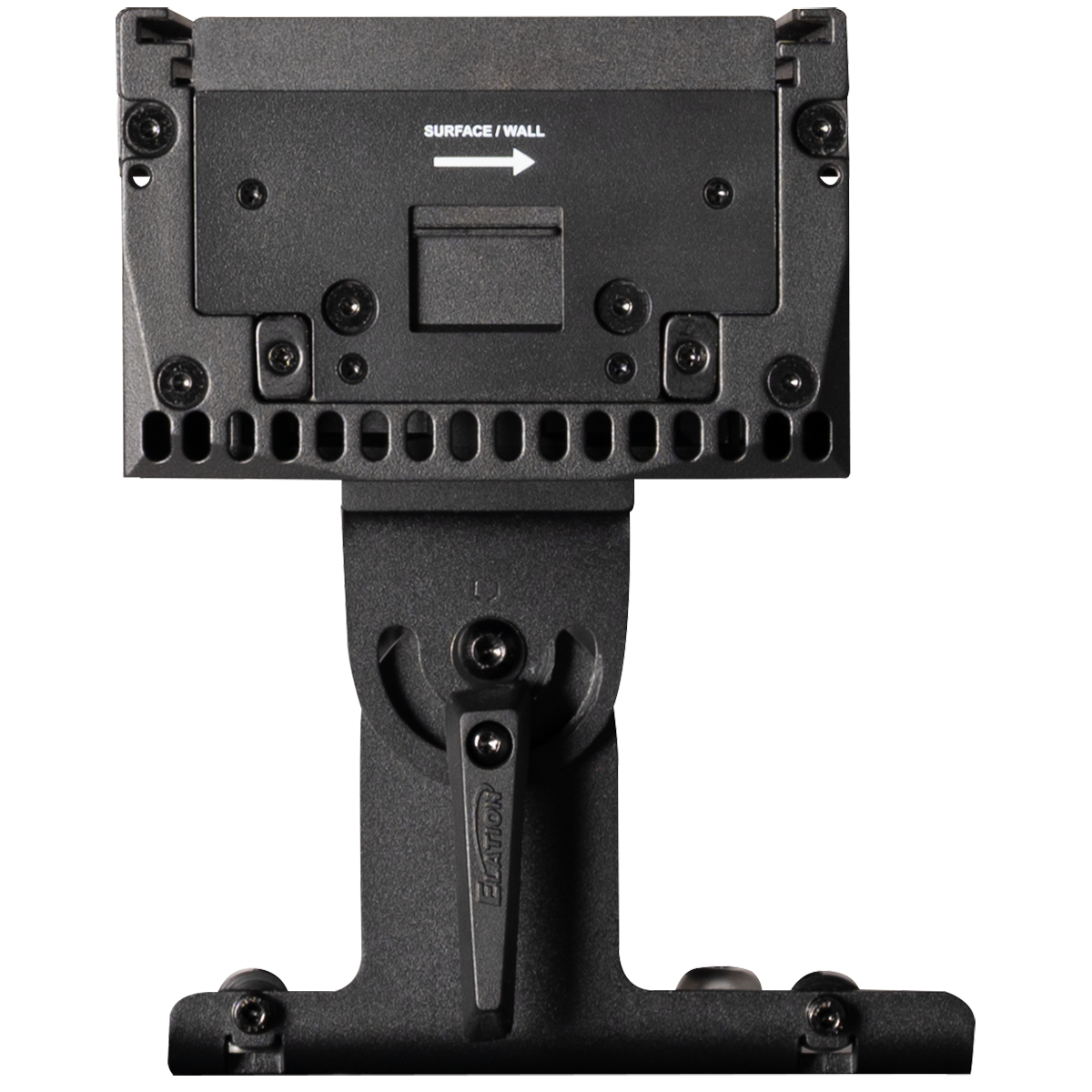

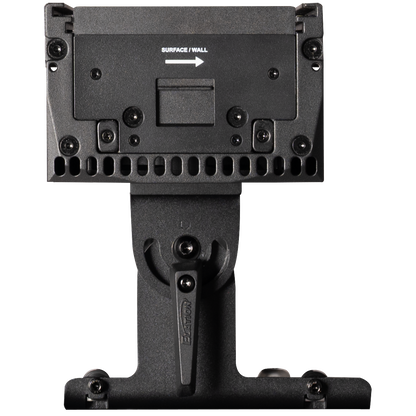

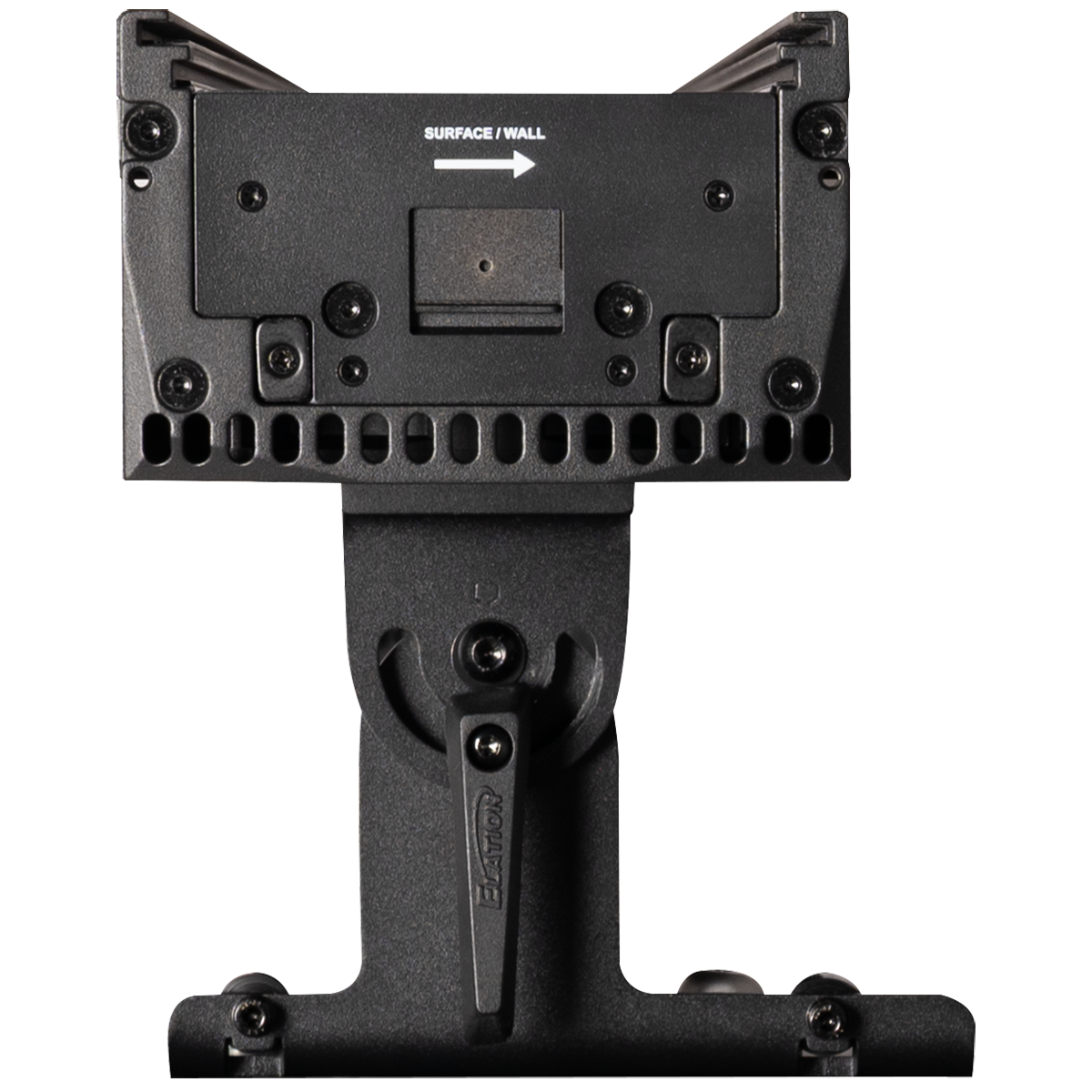

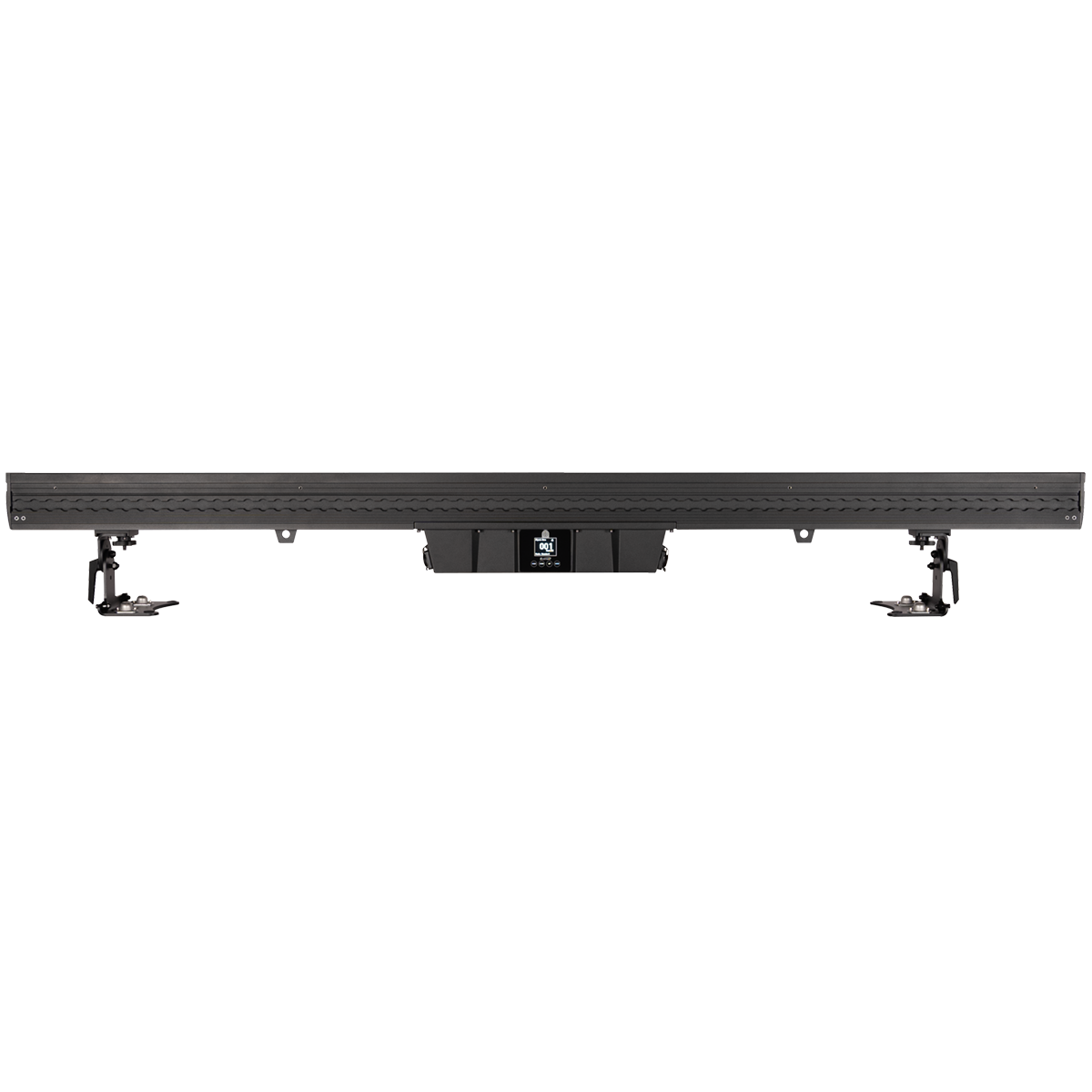

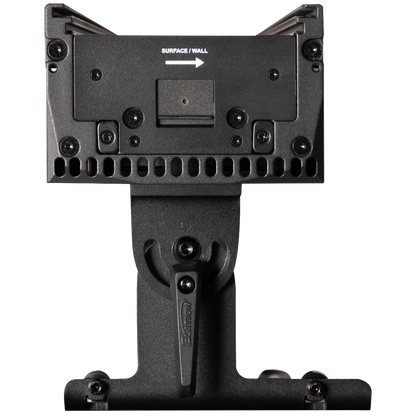

  • Integrated L Track for Flexible Mounting
  • End-to-End Magnetic Alignment System
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated

Specifications

  • SOURCE

    • (24) x 100W RGBMA LEDs

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 61,275 (Integrating Sphere)

    • CRI- 94.9

    • TLCI- 95

    • Beam Angle: 82° x 22°

    • Field Angle: 97° x 53°

  • EFFECTS

    • Full Pixel Control

    • Electronic Dimmer and Strobe

    • Variable 16-bit Dimming Modes and Curves

  • COLOR

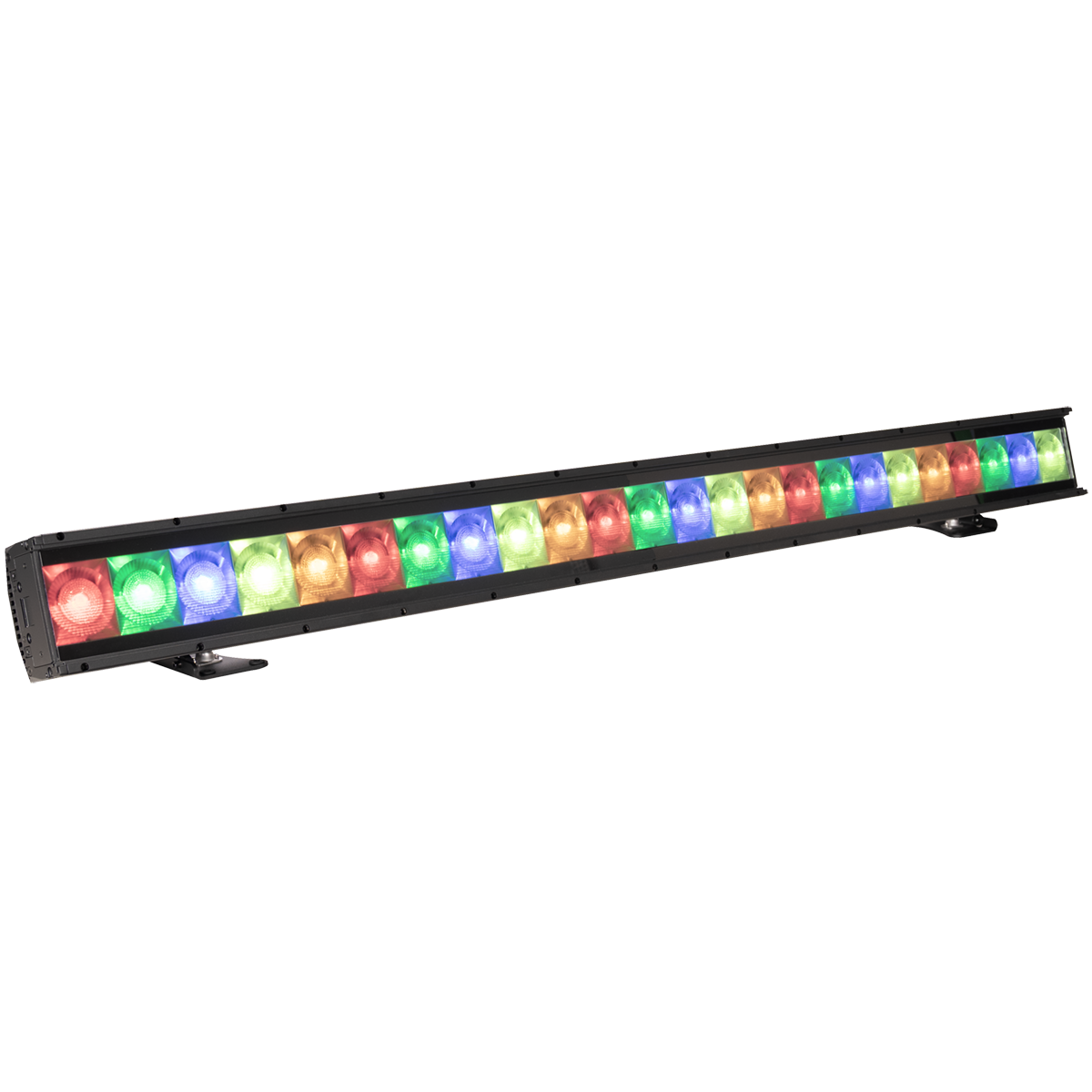

    • RGBMA Color Array

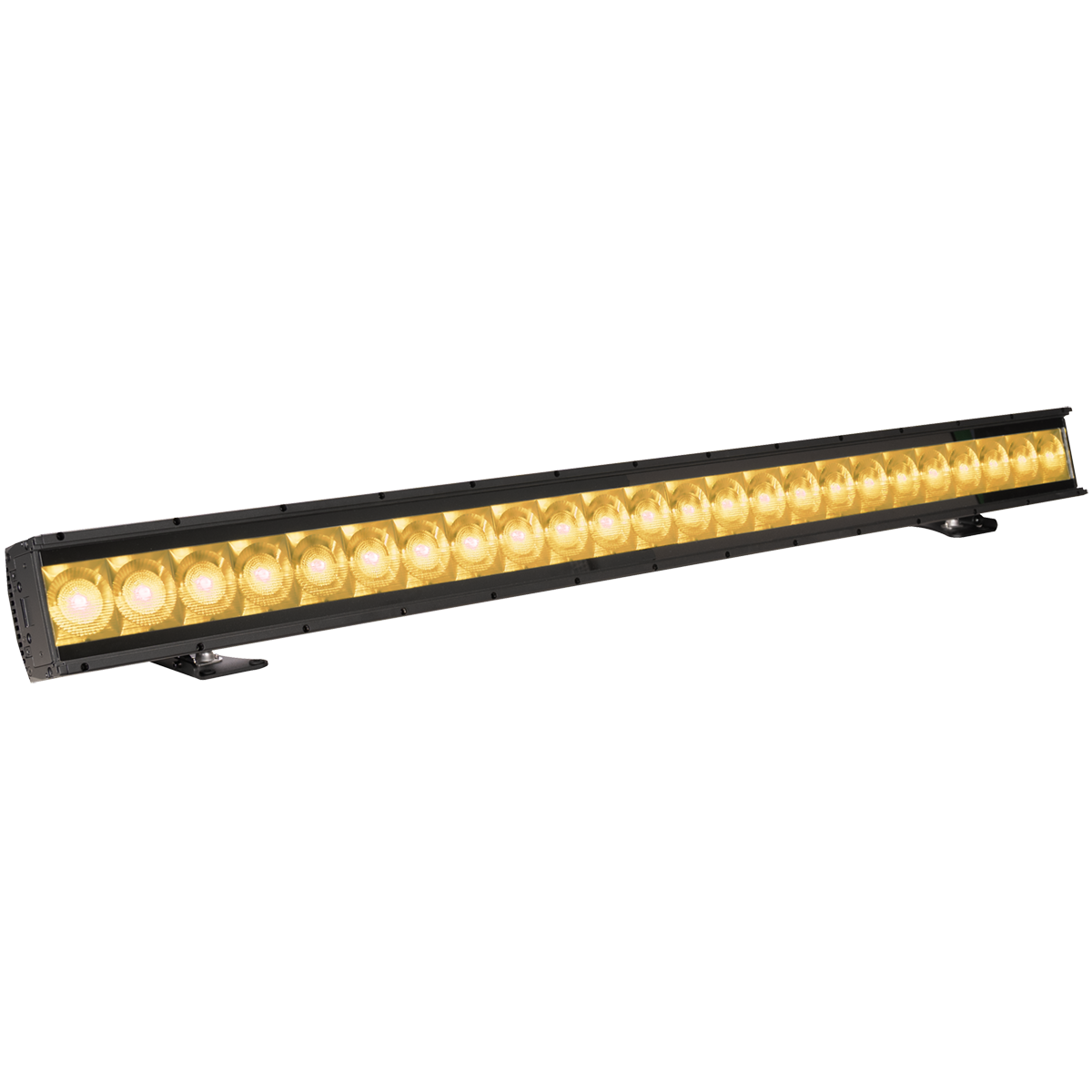

    • 16bit Fully Variable CCT 2400K - 8500K
    • Green/Magenta Shift
    • Dim-to-Warm Fade
    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 52 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 9ch-A, 12ch-A, 9ch-B, 30ch, 26ch, 48ch-A, 12ch-B, 16ch-B, 12ch-C, 40ch, 32ch-A, 61ch, 18ch-A, 24ch-A, 18ch-B, 60ch, 44ch, 87ch, 24ch-B, 32ch-B, 24ch-C, 80ch-A, 56ch, 113ch, 36ch-A, 48ch-B, 36ch-B, 120ch, 80ch-B, 165ch, 72ch-A, 96ch, 72ch-B, 240ch, 152ch, 321ch)

    • 4 Button Control Panel, Color LED Display

    • RDM (Remote Device Management)

    • Aria x2 Wireless Device Management

    • NFC Configuration

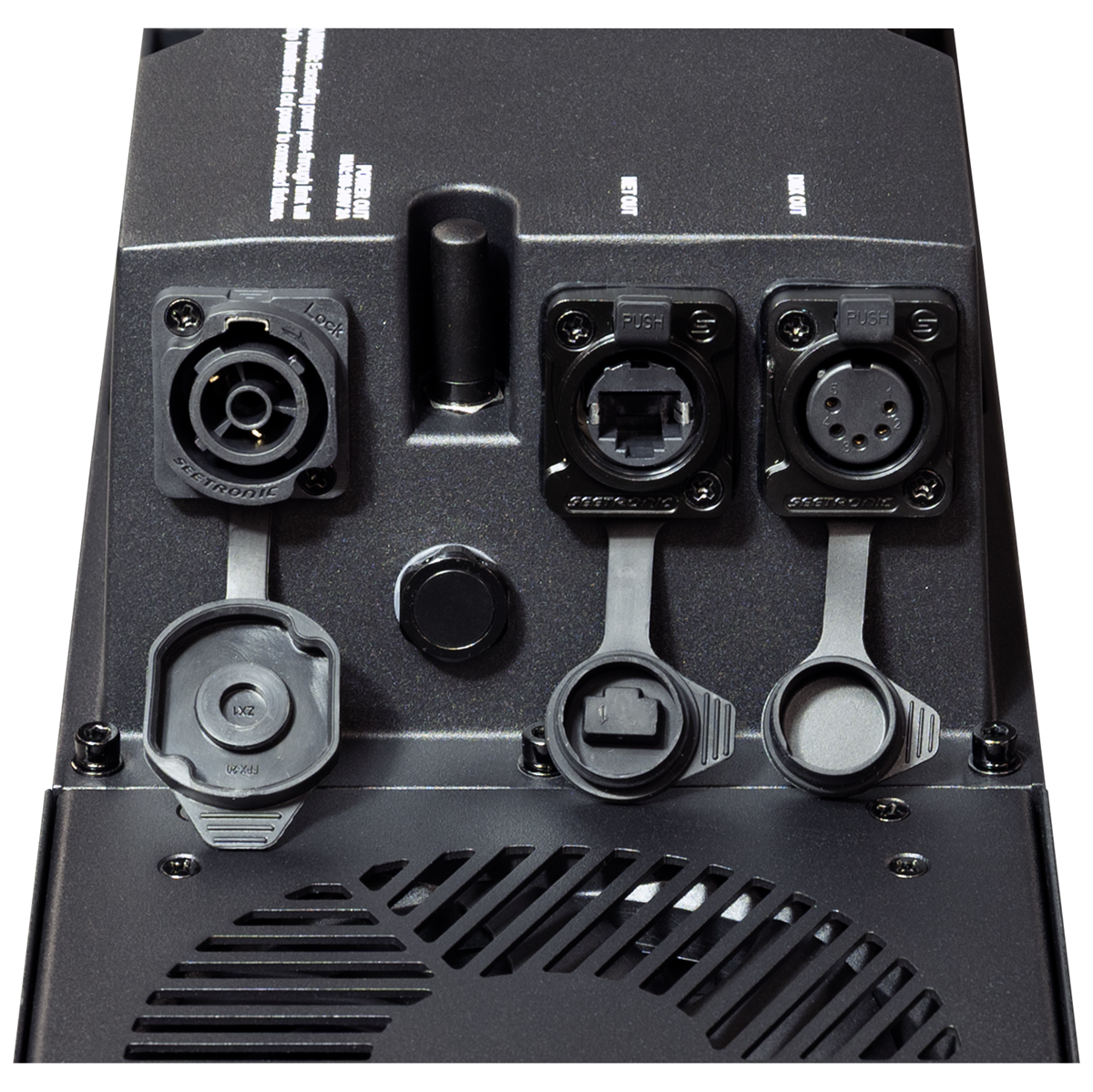

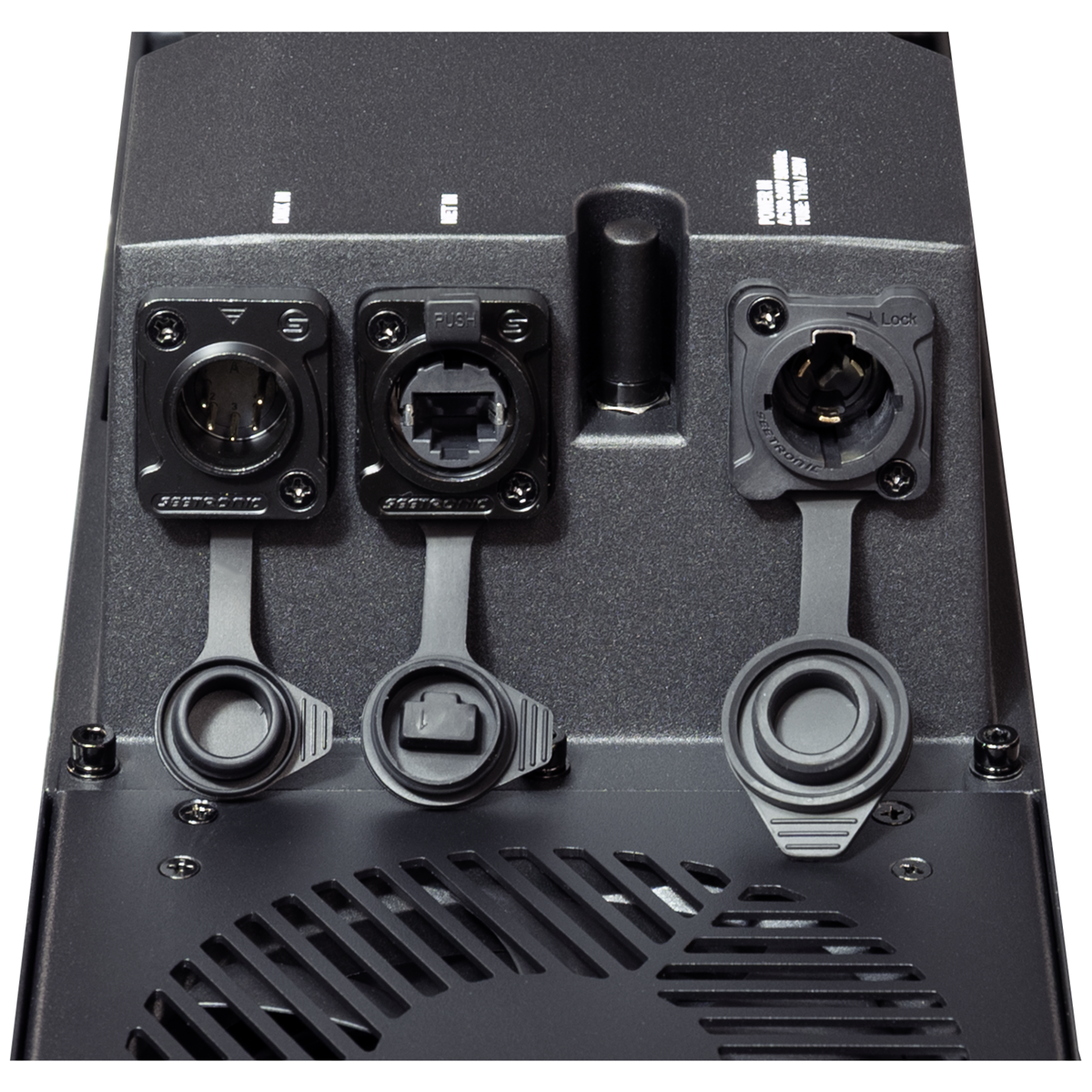

    • IP65 5pin XLR DMX In/Out

    • IP65 RJ45 Ethernet In/Out (Art-Net sACN)

    • IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT

    • Length: 71.1" (1806mm)

    • Width: 7.2" (184mm)

    • Vertical Height: 9.4” (239mm)

    • Vertical Height (Low Clearance): 8.6" (219)

    • Weight: 60.4 lbs / 27.4kg

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 1200W Max Power Consumption

    • Power Thru Capacity: 2A

    • -40°F to 131°F (-40°C to 55°C)

    • BTU/hr (+/- 10%) 4,092

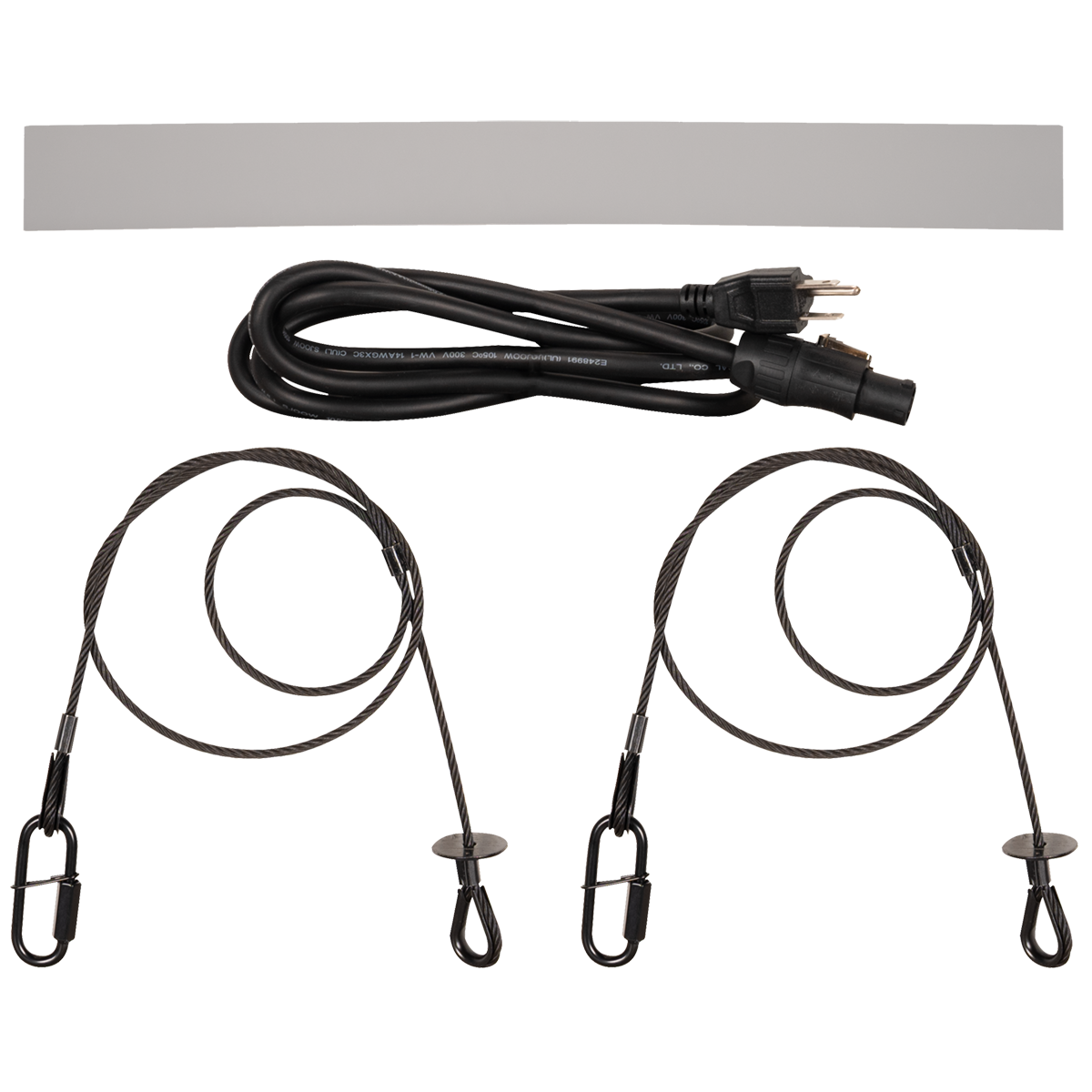

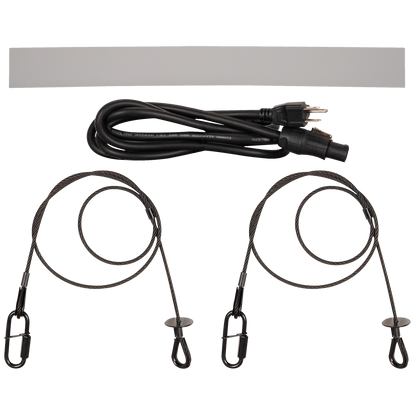

  • INCLUDED ITEMS

    • Glare Shield

    • Border Light Filter

    • 2x Safety Cable

    • IP65 Locking Power Cable
