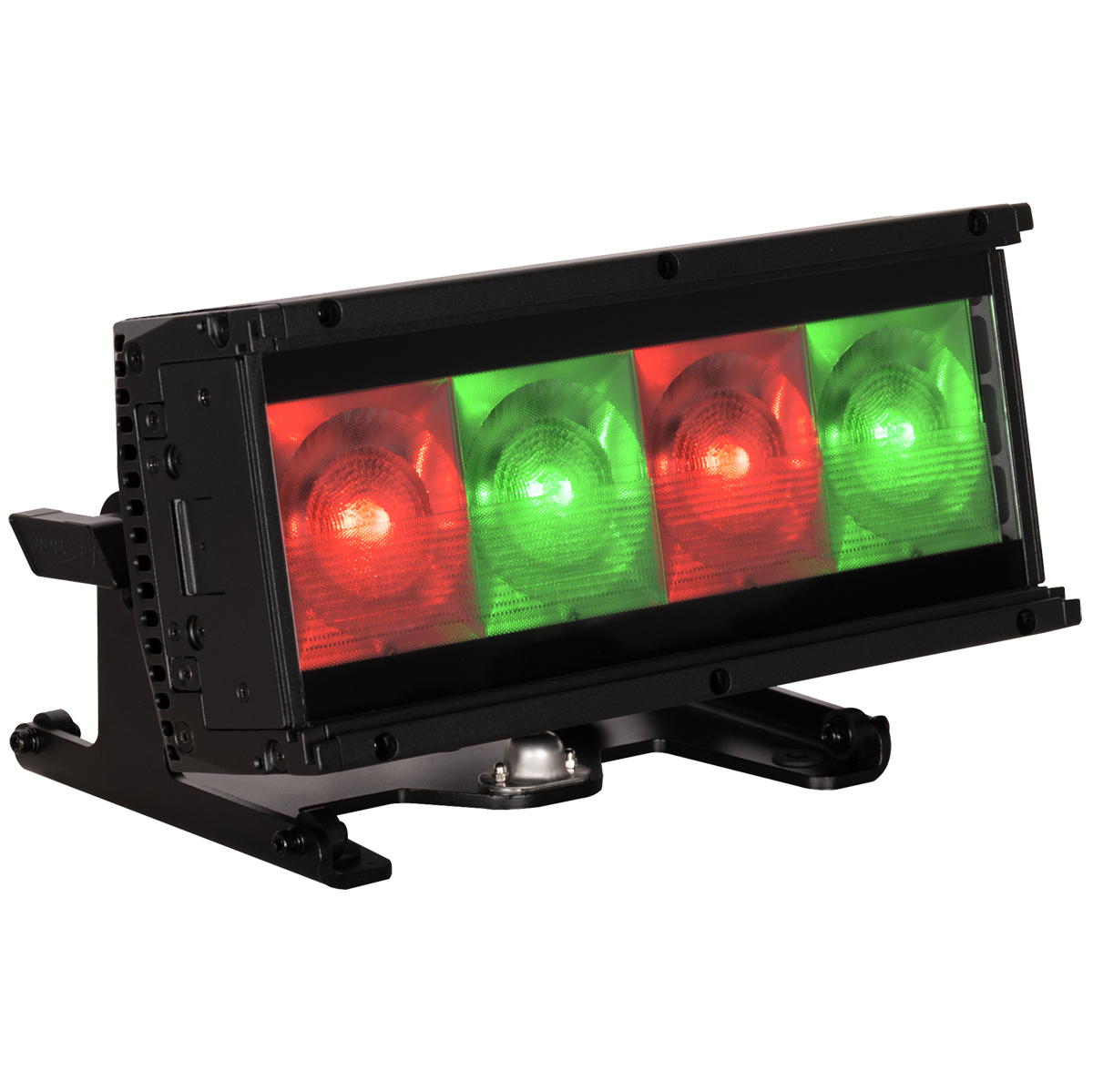

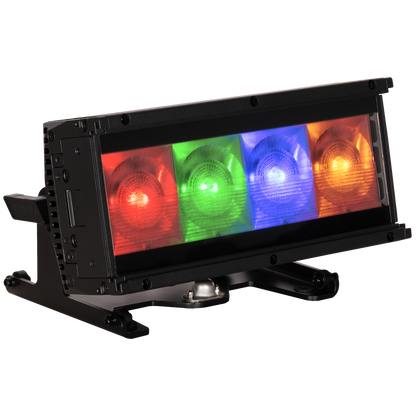

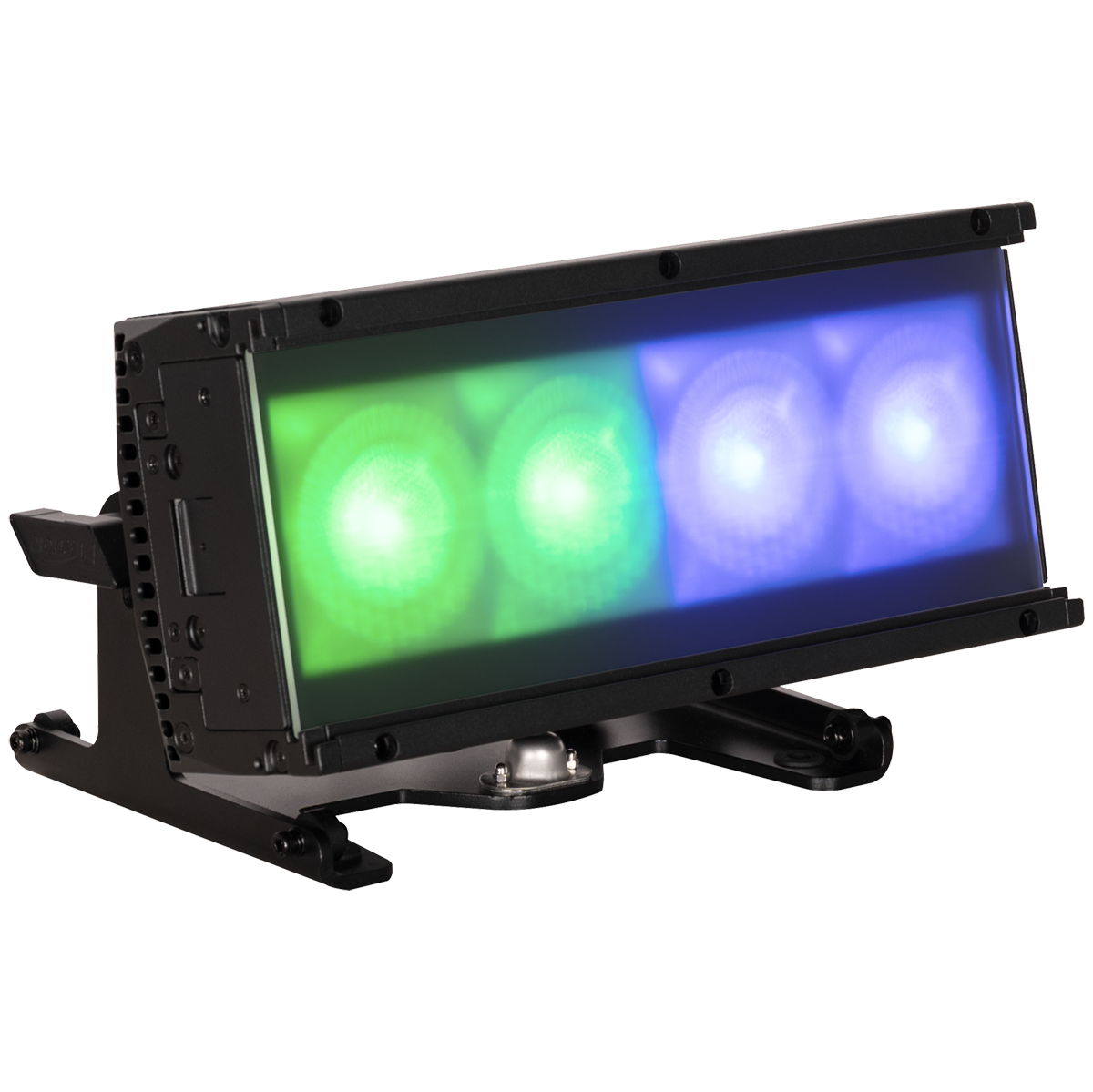

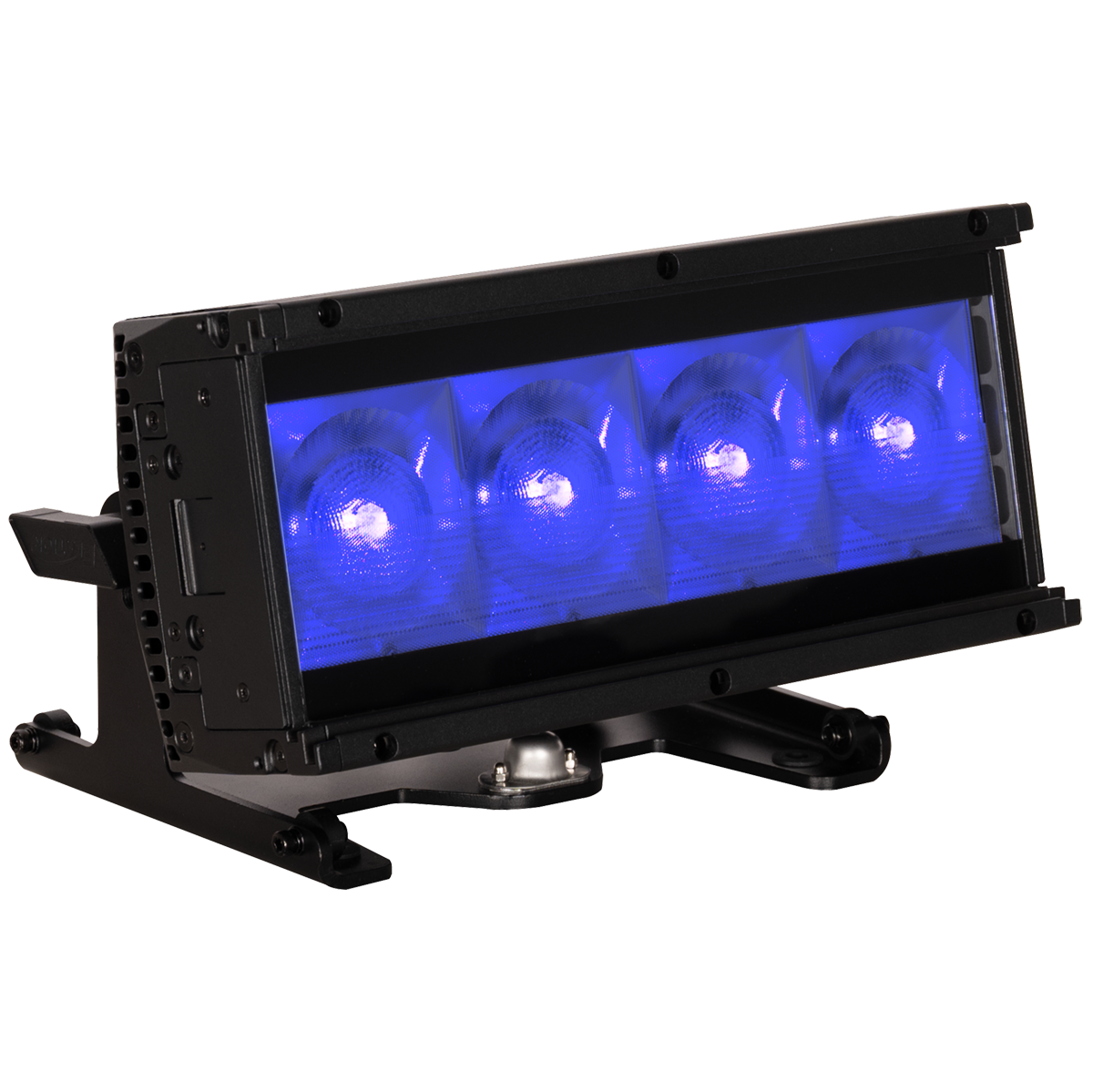

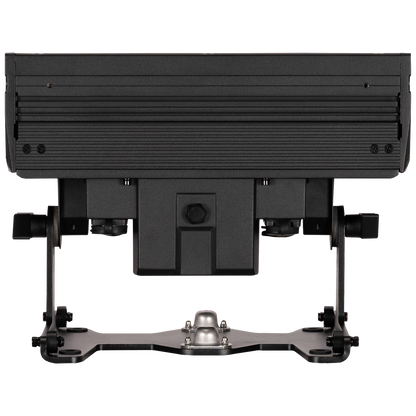

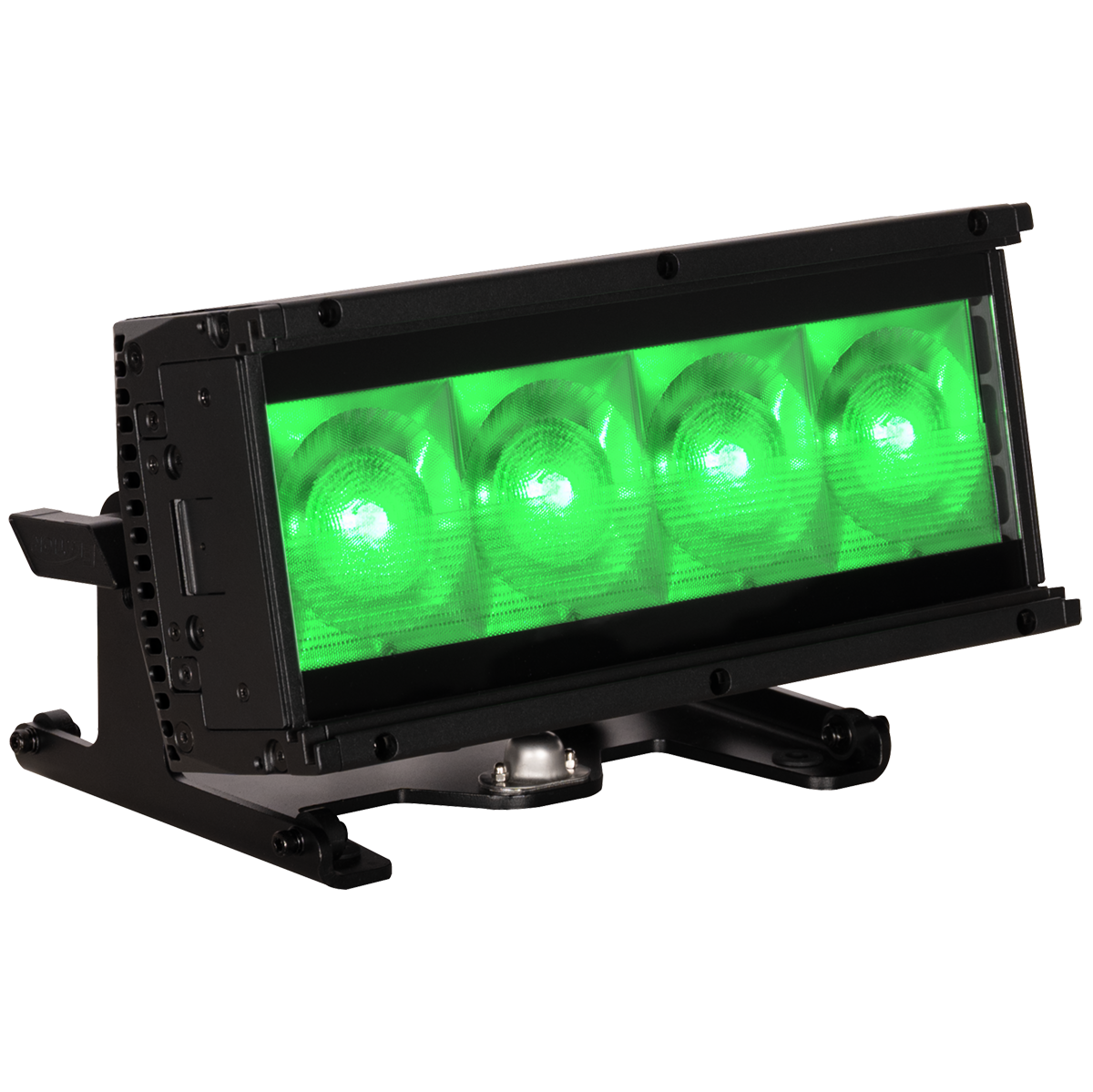

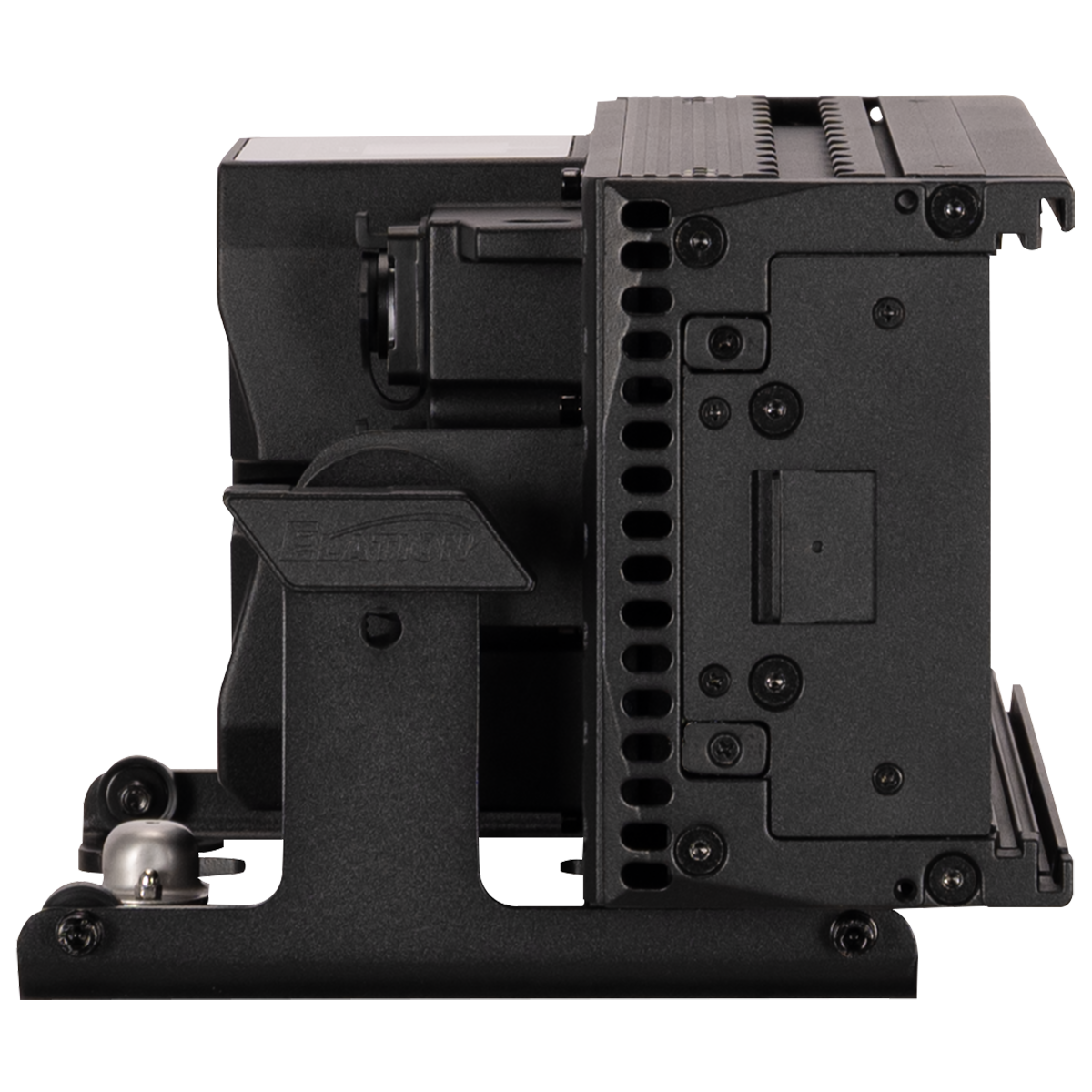

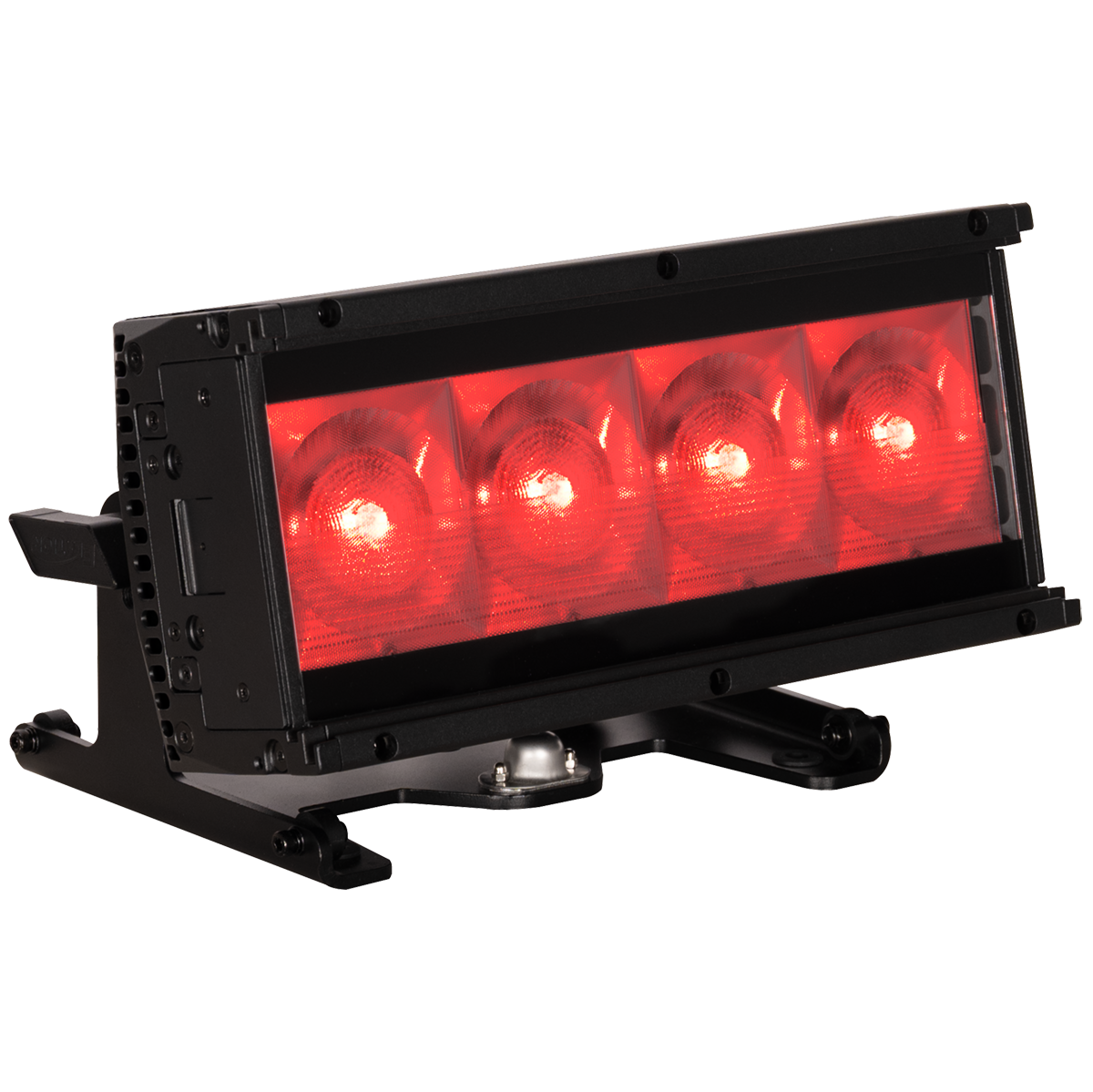

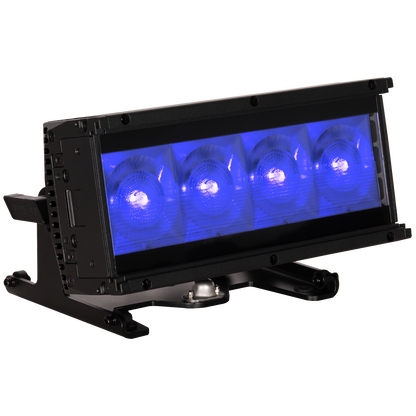

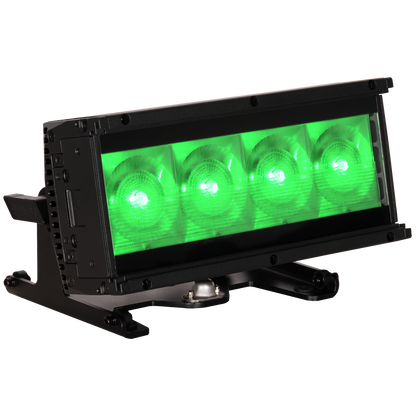

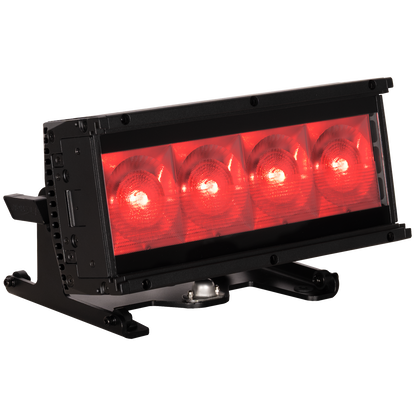

Elation KL BATTEN 12; 4x100W RGBMA 12" IP65 Batten

Elation KL BATTEN 12; 4x100W RGBMA 12" IP65 Batten

Write a review

SKU: KLB112

$1,850.00
$1,850.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

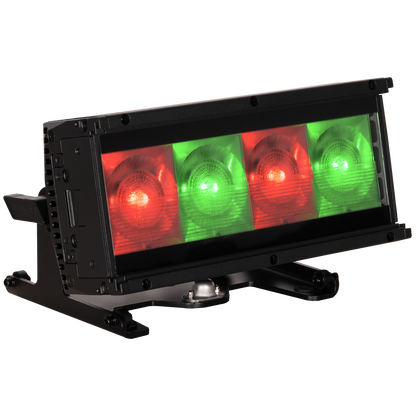

Elation  KL BATTEN 12; 4x100W RGBMA 12" IP65 Batten

Delivering rich, full-spectrum color and over 10,300 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design.

Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.
An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.
Features
  • (4) 100W RGBMA LED Array
  • 10,300 Total Fixture Lumen Output (Sphere)
  • Full Pixel Control
  • Integrated Lens and Accessory Slots
  • Art-Net & sACN Support
  • Integrated L Track for Flexible Mounting
  • End-to-End Magnetic Alignment System
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated

Specifications

  • SOURCE

    • (4) x 100W RGBMA LEDs

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 10,300 (Integrating Sphere)

    • CRI- 94.9

    • TLCI- 95

    • Beam Angle: 22° x 20°

    • Field Angle: 44° x 42°

  • EFFECTS

    • Full Pixel Control

    • Electronic Dimmer and Strobe

    • Variable 16-bit Dimming Modes and Curves

  • COLOR

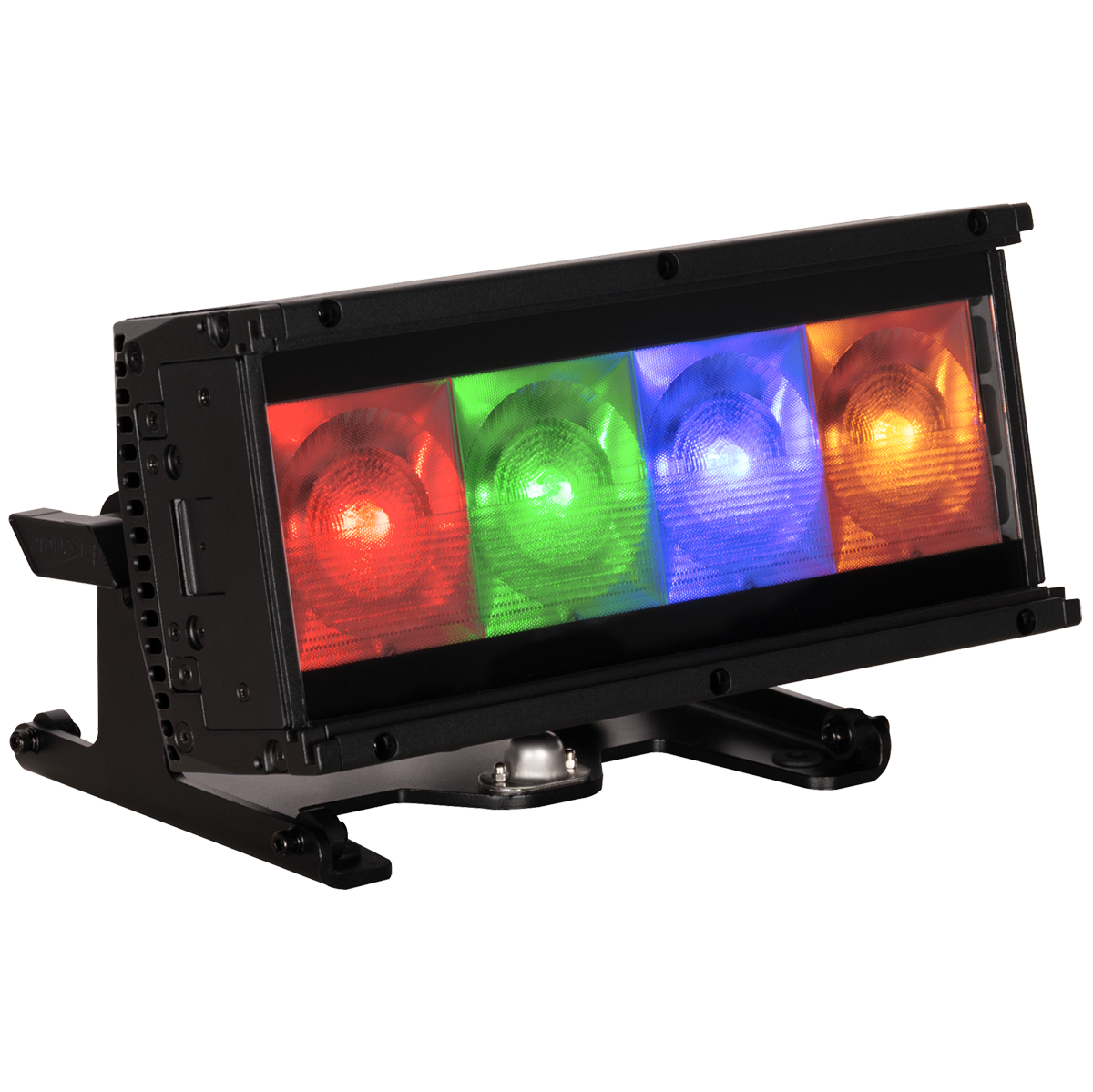

    • RGBMA Color Array

    • 16bit Fully Variable CCT 2400K - 8500K
    • Green/Magenta Shift
    • Dim-to-Warm Fade
    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 22 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 12ch-A, 16ch-B, 12ch-B, 40ch, 32ch, 61ch)

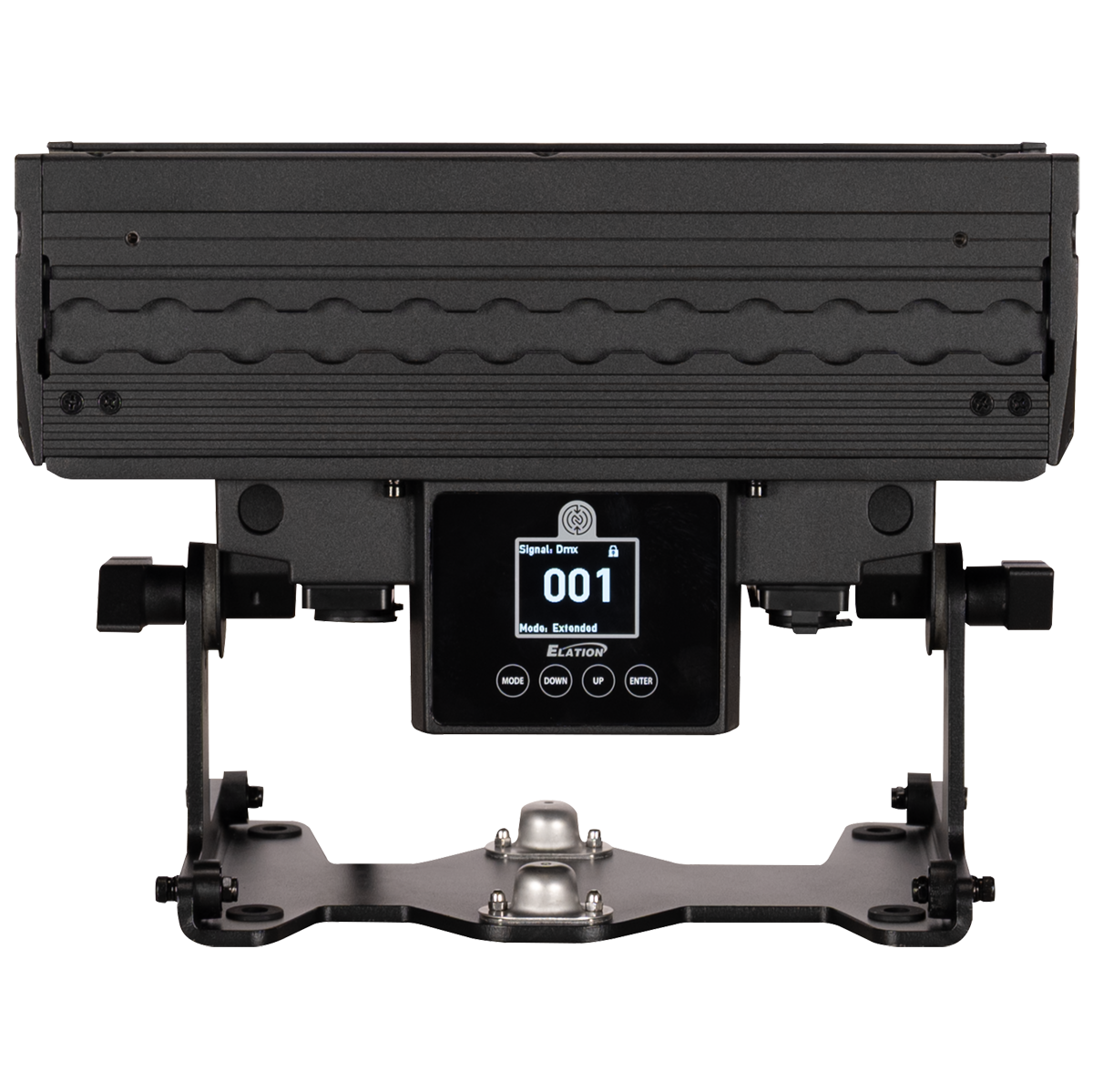

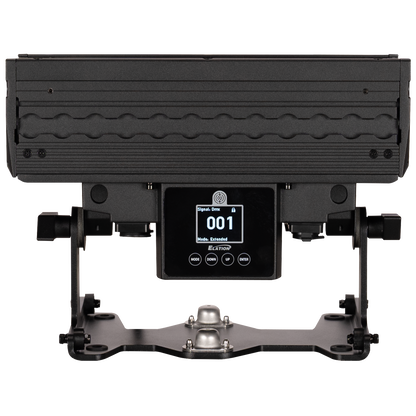

    • 4 Button Control Panel, Color LED Display

    • RDM (Remote Device Management)

    • Aria x2 Wireless Device Management

    • NFC Configuration

    • IP65 5pin XLR DMX In/Out

    • IP65 RJ45 Ethernet In/Out (Art-Net sACN)

    • IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT

    • Length: 12.6" (321mm)

    • Width: 7.2" (184mm)

    • Vertical Height: 9.4” (239mm)

    • Vertical Height (Low Clearance): 8.6" (219mm)

    • Weight: 14.7 lbs / 6.7kg

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 200W Max Power Consumption

    • Power Thru Capacity: 10A ( 5 units @110V; 14 units @240V)

    • -40°F to 131°F (-40°C to 55°C)

    • BTU/hr (+/- 10%) 682

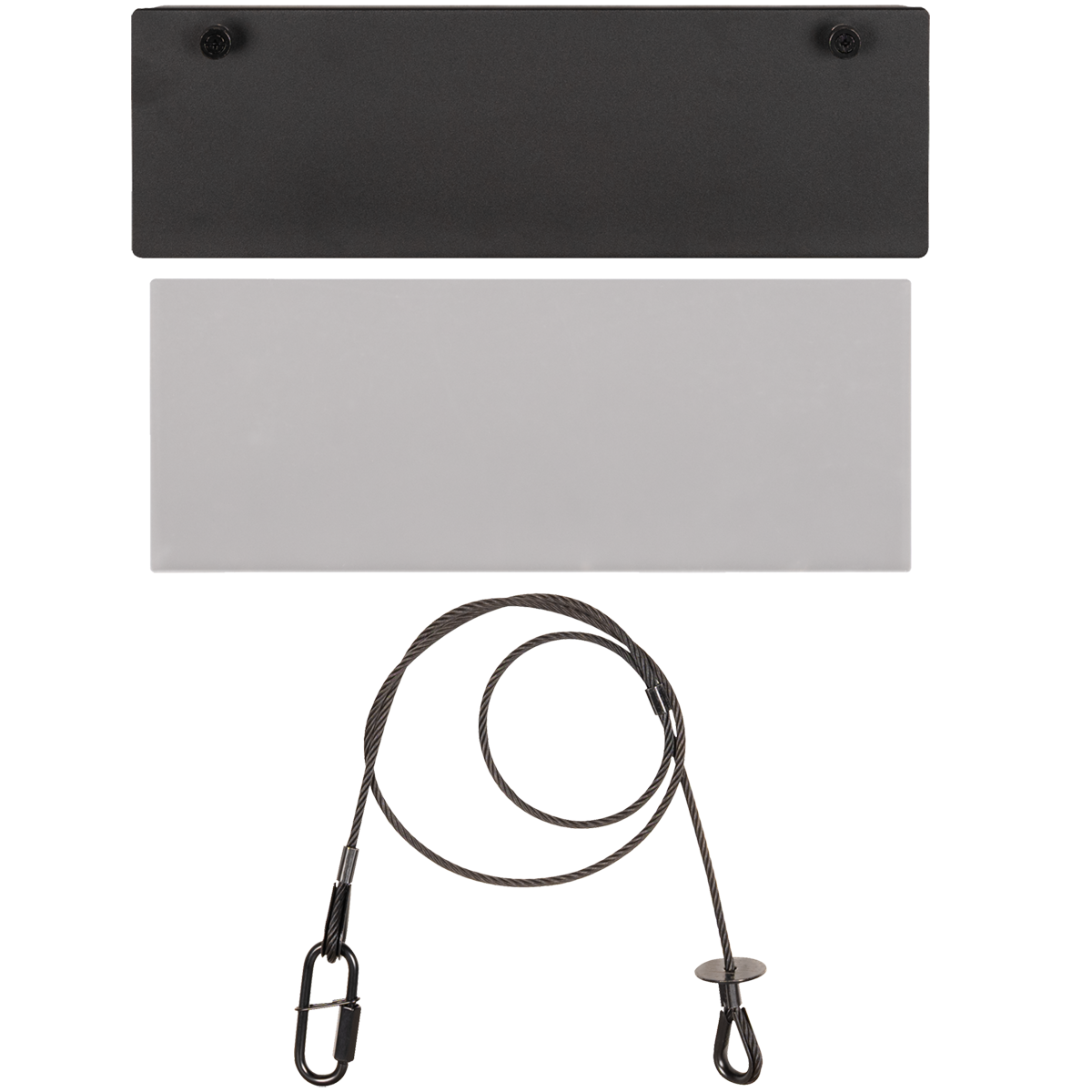

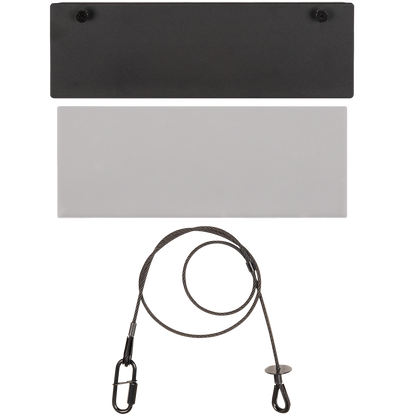

  • INCLUDED ITEMS

    • Glare Shield

    • Border Light Filter

    • Safety Cable

    • IP65 Locking Power Cable
