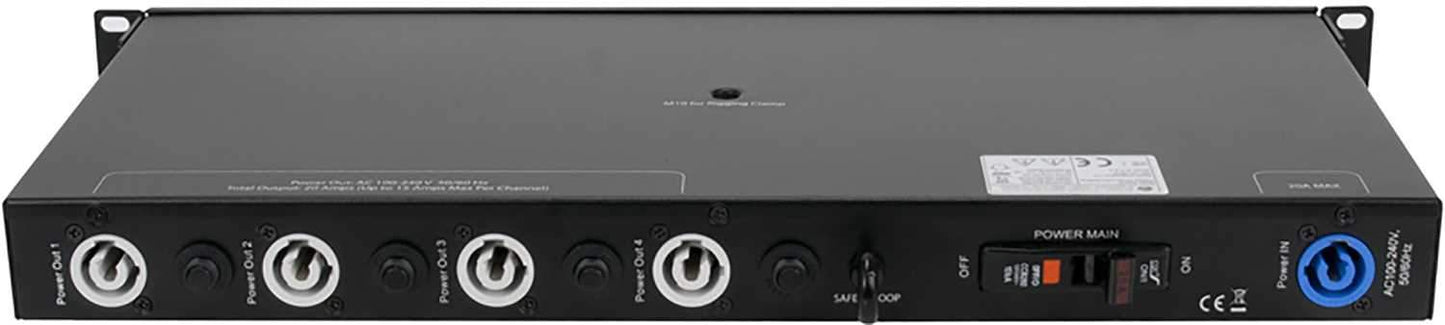

Elation IPC415 DMX Power Control Center
The IPC415 is an intelligent DMX power control center, featuring (4) powerCON outputs (15A max each), (4) 5pin XLR DMX outputs, (1) 5pin XLR DMX input, and (1) 5pin XLR DMX thru-put, and a multi-voltage universal auto switching power supply (100-240v). Power to the powerCON outputs can be scheduled to automatically switch On/Off via an internal scheduler when DMX signal is lost or when a specific cue is triggered from a DMX console. The IPC415 can be mounted in a standard 19-inch rack space using the included rack ears, or truss mounted using a clamp (not included) attached to the M10 rigging point in the center of the unit.
Features:
- 2 DMX Control Modes (1 / 4)
- Internal On/Off Scheduler
- 5pin XLR DMX Input
- 5pin XLR DMX Output (Thru-put)
- (4) 5pin XLR DMX Outputs
- (4) powerCON 15 amp Outputs (NAC3MPB-1)
- Main 20 amp Power Switch
- powerCON Power Input (NAC3MPA-1)
- 19-Inch Rack Mount Ears (included)
- M10 Rigging Center Point for Truss Mounting (clamp not included)
Specifications:
Control / Connections
- (2) DMX Channel Modes (1 /4)
- Push Button / Encoder Wheel
- Internal On/Off Scheduler
- OLED Control Menu Display
- 5pin XLR DMX Input
- 5pin XLR DMX Output (Thru-put)
- (4) 5pin XLR DMX Outputs
- (4) powerCON 15 amp Outputs (NAC3MPB-1)
- Main 20 amp Power Switch
- powerCON Power Input (NAC3MPA-1)
Size / Weight
- Length: 19.0" (482mm) Width: 9.1" (232mm)
- Vertical Height: 1.7" (44mm)
- Weight: 6.6 lbs. (3.0kg)
Electrical / Thermal
- AC 100-240V - 50/60Hz
- 7W Max Power Consumption (No Devices Connected)
- 35°F (2°C) to 113°F (45°C)
Approvals / Ratings
- CE | cETLus
Included Items
- Rack Ears (fits standard 19-inch single rack space)
- M10 Screw Hole for Clamp (clamp not included)
- Safety Cable Loop (cable not included)
