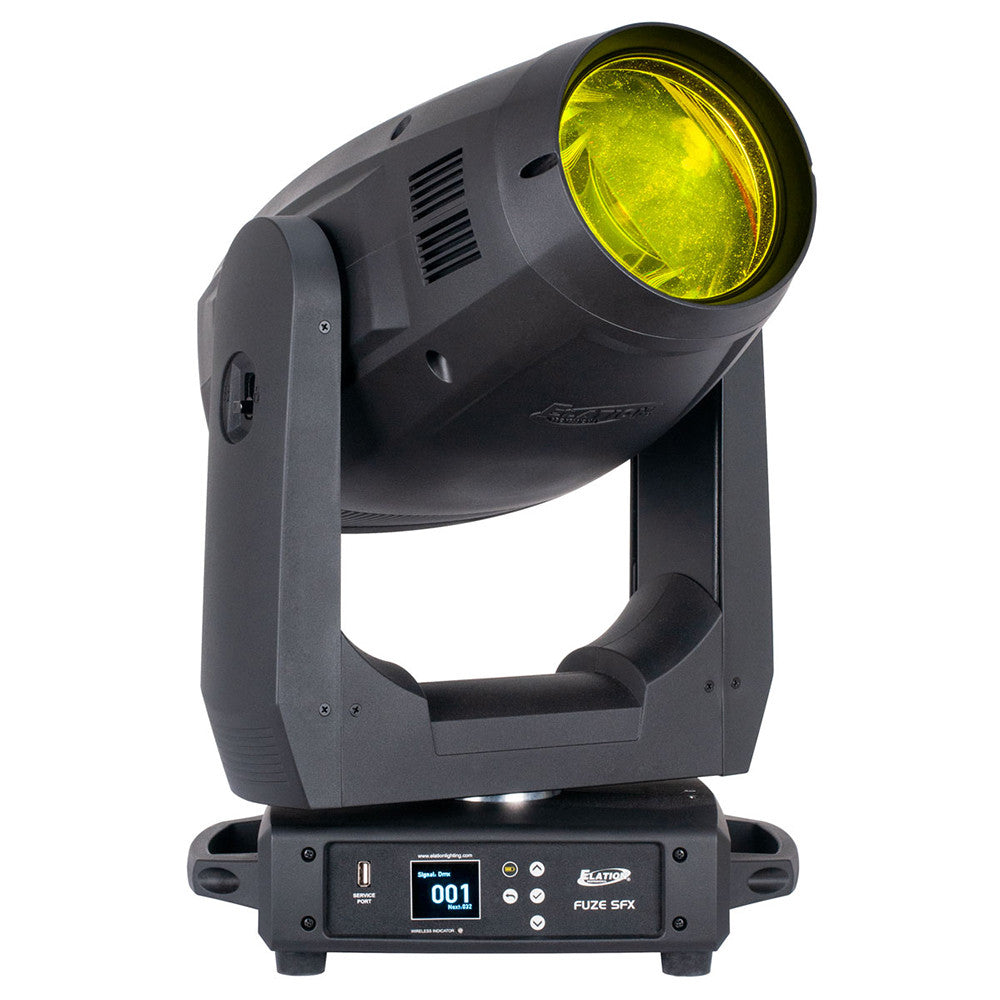

Elation Fuze SFX; 300W CMY SpotFX MH

Elation Fuze SFX; 300W CMY SpotFX MH

Write a review

SKU: FUZ406

$5,135.00
$5,135.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation Fuze SFX; 300W CMY SpotFX MH

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.

Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.

A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
  • 300W LED 6,600K White LED Engine
  • 12,135 Total Lumen Fixture Output
  • Spot and Effects Fixture
  • Zoom Range from 4.5° to 38°
  • Variable CMY and 7-Position Color Wheel
  • High CRI and CTO Filter
  • 8 Rotating and 10 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Variable Wash Frost Filter

Specifications

  • SOURCE

    • 300W 6,600K Bright White LED Engine

    • 20,000 Hour Average LED Life*

  • PHOTOMETRIC DATA

    • 12,135 Total Lumen Output

    • CRI 68+

    • Zoom Range 4.5° - 38°

    • Beam Angle 4.6° - 38.2°

    • Field Angle 5.6° - 42.2°

  • EFFECTS

    • Motorized Zoom

    • Remote Focus

    • Variable Frost Filter

    • Dual Independent Prisms (6 Facet linear 6 Facet round)

    • Motorized Iris

    • Variable 16-bit Dimming Curve Modes

    • High Speed Electronic Shutter and Strobe

    • Pan Angle: 540°/630°

    • Tilt Angle: 270°

  • COLOR

    • CMY Variable Color Mix

    • 7 Position Color Wheel

    • High CRI Filter, CRI 84

    • CTO Filter, 3200K, CRI 77

  • GOBOS

    • 2 Gobo Wheels

    • Wheel #1 with 8 Rotating / Interchangeable Glass Gobos

    • Wheel #2 with 10 Static Gobos

  • CONTROL / CONNECTIONS

    • 31 DMX Channels

    • 16-bit Pan, Tilt, and Dimming Control

    • DMX Adjustable LED Frequency

    • 4 Button Touch Control Panel

    • Full Color 180° Reversible LCD Menu Display

    • Locking 5pin XLR Connector In/Out

    • IP65 Locking Power Connector In/Out

    • USB Connection (Firmware Updates)

    • With Wired Digital Communication Network

  • SIZE / WEIGHT

    • Length: 14.3” (362mm)

    • Width: 9.2" (233mm)

    • Vertical Height: 23.4" (595mm)

    • Weight: 45.9 lbs. (20.8kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 432W Max Power Consumption

    • 14°F to 113°F (-10°C to 45°C)

    • BTU/hr (+/- 10%) 1473.12

  • APPROVALS / RATINGS

    • CE | cETLus | IP20
