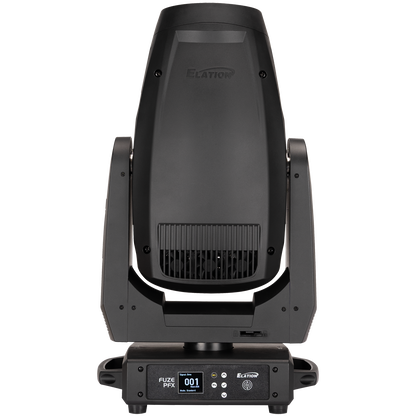

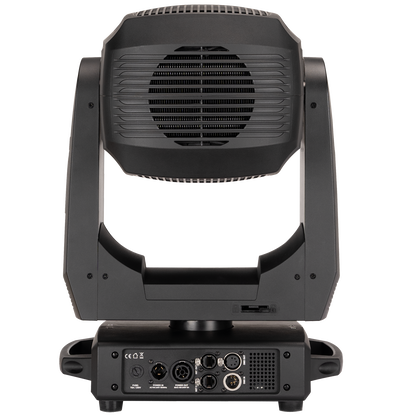

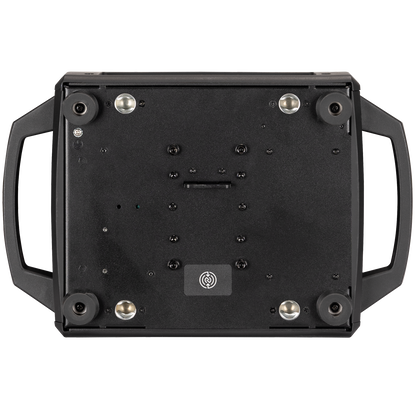

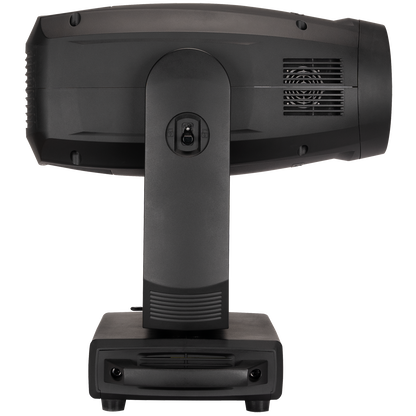

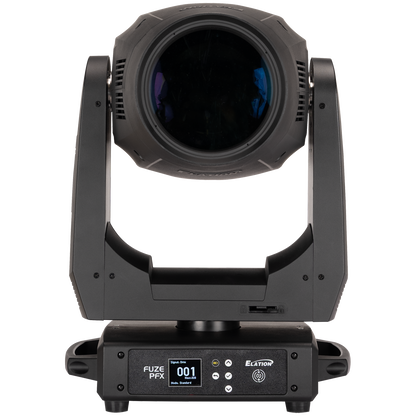

Elation FUZE PFX FUZE PFX; 400W LED Profile FX Fixture

Elation FUZE PFX FUZE PFX; 400W LED Profile FX Fixture

Write a review

SKU: FUZ719

$6,955.00
$6,955.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

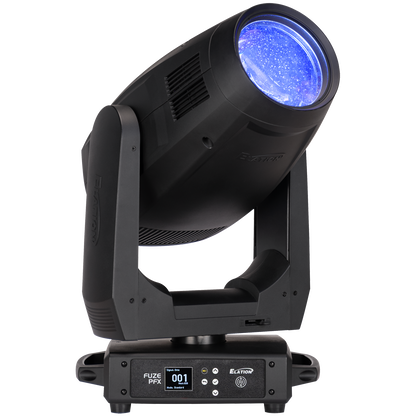

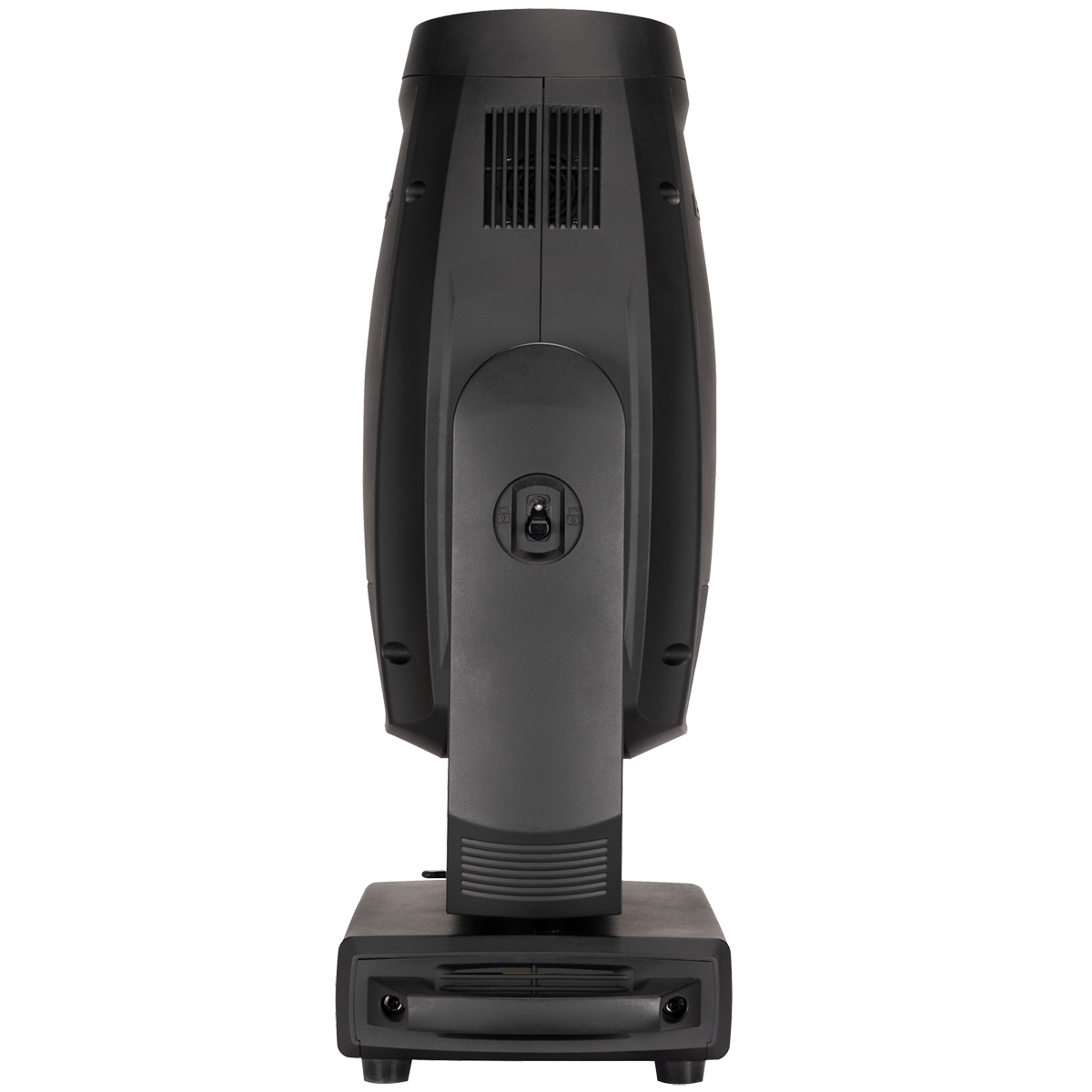

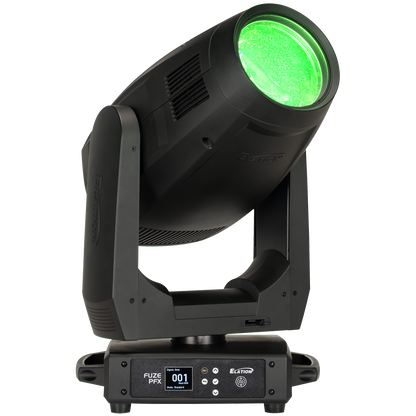

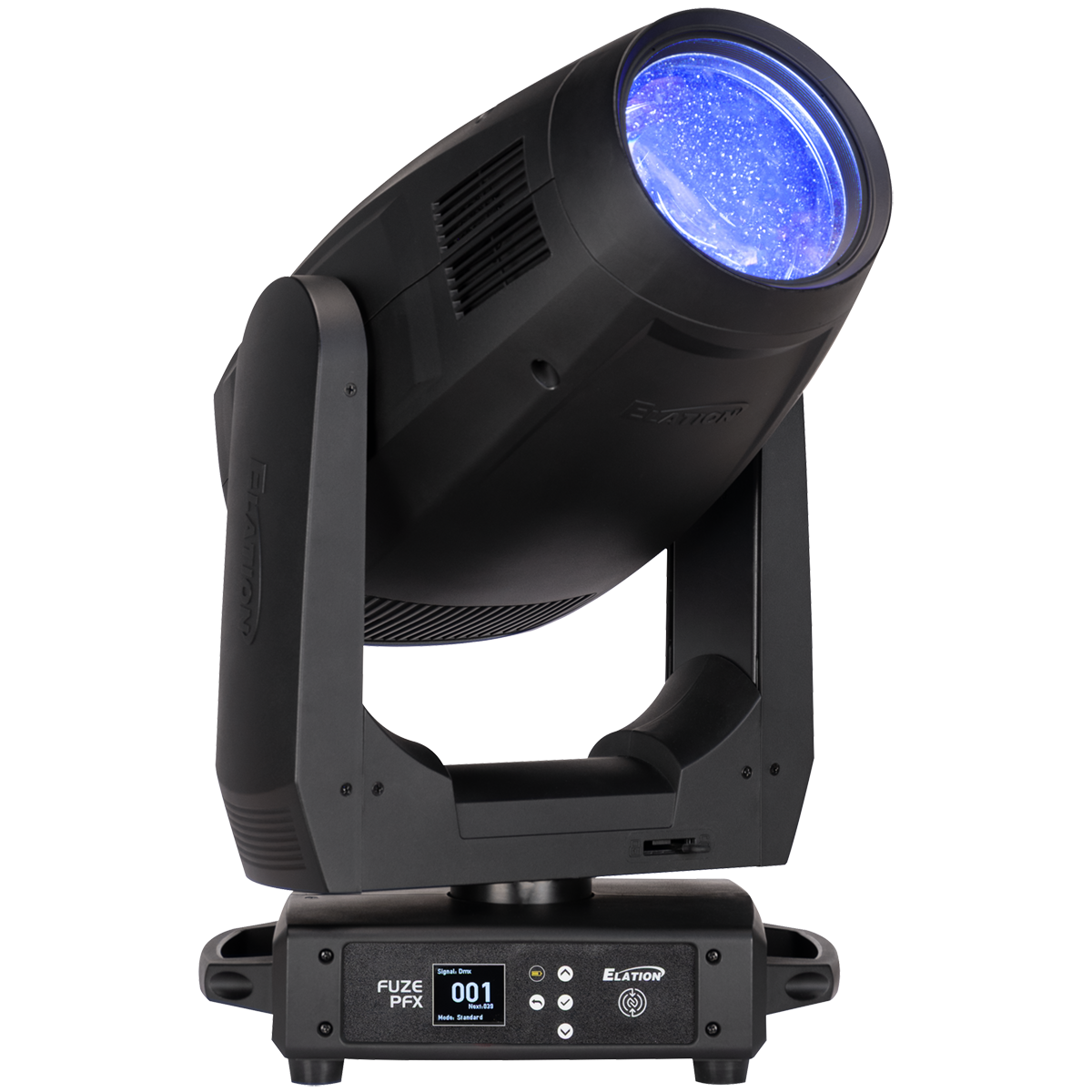

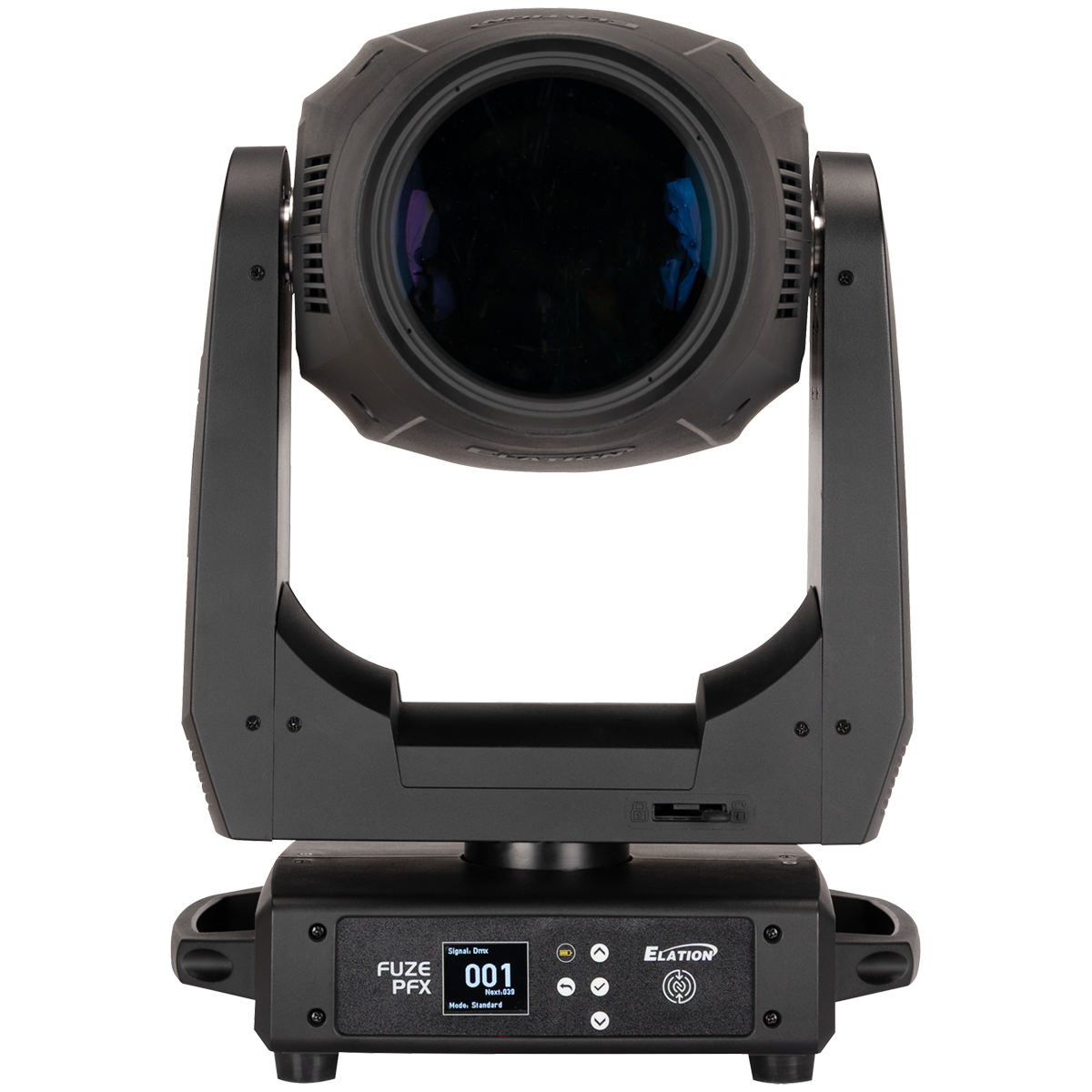

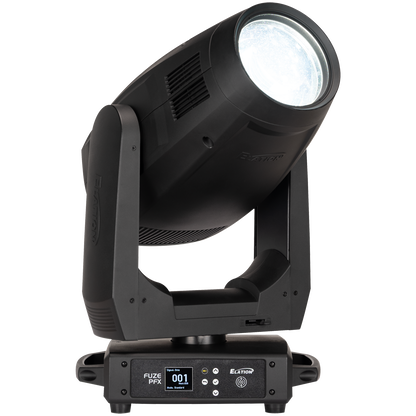

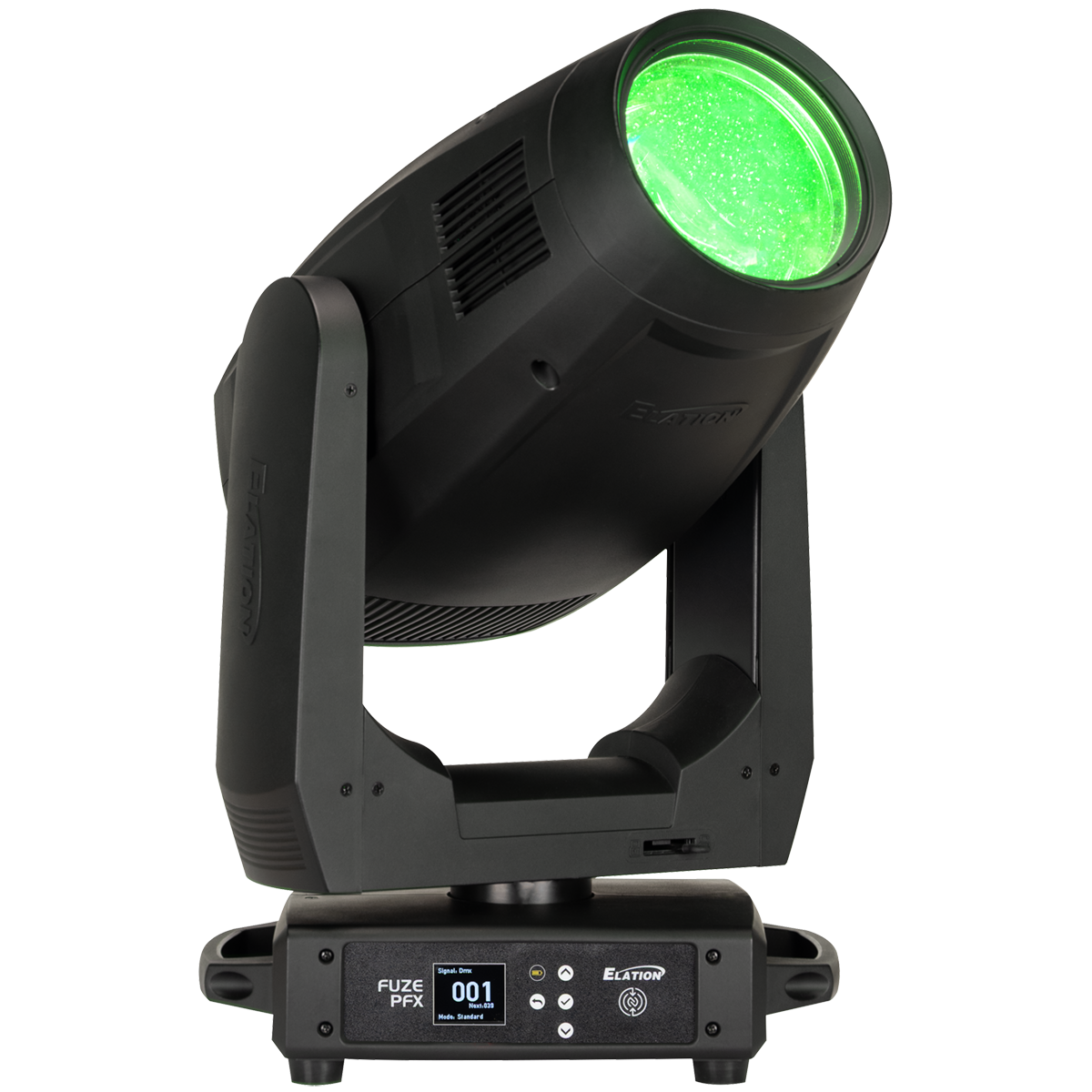

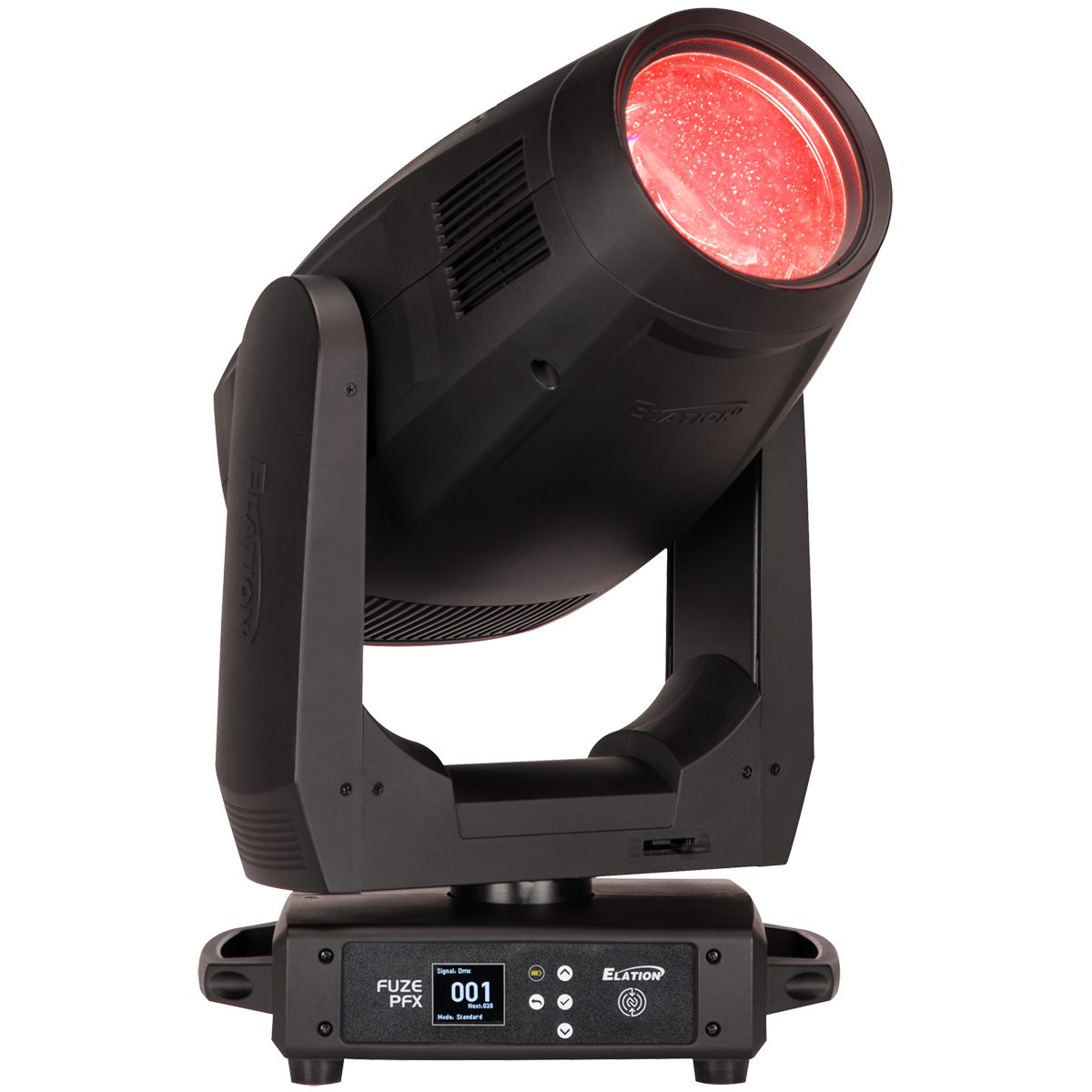

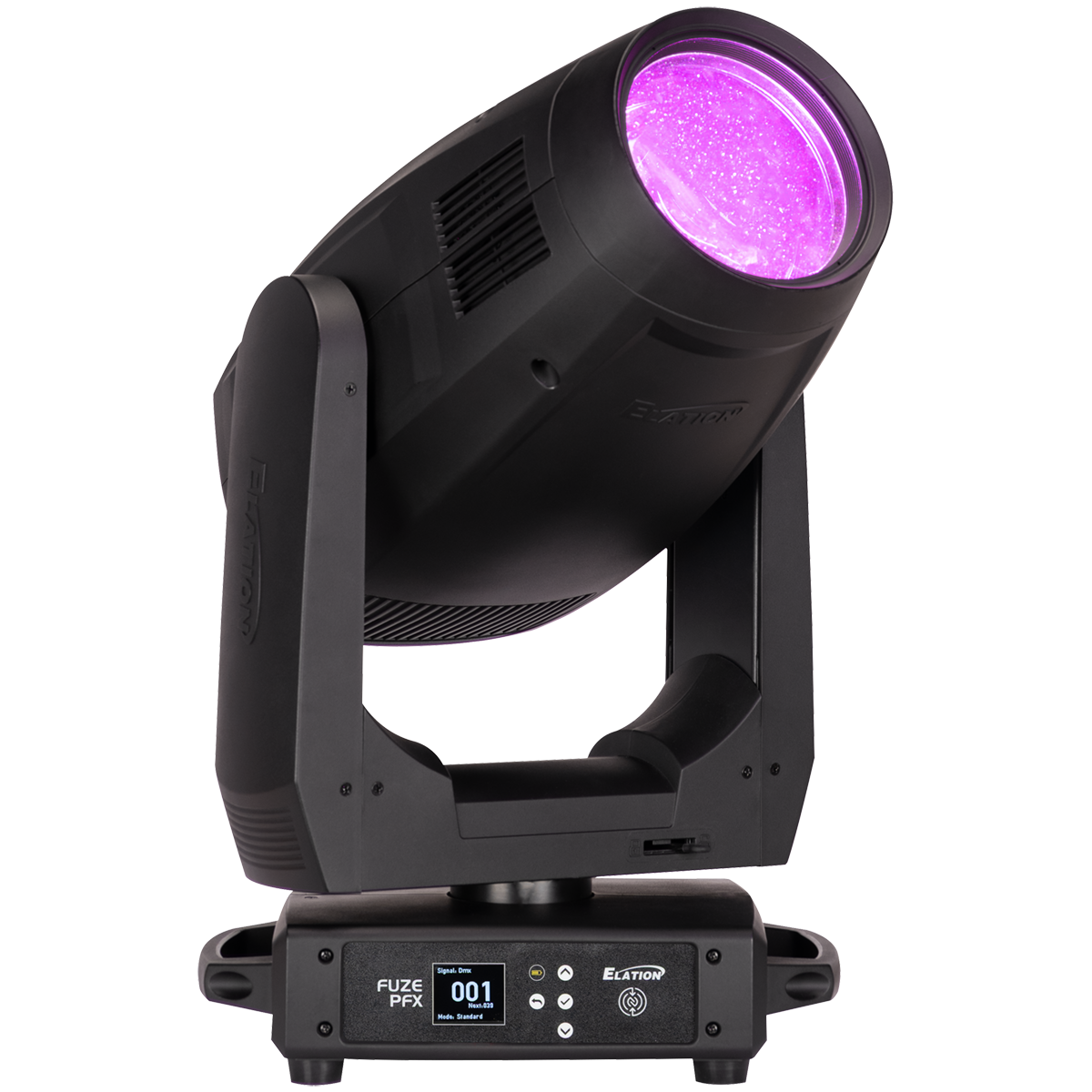

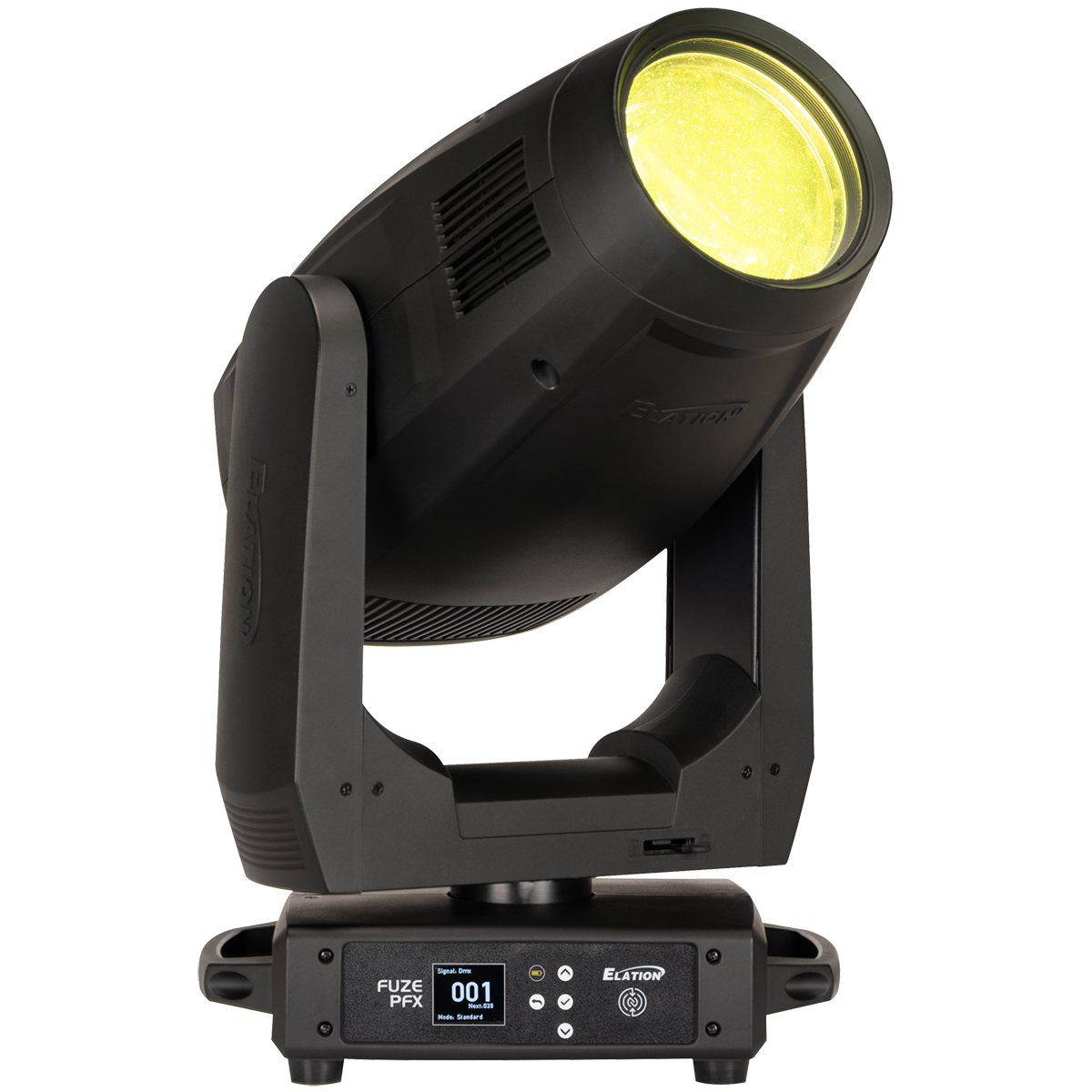

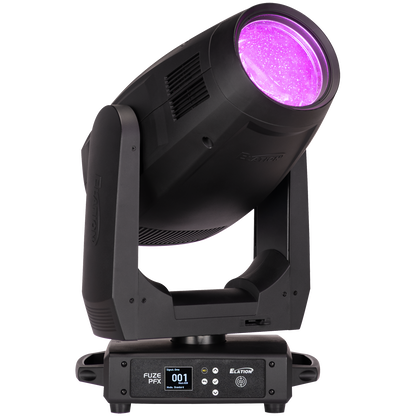

Elation FUZE PFX; 400W LED Profile FX Fixture

The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX is capable of projecting tight beams, precise framing and wide washes using a highly efficient optical design while providing over 15000 lumens of output from its 400W white LED engine.

Housing 19 carefully designed gobos and a 3° to 53° zoom, the FUZE PFX can create stunning mid-air FX as easily as precise image projections. The PFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid air effect as well. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.

A truly remarkable compact powerhouse for any application, the FUZE PFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.

Features

  • 400W LED 6,600K White LED Engine
  • 15000 Total Lumen Fixture Output
  • Framing and Effects Fixture
  • Zoom Range from 3° to 53°
  • Variable CMY, CTO and 8-Position Color Wheel
  • Dual High CRI Filters
  • 7 Rotating and 11 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Soft and Wash Frost Filters

Specifications

  • SOURCE

    • 400W 6,600K Bright White LED Engine

    • 20,000 Hour Average LED Life*

  • PHOTOMETRIC DATA

    • 15000 Total Lumen Output

    • CRI 72 (Filter CRI 80, CRI 90)

    • Zoom Range 3° - 53°

    • Beam Angle

    • Field Angle

  • EFFECTS

    • Motorized Zoom

    • 4 Rotating Full Blackout Framing Blades

    • +/- 60° Framing Index

    • 2 Variable Frost Filters (Light and Wash)

    • Dual Independent Prisms (6 Facet linear 6 Facet round)

    • Motorized Iris

    • Variable 16-bit Dimming Curves

    • High Speed Electronic Shutter and Strobe

    • Pan Angle: 540°

    • Tilt Angle: 270°

  • COLOR

    • CMY Color Mixing

    • Linear CTO Color Correction

    • 7 Dichroic Colors including UV Filter

    • High CRI Filter 80+90

  • GOBOS

    • 7 Rotating / Indexing Interchangeable Glass Gobos

    • 11 Static Metal Gobos

  • CONTROL / CONNECTIONS

    • DMX Channels

    • 16-bit Pan, Tilt, and Dimming Control

    • DMX Adjustable LED Frequency

    • RDM (Remote Device Management)

    • Aria x2 Wireless Device Management

    • 4 Button Touch Control Panel

    • Full Color 180° Reversible LCD Menu Display

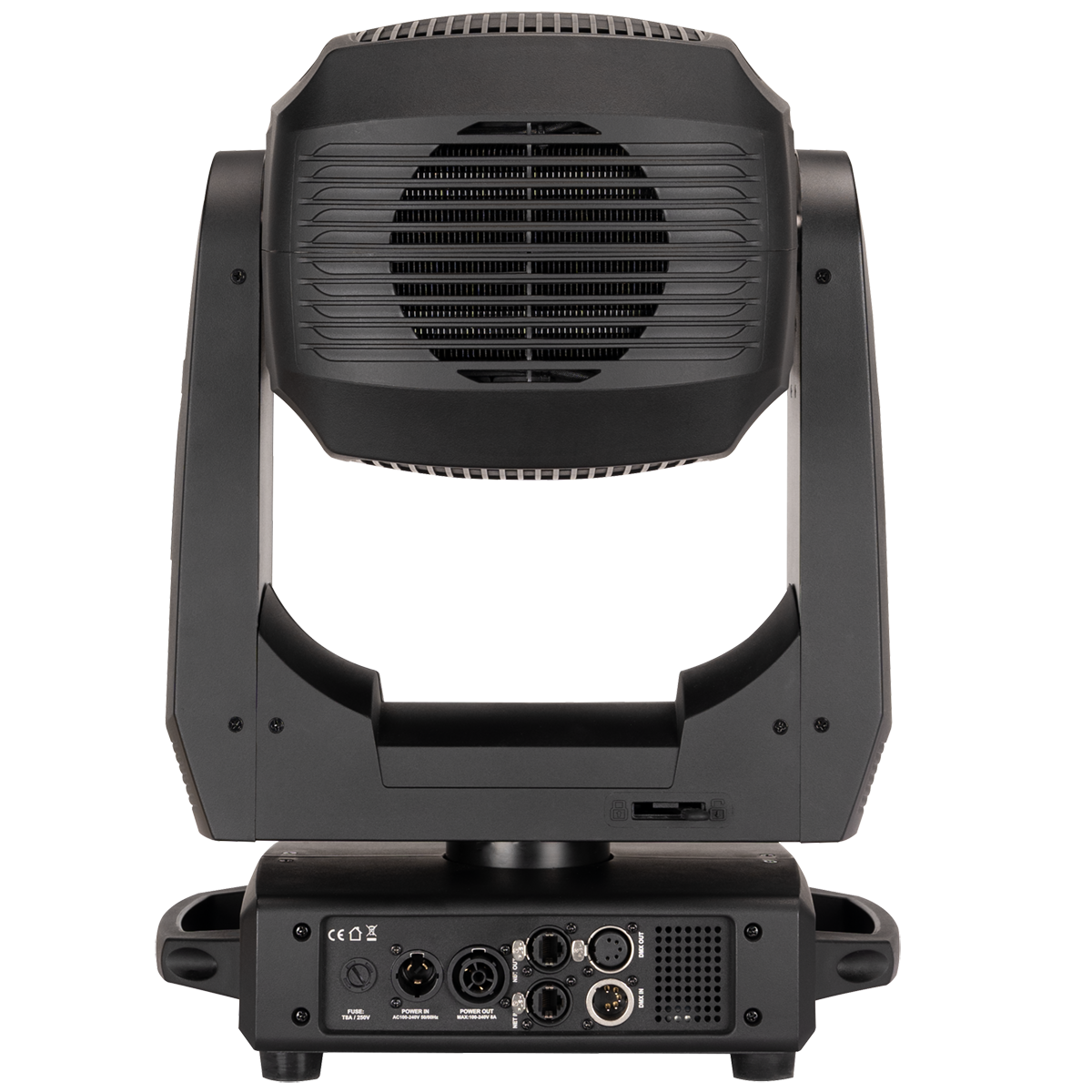

    • Locking 5pin XLR Connector In/Out

    • IP65 Locking Power Connector In/Out

  • SIZE / WEIGHT

    • Length: 14.3” (362mm)

    • Width: 9.2" (233mm)

    • Vertical Height: 25.14" (637mm)

    • Weight: 50 lbs. (22.7kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 600W Max Power Consumption

    • 14°F to 113°F (-10°C to 45°C)

    • BTU/hr (+/- 10%) 2047

  • APPROVALS / RATINGS

    • CE | cETLus | FCC | UKCA | IP20
