Elation Fuze Pendant WH Fuze Pendant WH; 230W RGBWL LED Pendant

Elation Fuze Pendant WH Fuze Pendant WH; 230W RGBWL LED Pendant

Write a review

SKU: FUZ271

$2,031.00
$2,031.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation Fuze Pendant WH Fuze Pendant WH; 230W RGBWL LED Pendant

The FUZE PENDANT WH™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT WH is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.

A variety of lens choices (45° included, 25°, 40°, 50°, 85° or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.
  • Full Spectrum 230W 5in1 LED Array
  • 2400 - 8500K Color Temperature
  • CRI 90 @ 3,200K
  • 11,000 Total Lumen Fixture Output
  • 45° Lens Included
  • Optional 25°, 40°, 50°, 85° and 100° Lenses Available
  • Compact Fanless Design
  • DMX, RDM, 0-10V and E-FLY Wireless Support
  • 48V Emergency Battery Input
  • Bare Wire Block Terminal Connections (connectors included)

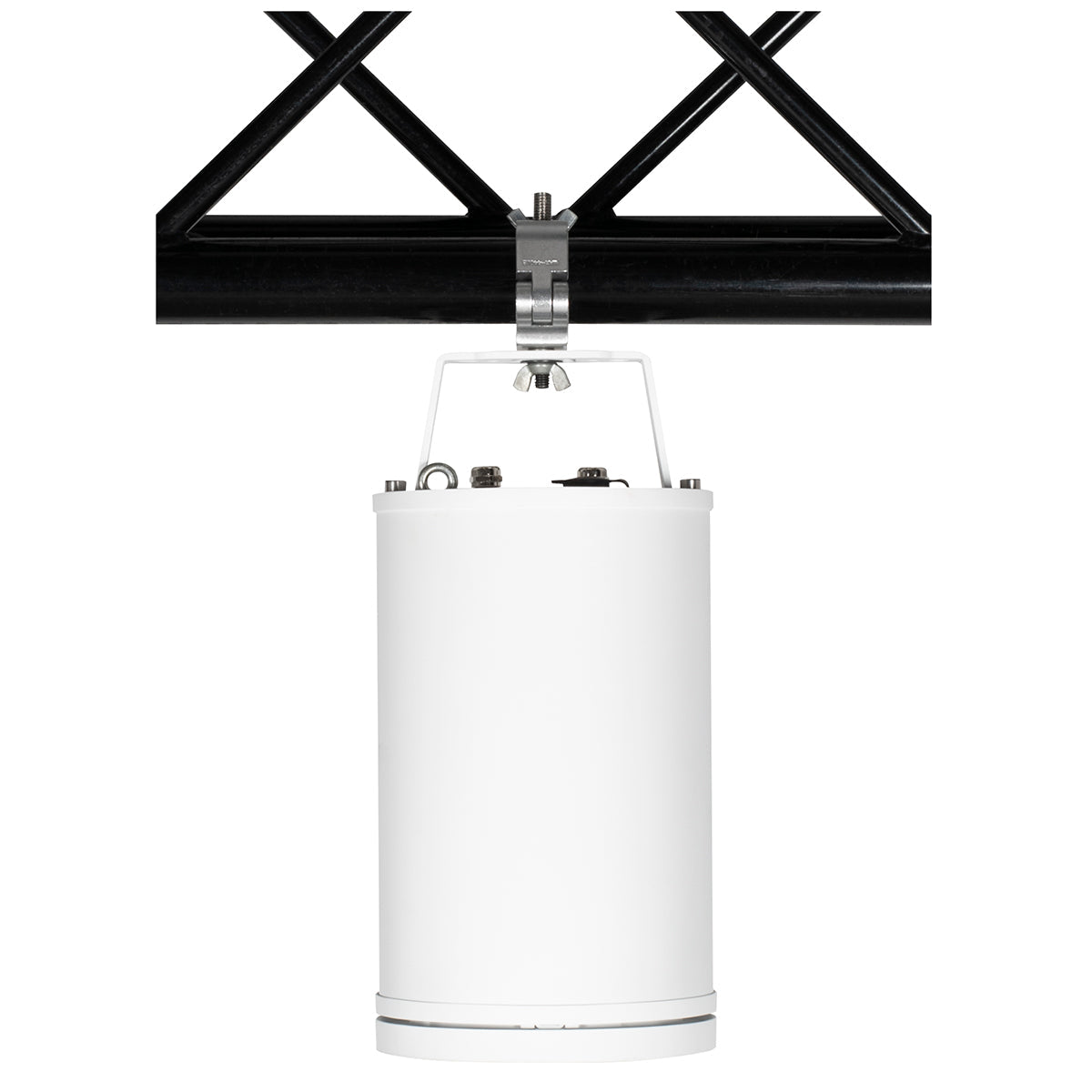

  • Pendant Bracket (included)

Specifications

  • SOURCE

    • 230W 5-in-1 RGBWL (Red, Green, Blue, White, Lime LED Array

    • 50,000 Hour Average LED Life*

  • PHOTOMETRIC DATA

    • 11,000 Total Lumen Fixture Output

    • CRI 90 @ 3,200K

    • 45° Lens Included

  • EFFECTS

    • Variable CCT 2400K - 8500K

    • Virtual Color Swatch Book

    • Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options

    • Variable 16-bit Dimming Curves

    • High Speed Electronic Shutter and Strobe

    • DMX and Menu adjustable LED Refresh Rate Frequency

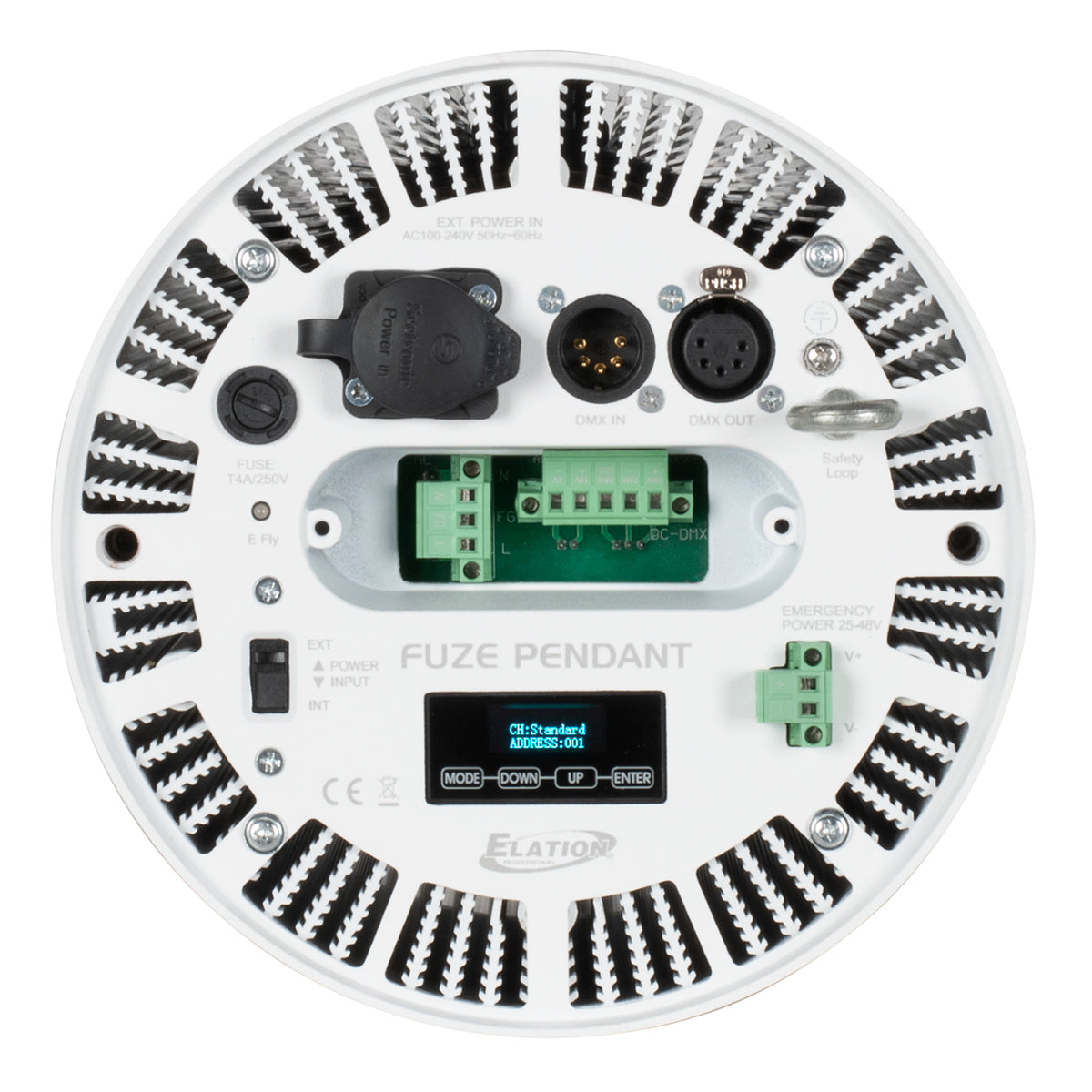

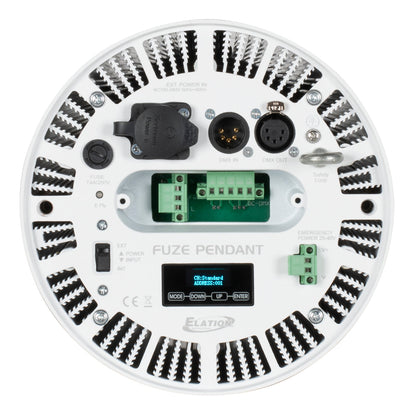

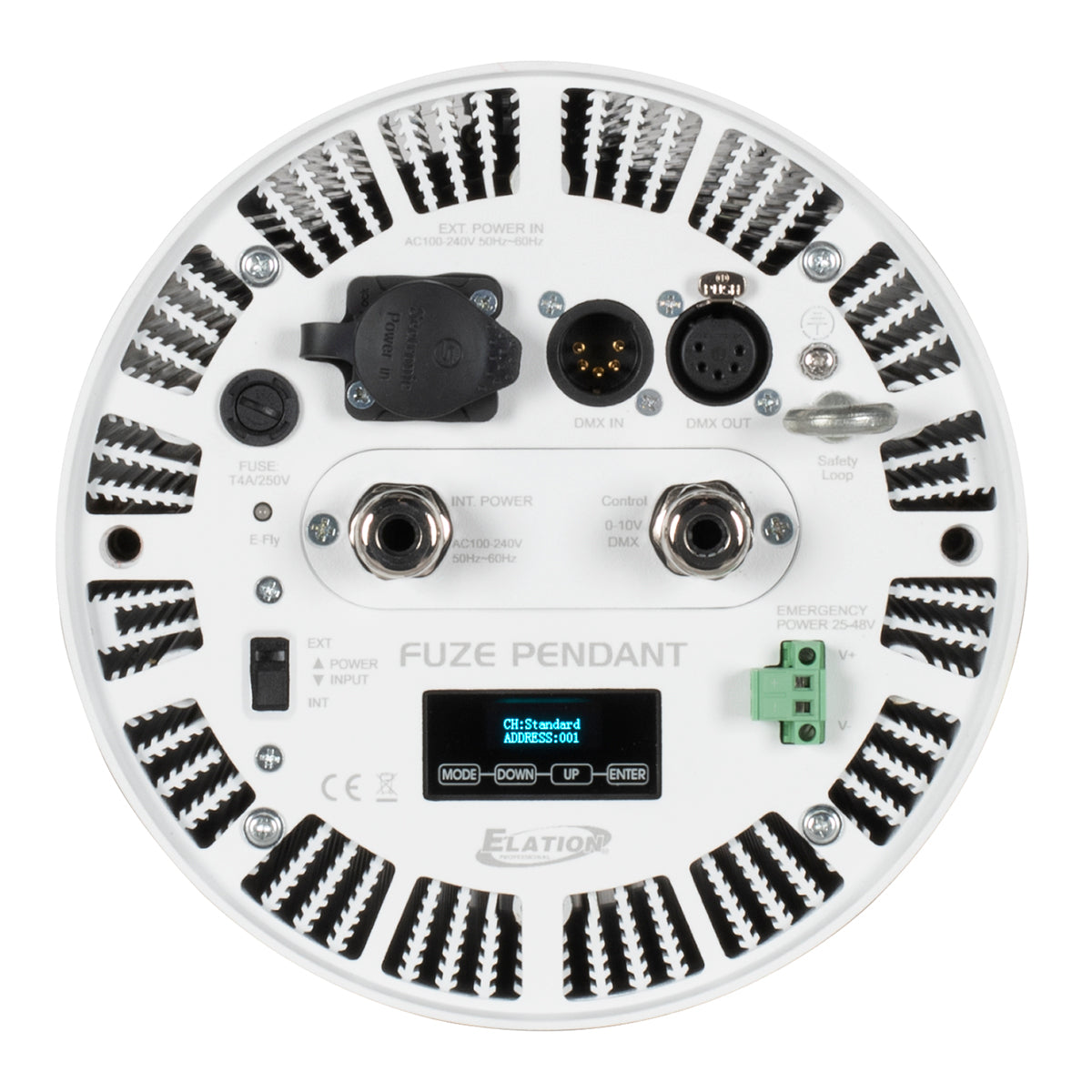

  • CONTROL / CONNECTIONS

    • 8 DMX Channel Modes

    • Standalone and Primary, Secondary Modes

    • RDM (Remote Device Management)

    • 0-10V Dimming (Current-Sink)

    • E-FLY™ Internal Extended Range Wireless DMX Transceiver

    • 4 Button Control Panel and OLED Menu Display

    • Locking 5pin XLR Connector In/Out

    • Locking IP65 Power Connector In

    • 3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm2)

    • 5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)

    • 2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)

  • SIZE / WEIGHT

    • Length: 12.5" (318mm)

    • Diameter: 7.8" (197mm)

    • Weight: 15.8lbs. (7.2 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • Max Power Consumption 230W

    • 14°F to 113°F (-10°C to 45°C)

  • APPROVALS / RATINGS

    • CE | cETLus | IP20 | FCC

  • OPTIONAL ACCESSORIES:

  • FPL25- 25° Lens

  • FPL40- 40° Lens

  • FPL50-50° Lens

  • FPL85-85° Lens

  • FPL100- 100º Lens
