Description

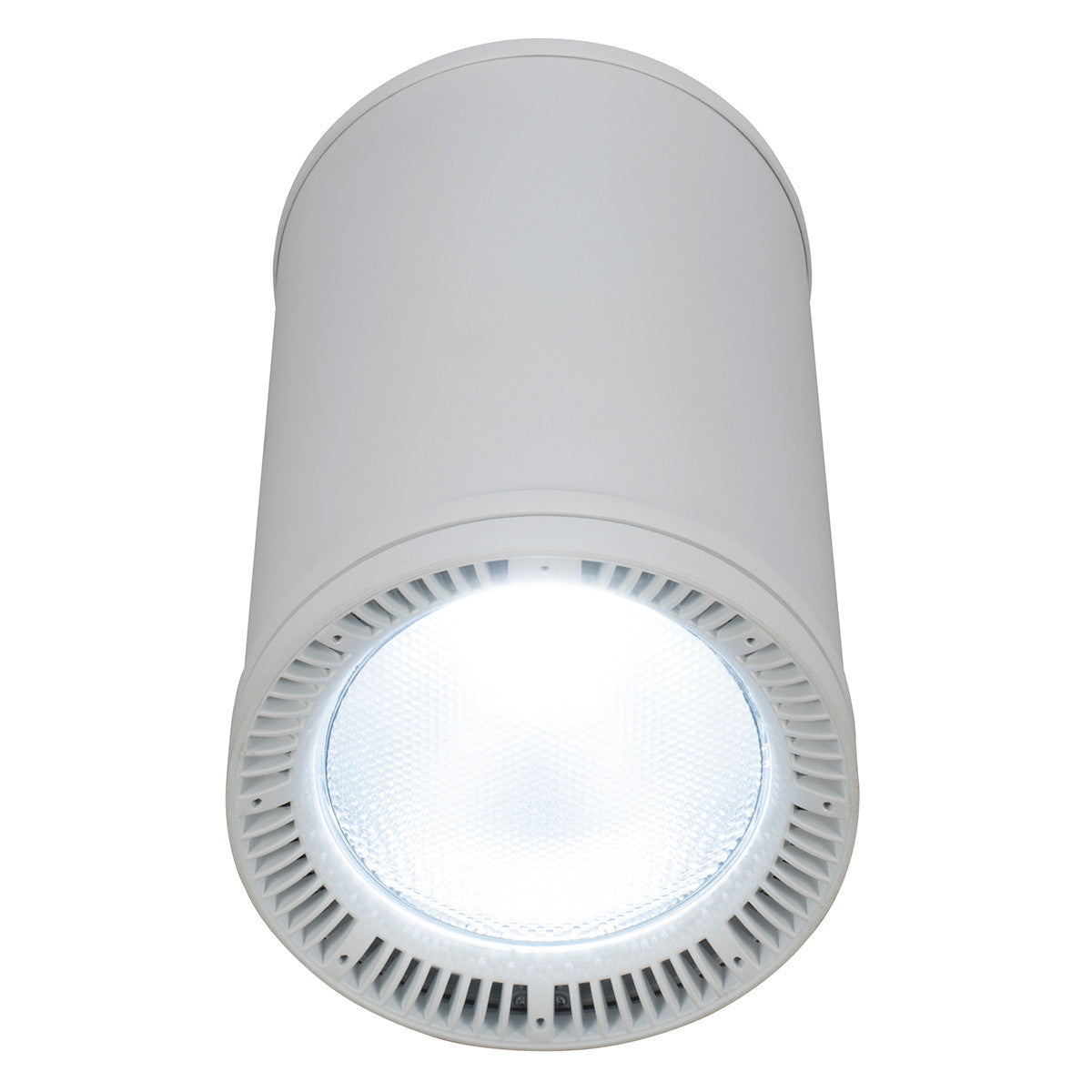

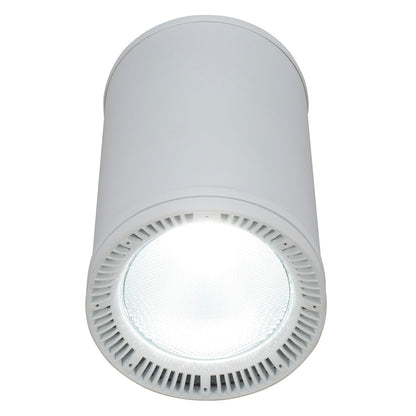

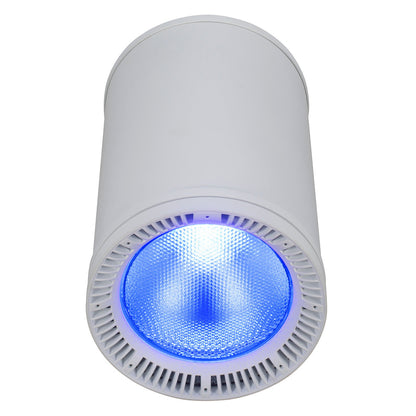

Elation Fuze Pendant WH Fuze Pendant WH; 230W RGBWL LED Pendant
The FUZE PENDANT WH provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT WH is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
A variety of lens choices (45° included, 25°, 40°, 50 or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.
Features
- Full Spectrum 230W 5in1 LED Array
- 2400 - 8500K Color Temperature
- CRI 90 @ 3,200K
- 11,000 Total Lumen Fixture Output
- 45° Lens Included
- Optional 25°, 40°, 50° and 100° Lenses Available
- Compact Fanless Design
- DMX, RDM, 0-10V and E-FLY Wireless Support
- 48V Emergency Battery Input
- Bare Wire Block Terminal Connections (connectors included)

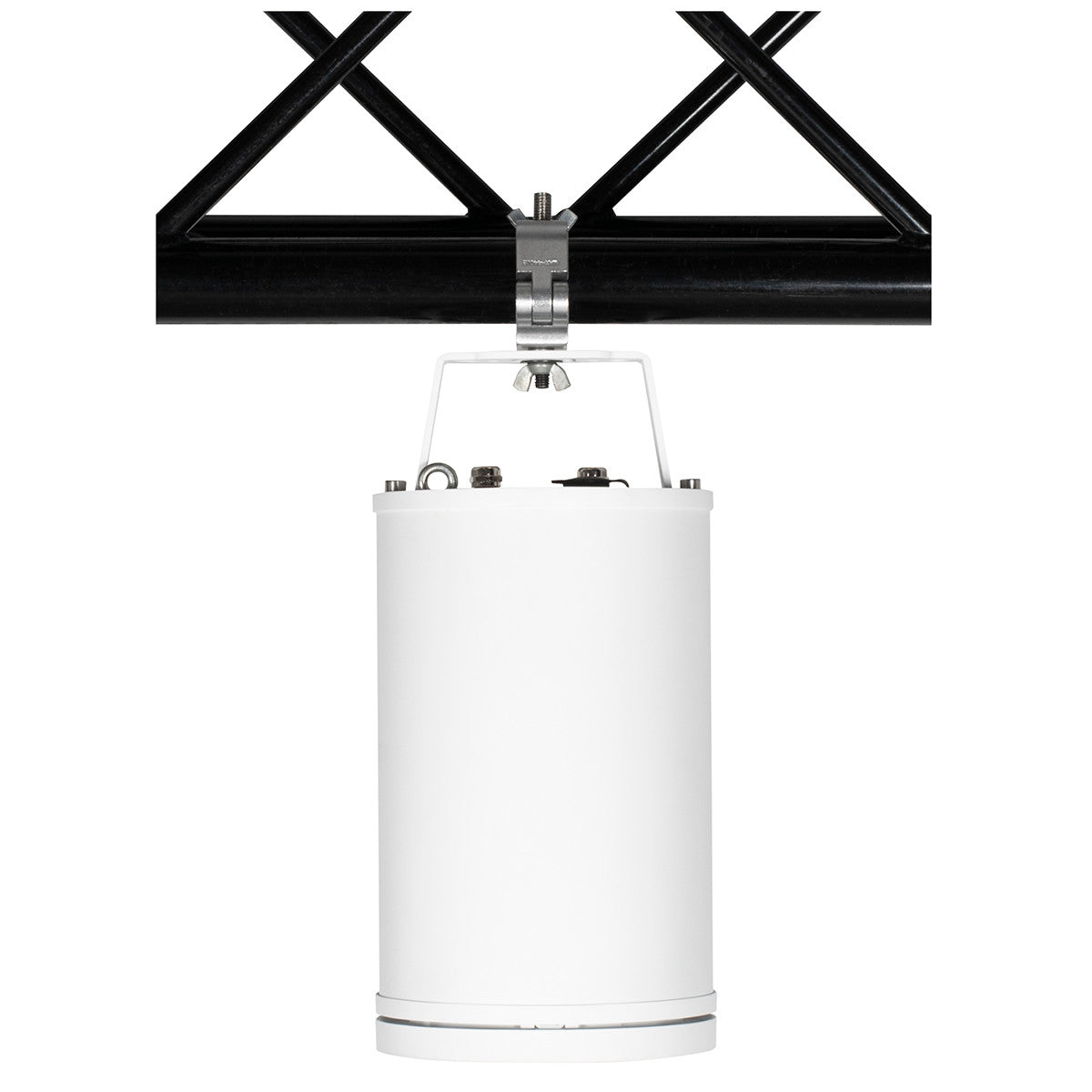

- Pendant Bracket (included)
Specifications
SOURCE
230W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
- 11,000 Total Lumen Fixture Output
- CRI 90 @ 3,200K
- 45° Lens Included
EFFECTS
- Variable CCT 2400K - 8500K
- Virtual Color Swatch Book
- Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options
- Variable 16-bit Dimming Curves
- High Speed Electronic Shutter and Strobe
- DMX and Menu adjustable LED Refresh Rate Frequency
CONTROL / CONNECTIONS
- 8 DMX Channel Modes
- Standalone and Primary, Secondary Modes
- RDM (Remote Device Management)
- 0-10V Dimming (Current-Sink)
- E-FLY Internal Extended Range Wireless DMX Transceiver
- 4 Button Control Panel and OLED Menu Display
- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector In
- 3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm2)
- 5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)
- 2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)
SIZE / WEIGHT
- Length: 12.5" (318mm)
- Diameter: 7.8" (197mm)
- Weight: 15.8lbs. (7.2 kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Max Power Consumption 230W
- 14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus (pending) | IP20 | FCC
OPTIONAL ACCESSORIES:
-
FPL25- 25° Lens
-
FPL40- 40° Lens
-
FPL50- 50° Lens
-
FPL100- 100º Lens
