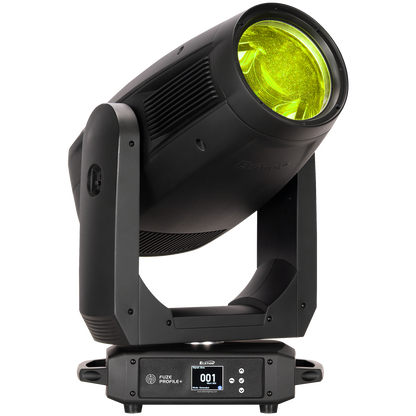

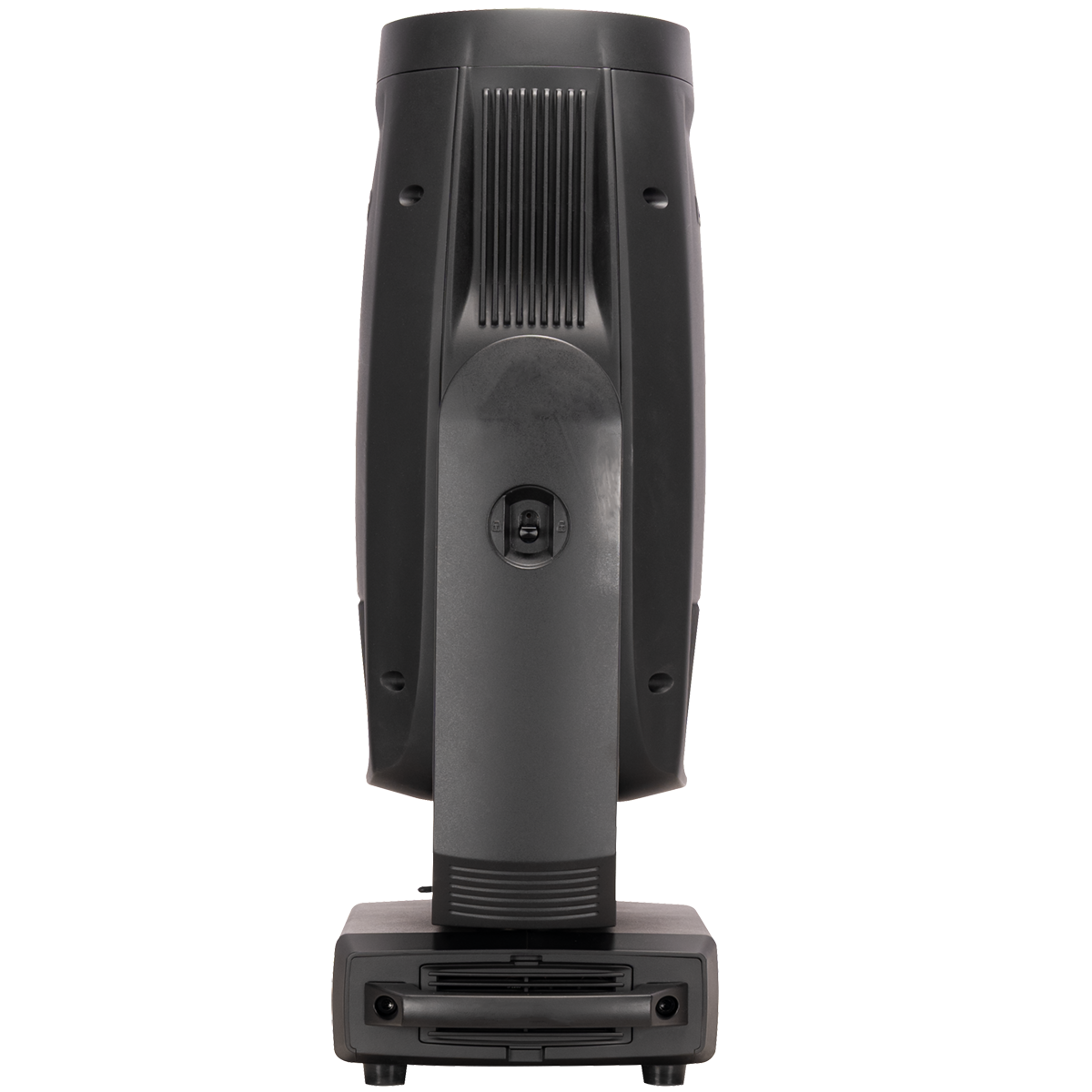

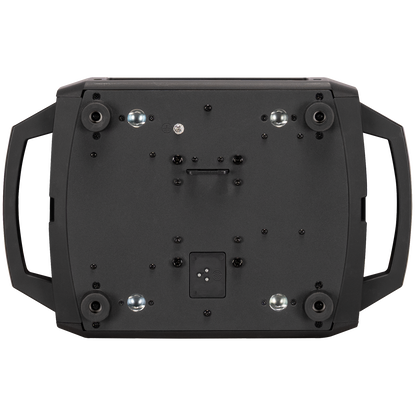

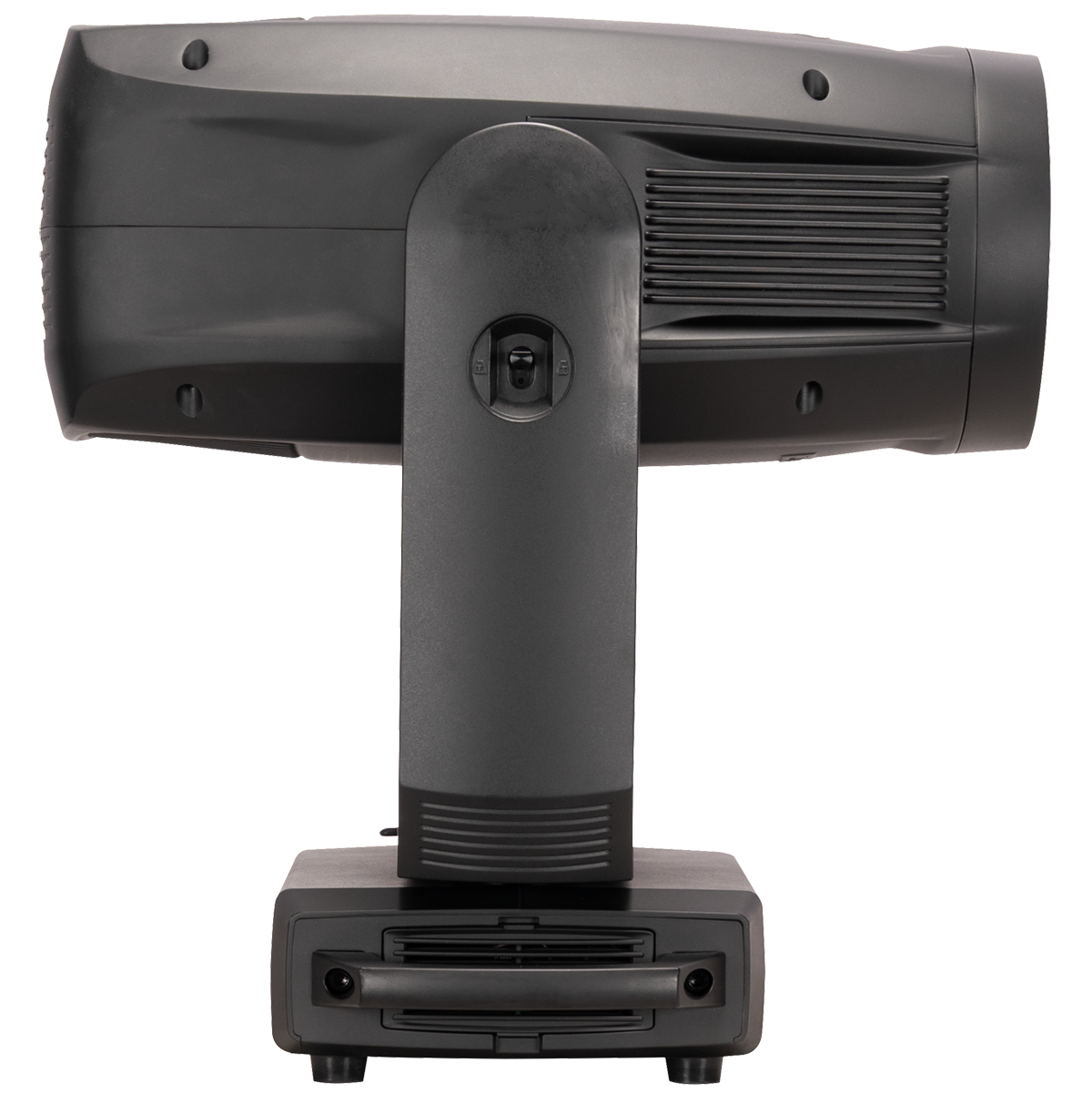

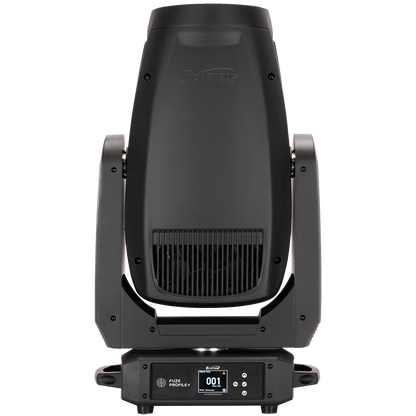

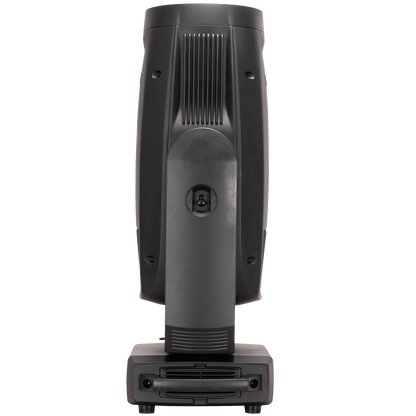

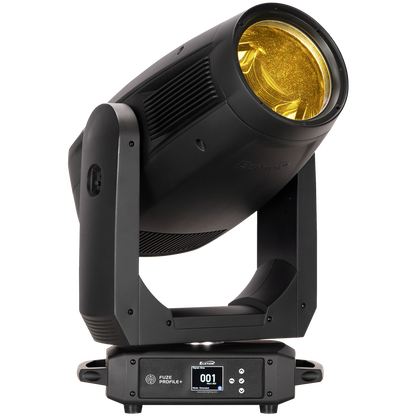

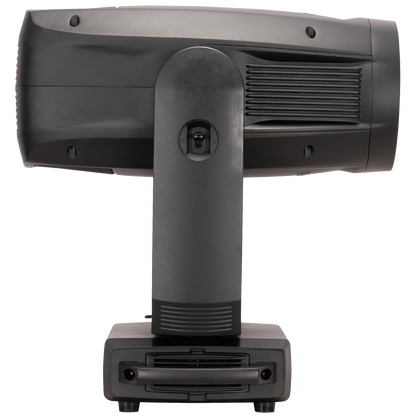

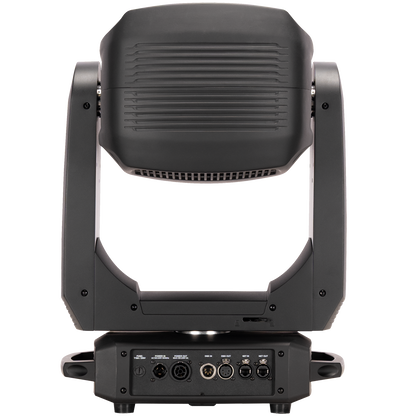

Elation FUZ321 FUZE PROFILE+; 500W RGBA LED PROFILE

Elation FUZ321 FUZE PROFILE+; 500W RGBA LED PROFILE

Write a review

SKU: FUZ321

$8,500.00
$8,500.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

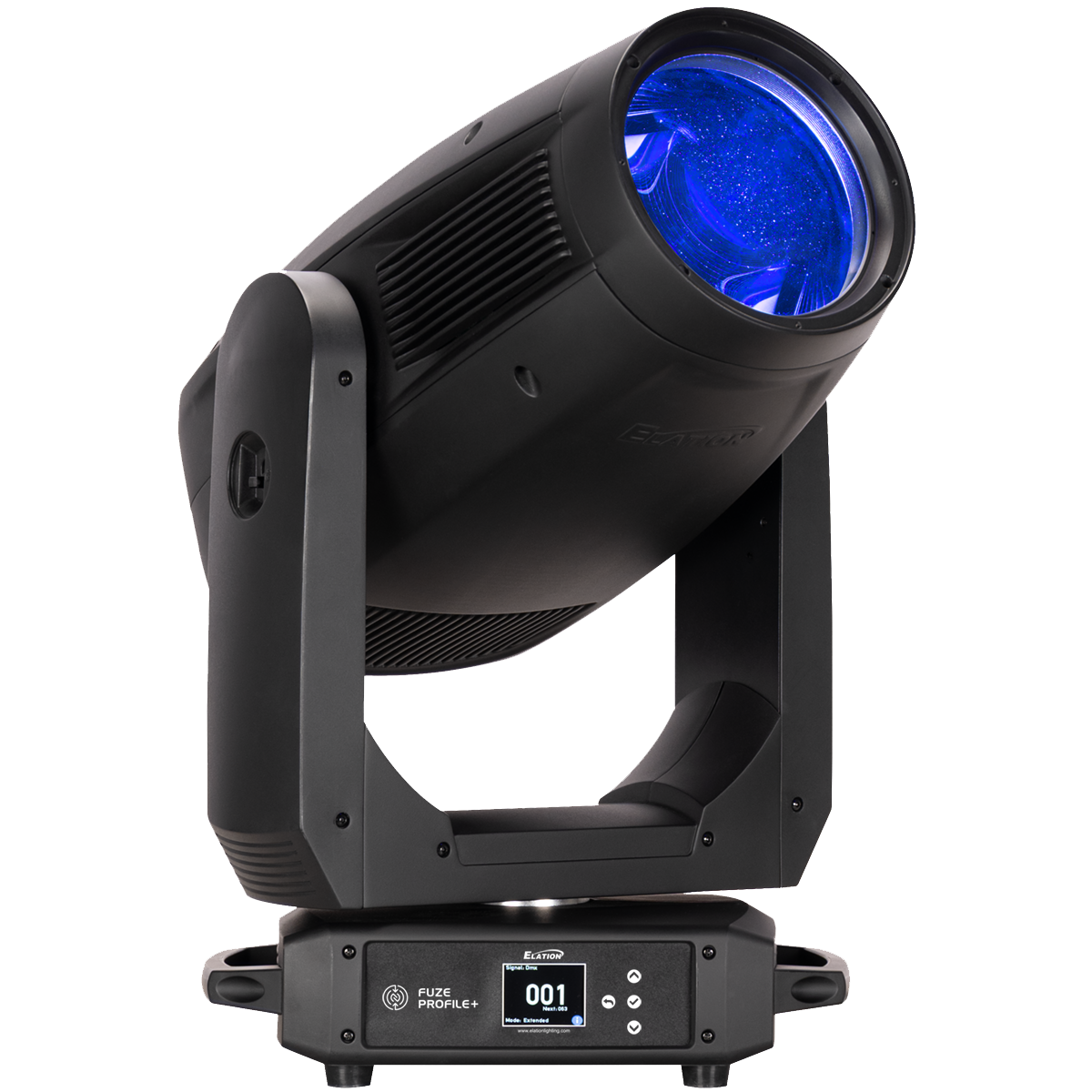

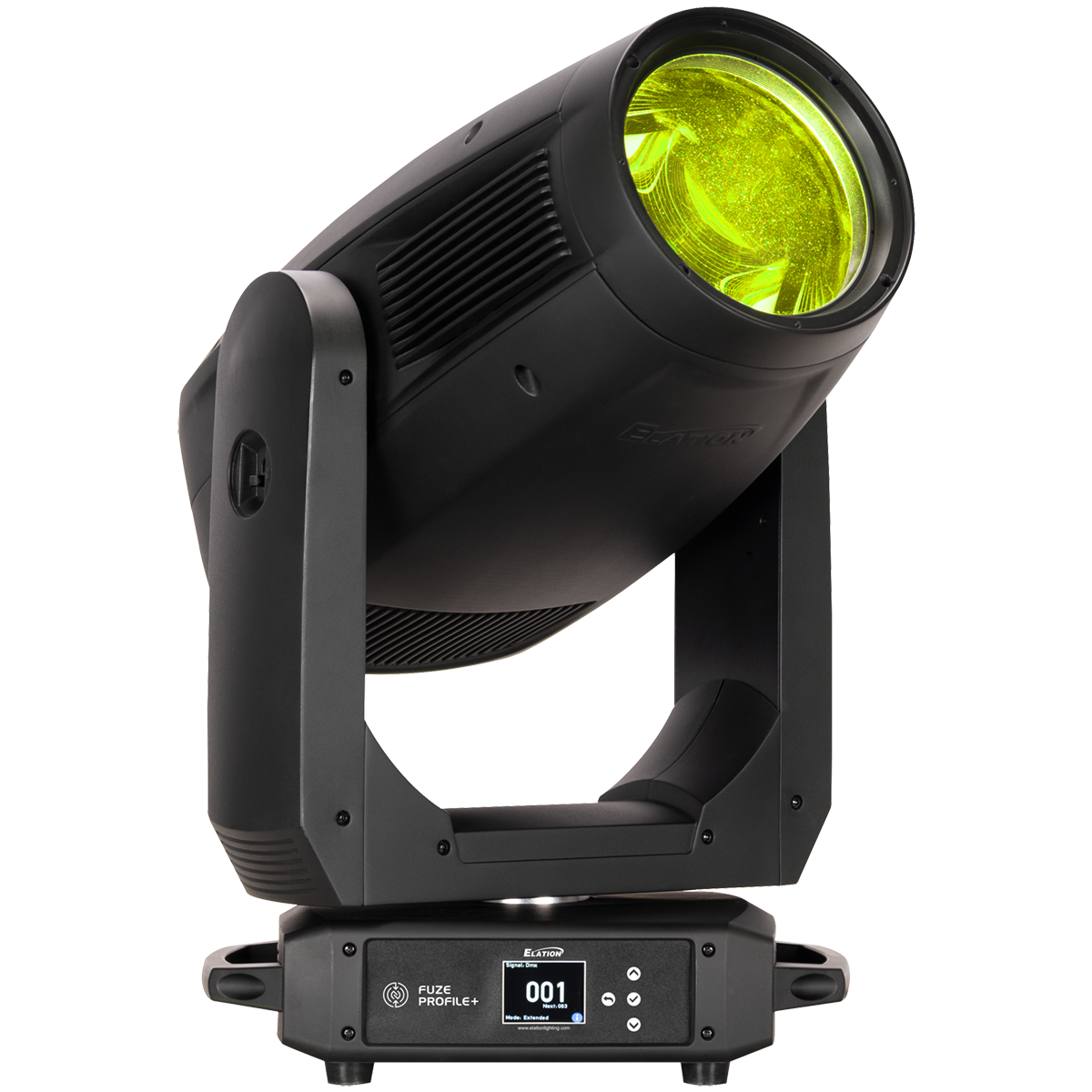

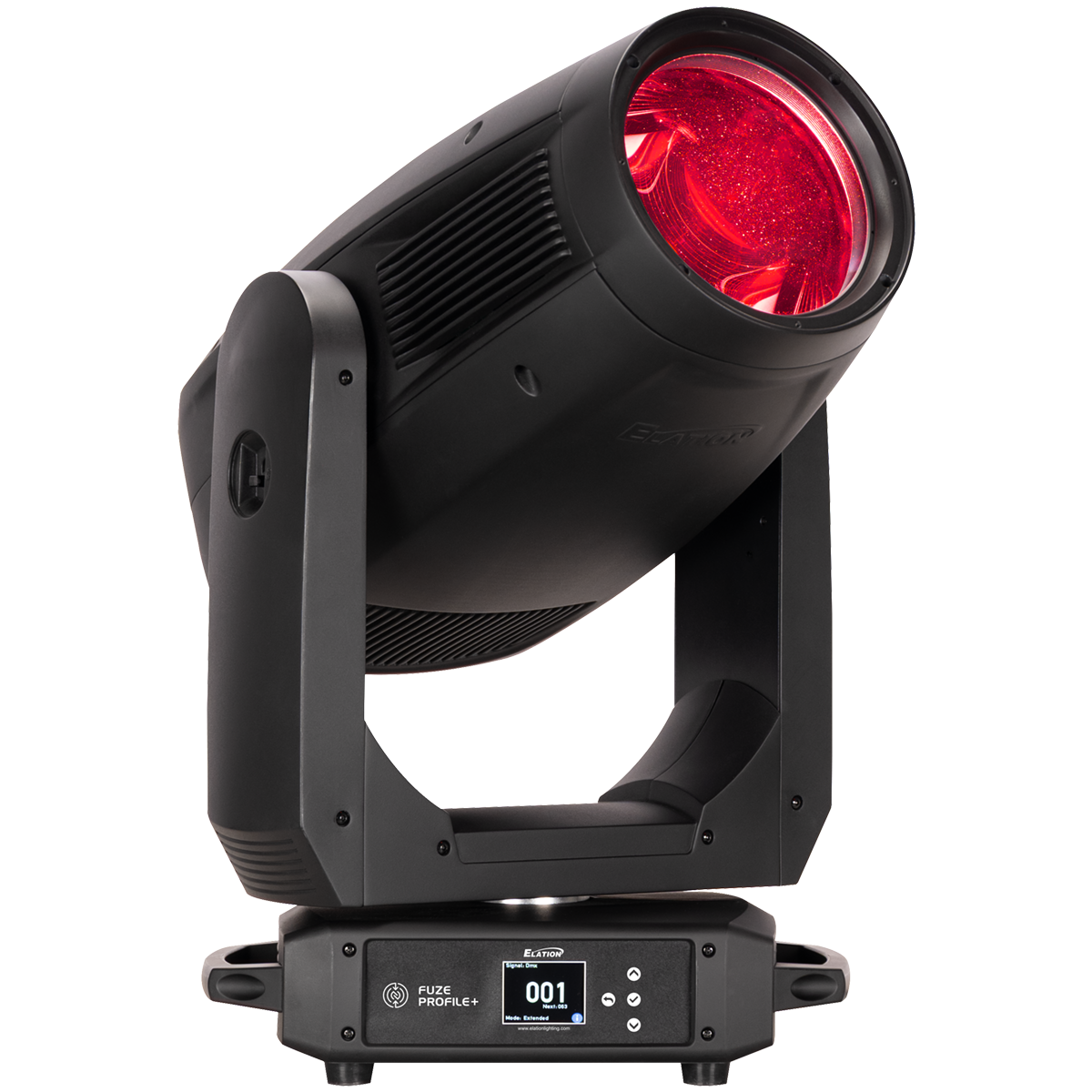

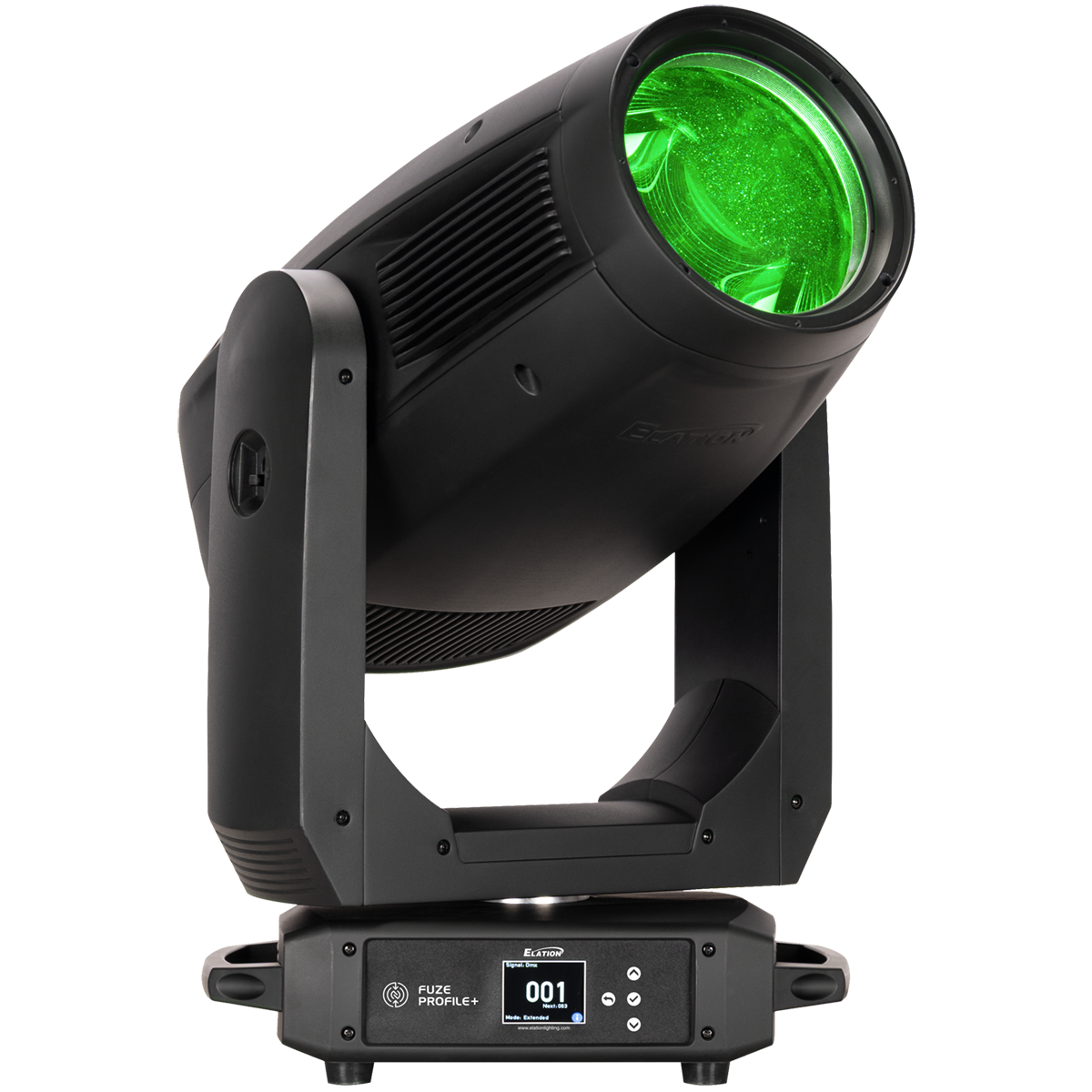

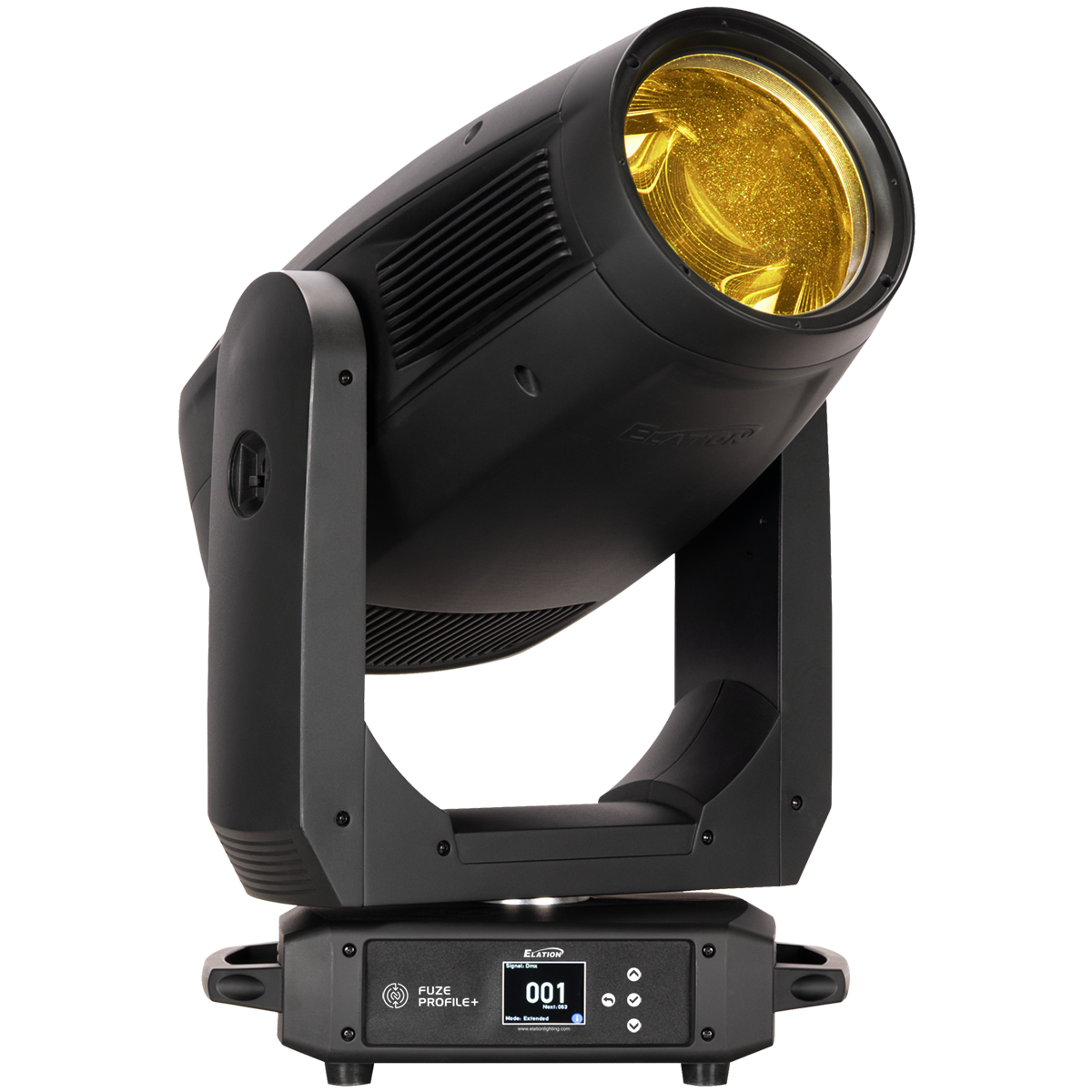

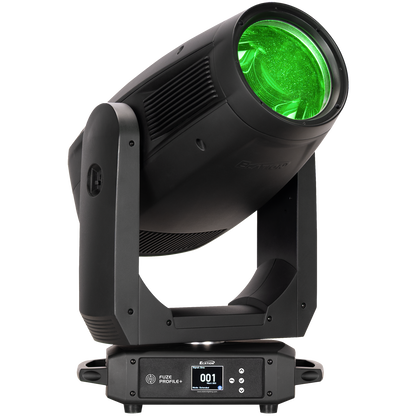

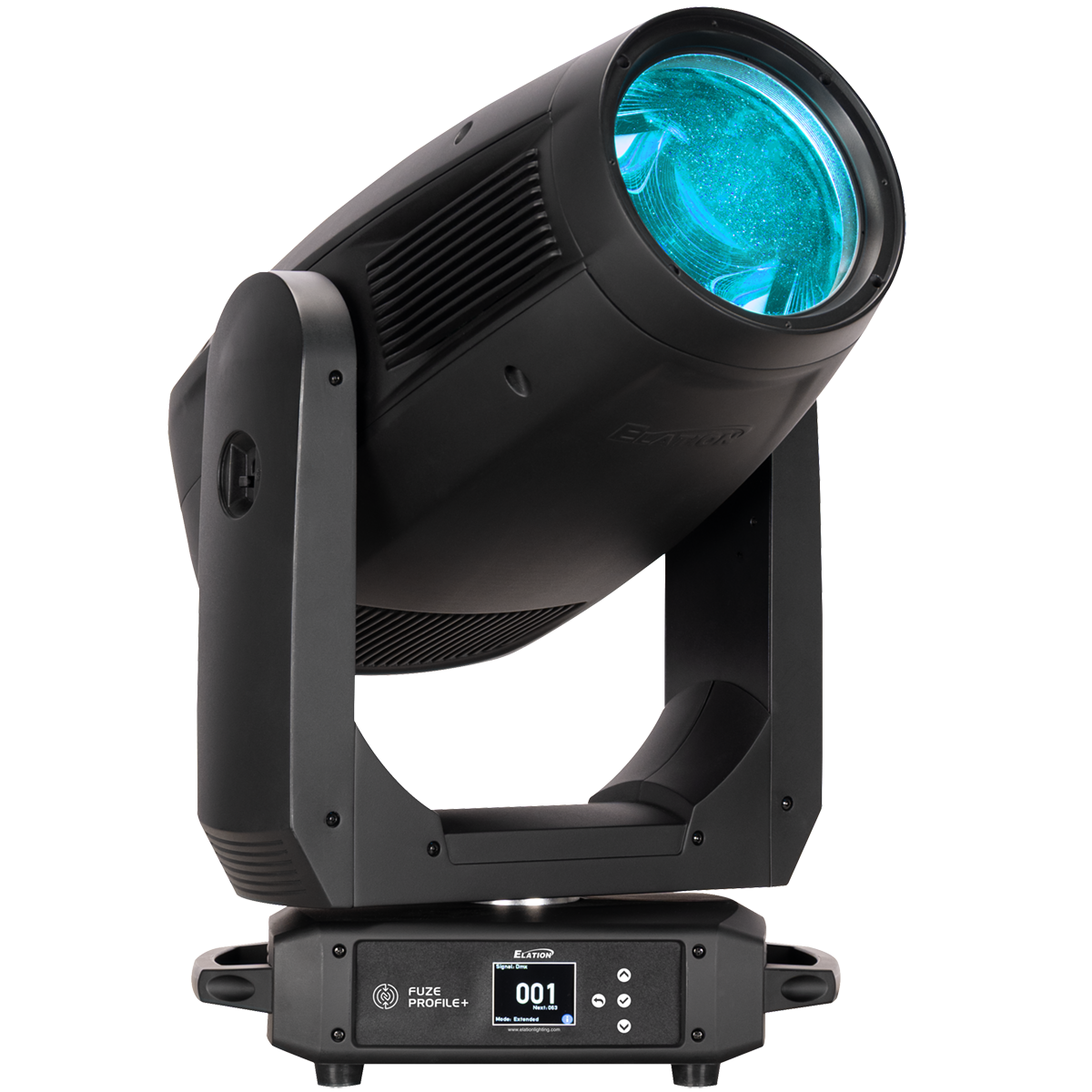

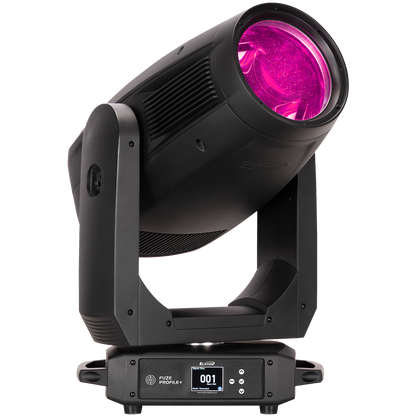

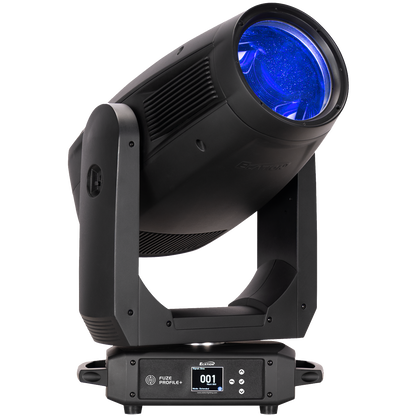

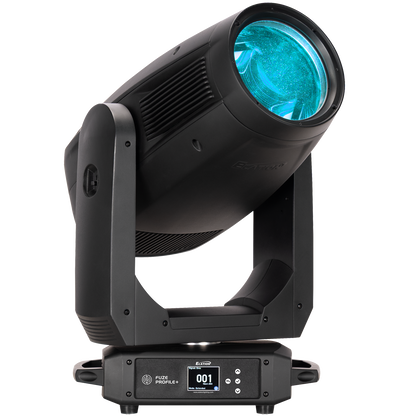

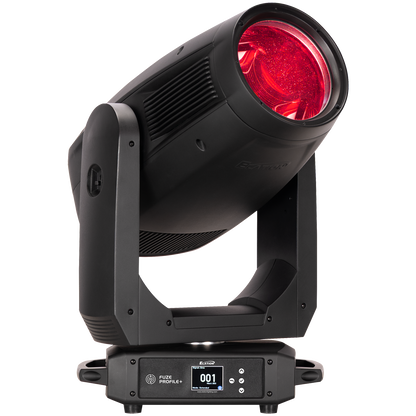

Elation FUZ321 FUZE PROFILE+; 500W RGBA LED PROFILE

The FUZE PROFILE+ is the next evolution of the industry-trusted FUZE Series, combining the line’s most in-demand features into one compact, production-ready profile.

Delivering confident, reliable illumination, FUZE PROFILE+ pairs powerful output with refined color quality. Advanced RGBMA color mixing, 92 CRI, and Virtual CCT produce natural skin tones, accurate whites, and consistent color across every look. A robust 500W LED engine delivers 12,700+ lumens of punchy output—cutting through demanding environments while preserving the nuanced color rendering required for theatrical, broadcast, and live-event applications.
Designed for precision and creative control, FUZE PROFILE+ offers clean framing, a wide 4°–54° zoom range, and a true full-blackout framing system with no light spill. Rotating and fixed gobos, an animation wheel, and integrated tools including an iris, two prisms, and dual variable frosts add depth, motion, and texture—supporting everything from tight highlights to soft, immersive washes.
Compact and versatile, FUZE PROFILE+ transitions easily between touring, rental, and installed environments. A sub-30kg build, an interchangeable front Fresnel lens, multiple fan modes, and the familiar FUZE platform ensure fast setup, quiet operation, and consistent workflows—so designers can focus on bold, confident lighting.

Features

  • Extended color RGBMA LED Engine, 92 CRI
  • Rotating and Fixed Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, 2x Prism, and 2x Variable Frost
  • Wide Zoom Range from 4° to 54°
  • Interchangeable Front Lens with Fresnel option

Specifications

  • SOURCE

    • 500W 6,000K RGBMA LED Engine

    • 30,000 Hour Average LED Life*

    • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

  • PHOTOMETRIC DATA

    • 12,740 Total Lumen Output

    • CRI 92

    • Zoom Range 4° - 54°

  • EFFECTS

    • Motorized Zoom

    • 4 Rotating Full Blackout Framing Blades, +/- 60 Index

    • 2 Variable Frost Filters (Light Heavy)

    • 4-Facet Linear Round Rotating Prisms

    • Motorized Iris with Effects

    • Variable 16-bit Dimming Curve Modes

    • High Speed Electronic Shutter and Strobe

    • Pan Angle: 540°

    • Tilt Angle: 270°

  • COLOR

    • RGBMA Color Array

    • CMY Emulation

    • 16bit Fully Variable CCT 2400K - 8500K

    • Green/Magenta Shift

    • Dim-to-warm Fade

    • Virtual Gel Swatch Book

  • GOBOS

    • 1x 7 Rotating / Indexing Interchangeable Glass Gobos

    • 1x 8 Fixed Glass Gobo

    • Bi-Directional Animation Wheel

  • CONTROL / CONNECTIONS

    • 7 DMX Channel Modes (RGBMA 40 / 59) (RGB 38 / 55)(CMY 38 / 55) Fuze Profile Emulation Mode (38)

    • 16-bit Pan, Tilt, and Dimming Control

    • DMX Adjustable LED Frequency

    • DMX, RDM, Art-Net sACN Protocol Support

    • Aria x2 Wireless Device Management

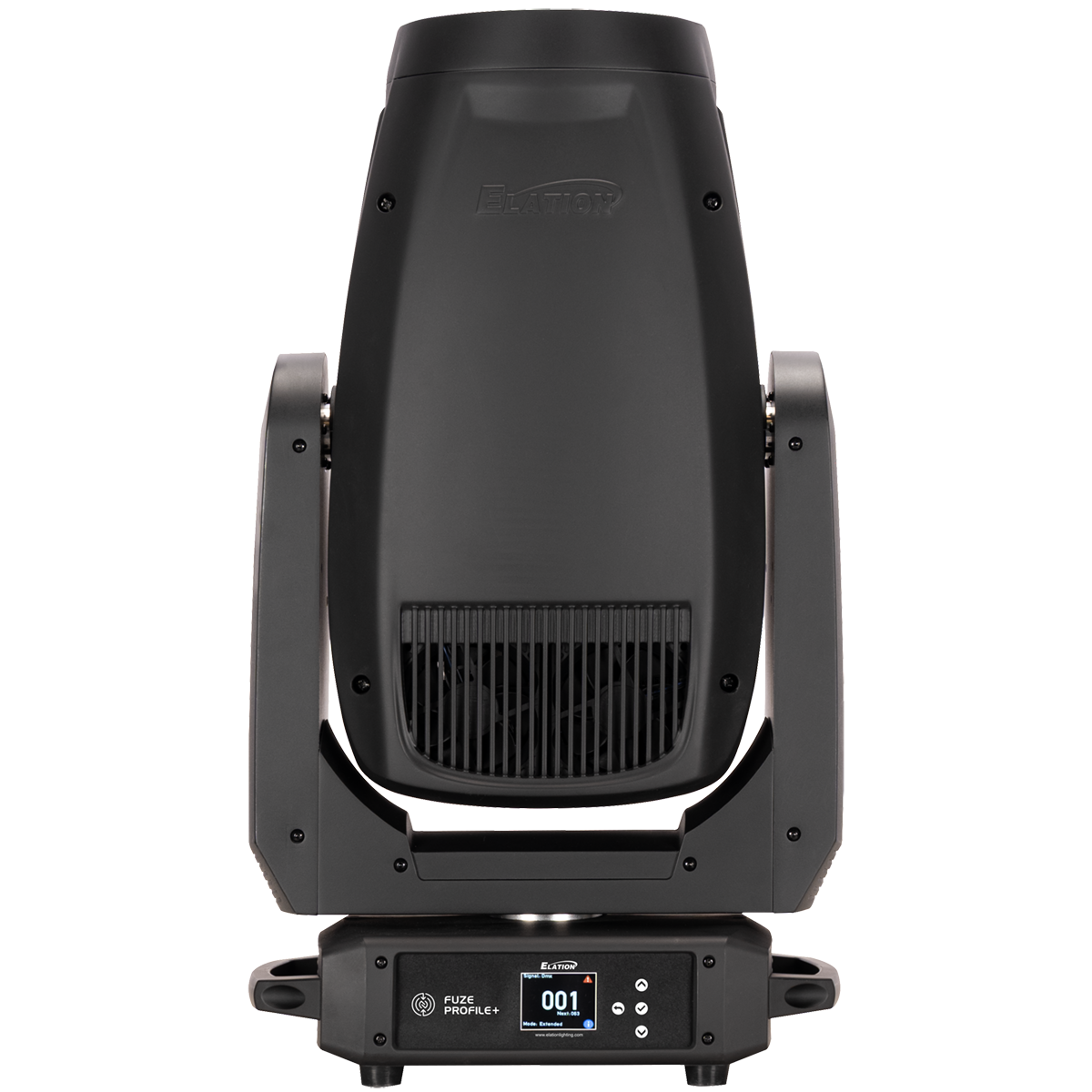

    • 4 Button Touch Control Panel

    • Full Color 180° Reversible LCD Menu Display

    • 16 Bit Resolution Adjustable Movement

    • NFC on bottom and front of fixture base

    • Hibernation Mode (Power Save)

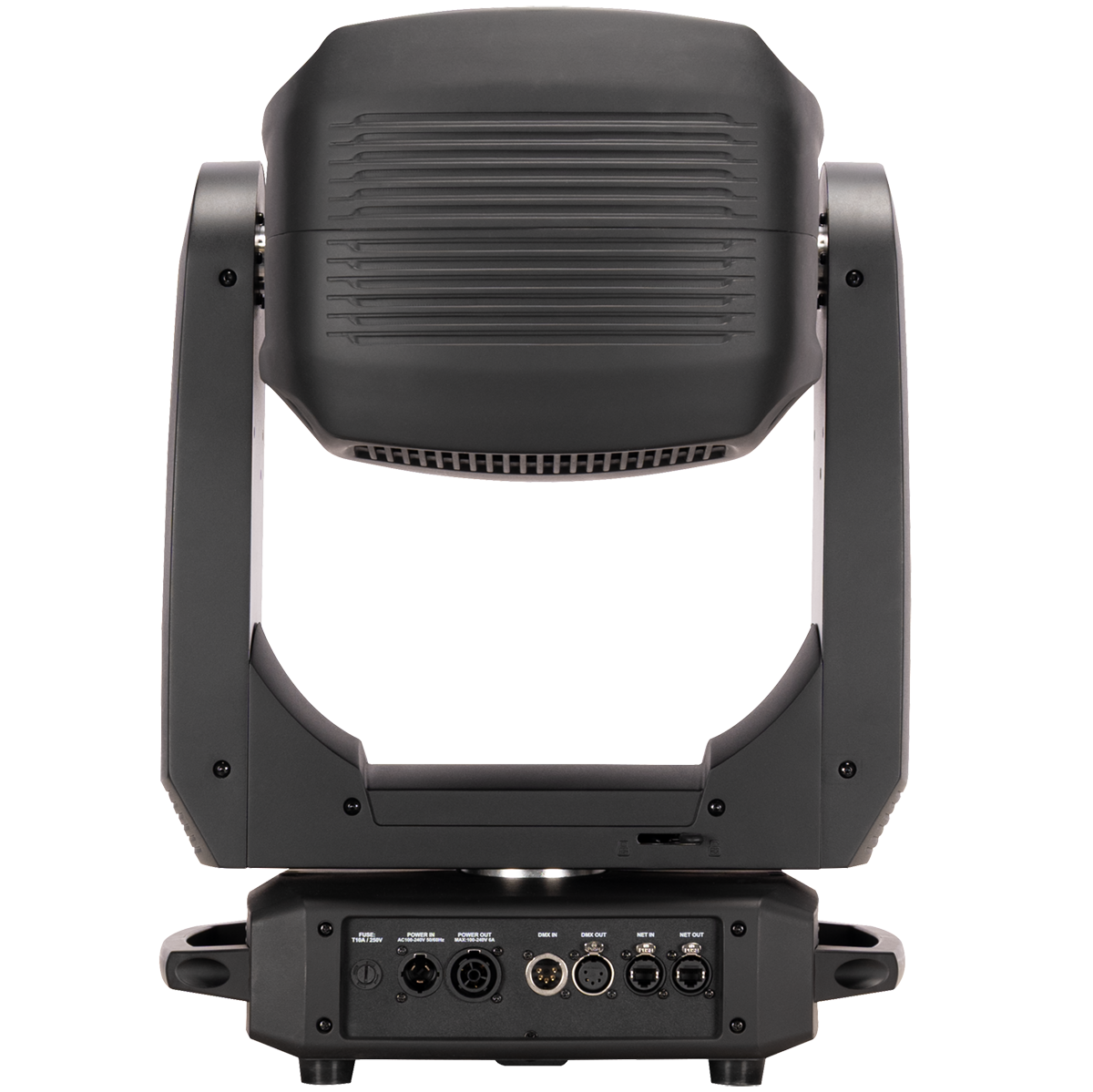

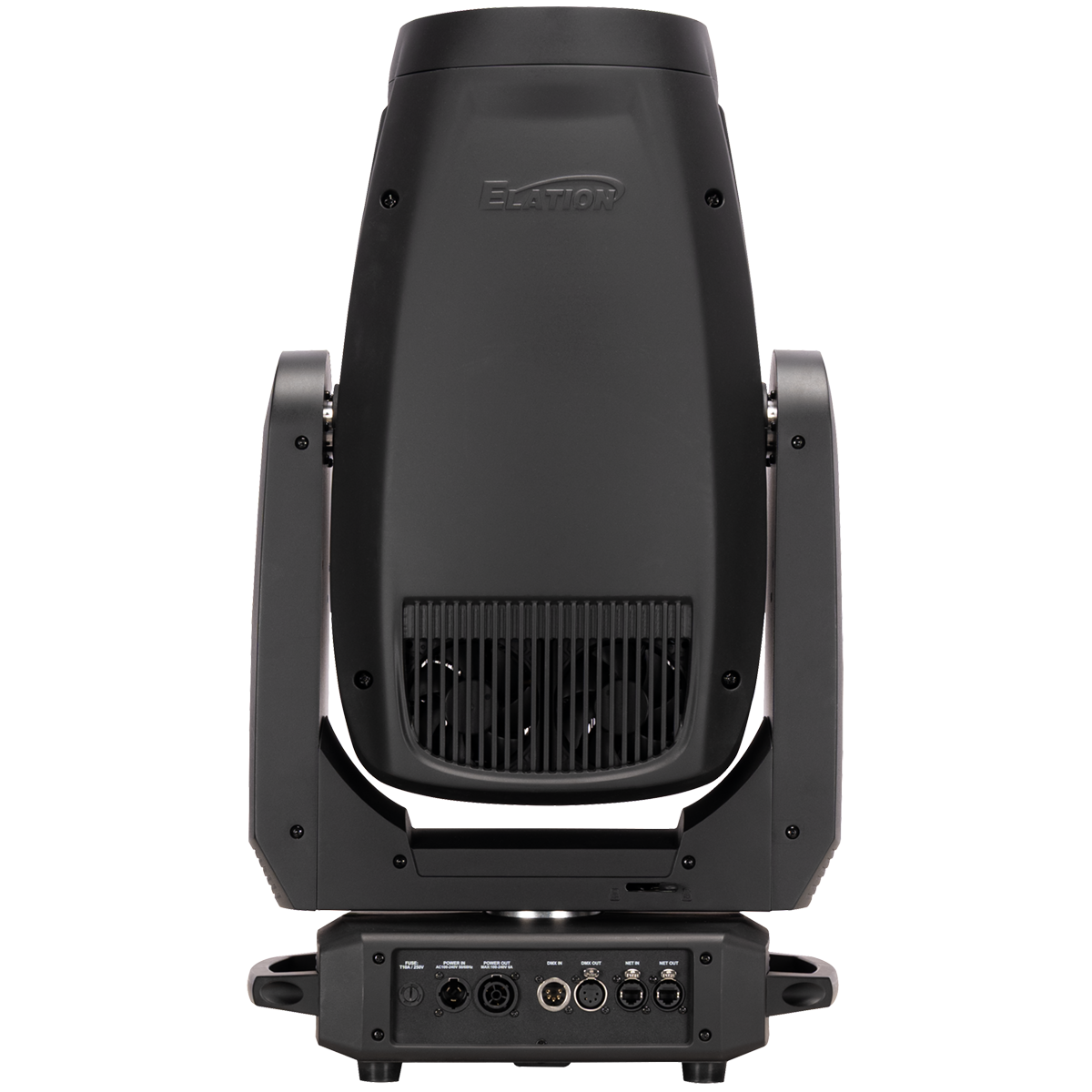

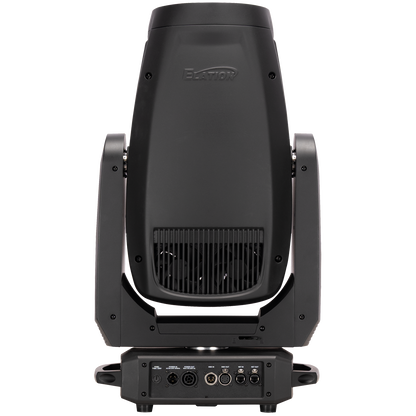

    • 5pin DMX In/Out

    • Locking RJ45 Ethernet In/Out

    • Locking Power Cable In/Out

  • SIZE / WEIGHT

    • Length: 16" (408mm)

    • Width: 10.1" (256mm)

    • Vertical Height: 27.8" (705mm)

    • Weight: 63.9 lbs (29kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 781W Max Power Consumption

    • Power Thru Capacity: 9A (1 unit @110V; 2 units @240V)

    • 14°F to 113°F (-10°C to 45°C)

    • BTU/hr (+/- 10%) 2663.21

  • INCLUDED ITEMS

    • Omega Brackets (x2)

    • Locking Power Cable

    • Safety Cable

    • Snoot

  • OPTIONAL ITEMS

    • Fresnel Lens (FUZ325)

  • APPROVALS / RATINGS

    • IP20
