Elation EPVVSC Video Processor For EPV LED Screens
The EPV VSC is a 19" rack mount, full-color, synchronous video controller for all EPV series video screens. Control is via standard Windows PC with DVI output connection. It includes two RJ45 signal output ports on the rear, which allows connection for up to two LED video displays. Using a standard CAT6E ethernet cable, the EPV VSC transmits 1920 X 1080 pixel resolution within a max distance of 100m. The VSC software includes management software, which allows for all configuration, sizing, mapping and color calibration of EPV panels.
Features:- Composition: Powder coated steel
- Dimensions: 19.2"x7.25"x1.8"
- Weight: 10lbs / 4.5kg
- Dot Correction: Colorbrate system
- Max Resolution: 1920 x 1080 pixels
- Grey Level: 0-665336 levels
- High Frequency Refresh Rate: = 4000hz
- Mounting: Free standing on rubber feet or 19" rackmount
- Front Panel Controls: n/a

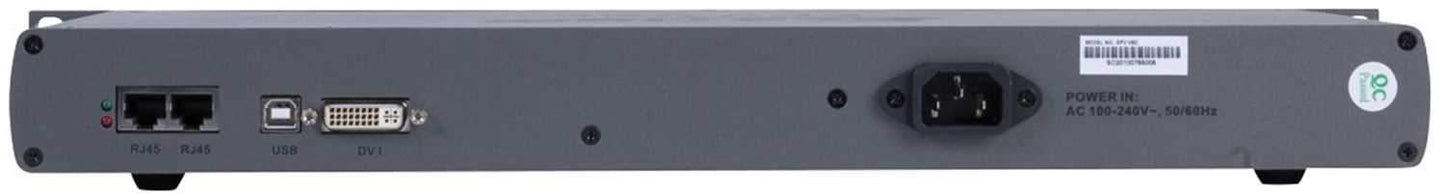

- Rear Panel Connections: AC input, LAN output, USB and DVI input
- Command Communication: USB
- Signal Input: DVI
- Signal Output: LAN, CAT5
