Description
Elation EP1D; 1U HW sACN Art-Net Node DIN

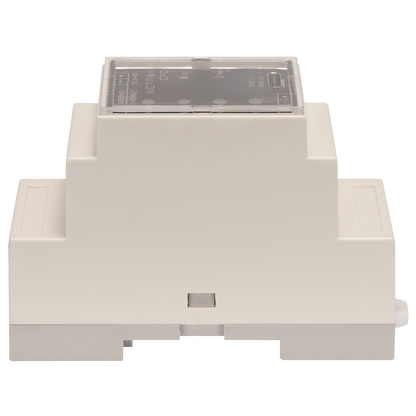

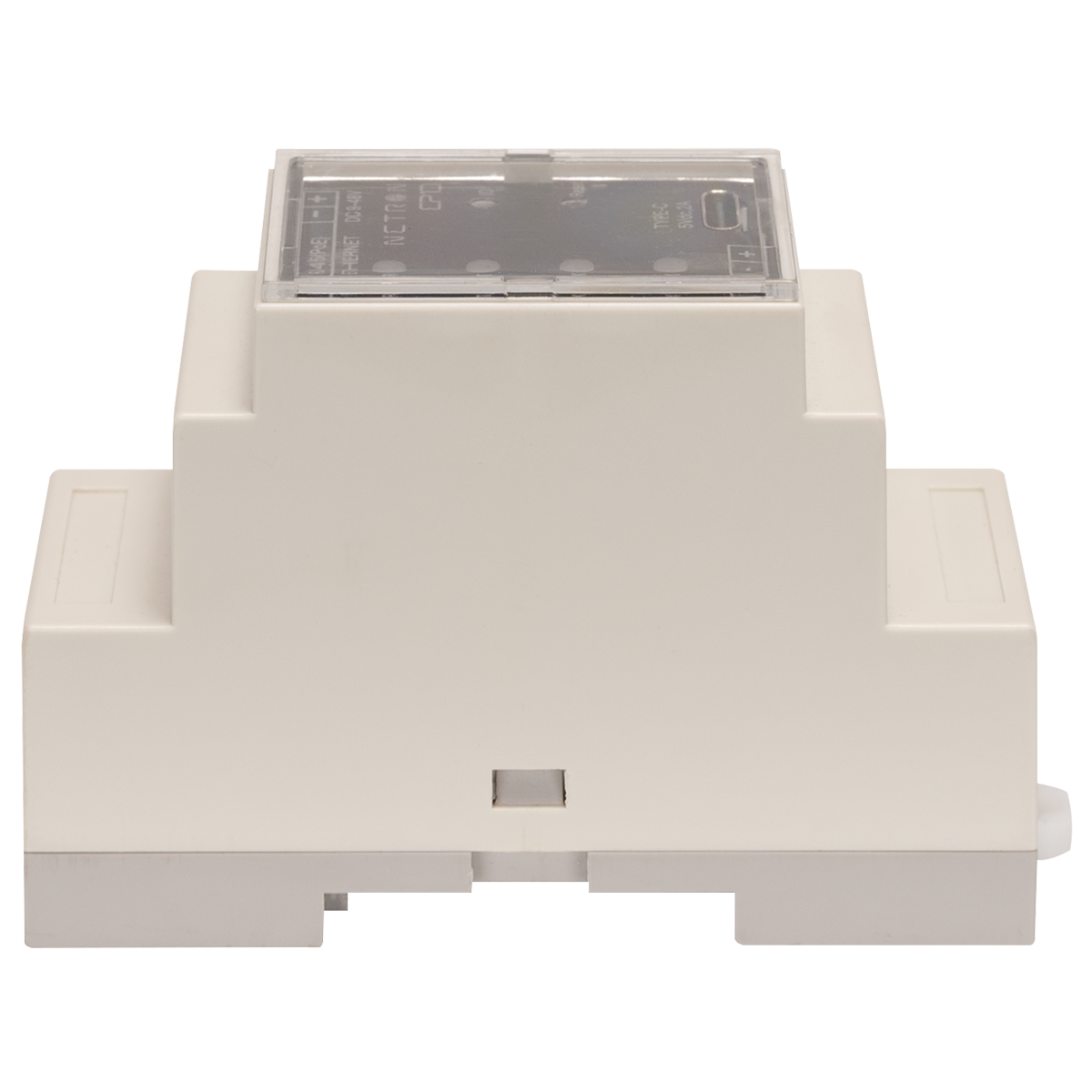

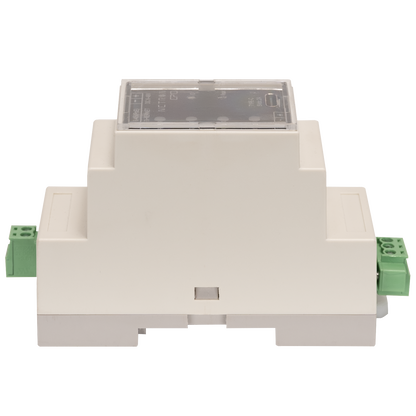

The NETRON EP1D is a DIN-Rail Ethernet to DMX gateway with a single RDM compatible port.
It is configurable via the internal web remote or the NETRON CLU tool. EP1D is powered over Ethernet or via the convenient USB-C connection.
EP1D is a powerful and convenient single port node that is ideally suited to distribute sACN and Art-Net traffic across any type of facility or building network.
Features
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setup
- POE or USB-C powered
- Remote configuration via internal webpage
- Unlocks ONYX NOVA 4-Universe License
Specifications
-
Mounting
- Connections
-

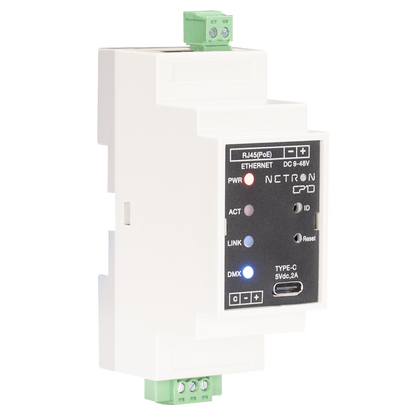

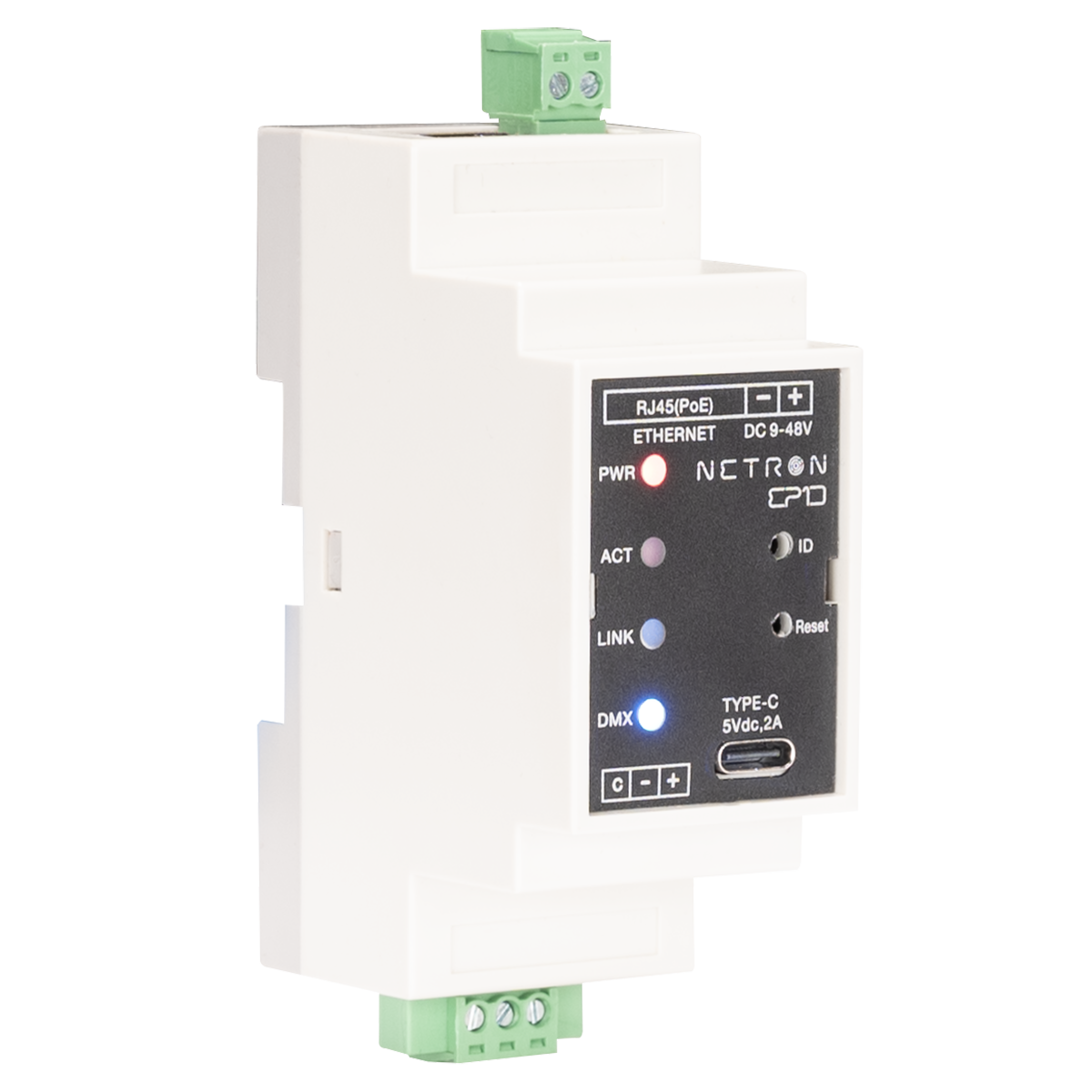

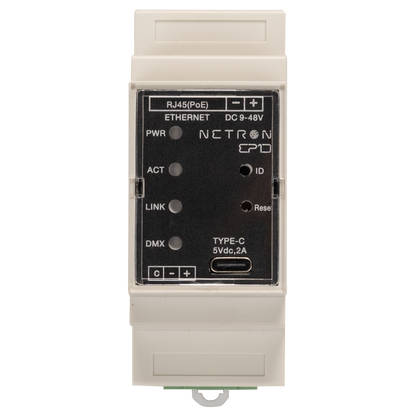

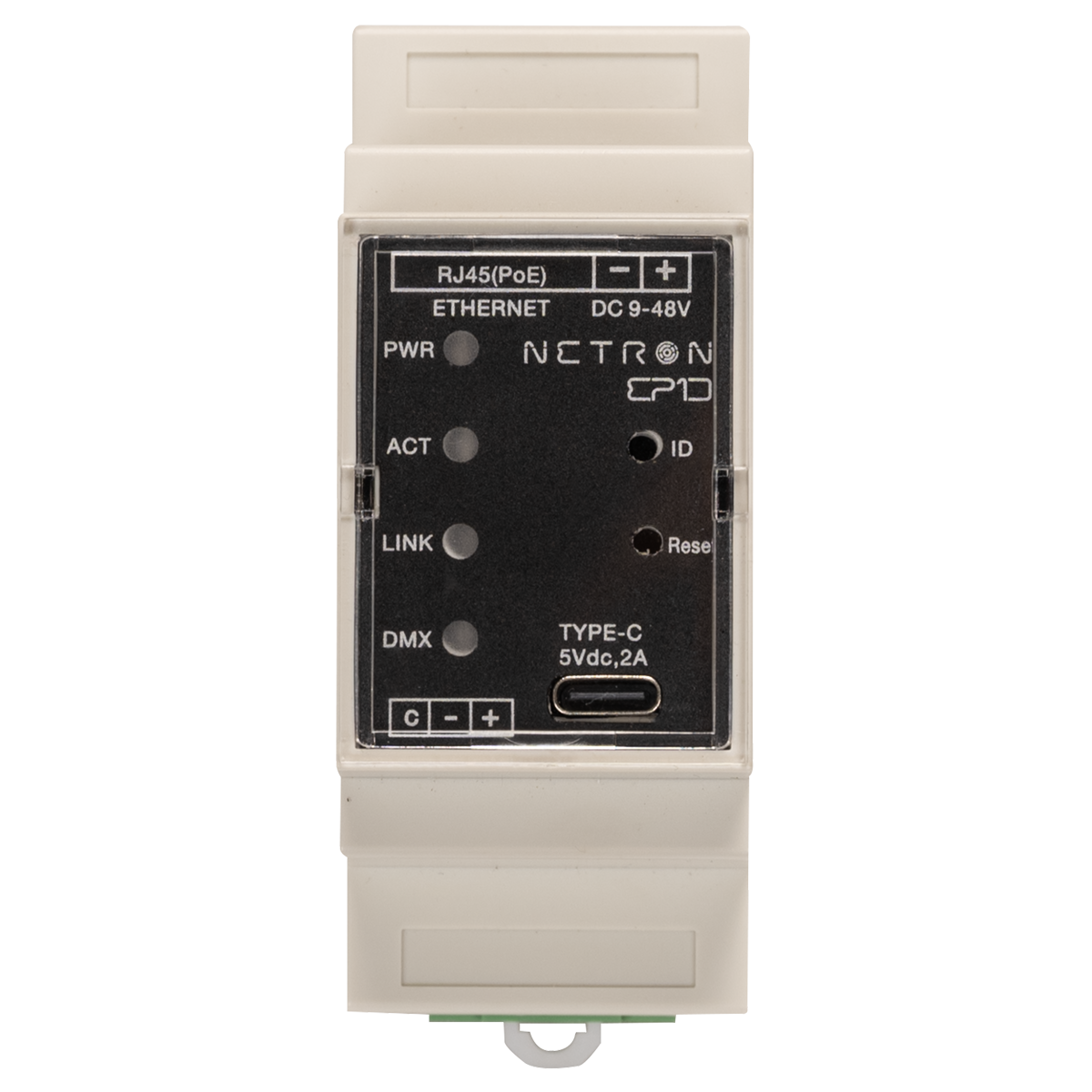

Front

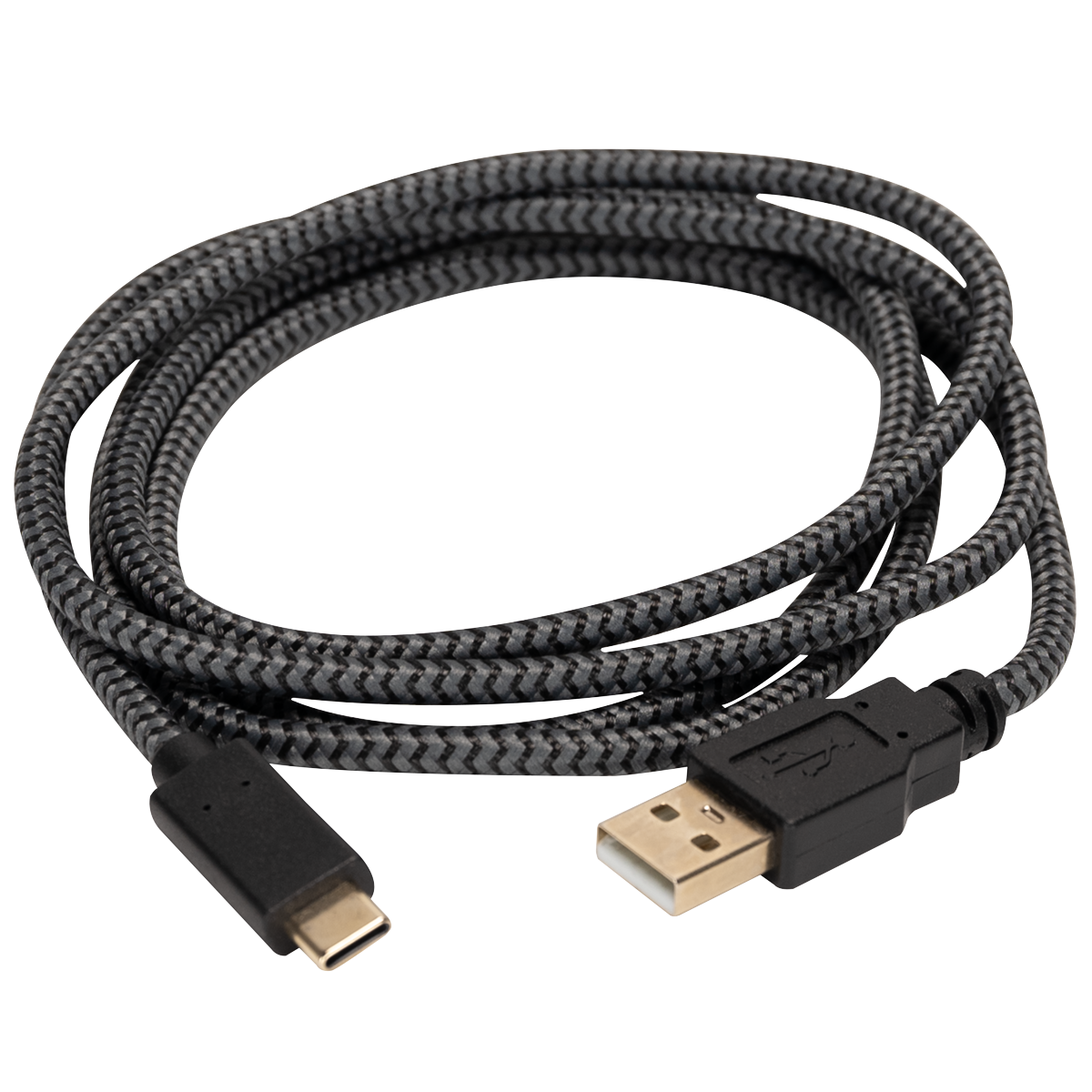

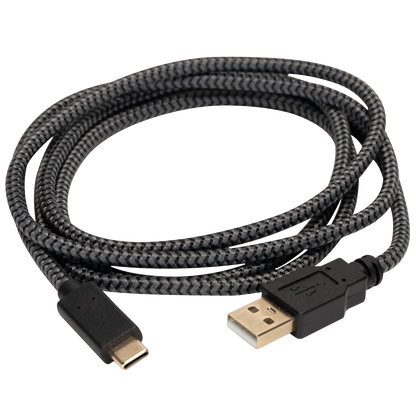

- USB-C Temporary Power (5V/2A)
- (4x) LED Status Indicator
-

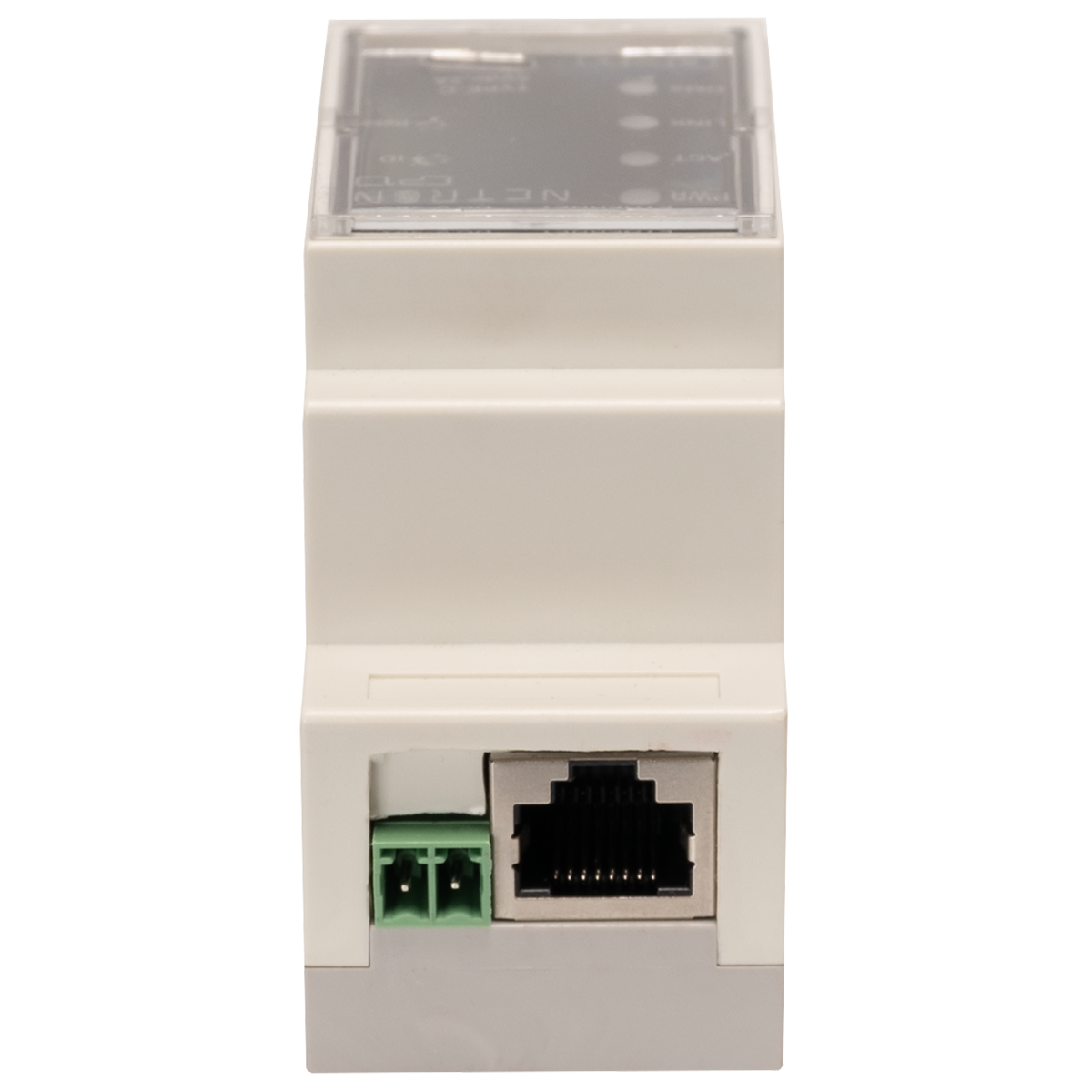

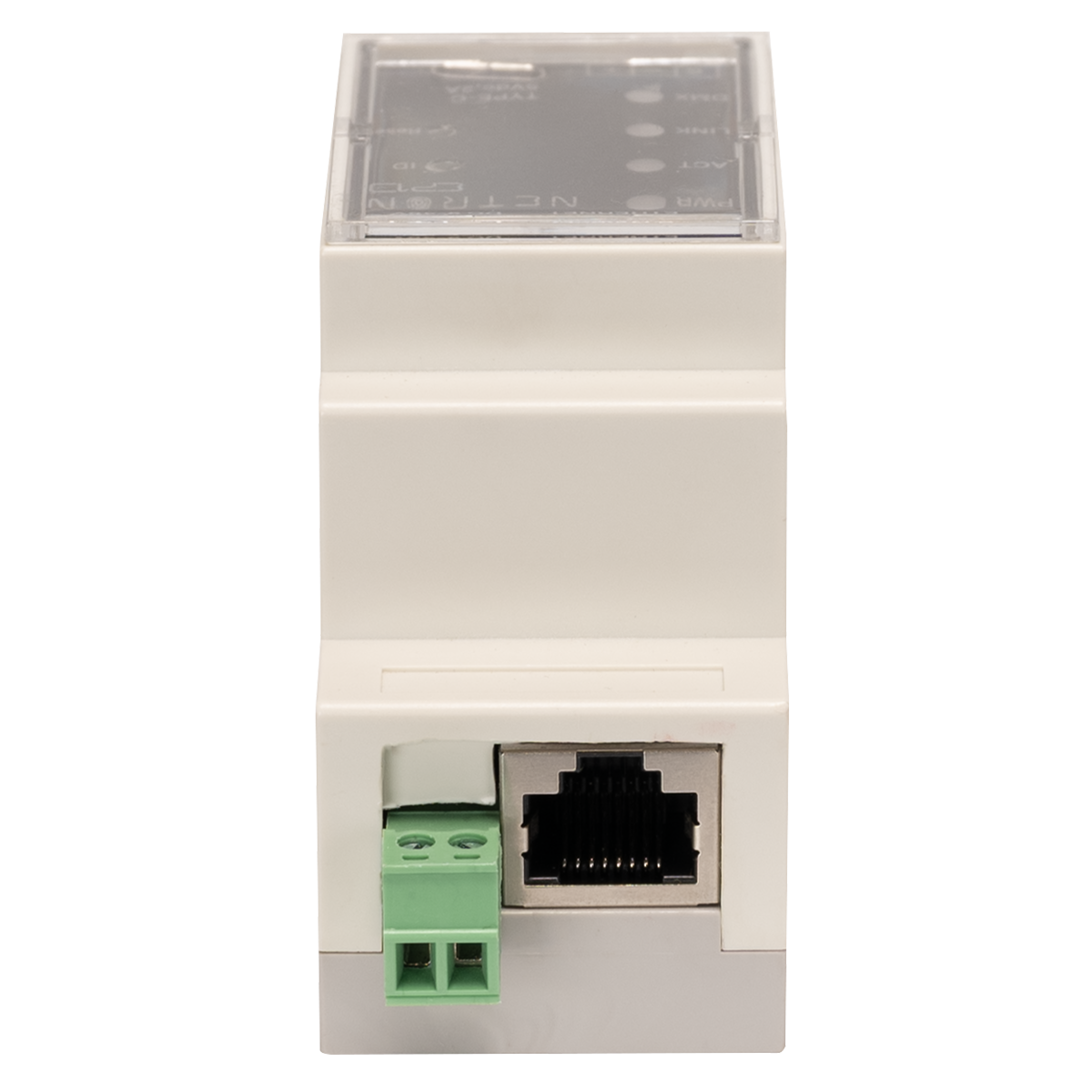

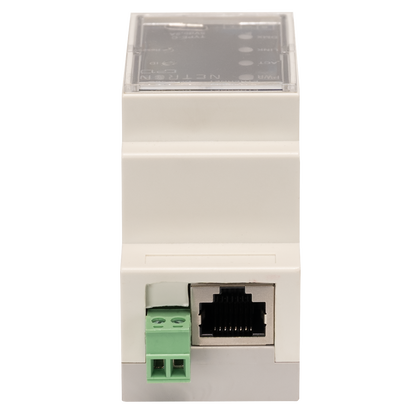

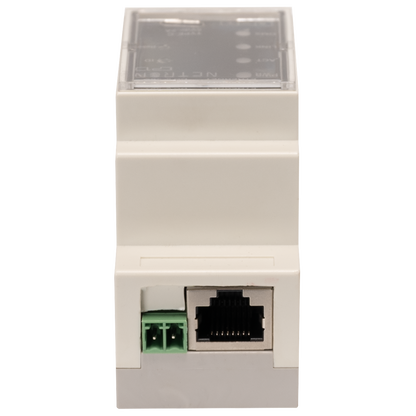

Top
- RJ45 Gigabit Ethernet (POE)
- DC 9-48V In (2pin Terminal Block)
-

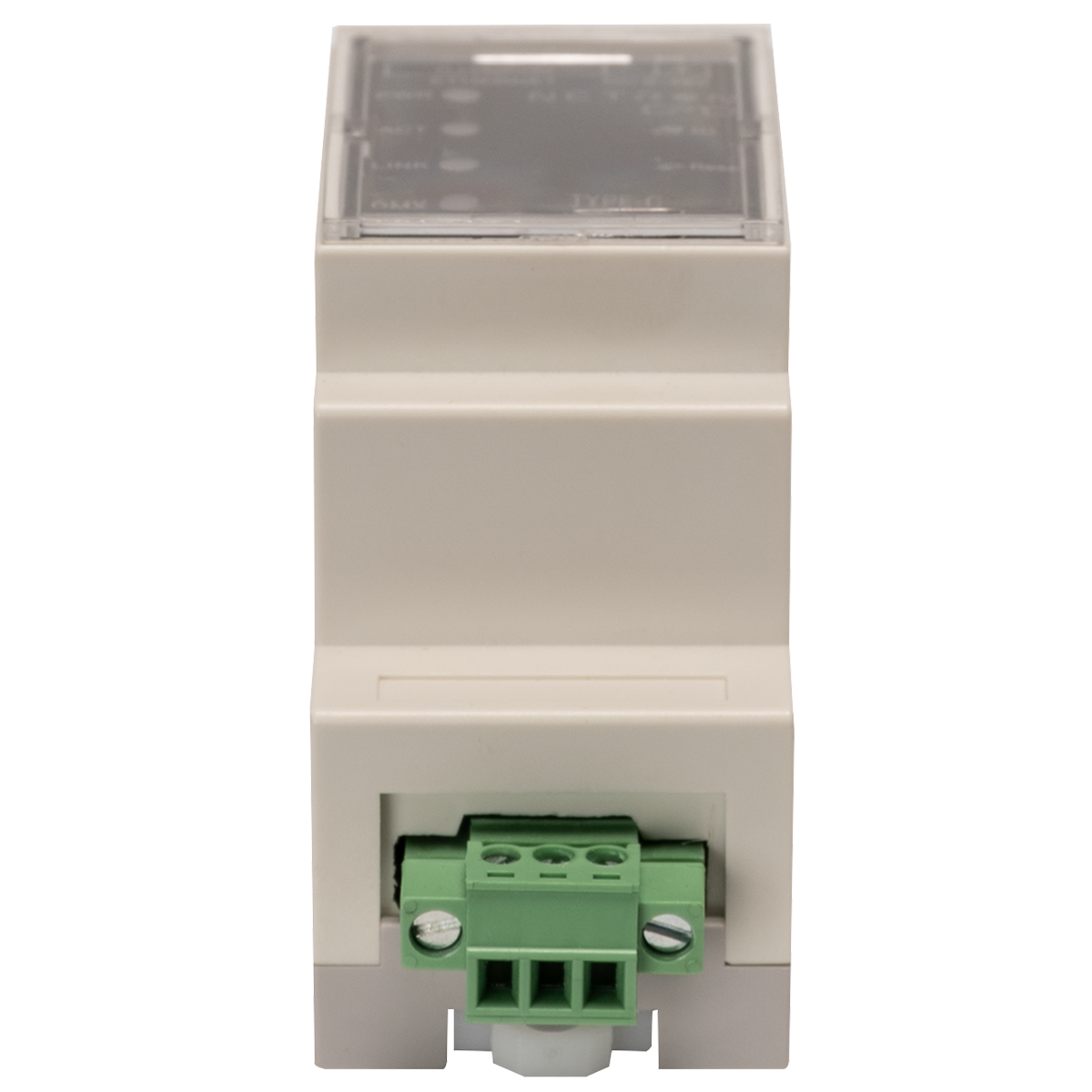

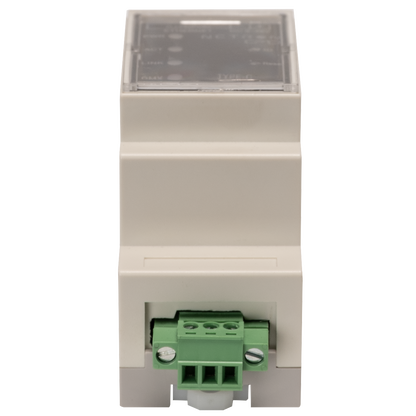

Bottom

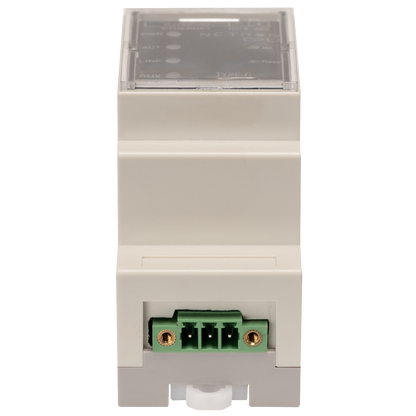

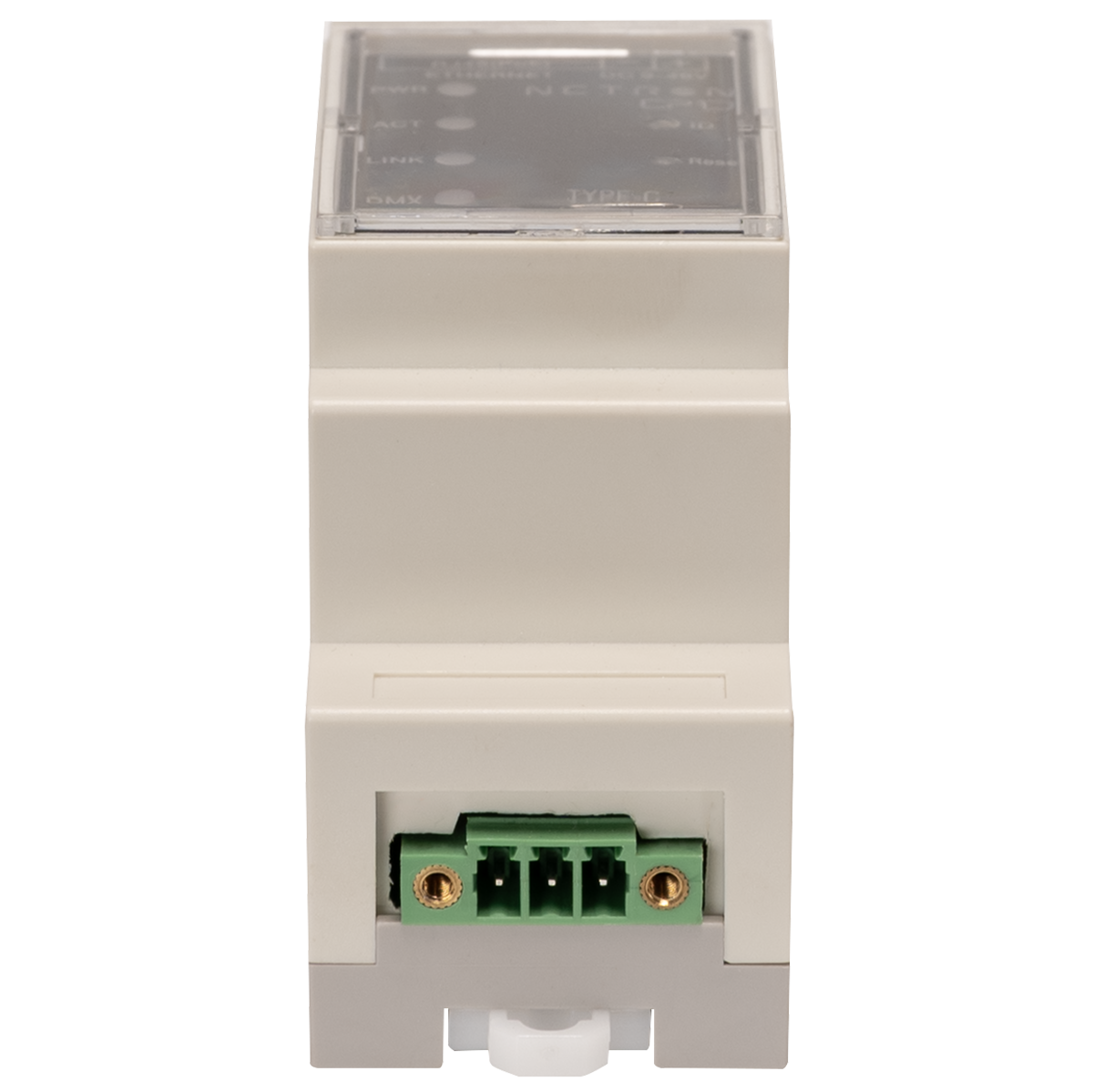

- 3pin Phoenix Terminal Block DMX/RDM optically isolated port
- Bidirectional DMX In / Out
- Specifications
-
Physical
- Length: 87mm (3.4 in.)
- Width: 36mm (1.4 in.)
- Height: 60mm (2.4 in.)
- Weight: 0.2 kg (0.44 lbs)
-
Electrical
- POE 802.3af
- DC 9-48V
- USB-C (5V/2A)
- Power Consumption 1.6W
-
Approvals / Ratings
- Ordering
-
Included Items
- 2-pin Terminal Block
- 3-pin Terminal Block
