Elation Professional eNode 4 Ethernet Node

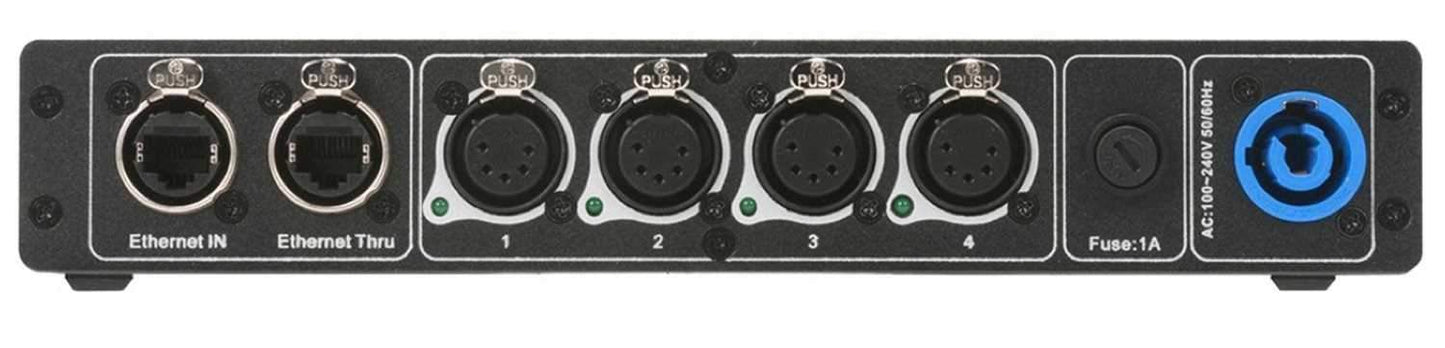

The eNode4 is an Ethernet node that serves four DMX512 outlets, compatible with the Artnet and sACN protocols. All 4 outlets conform to DMX512-A and can be used as input or output. The two Ethernet links on the rear are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The eNode4 embeds a built-in switch fabric which allows you to use the converter as an Ethernet repeater. All configuration are done through the on-board display and push dial. The eNode4 can be set on a flat surface or mounted to a truss structure using the quick lock omega bracket, which is included. Connections: 2 x 10/100BaseTX Ethernet connections on shielded Neutrik RJ45 Ethercon connectors and 4 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A).
Features:- DMX routing, universe setting
- Input and output enable / disable
- DMX output frame rate setting
- Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN
- Protocol selection per port
- IP settings
- Unit ID and labeling
- Ethernet activity indication on front panel
- Multi language support
- Supported Protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
- DMX Port Direction: Input or output (configurable)
- DMX Port Isolation: Optic and galvanic isolation per port
- DMX Port Termination/Biasing: Yes
- Ethernet Features:
- Length: 255mm
- Width: 173mm
- Vertical Height: 43mm
- Weight: 1.6kg
