Elation EN12 Obsidian Netron 12-Port Ethernet to DMX OLED Display Gateway
The NETRON EN12 by Elation is a high-density Ethernet to DMX gateway, offering twelve RDM-compatible ports for seamless DMX control. Designed for live production and large-scale installations, the EN12 provides powerful and flexible routing, merging, and preset capabilities. Its intuitive configuration with integrated presets and a full-color OLED display ensures ease of use. Contact closures enable quick recall of presets, routings, and internal cues, making it a versatile tool for demanding lighting environments.
Supporting RDM, Art-Net, and sACN protocols, the EN12 is built for reliability and adaptability. It can be powered via line voltage or PoE, while its powder-coated aluminum rackmount housing ensures durability. Remote configuration is accessible through the internal web interface, adding convenience for advanced setups.
Features
- Supports RDM, Art-Net, and sACN protocols
- Factory and user-configurable presets for plug-and-play setups
- Power options: Line Voltage or PoE (802.3af)
- 1.8" OLED display with rotary knob for easy navigation
- 99 internal cues with customizable fade and delay times
- Customizable routing and merging options
- Remote configuration via an internal web page
- Contact closures for cue or preset recall
- Durable powder-coated aluminum rackmount housing
Specifications

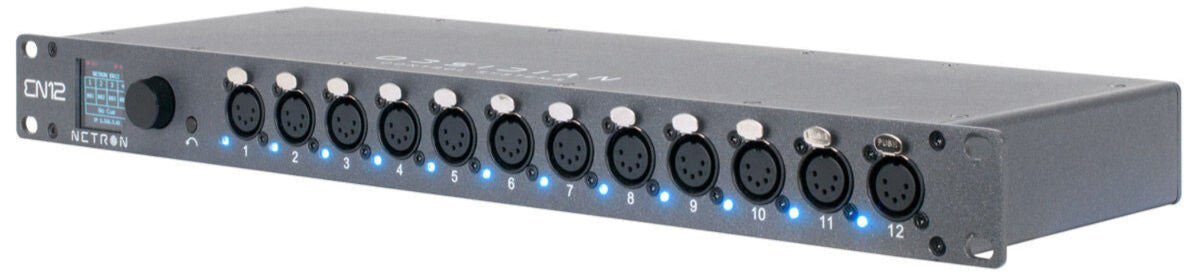

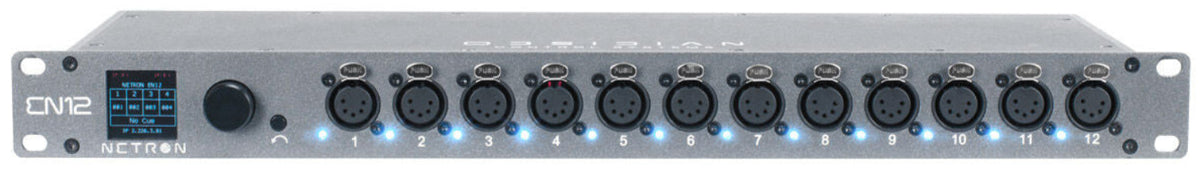

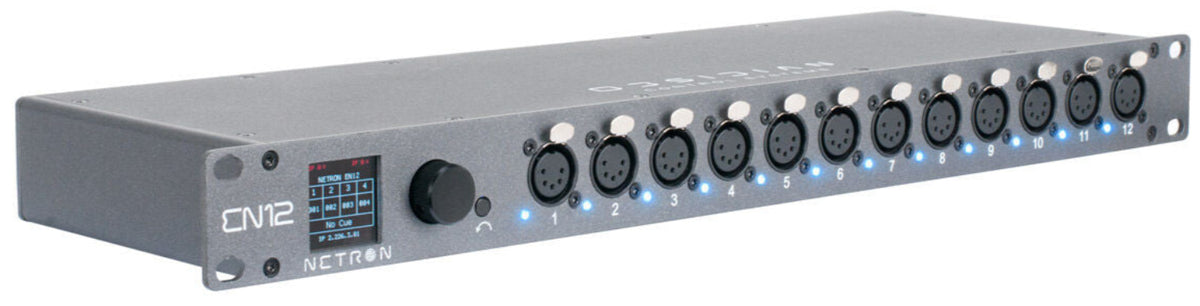

- Connections - Front:
- 12x 5-pin DMX/RDM optically isolated ports
- Bidirectional ports for DMX input and output
- Full-color OLED display
- Encoder with push-to-select/exit button

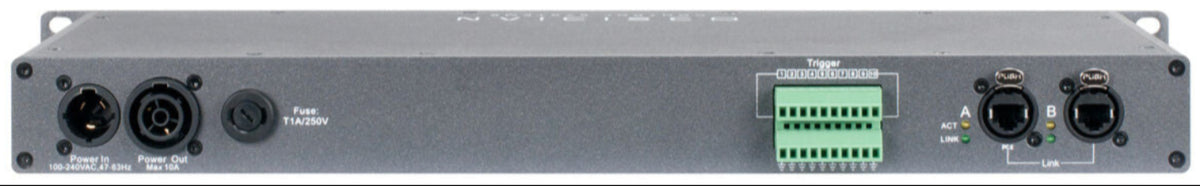

- Connections - Back:
- 2x Locking RJ45 Ethernet network inputs
- 10x Contact closures (terminal block)
- Locking power input/through connections
- Physical:
- Length: 19" (482.5 mm)
- Width: 5.7" (146 mm)
- Height: 1.7" (44 mm)
- Weight: 4 lbs (1.82 kg)
- Mounting: Rackmount
- Electrical:
- Input Voltage: 100-240 V nominal, 50/60 Hz
- PoE: 802.3af compliant
- Approvals/Ratings: CE, cETLus, FCC, IP20
