Elation ELAR DRIVER1 PRO 3-Channel RGB LED DMX Driver

Elation Elar Driver1 Pro 3-Channel RGB LED DMX Driver

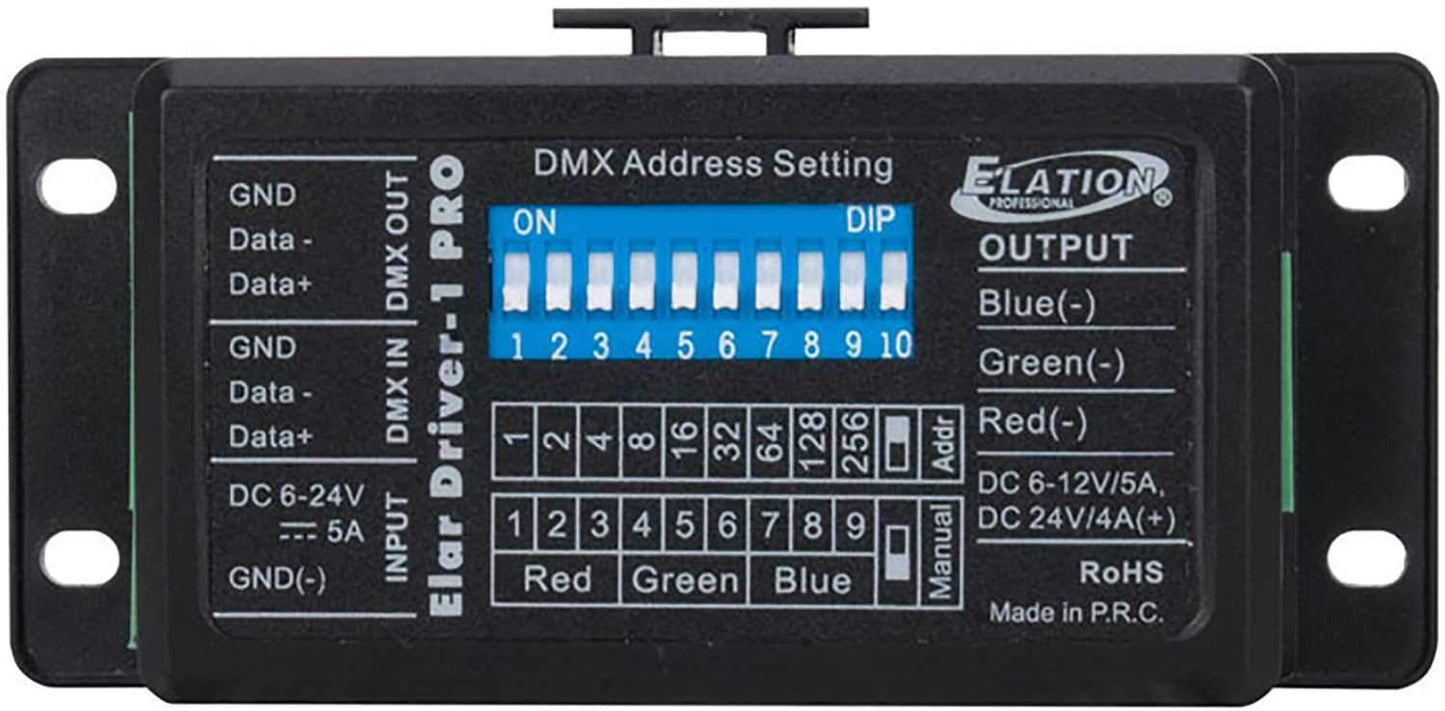

The Elar Driver1 Pro™ is an ETL listed RGB LED driver which provides 3 channel RGB control and flicker free 2,000 Hz PWM dimming via DMX-512 and manual RGB variable intensity control via onboard dip switches. The driver is contained in a compact polycarbonate housing and includes 12-14 AWG wire terminal blocks for 2-pin power, 3-pin DMX in/out, and 4-pin LED connections, dip switches for DMX addressing, and is powered by 6-24VDC 5A. Its small compact design allows for easy mounting and integration into any system and includes a linking clip to attach additional drivers together.

Features:

• Compact RGB LED Driver
• 3 Channel RGB DMX-512 Control
• Manual RGB Variable Intensity Control
• Flicker Free 2,000 Hz PWM Dimming via DMX-512
• 12-14 AWG Wire Terminal Block Connections
• 6-24VDC 5A Power Requirement

Specifications:

Control/Connections

• DMX In via 3pin Terminal Block (included)
• Power In via 2pin Terminal Block (included)
• DMX Out via 3pin Terminal Block (included)
• DMX/Power Out via 4pin Terminal Block (included)

Size/Weight

• Length: 3.5" (90mm)
• Width: 1.6" (39.9mm)
• Height: 0.8" (20mm)
• Weight: 0.12 lbs. (0.05kg)

Electrical/Thermal

• Refresh Rate 2,000 Hz
• Power Input 6-24VDC 5A
• Power Output 6-12VDC 5A Max | 24VDC 4A Max
• 32°F to 104°F (0°C to 40°C)

Approvals/Ratings

• CE | cETLus | RoHs | IP20
