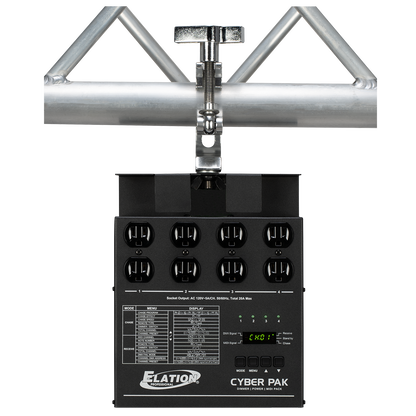

Elation CYBER PACK E520 4 Channel Power, Dimmer and Midi Pack
Elation CYBER PACK E520 4 Channel Power, Dimmer and Midi Pack
SKU: CPE520
Regular price
$360.00
Sale price
$360.00
Shipping calculated at checkout.
Available options
Description
Elation CYBER PACK E520 4 Channel Power, Dimmer and Midi Pack
From stage to studio, the Elation Cyber Pak delivers reliability, flexibility, and performance in a compact footprint — the ultimate all-in-one controller for your lighting power needs.
Elation Cyber Pak – 3-in-1 Power Control Solution
Take total control of your lighting with the Elation Cyber Pak, a compact and powerful 4-channel Dimmer/Relay/MIDI pack designed for flexible lighting control. Whether you’re running dimmers, relays, chasers, or responding to MIDI signals, the Cyber Pak has the versatility and performance to meet the demands of live events, stage productions, DJs, and venues of all sizes.
Key Features:
- 4-Channel Control: Operate as a dimmer, relay, chase controller, or MIDI-triggered switch – all in one unit.
- Individual Channel DMX Addressing: Customize control with individual DMX addresses per channel.
- Selectable Modes: Easily toggle between Dimmer or Switch (Relay) modes.
- 16 Built-in Chase Macros: Internal programs with fade in/out capabilities for dynamic lighting sequences.
- DMX Fail-Safe Options: Set to HOLD, OFF, or ON in case of DMX signal loss.
- Power Failure Memory: Retains settings after power loss, ensuring seamless recovery.
Specifications
-
FEATURES:
- 4-Channel Dimmer/Relay/MIDI Pack
- Individual DMX Address for each Channel
- Selectable Modes (Dimmer or Switch Pack)
- (16) Internal Chase Macros with Fade In/Out
- DMX Fail (loss of signal) Settings: HOLD/OFF/ON
- Power Failure Memory
-
DIMMER MODE:
- (4) Channel Dimmer (1, 2 or 4 Channel Option)
- Individual Channel Assignment & Output Limiter
-
RELAY MODE:
- 4-Channel Relay (1, 2 or 4 Channel Option)
- Individual Channel Assignment
-
CHASER MODE:
- 4-Channel Chase Controller
- 16 Internal Chase Programs
- Adjustable Fade Times
-
MIDI MODE:
- Receives MIDI Notes 001-128 Program
- MIDI In & MIDI Through Connections
-

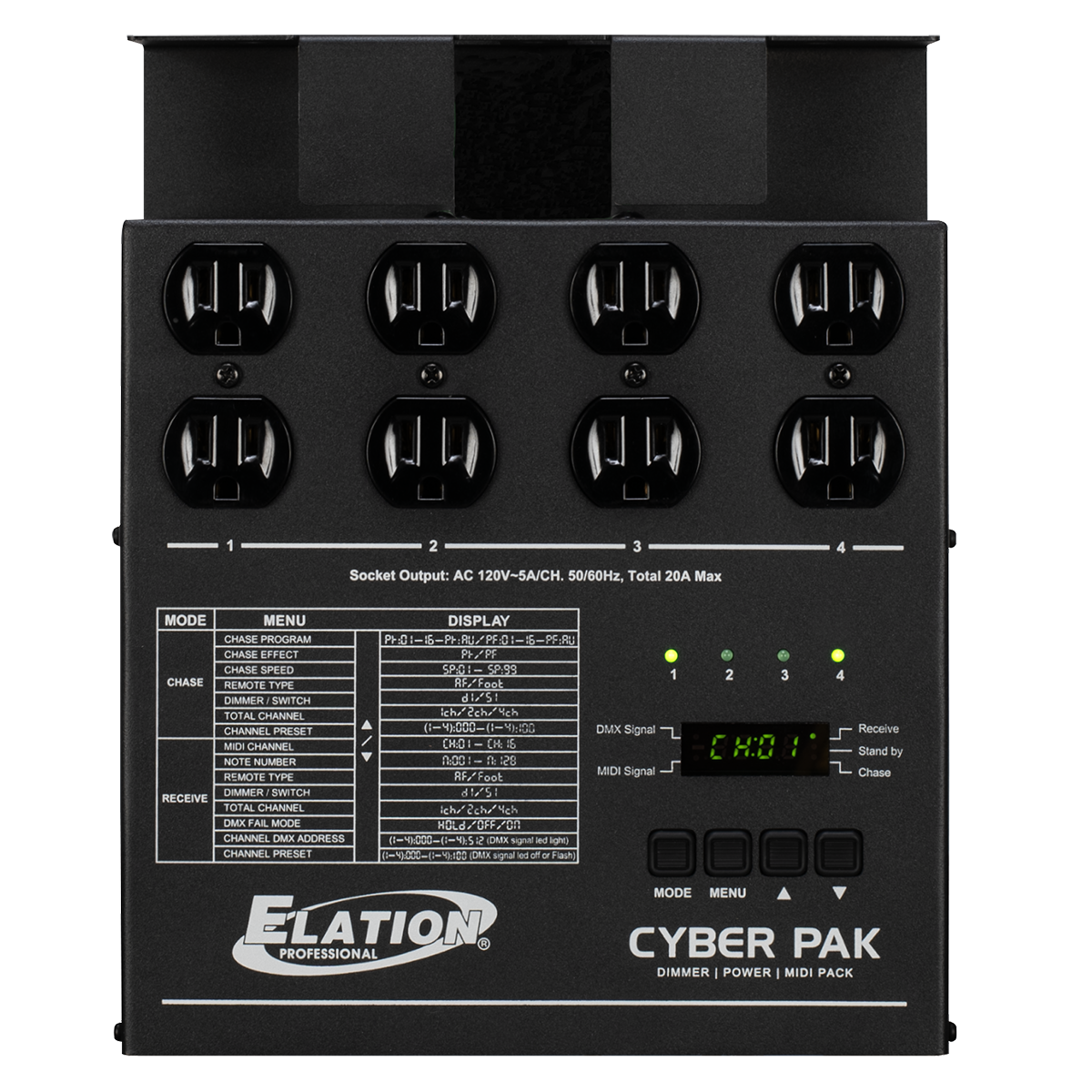

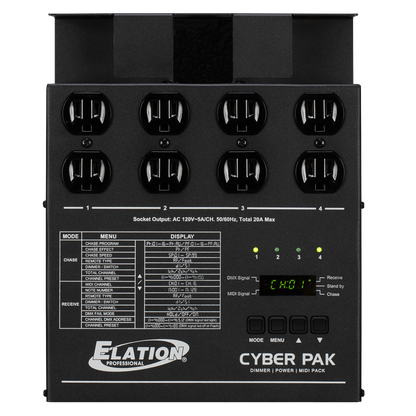

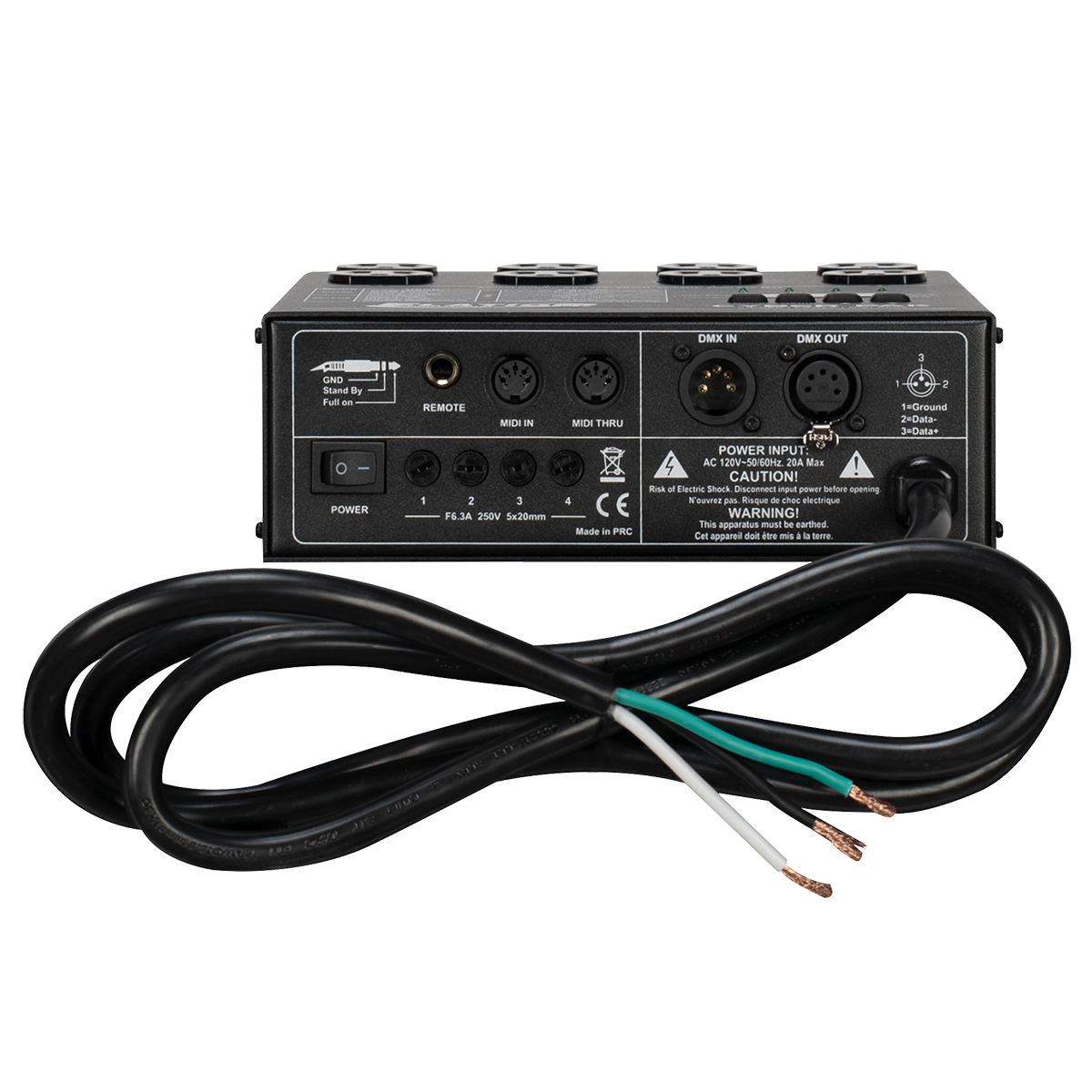

CONTROL / CONNECTIONS:
- Two 3-prong Edison Sockets per Channel (8 total)

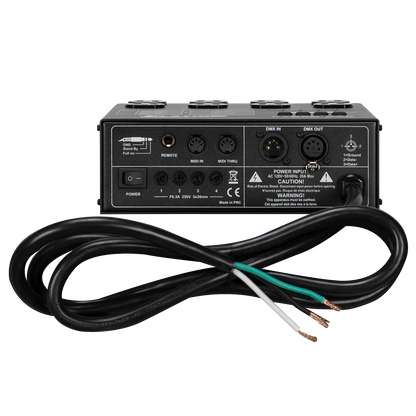

- 5-pin MIDI IN/OUT Ports
- 5-pin XLR IN/OUT Ports
- 4-Button LED Display Control Panel
- Master Power Switch
-
SIZE / WEIGHT:
- Length: 8.3” (212mm)
- Width: 10.4” (265mm)
- Vertical Height: 3.0” (75mm)
- Weight: 8.0 lbs. (3.6kg)
-
ELECTRICAL / THERMAL:
- AC 120V 50/60Hz 20A Max
- 2,400W Max Power Consumption (600W per channel)
- Includes Nema Edison 5-20 Connector
-
APPROVALS / RATINGS:
- CE | cETLus
