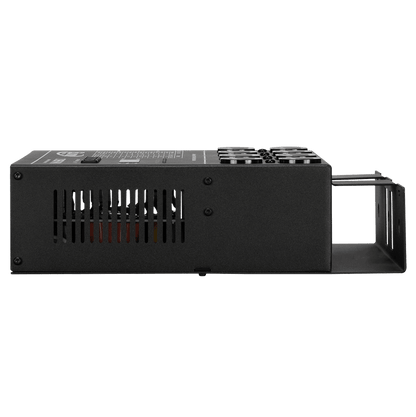

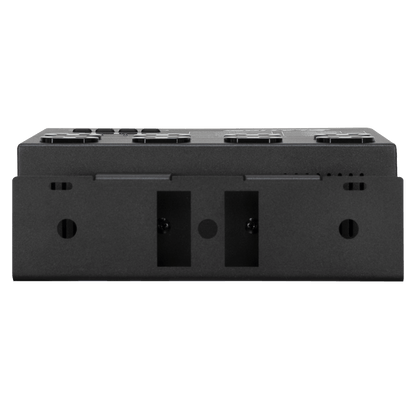

Elation CYBER PACK DMX DIMMER PACK

Elation CYBER PACK DMX DIMMER PACK

CYBER PAK is a professional-grade lighting solution. Along with these options there is a average output of 5A per channel which means some heavy duty power will come out of this Cyber Pak. Have you needed that elation control system with easy controls? It offers three modes#58; Chaser Mode, Dimmer Mode, and MIDI Mode that will give you many options. The digital displays show the current program and will make it easy to control the show.

From stage to studio, the Elation Cyber Pak delivers reliability, flexibility, and performance in a compact footprint "” the ultimate all-in-one controller for your lighting power needs.

Take total control of your lighting with the Elation Cyber Pak, a compact and powerful 4-channel Dimmer/Relay/MIDI pack designed for flexible lighting control. Whether you're running dimmers, relays, chasers, or responding to MIDI signals, the Cyber Pak has the versatility and performance to meet the demands of live events, stage productions, DJs, and venues of all sizes.

4-Channel Control: Operate as a dimmer, relay, chase controller, or MIDI-triggered switch "“ all in one unit. Individual Channel DMX Addressing: Customize control with individual DMX addresses per channel. Selectable Modes: Easily toggle between Dimmer or Switch (Relay) modes. 16 Built-in Chase Macros: Internal programs with fade in/out capabilities for dynamic lighting sequences. DMX Fail-Safe Options: Set to HOLD, OFF, or ON in case of DMX signal loss. Power Failure Memory: Retains settings after power loss, ensuring seamless recovery.

• Elation Cyber Pak "“ 3-in-1 Power Control Solution

Features

DIMMER MODE

•  (4) Channel Dimmer (1, 2 or 4 Channel Option)

•  Individual Channel Assignment & Output Limiter

RELAY MODE

•  (4) Channel Relay (1, 2 or 4 Channel Option)

•  Individual Channel Assignment

CHASER MODE

•  (4) Channel Chase Controller

•  16 Internal Chase Programs

•  Adjustable Fade Times

MIDI MODE

•  Receives MIDI Notes 001-128 Program

•  MIDI In & MIDI Through Connections

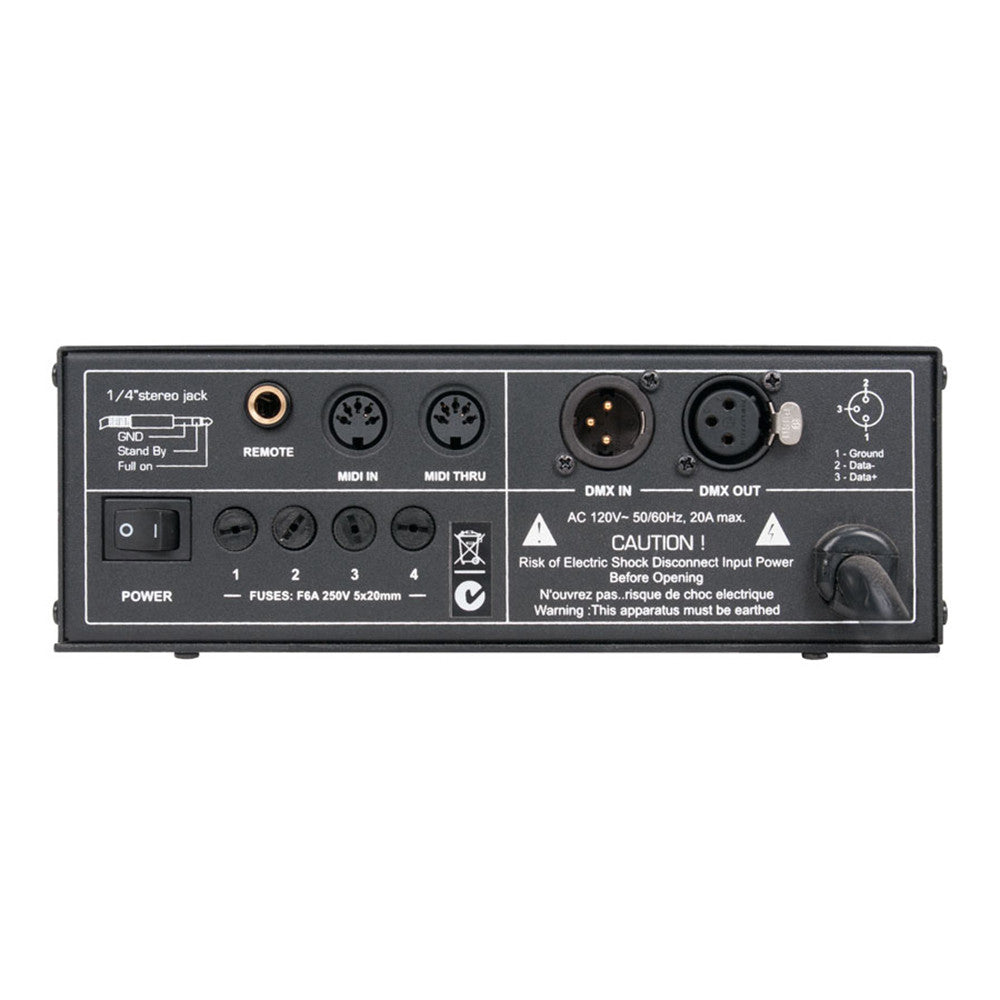

CONTROL / CONNECTIONS

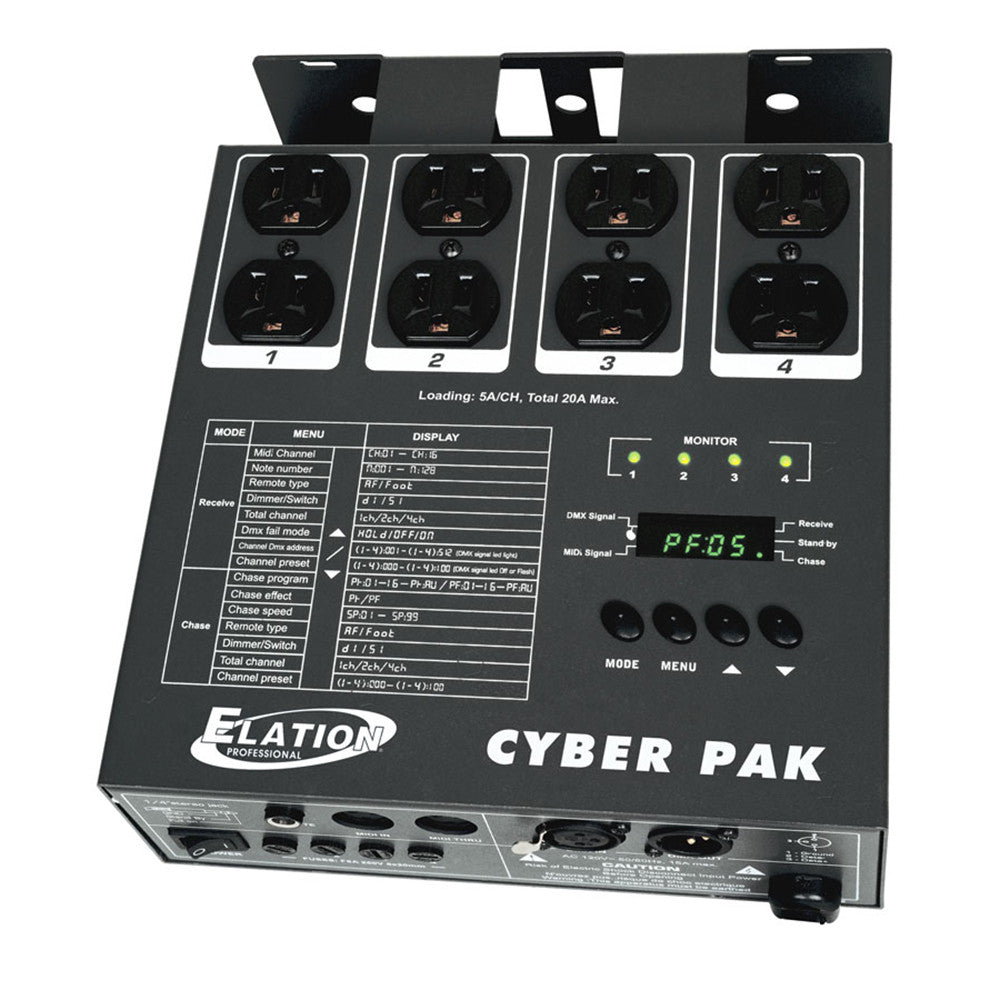

•  (2) 3-prong Edison Sockets per Channel (8 total)

•  5pin MIDI IN/OUT Ports

•  3pin XLR IN/OUT Ports

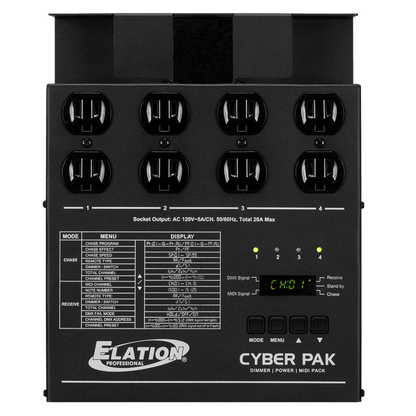

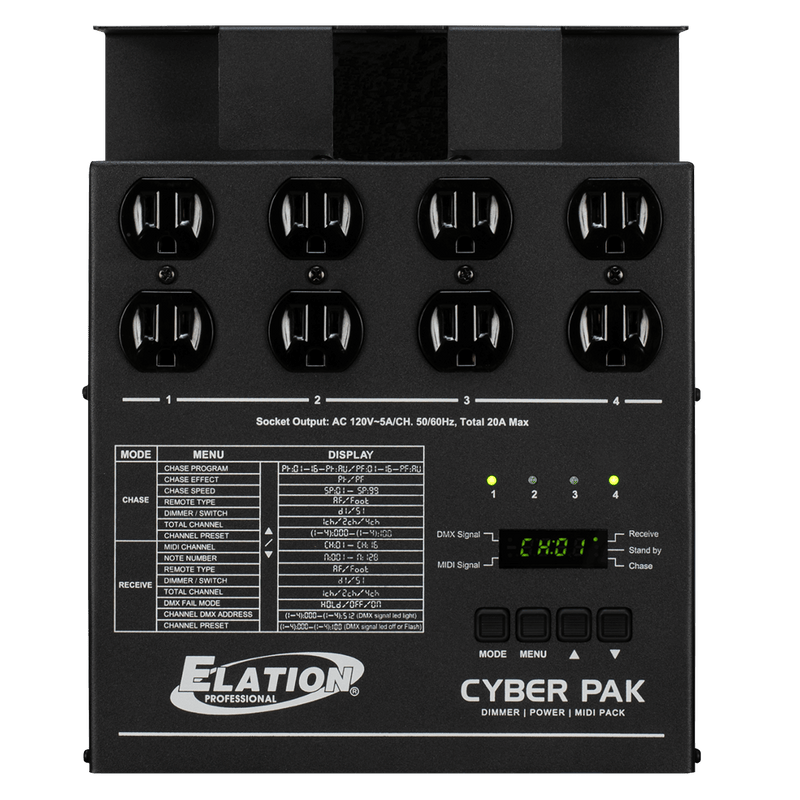

•  (4) Button LED Display Control Panel

•  Master Power Switch

ELECTRICAL / THERMAL

•  AC 120V 50/60Hz 20A Max

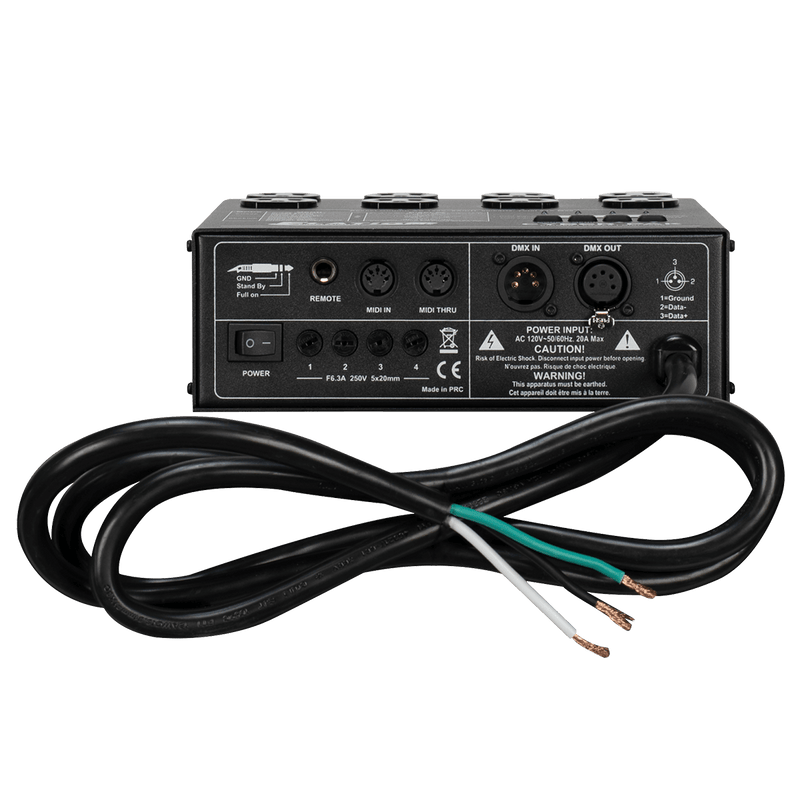

•  Main Power Cord has NEMA 6-20P Connector

•  2,400W Max Power Consumption (600W per channel)

APPROVALS / RATINGS

•  CE | cETLus

Specification

SIZE / WEIGHT
