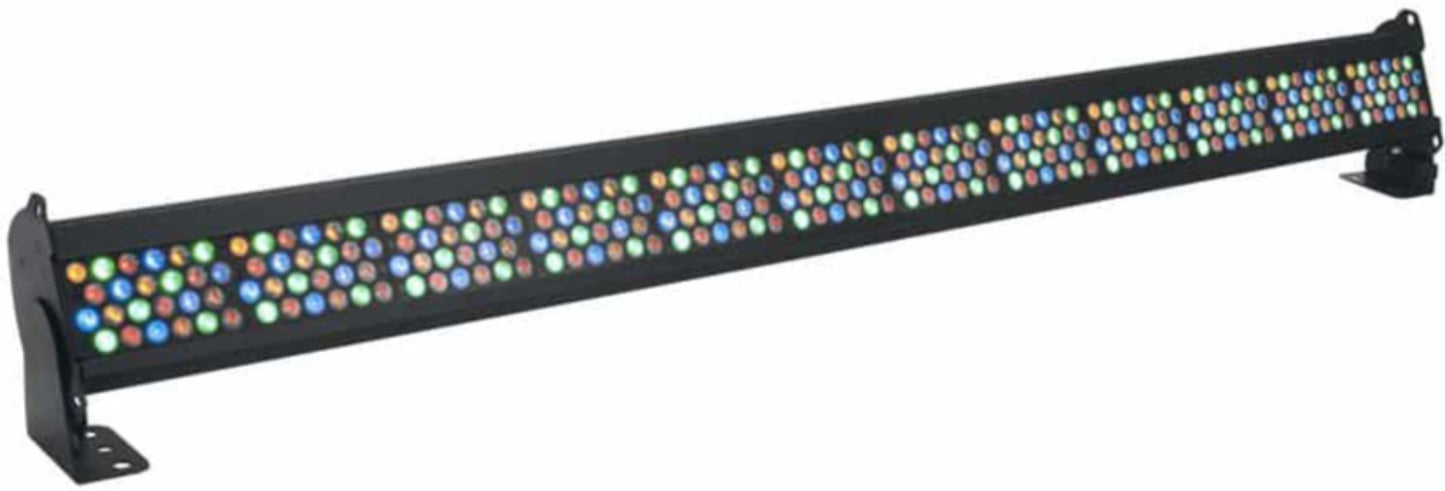

Elation Color Chorus 72-Inch RGBA LED Fixture
The COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue, Amber) LEDs, 100,000 hour average LED life, individual hue, saturation, and intensity control, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Features:
- Versatile High Power RGBA Batten
- Individual Hue, Saturation, and Intensity Control
- LED Group Control
- Dynamic Amber (RGB/HSI control with automatically adjusting Amber)
- Multiple Unit Power Linking
- Variable Dimming Curves
- Flicker Free Operation for TV and Film
- KlingNET™ and Art-NET (DMX over Ethernet)
- RDM – Remote Device Management
Source:
- Individual 3W (Red, Green, Blue & Amber) LEDs
- (288) Total LEDs (72 per each color)
- 100,000 Hour Average LED Life*
Photometric Data:
- 6.990 LUX 649 FC @ 9.8’ (3m)
Effects:
- Individual Hue, Saturation, Intensity Control
- LED Group Control
- Strobe: 1-18fps
- Dimming: 0% - 100%
- Variable Dimming Curves
Color:
- RGBA
Control/Connections:
- Multiple DMX Channel Modes
- 19 Modes (3 – 53 Channels)
- RDM (Remote Device Management)
- 4 Button Control Panel
- LCD Menu Display
- Locking 3/5pin DMX In/Out
- Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
- Locking power connector In/Out
Size/Weight:
- Length: 69.3” (1760mm)
- Width: 7.5” (194.1mm)
- Vertical Height: 7.6” (192.5mm)
- Weight: 53.0 lbs. (24.0kg)
Electrical/Thermal:
AC 110-250V - 50/60Hz 630W Max Power Consumption 14°F to 113°F (-10°C to 45°C)
Optional Accessories:
- 1322000060 C-Loader II
