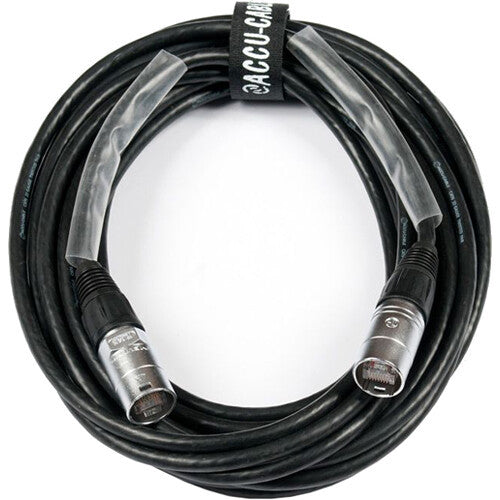

Elation CAT113 CAT6PRO3; 3' CAT6 EHTER-CON CABLE
CAT6PRO3 is a 3-foot pro grade data cable that connects one AV6 video panel to another horizontally or vertically.
The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
Specifications
- Inner conductor: Bare COPPER 19 x 0.12
- Inner conductor section: 0.22mm²
- Isolation: HDPE Ø 0.95mm
- Color Isolation: Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
