Elation BS10 Split; BS10 Data Splitter

Elation BS10 Split; BS10 Data Splitter

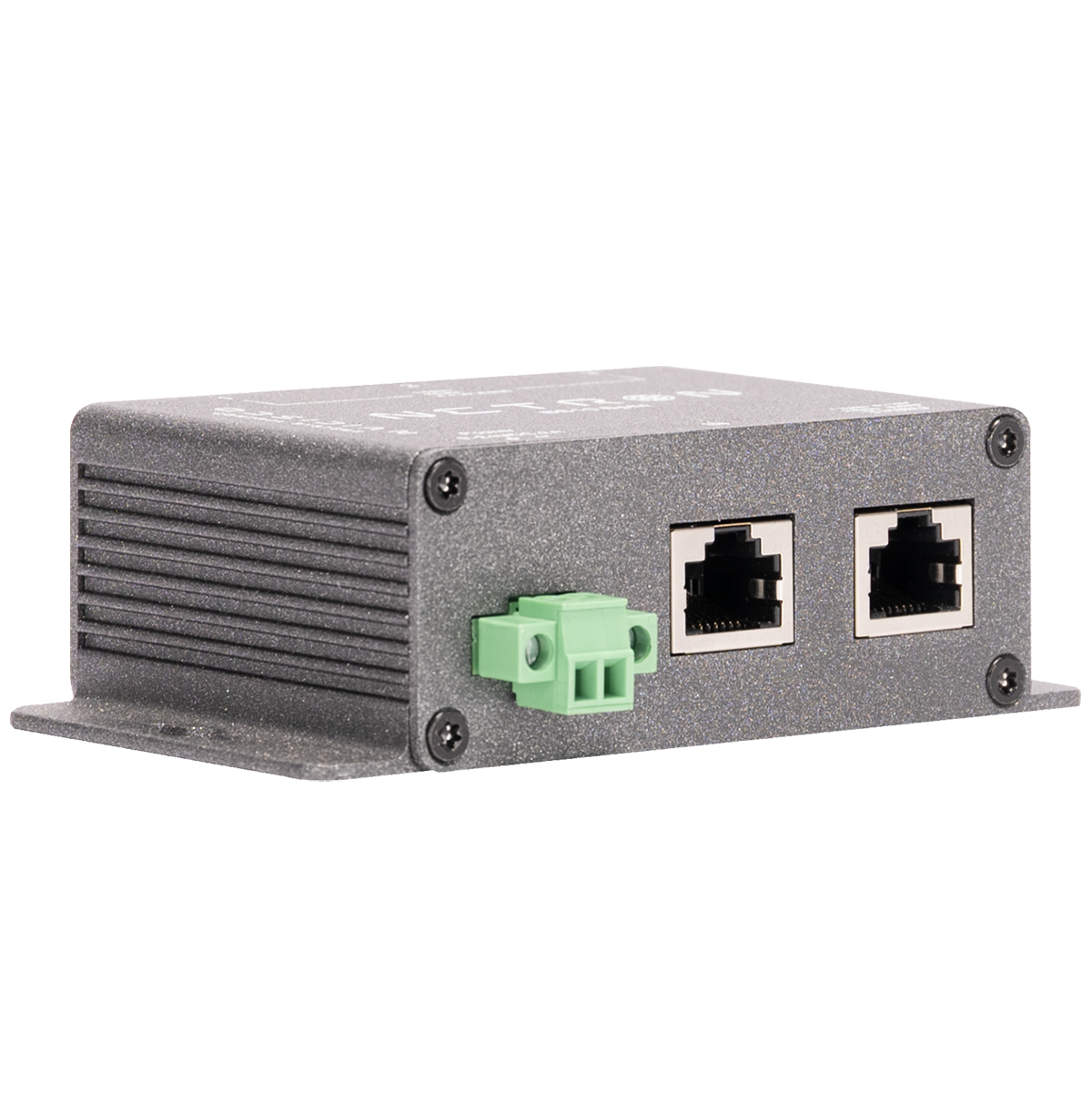

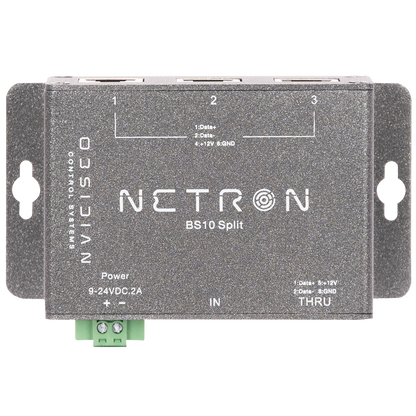

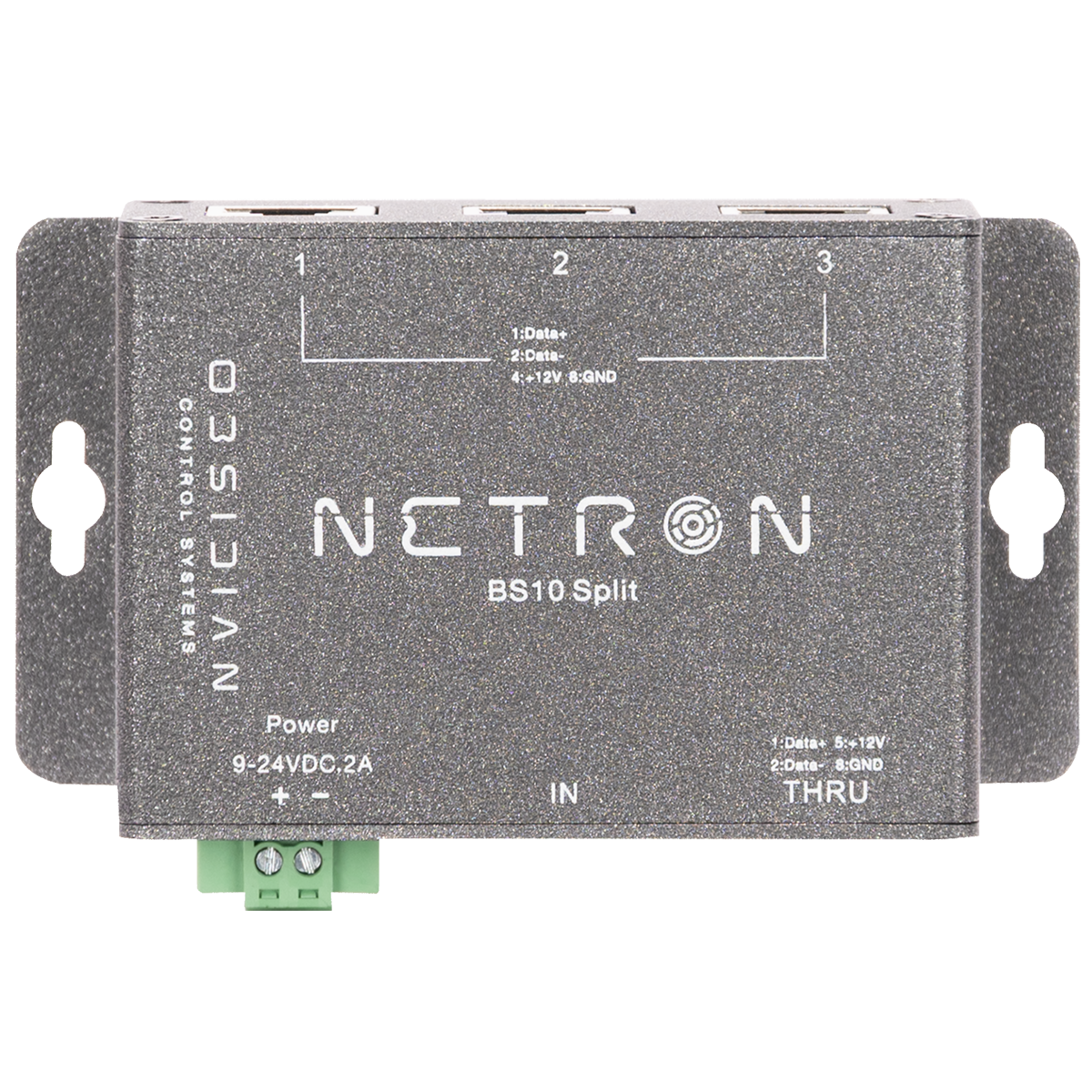

The NETRON BS10 Split is a compact accessory to expand the NETRON BS10 button station from one to multiple devices and longer distances.
Simple wiring using RJ45 connections is compatible with the EN12i and BS10, allowing a maximum of ten BS10 devices to recall cues and presets in a synchronized manner.

Features

• Power Injector and Data Splitter for BS10 button stations
• 3 Outputs
• Data IN and THRU supporting NETRON EN12i and BS10 Split daisy chain
• RJ45 connections

Specifications

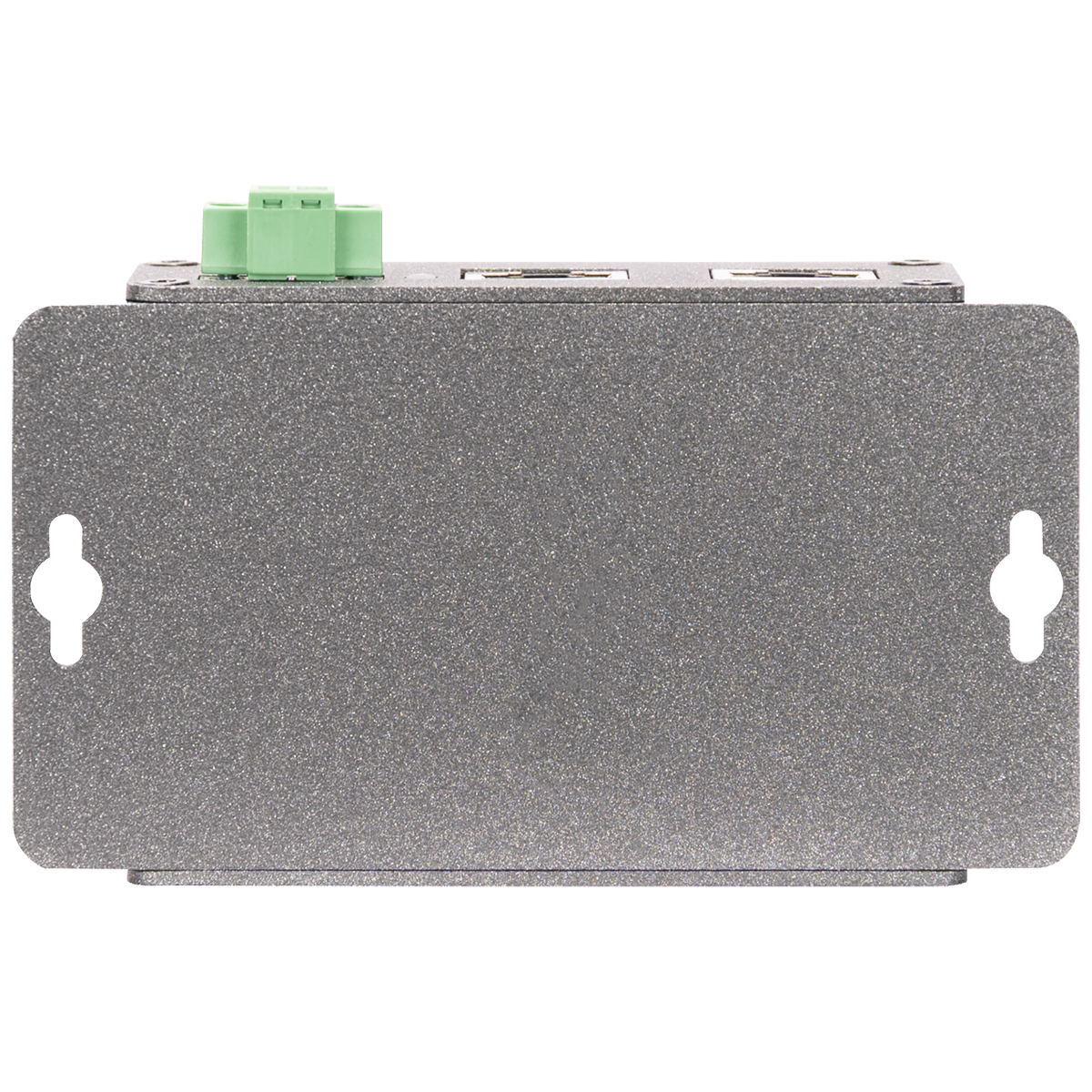

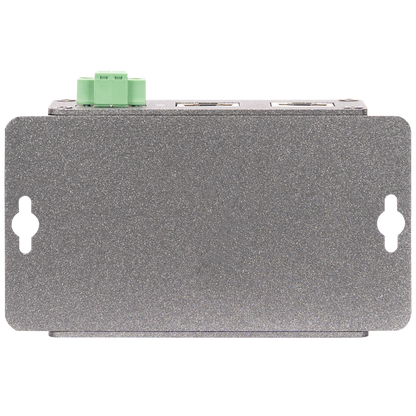

• Mounting
  • Wallmount
• Connections

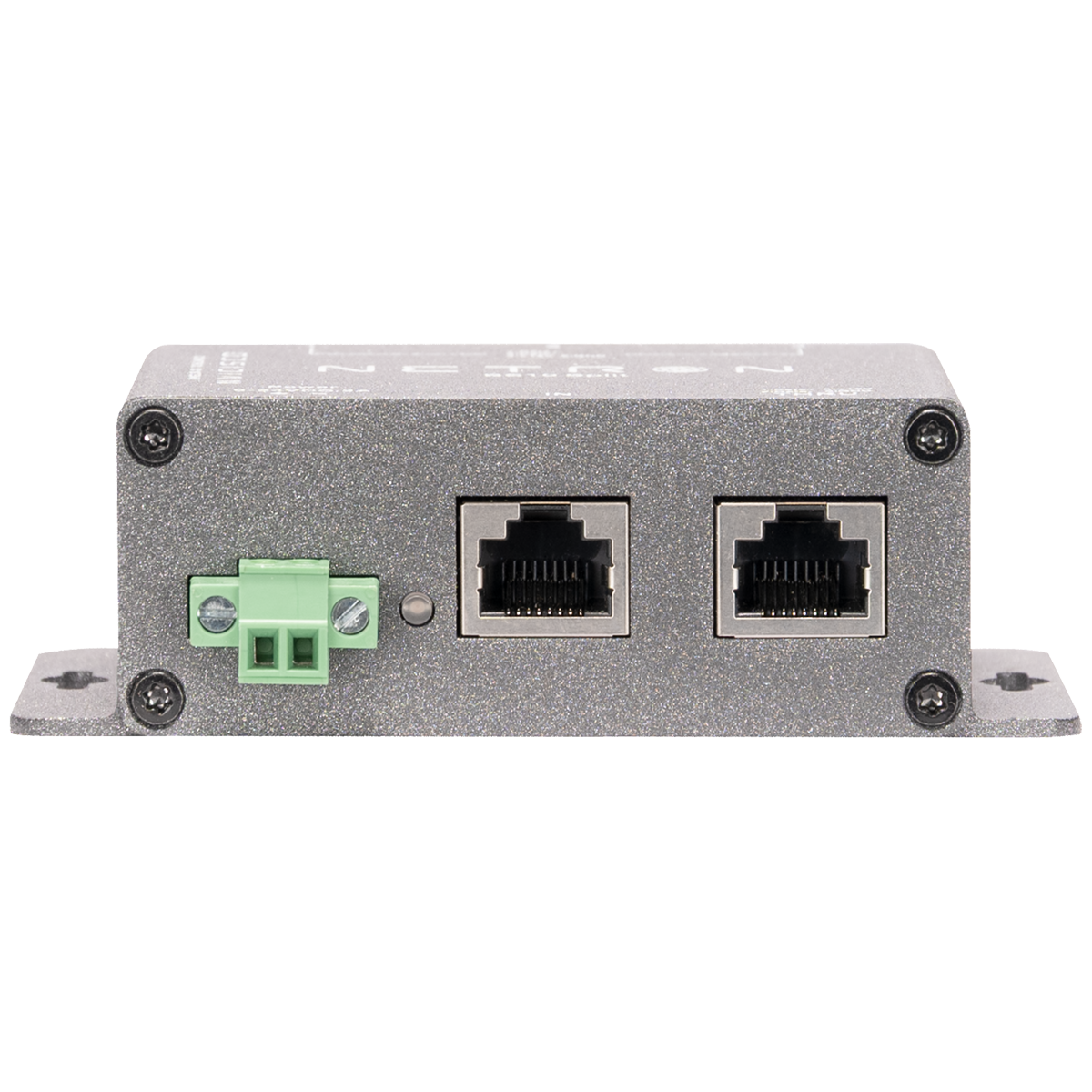

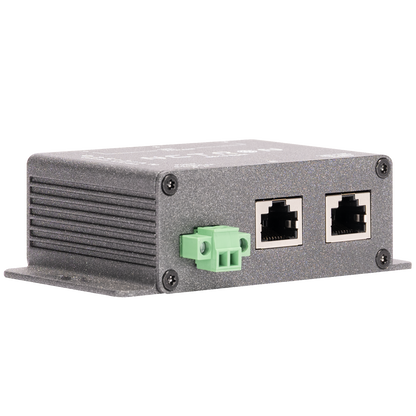

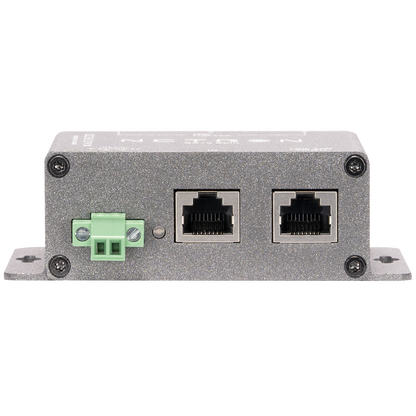

• Front

  • (2) RJ45 Data In/Thru
  • DC In (2pin Terminal Block)

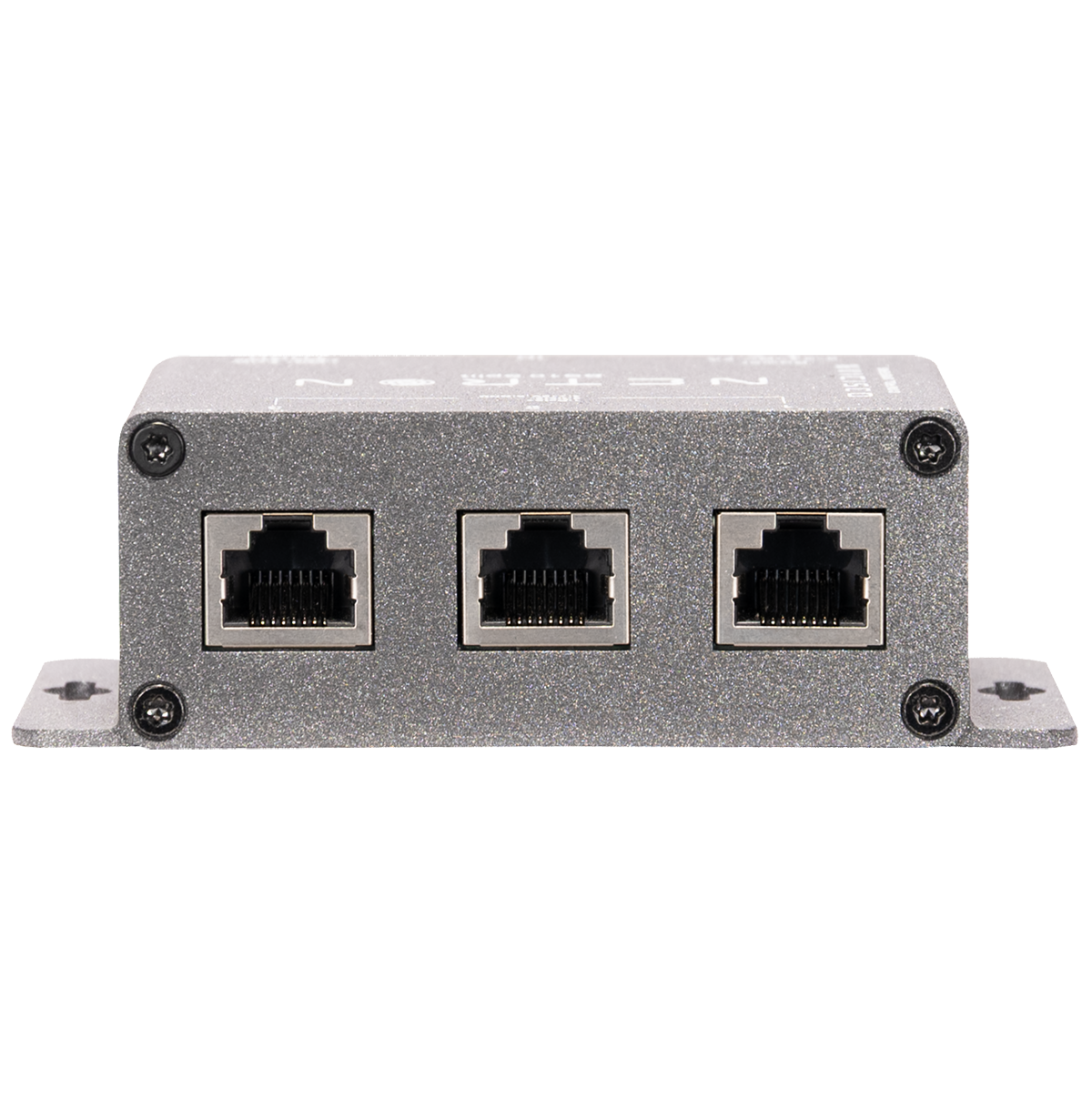

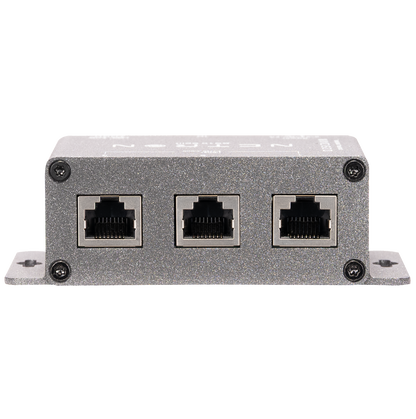

• Back

  • (3) RJ45 - BS10 Out

• Physical

  • Length: 4.1 in. (105mm)
  • Width: 2.3 in. (59mmmm)
  • Height: 1.3in. (32mm)
  • Weight: 0.31lbs. (0.14kg)

• Electrical

  • DC 9-24V / 2A (Power Supply not included)

  • CAT5e up to 300ft (100m) combined length
