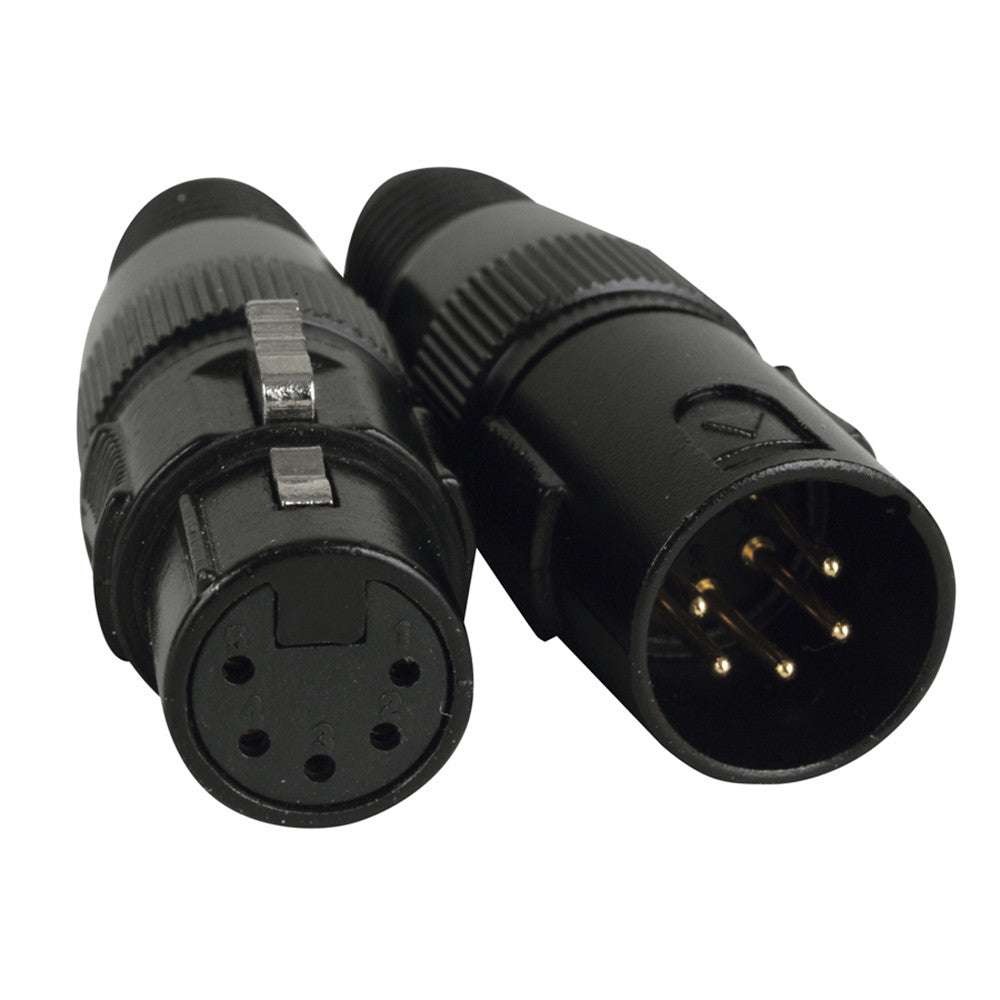

ACCU CABLE 5pin DMX connector set (male and female) with high-quality gold plated pins and durable construction for reliable lighting connections. For use with ACCU CABLE 5pin bulk DMX cable to create custom length DMX lighting cables.

Features

• High Quality Gold Plated Pins
• Durable Construction

Specifications

5pin XLR Cable Spools:

• AC5CDMX300 (300 Foot Spool 5 Pin DMX Cable)

Physical Characteristics:
 Conductor:

• Number of Pairs: 2
• Total Number of Conductors: 4
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:

• Insulation Material PE Polyethylene

Lay Length:

• Lay Length: 1.1"
• Direction: Left Hand Lay
• Twists: 10.9 per foot

Inner Jacket:

• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Green/Black/Red/White

Outer Shield:

• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:

• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:

• Outer Jacket Material: PVC-Polyvinyl Chloride
 Overall Nominal Diameter:
• Overall Nominal Diameter: .295"

Mechanical Characteristics:

• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 50 lbs/1000
• Minimum Bend Radius (Install): 3.5"
• Maximum Recommended Pull Tension: 22 lbs.

Electrical Characteristics:

• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
• Nominal Cap Cond. To Other Cond. Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 76%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.
• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
