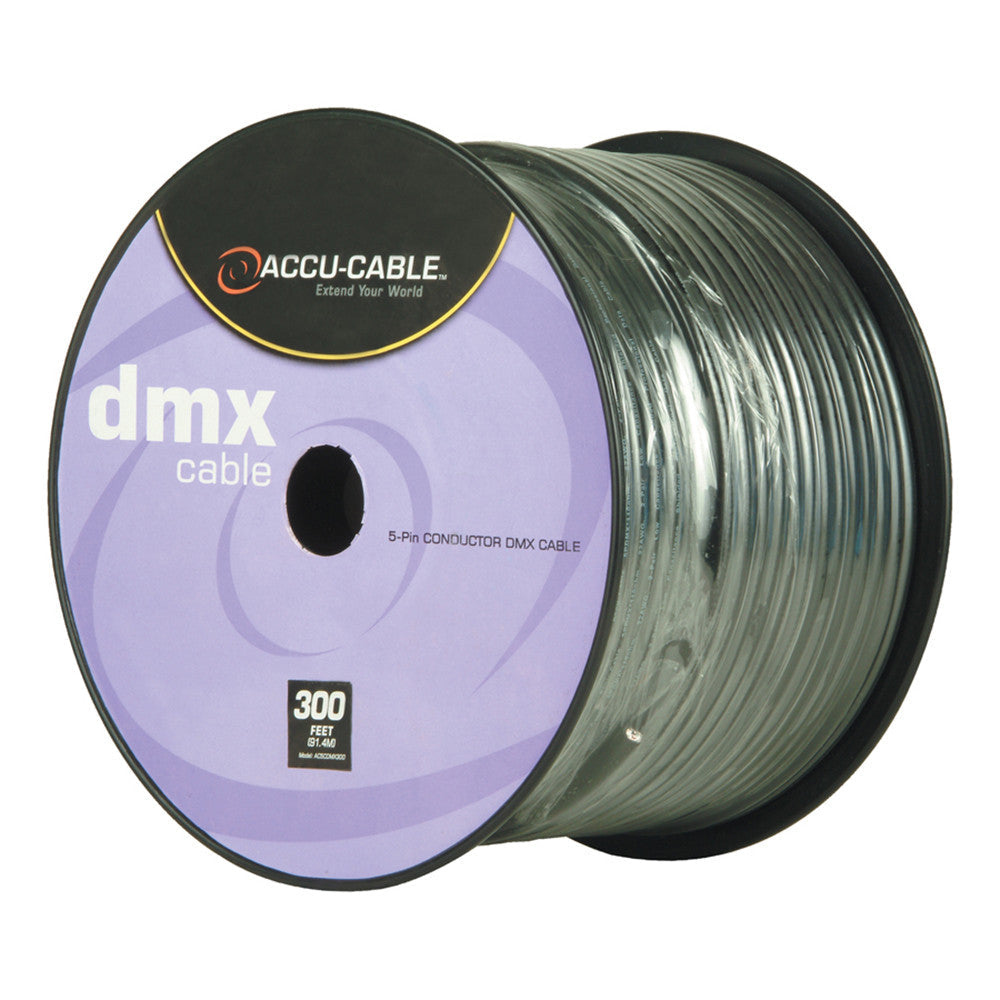

300 FOOT SPOOL 5 PIN DMX CABLE

Specifications

• Physical Characteristics:
• Conductor:
  • Number of Pairs: 2
  • Total Number of Conductors: 4
  • AWG: 22
  • Stranding: 0.15 x 19
  • Diameter: .0354"
  • Material: TC-Tinned Copper
• Insulation Material:
  • PE Polyethylene
• Lay Length:
  • 1.1"
  • Direction: Left Hand Lay
  • Twists: 10.9 per foot
• Inner Jacket:
  • Material: PE Polyethylene
  • Diameter: .055"
  • Pair Color Code: Green/Black/Red/White
• Outer Shield:
  • Trade Name: Duofoil®
  • Type: Tape/Braid
• Outer Shield Material:
  • Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
  • Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
• Outer Jacket:
  • PVC-Polyvinyl Chloride
• Overall Nominal Diameter:
  • 0.295"
• Mechanical Characteristics:
  • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
  • Bulk Cable Weight: 50 lbs/1000
  • Minimum Bend Radius (Install): 3.5"
  • Maximum Recommended Pull Tension: 22 lbs.
• Electrical Characteristics:
  • Nominal Characteristic Impedance: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
  • Nominal Cap Cond. To Other Cond. Shield @ 1KH z: 23 pF/ft
  • Nominal Velocity of Propagation: 76%
  • Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20°C: 24 Ohms/1000 ft
• Individual Pair Nominal Shield DC Resistance @ 20°C: 15 Ohms/1000 ft
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
• Maximum Recommended Current: 2.1 amps per conductor @ 25°C
• Specifications and documentation subject to change without notice.
