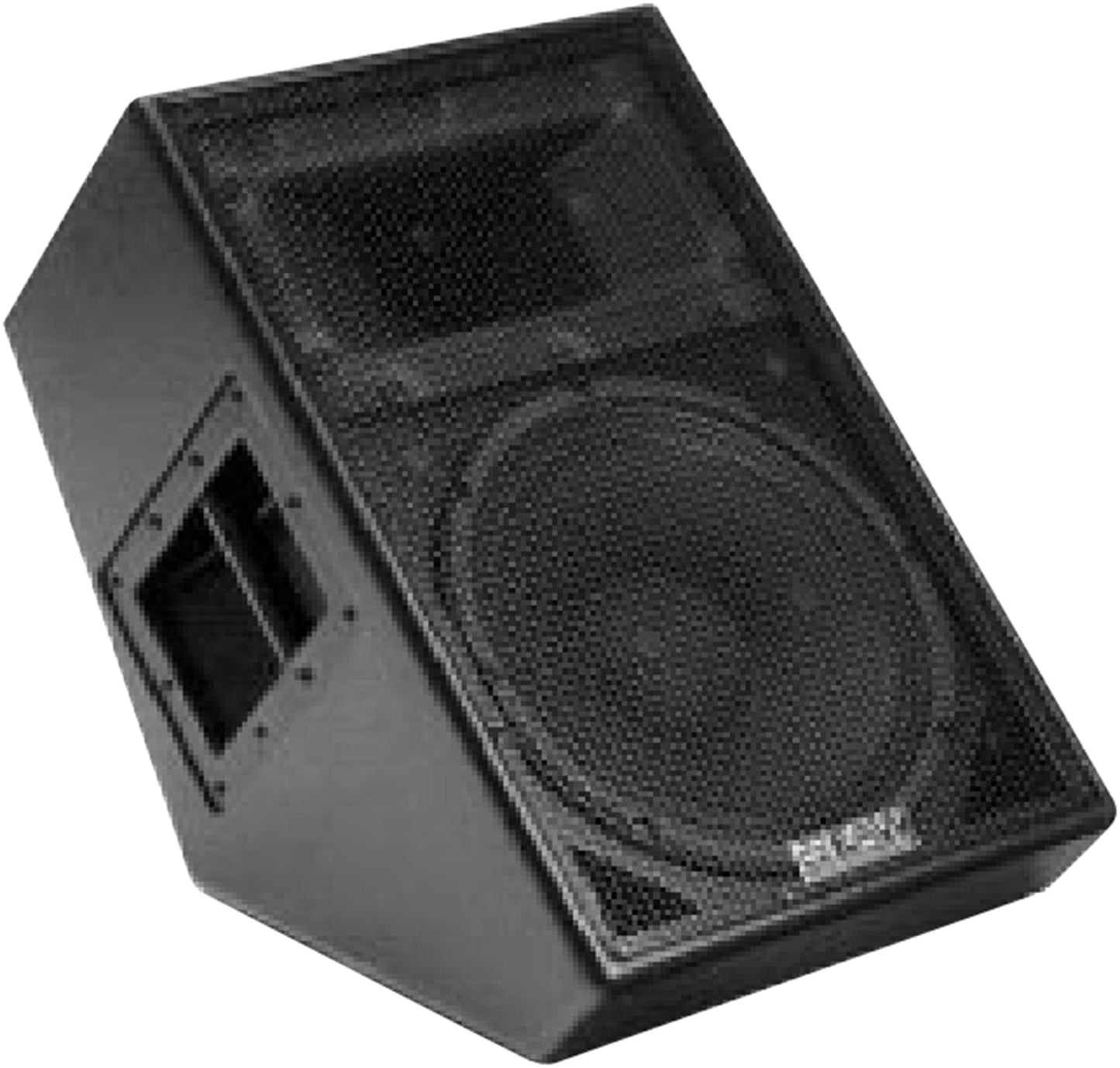

EAW SM122 Full Range Loudspeaker
A 2-way passive full range system in a vented dual angle stage monitor enclosure. Includes a 12-in woofer and a 1-in exit compression driver on a 90 x 45 constant directivity horn.
Specifications:
- Frequency Response (Hz):
- ±3 db 80Hz to 18kHz
- -10 dB 65Hz
- Axial Sensitivity (dB SPL/1 Watt/1m): 99
- Impedance (Ohms): 8
- Power Handling (Watts): AES Standard 450
- Calculated Maximum Output (dB SPL, @ 1m):
- Peak: 131.5
- Long Term: 125.5
- Nominal Coverage Angle / -6 dB points (degrees):
- Horizontal: 90
- Vertical: 45
- Dimensions:
- Height: 22.5 inches / 572 millimeters
- Width: 14.75 inches / 375 millimeters
- Depth: 12.5 inches / 318 millimeters
- Minimum Stage Height: 14.5 inches / 368 millimeters
- Floor Angle(s): 45°/15°
- Weights:
- Net Weight: 48 pounds / 21.8 kilograms
- Shipping Weight: 54 pounds / 24.6 kilograms
