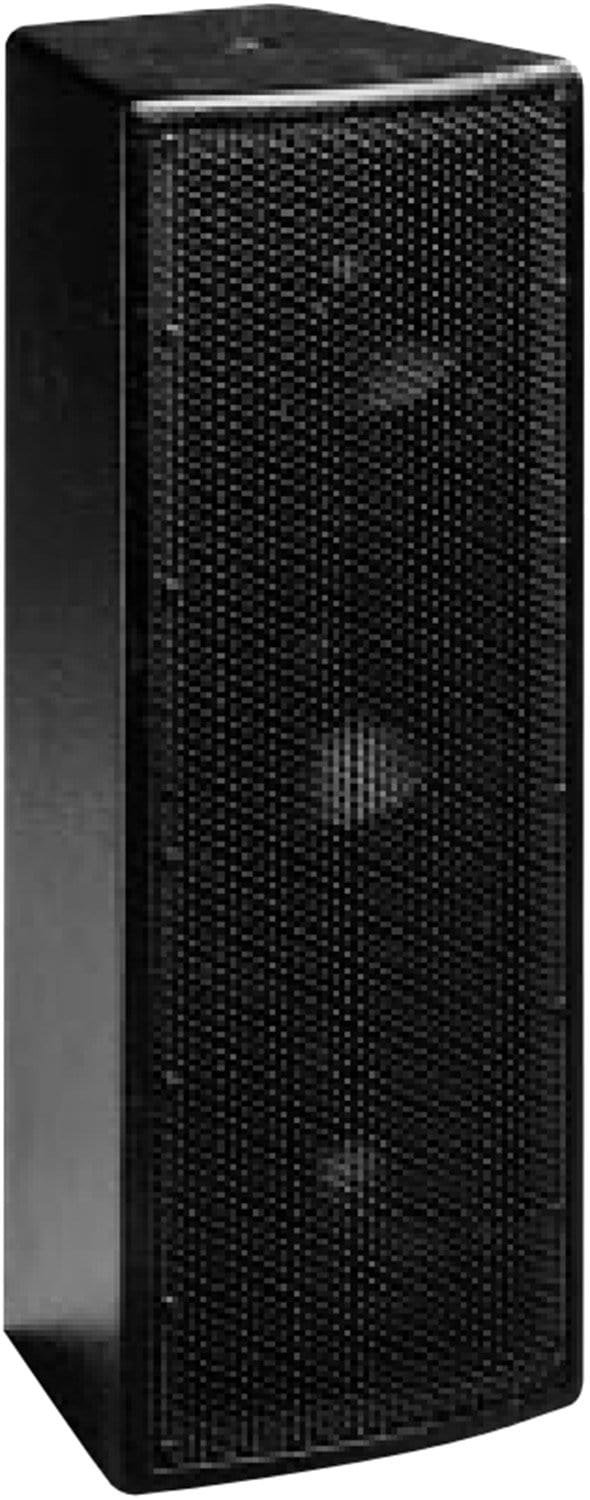

EAW JF80 Full Range Speaker

EAW JF80 Full Range Speaker

A 2-way full range system (passive LF/HF crossover) in a compact vented trapezoidal enclosure. Includes 2x 6.5-in woofers and a 1-in exit compression driver on a Wave Guide Plate™.

Specifications:

• Frequency Response (Hz):
  • ±3 db: 85Hz to 18kHz
  • -10 dB: 50Hz
• Axial Sensitivity (dB SPL/1 Watt/1m): 93
• Impedance (Ohms): 8
• Power Handling (Watts):
  • AES Standard: 460
• Calculated Maximum Output (dB SPL, @ 1m):
  • Peak: 125.6
  • Long Term: 119.6
• Nominal Coverage Angle / -6 dB points (degrees):
  • Horizontal: 100
  • Vertical: 80
• Recommended Complementary Systems:
  • Sub: SB150 / SB180
• Dimensions:
  • Height 20.9375 inches (532 mm)
  • Width 7.8125 inches (198 mm)
  • Depth 9.75 inches (248 mm)
  • Back Width 4.5 114
  • Trapezoid Angle: 10 degrees per side
• Weights pounds kilograms:
  • Net Weight: 25 lbs. (11.4 kg)
  • Shipping Weight (per pair) 62 lbs. (28.2 kg)
