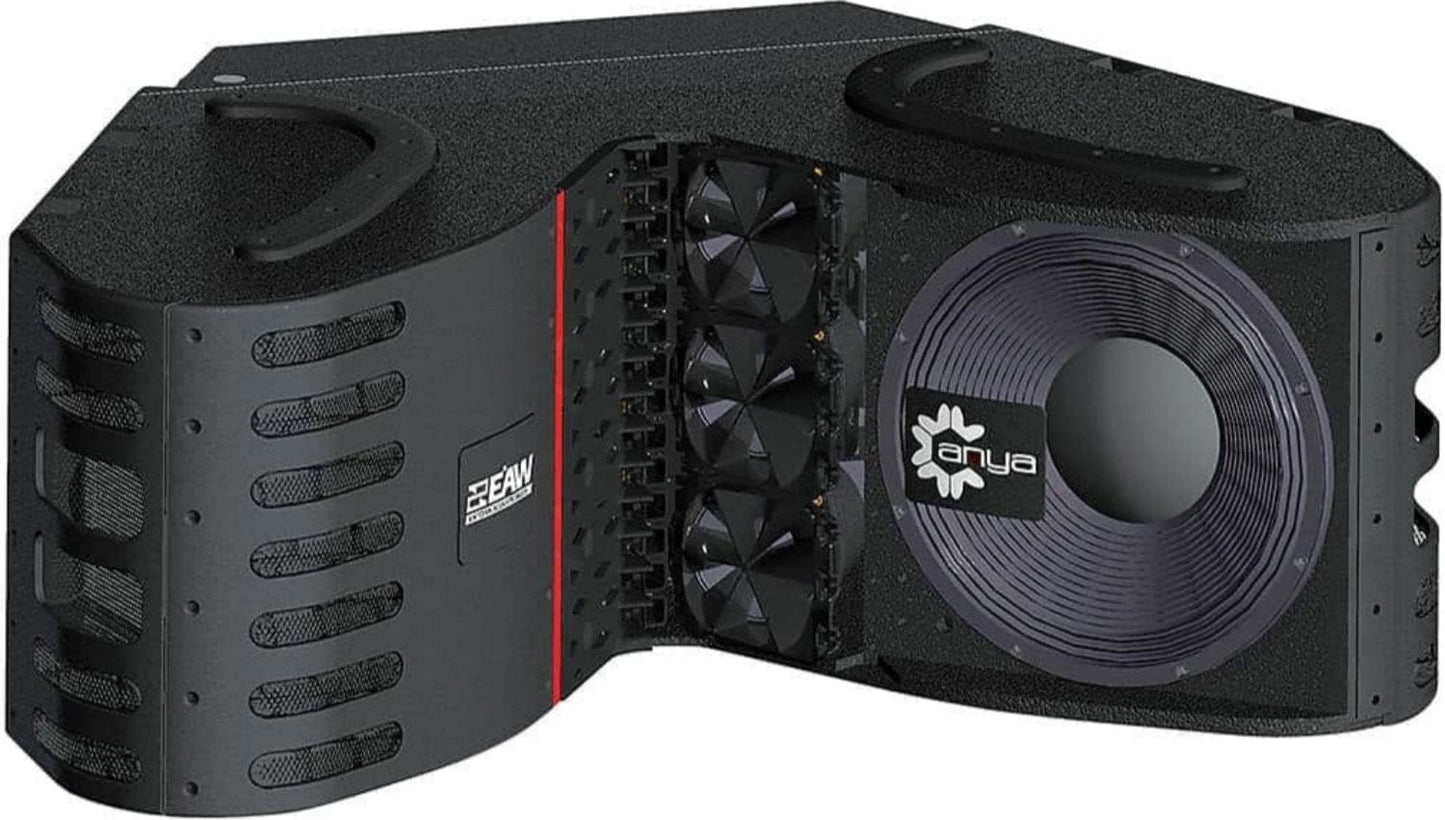

EAW 2048843-90 Anya V2 3-Way Full-Range Array Speaker Module - Black

EAW 2048843-90 Anya V2 3-Way Full-Range Array Speaker Module - Black

EAW Anya is a complete, self-contained, high-power sound reinforcement system that adapts all performance parameters electronically, allowing it to be used in virtually any application. Columns of Anya modules hang straight, without any vertical splay, and Resolution 2 software adapts total system performance to produce asymmetrical output that delivers coherent, full-frequency range response across the entire coverage area as defined by the user. It is extremely powerful and immensely scalable, making it suitable for anything from small venues to the largest stadiums.

Features:

• Adapative performance
• Design + Build: Proprietary HF horn, Radial Phase Plugs™, and Offset Aperture™ loading for precise pattern control
• HF Drivers: 14x 1-in exit / 35mm voice coil HF compression drivers
• MF Drivers: 6x 5-in MF cone transducers arranged in two columns for coherent summation
• LF Drivers: Dual 15-in LF cone transducers with extended horizontal pattern control

Specifications:

• Frequency Response: 35 Hz to 18 kHz
• Max SPL: 152 dB
• Operating Mode: Amplifier Channels (2x LF; 6x MF; 14x HF)
• Subsystem:
  • LF: 2× 15-in cone, 4 in voice coil
  • MF: 6× 5-in cone, 38mm voice coil
  • HF: 14×1-in exit, 35mm voice coil
• Nominal Beamwidth:
  • Horizontal: 70° (for single column; scalable up to 360° using multiple columns)
  • Vertical: Adaptive
• Power Handling:
  • LF: 2 x 1,700W
  • MF: 6 x 350W
  • HF: 14 x 350W
• Connections:
  • Neutrik® powerCON™ TRUE1™
  • Analog & AES In/Loop
  • 2x Neutrik® etherCON™ (DANTE enabled)
• Dimensions:
  • Height: 17.1 in
  • Width: 45.2 in
  • Depth: 30 in
• Weight: 285 lbs (129.3 kg)
