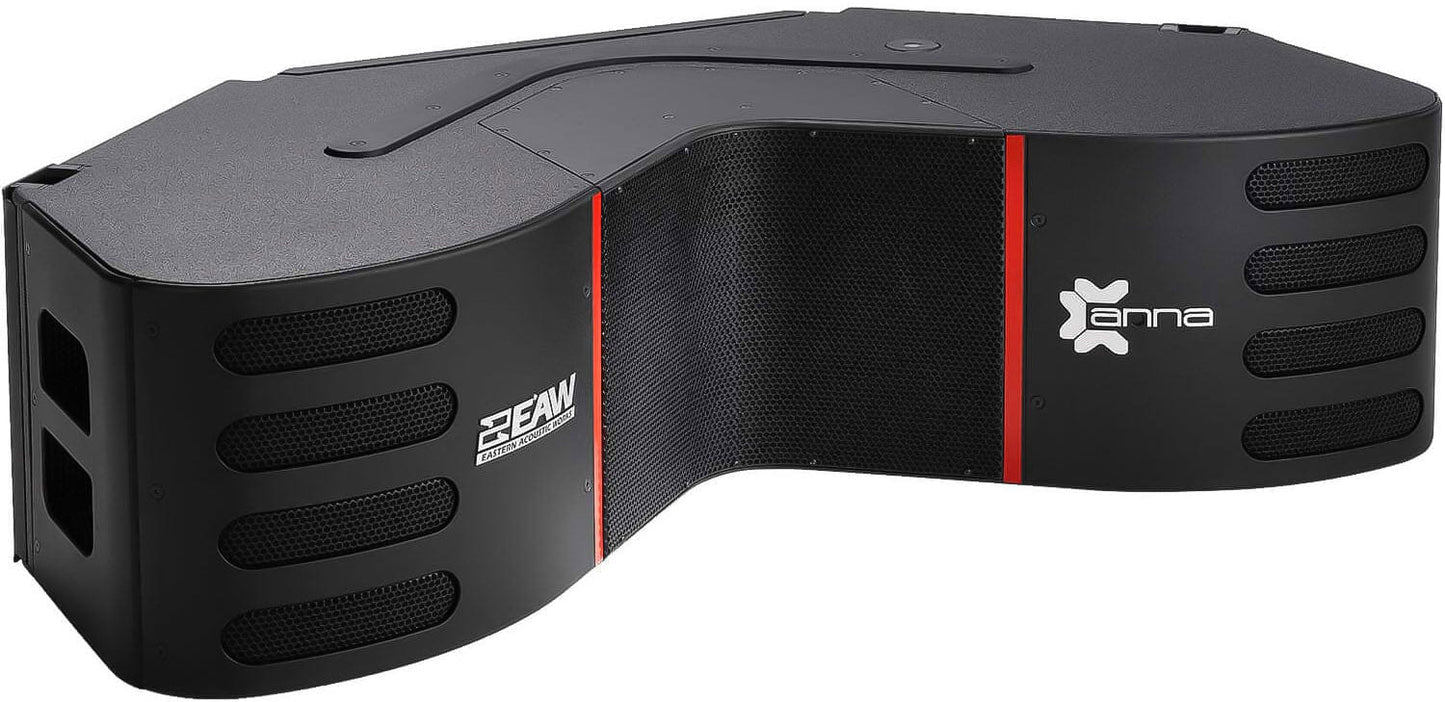

EAW 2045429-90 Anna 3-Way Full-Range Array Speaker Module - Black

The EAW Anya is a complete, self-contained, high-power sound reinforcement system that adapts all performance parameters electronically, allowing it to be used in virtually any application. Columns of Anya modules hang straight, without any vertical splay, and Resolution 2 software adapts total system performance to produce asymmetrical output that delivers coherent, full-frequency range response across the entire coverage area as defined by the user. It is extremely powerful and immensely scalable, making it suitable for anything from small venues to the largest stadiums.

Features:

• Adaptive Performance™ manages coverage and directivity via Resolution™ 2 software
• Vastly simplified setup process as compared to typical large-format arrays; uses no vertical splay angles to achieve desired coverage
• On-board diagnostics and Adaptive Healing continuously monitor and correct performance in real time
• High-power, full-bandwidth; scalable to all performance types and venue sizes
• All amplification and processing on-board
• Portable and touring sound reinforcement of any scale (from clubs to stadia and arenas)
• Installed sound reinforcement for performing arts venues, clubs, houses of worship or sports facilities of any size

Specifications:

• Frequency Response: 45 Hz to 18 kHz
• Max SPL: 147 dB
• Operating Mode:
  • Amplifier Channels: 2x LF; 4x MF; 8x HF
• Subsystem:
  • LF: 2× 10-in cone, 3 in voice coil
  • MF: 4× 5-in cone, 38mm voice coil
  • HF: 8× 1-in exit, 35mm voice coil
• Nominal Beamwidth:
  • Horizontal: 100° (for single column; scalable up to 360° utilizing multiple columns)
  • Vertical: Adaptive
• Power Handling:
  • LF: 2 x 1000W
  • MF: 4 x 500W
  • HF: 8 x 500W
• Connections:
  • Neutrik® powerCON™ TRUE1™
  • Analog & AES In/Loop
  • 2x Neutrik® etherCON™ (DANTE enabled)
• Dimensions:
  • Height: 11.3 in
  • Width: 40 in
  • Depth: 23.6 in
• Weight: 135 lbs (61.4 kg)
