Description

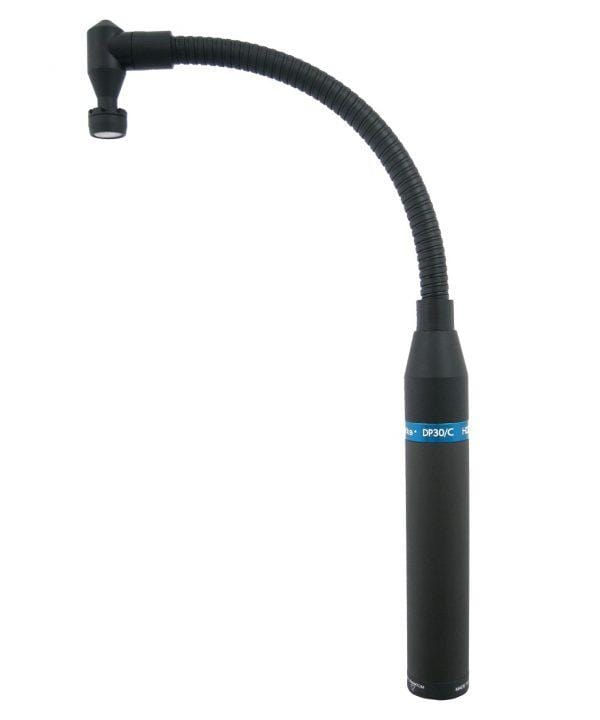

Earthworks DP30C Cardioid Condenser Gooseneck Drum Microphone
The DP30/C was designed specifically for snare and toms featuring a flexible mini-gooseneck for easy positioning and a high acoustic input level that can handle up to 145 dB SPL.
Specifications:
- Frequency Response: 30Hz to 30kHz ±2dB at 6 inches (15cm)
- Polar Pattern: Cardioid
- Sensitivity: 10mV/Pa (-40dBV/Pa)
- Power Requirements: 48V Phantom, 10mA
- Max Acoustic Input: 145dB SPL
- Signal-to-Noise Ratio: 72dB A-weighted
- Output: XLR (pin 2 )
- Output Impedance: 65Ω balanced (between pins 2 & 3)
- Min Output Load: 600Ω between pins 2 & 3
- Noise: 20dB SPL equivalent (A weighted)
- Dimensions L x D: 275mm x 22mm (10.75 x .860 inches)
- Gooseneck Length: 159mm (6.75 inches)
- Weight: .25 lb. (1.13kg)
