DPA 4099HIC Hi-Sensitive Supercardioid Microphone Loud SPL

DPA 4099HIC Hi-Sensitive Supercardioid Microphone Loud SPL

The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE – every musician, live sound engineer and anyone else who takes pride in quality audio.

Features:

• CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 1%: 128 dB SPL RMS, 131 dB SPL peak
• Dynamic range: Typ. 108 dB
• Max. SPL, THD 10%: 142 dB SPL peak
• Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter
• Output balance principle: Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter
• Power supply (for full performance):
  • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter
• Connector: MicroDot
• Color: Black
• Weight:
  • Microphone: 17 g (0.60 oz)
  • Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz)
  • Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz)
  • Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)

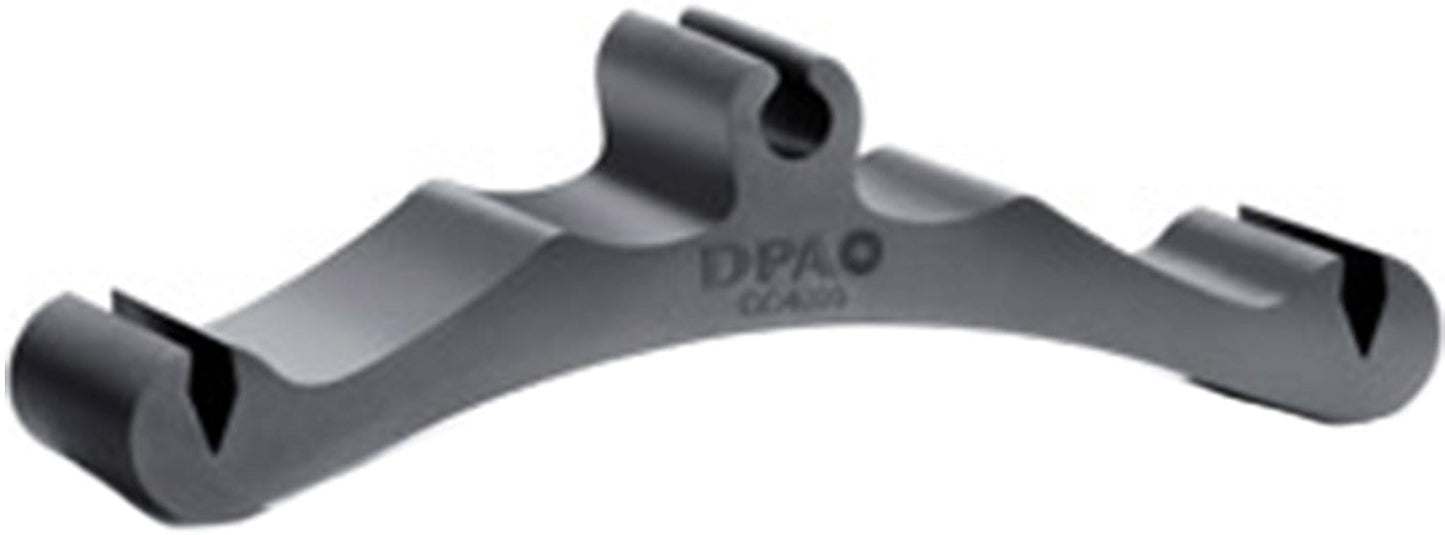

  • Instrument Microphone Clip for Cello (CC4099): 13 g (0.46 oz)
  • Instrument Microphone Clip for Drum (DC4099): 13 g (0.46 oz)
  • Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
  • Instrument Microphone Clip for Piano (PC4099): 19 g (0.67 oz)
  • Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
  • Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
  • Universal Instrument Microphone Clip (UC4099): 15 g (0.53 oz)
  • Mic Stand Mount (MS4099): 27.5 g (0.97 oz)
  • Cold Shoe Mount with standard 1/4" in thread (CS4099): 5 g (0.18 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 45 mm (1.8 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
• Sensitivity selection tolerance (at 1 kHz): ±1 dB
