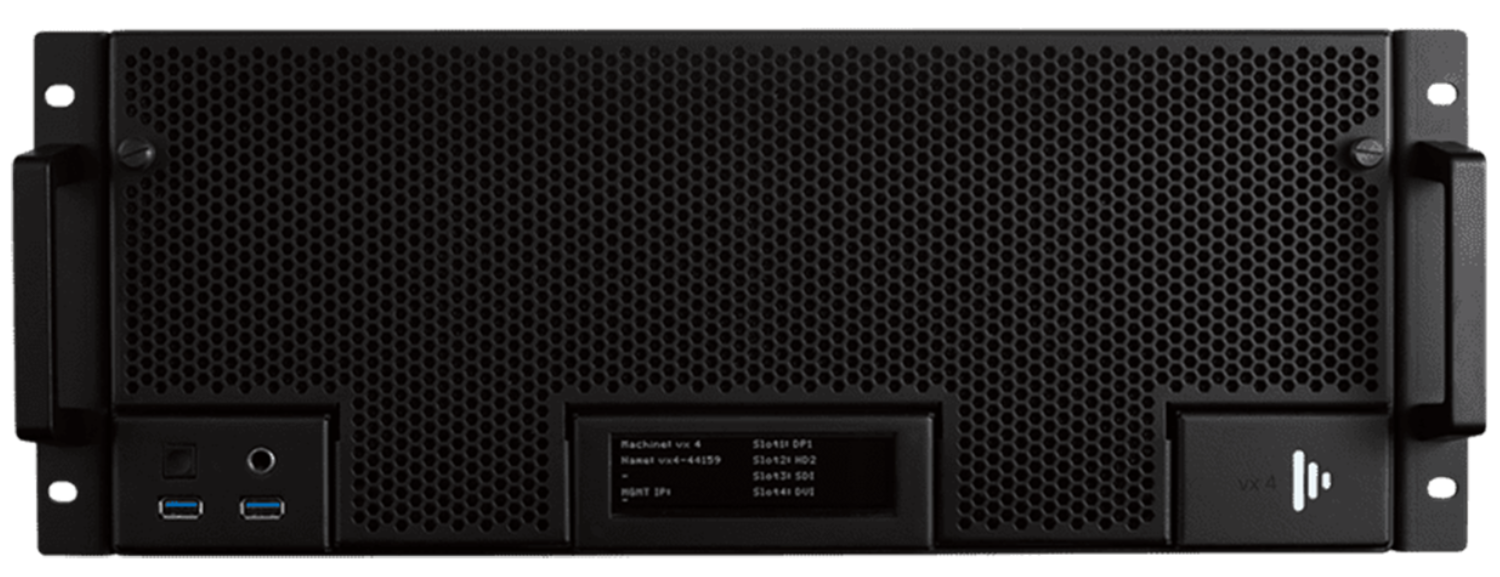

Disguise VX-4 Media Server with 4 VFC Expansion Cards and 100GB NIC
Disguise VX4 is part of Disguise’s flagship pro range of media servers, it’s engineered to play back video at higher quality, smoothness and resolutions than ever before.
The VX4 is optimised to play up to four times uncompressed 4K60 using its high-performance NVME RAID drive array, it is also capable of playing lossless 10-bit video. Additionally, the VX4 can capture either 16 x 3G-SDI sources, or four 4K sources (2160p60).
The media server is equipped with upgraded 100GB ethernet ports, which means faster media filer transfers and higher resolution networked live video capture.
The outputs of the VX4 can be customised to suit any event’s requirements. As standard, it is sent out with 4 x HDMI 2.0 VFC installed.

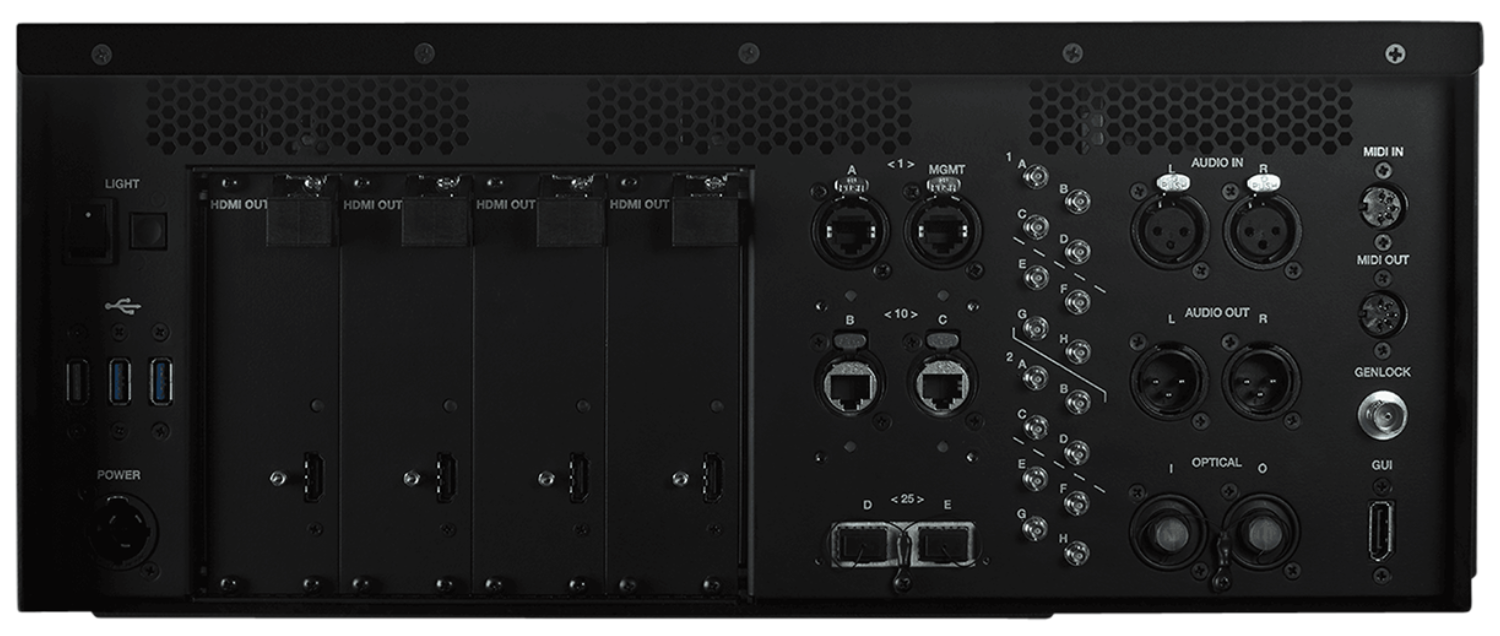

4x 12G inputs or 16x 3G inputs (HD-BNC connectors)
4x 4K outputs (with integrated EDID management)
Balanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x in
2x 100GbE/sec port (QSFP28)
