DirectOut MADI.SRC MADI Sample Rate Converter

DirectOut MADI.SRC MADI Sample Rate Converter

MADI.SRC offers best quality sample rate conversion of a complete MADI stream (64 audio channels) in real time. The device supports any source and destination sample rates from 30 kHz to 50 kHz and their multiples. High-end chips with a THD+N > 140dB and a frequency response linearity better than 0.025 dB guarantee excellent sound quality.

Specifications:

• Interfaces
  • MADI ports (I/O): 2 x SC-Socket multi-mode or 1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω
• Digital
  • Sample rates: all rates from 30 kHz to 50 kHz and their multiples (standard rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz +/- 12,5%)
  • MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX
  • Sample rate conversion 32 x stereo
  • THD+N: 140 dB
  • Frequency response ripple: < 0.025 dB
  • Latency: < 140 samples
• Sync
  • Word clock (I): 1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)
  • Word clock (O): 1 x coaxial BNC
  • Video Reference (I): 1 x coaxial BNC (75 Ω termination switchable), black burst (PAL / NTSC, Tri-Level-Sync up to 60 fps)
• Communication
  • Remote Software: globcon
• Global
  • Service: USB 2.0 for firmware updates (Windows®) and remote control via globcon

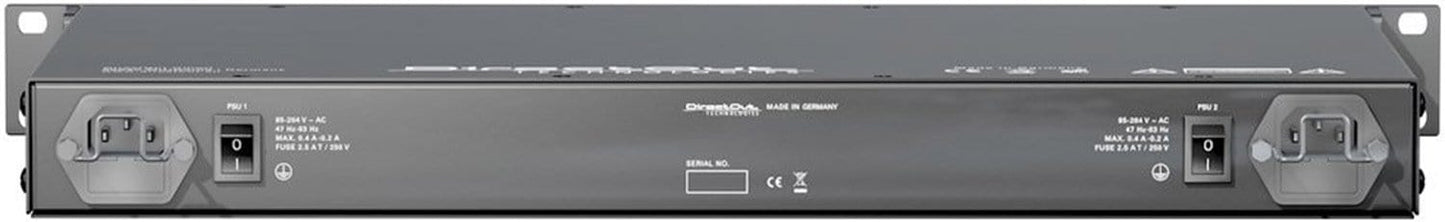

  • Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phase-redundant
  • Power Consumption: 25 W
  • Dimensions:
    • Width: 19" (483 mm)
    • Height: 1 RU (44.5 mm)
    • Depth: 10" (254 mm)
  • Weight: about 4 kg
  • USB Serial driver: Windows®
