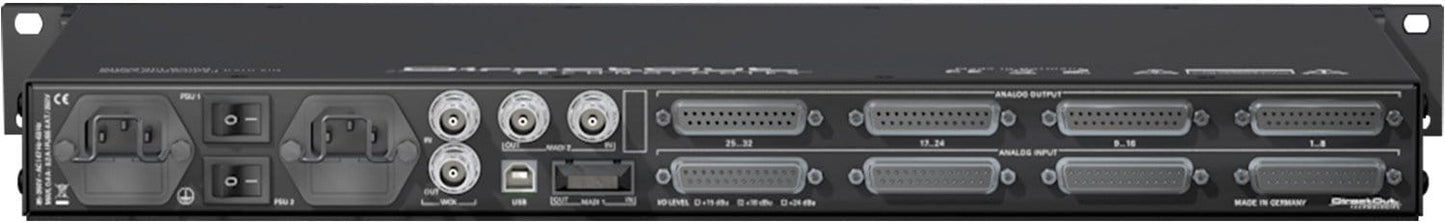

DirectOut ANDIAMO2SCSC 32-Channel MADI AD/DA Converter

DirectOut ANDIAMO2SCSC 32-Channel MADI AD/DA Converter

ANDIAMO 2 is part of the ANDIAMO family of powerful, high-end AD/DA MADI converters. ANDIAMO 2 offers simultaneous conversion of 32 audio channels from analog to digital and vice-versa with extremely high sonic quality. Housed in an elegant, space-saving 1U 19” casing, up to two units may be cascaded for 64 channels of conversion. Bank selection allows the choice of audio channels 1-32 or 33-64 from a MADI stream to be converted. Converter sensitivity can be switched between two levels (hi/lo) – discrete for A/D and D/A.

Specifications:

• Interfaces
  • MADI ports (I/O): 2 x SC-Socket multi-mode or 1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω
  • Analog (I/O): 8 x DSUB-25, balanced, AES59 compliant
• Digital
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
  • MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX
• Analog
  • Analog Level (I/O): +6 dBu / +15 dBu (digitally switchable) or +9 dBu / +18 dBu (digitally switchable) or +15 dBu / +24 dBu (digitally switchable)
• A/D
  • SNR: -115,5 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
  • THD @ -1 dBFS: -113 dB
  • Frequency response: -0,15 dB (10 Hz) / -0,15 dB (20 kHz)
• D/A
  • SNR: -113,5 dB RMS (20 Hz - 20 kHz) / -116,5 dB(A)
  • THD @ -1 dBFS: -100 dB
  • Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
• Sync
  • Word clock (I): 1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)
  • Word clock (O): 1 x coaxial BNC
• Communication
  • Remote Software: ANDIAMO REMOTE (Windows® & OS X®), globcon
  • Remote Methods: USB, Serial over MADI, MIDI over MADI, DONet
• Global
  • Service: USB 2.0 for firmware updates (Windows®) and remote control (Windows® & OS X®)
  • Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phase-redundant
  • Power Consumption: 25 W
  • Dimensions: Width 19" (483 mm)
  • Height 1 RU (44,5 mm)
  • Depth 10'' (254 mm)
  • Weight: about 3 kg
  • USB Serial driver: Windows® & OS X®
  • Device variants
  • Single-mode: MADI port: SC-Socket single-mode
