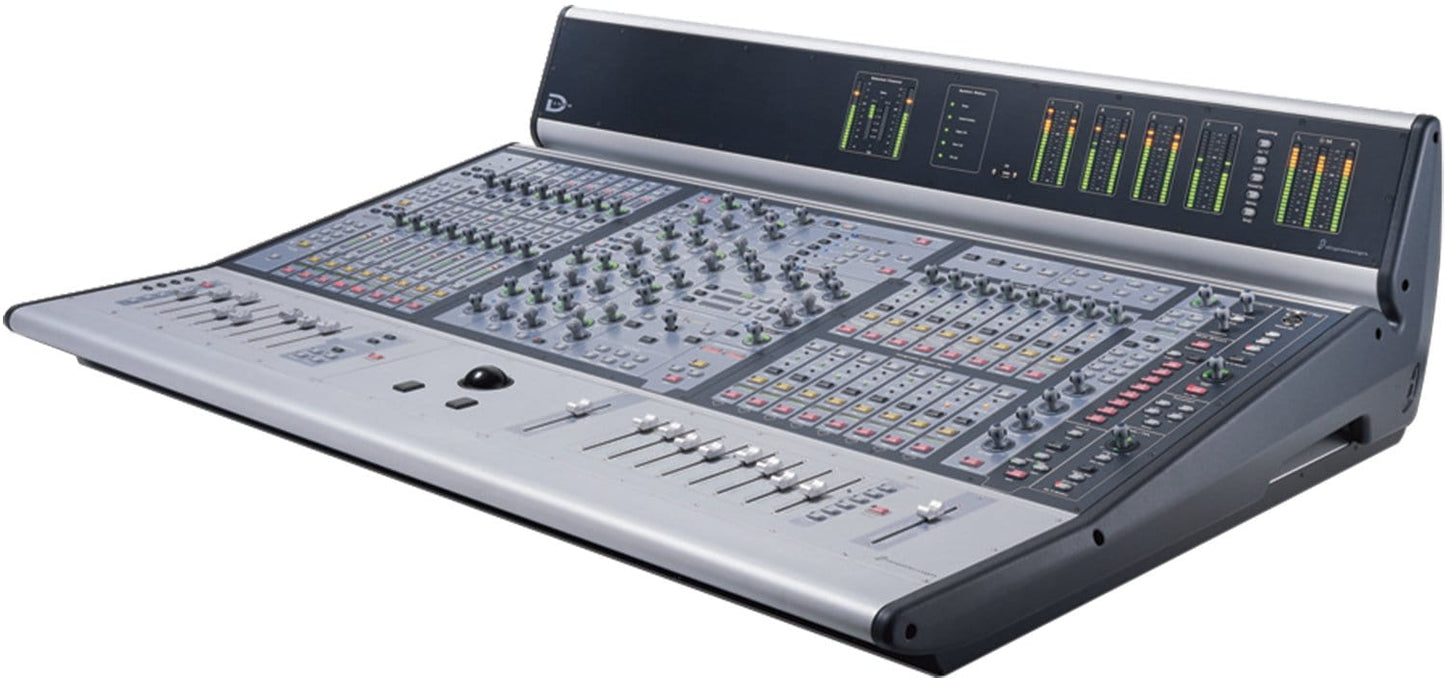

Digidesign D-Show Sidecar Digital Mixing Console
The D-Show Sidecar adds an additional 16 input faders and associated control to an existing D-Show Main Unit. You can use up to three D-Show Sidecars with a single D-Show Main Unit, giving you access to up to 56 faders from a single bank on the console. You can physically attach the D-Show Sidecars to either side of the D-Show Main Unit to create one complete console, or employ them as physically detached but connected floating units, giving you greater flexibility in your setup (connection is made via a simple 110 Ohm 3-pin XLR cable).
Specifications:
- Maximum Height (front): 3.2 inches (81 mm)
- Maximum Height (rear): 13.7 inches (347 mm)
- Maximum Width (with endcaps): 28.7 inches (729 mm)
- Maximum Width (without endcaps): 26.5 inches (673 mm)
- Maximum Depth: 34.8 inches (884 mm)
- Weight: 73 lbs (33.2 kg)
- Power Requirements: 90–260 VAC, 50–60 Hz, 120 W
- Console Link (CAN bus) Connectors (2): XLR3-F
- Console Link Cable Type: 110-Ohm (digital) cable
- Max Console Link Cable Length:
- Single cable: 25 ft (7.6 m)
- Total length: 75 ft (22.9 m)
- Single cable: 25 ft (7.6 m)
- Total length: 75 ft (22.9 m)
