DiGiCo SD8 Digital Mixing Console D2 Package - MADI Only with D2 Rack

DiGiCo SD8 Digital Mixing Console D2 Package - MADI Only with D2 Rack

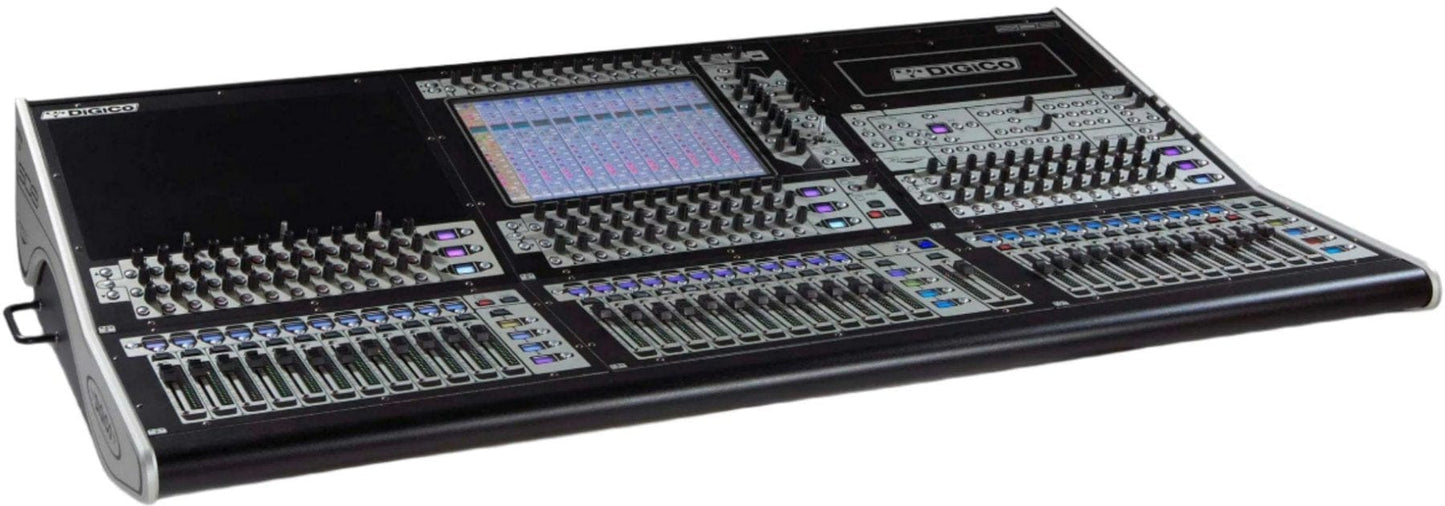

DiGiCo SD8 Digital Mixing Console

The DiGiCo Digital Mixing Console is a 120 channel mixing console with 37 physical faders and 1 x 15” LCD high-resolution touchscreen. Featuring the same Stealth Digital Processing and floating point Super FPGA technology as the flagship SD7, the SD8 has been engineered to provide an intuitive workflow and infinite expansion possibilities to enhance your live performance mixing experience.

DiGiCo D2 Rack

The D2-Rack spearheads DiGiCo’s digital connectivity with an expandable channel count and high sample rates, providing more than enough firepower to meet the needs of the most ambitious projects.

The compact 9U rack sports 48 inputs and 16 outputs as standard; these can be increased to 32 outputs by populating the two spare eight channel output slots with one or more of three available module options: Line out, AES or Aviom.

For further flexibility, the D2-Rack’s inputs can be specified as either 48 mic in or 24 mic/24 AES/EBU in.

Dual MADI ports, available on either BNC or DiGiCo Cat5e connections, either allow rack sharing at 48kHz between any two SD Series consoles or provide digital splits for recording. When combined, these ports create a single high definition 96kHz MADI connection with absolutely no reduction in I/O.

To ensure ultimate reliability the D2-Rack is equipped with dual redundant power supplies as standard.

Features:

• DiGiCo SD8 Digital Mixing Console:
  • 120 Input Channels
  • MADI & Multi-Mode Optics HMA
  • 48 Aux / Sub-Group Busses
  • LR/LCR/LCRS Master Buss
  • 16 x 16 Full Processing Matrix
  • 190 Dynamic Equalizers
  • 48/96kHz Sample Rate
• DiGiCo D2-Rack:
  • 9U MADI connected high performance rack
  • Option of 48 Mic In or 24 Mic/24 AES/EBU In
  • Analogue and Digital output expansion
  • Redundant power supplies as standard

Specifications:

• DiGiCo SD8 Digital Mixing Console:
  • Faders 37 x 100mm Touch-Sensitive, Motorised
  • Screens 1 x 15" (38cm) LCD High - Resolution Touch Screen
  • Meters 38 x 20-Segment LED Bargraph
  • 120 Input Channels
  • Busses 48 assignable that can be configured as groups / auxillary busses + LR/LCR/LCRS Master Buss
  • Solo Busses 2 Stereo Busses
  • Matrix 16 x 16 Matrix (Additional to Busses Above)
  • Control Groups 12, Selectable for VCA-style, Moving Fader, Mute Group
  • Graphic EQ 24 x 32-band, Gain +/- 12dB
  • Internal FX 16 Stereo FX Processors
  • Local I/O 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
  • MADI Interface 2 Redundant Interfaces, 75 Ohm BNC Connectivity
  • Optic Interface Optocore (Optional Factory Fit Only)
  • MIDI Interface In / Out / Through
  • VGA Port DB-15 Mini-Female (1024 x 768 Resolution)
  • USB Ports 3 x USB 2
  • Light Connection 2 x XLR3 1.2 - 12V
  • Ext Sync Word Clock, AES, MADI, Optics
  • Headphone TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
  • SD8 Dimensions 1347mm (w) x 811mm (d) x 251.7mm (h)
  • SD8 Weight 65Kg (155Kg with Optional Flightcase)
  • SD8 Flightcase 1517mm (w) x 1133mm (h) x 452mm (d) (Optional)
  • SD8 Power Requirements 90-264 VAC, 47-63Hz Auto Sensing. 230VA Typical, 295VA Peak (Meters Full, Faders Moving
  • Redundancy Internal PSU x 2
• DiGiCo D2-Rack:
  • Audio Specifications:
  • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
  • Crosstalk (100 - 10kHz): >90dB
  • AES Input Frequency Response (10Hz - 20kHz): ±0.1dB
  • Analogue Input Frequency Response (10Hz - 20kHz): ±1dB
  • AES Noise: <-140dB
  • Analogue EIN (150Ω): 127dB
  • Dynamic Range: 113dB
  • Input Impedance: 2500Ω (2650Ω with pad)
  • CMRR @ 1kHz (150Ω Zin): >71dB
  • AES Distortion @ -1dBFS Gain (100Hz - 10kHz): <0.00015%
  • Analogue Distortion @ 30dBFS Gain (100Hz - 10kHz): <0.01%
  • AES Cable Length: OK over 100m
  • Phantom Power: 48.3V
  • Oscillator Level: -96dB to 0dB
  • Oscillator Frequency: 20Hz to 22kHz
  • Gain Range: -10dB to +60dB
  • System Delay: ≈2ms @ 48kHz or ≈1.1ms @ 96kHz
  • Maximum Input Level: +22dBu
  • Maximum Output Level: +22 dBu
  • Connections:
  • 48 x XLR Mic Inputs
  • 16 x XLR Outputs
  • 2 x Output Expansion Slots
  • 2 x Redundant PSUs
  • 1 x LCD Menu Screen
  • 4 x Menu Buttons
  • 1 x MADI Main I/O (BNC)
  • 1 x MADI Aux I/O (BNC)
  • 1 x USB 2.0 Type B port
  • Signal Processing:
  • Internal Oscillator
  • Gain Tracking™
  • Options:
  • BNC or Cat5 (RJ45) MADI
  • 48 in and 16 out or 24in, 24 AES/EBU in and 16 out
  • Compatible Cards: 8 ch Line Output / 8 ch AES Output / 16 ch Aviom
