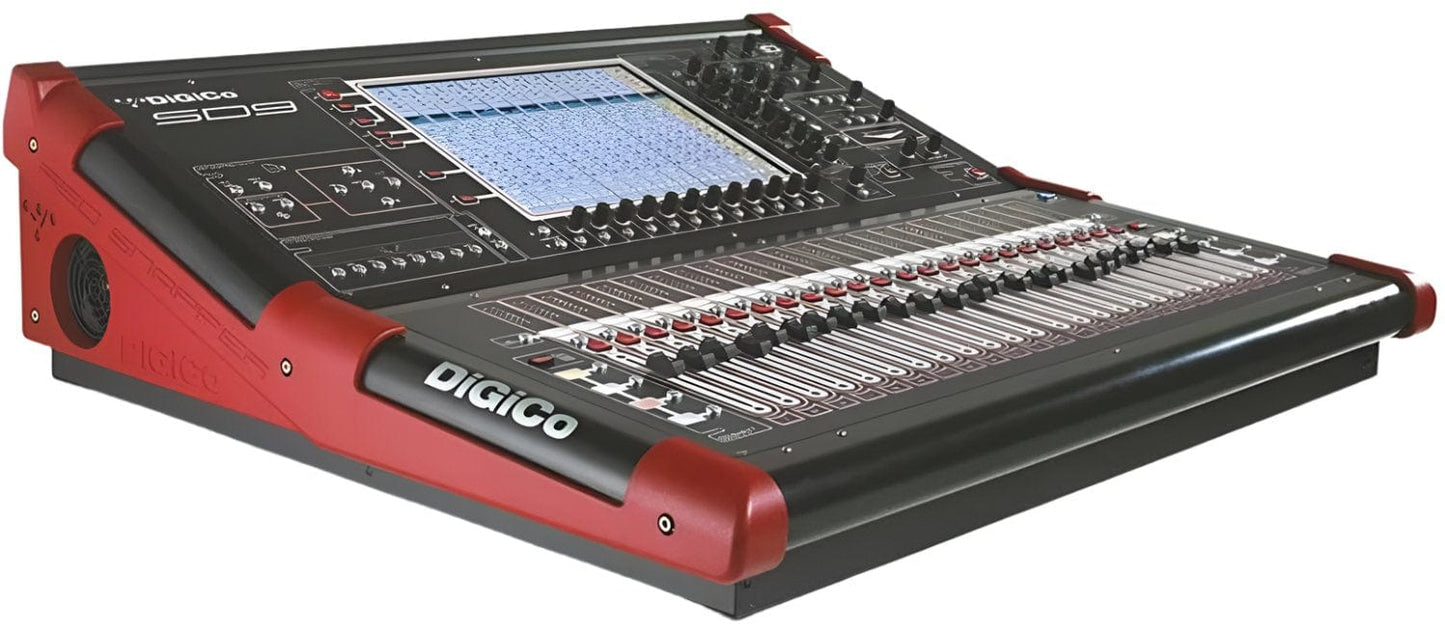

DiGiCo SD9 RACK PACK Install Package - MADI and One Multi-Mode Optics HMA

DiGiCo SD9 RACK PACK Install Package - MADI and One Multi-Mode Optics HMA

The DiGiCo SD9 Rack Pack Install Package is a compact yet feature-packed digital mixing console, bringing the power of Stealth Digital Processing and Super FPGA technology to an accessible price point. With a lightweight design and efficient workflow, the SD9 is ideal for a wide range of applications, from theatres and conference centers to houses of worship.

Features:

• Powered by Stealth Digital Processing and floating-point Super FPGA technology
• Compact design with a small footprint, ideal for road use, theatres, conference centers, and houses of worship
• 24 touch-sensitive, motorized faders for smooth and intuitive control
• 15-inch high-resolution backlit TFT LCD touchscreen for clear and efficient operation
• Quick access function buttons and multi-function control knobs for streamlined workflow
• 96 input channels at 48kHz/96kHz for extensive audio management
• Standard channel processing includes Hi- and Lo-pass filters, four-band parametric EQ, Dual insert points, and Channel Delay
• Onboard 155 Dynamic EQ processors, 155 Multiband Compressors, and 155 DiGiTuBes
• 16 gangable 32-band graphic EQs and 12 stereo effects selectable from 33 presets
• 12 control groups (VCAs) for enhanced control
• 48 assignable busses for groups or auxiliary busses
• 12×8 output matrix for flexible routing and configuration
• Dual solo busses and a Master buss that work independently of the Matrix
• Snapshot functionality for seamless switching between configurations

Specifications:

• 24 x 100mm Touch-sensitive, motorized faders
• 1 x 15” high-resolution LCD touchscreen
• 96 Input Channels
• 48 Aux/Sub-Group Busses
• 12 x 8 Matrix (additional to busses)
• 12 Control Groups (VCA-style, Moving Fader, Mute Group)
• 16 x 32-band Graphic EQ
• 12 Stereo FX Processors
• 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
• MADI Interface
• Optic: HMA
