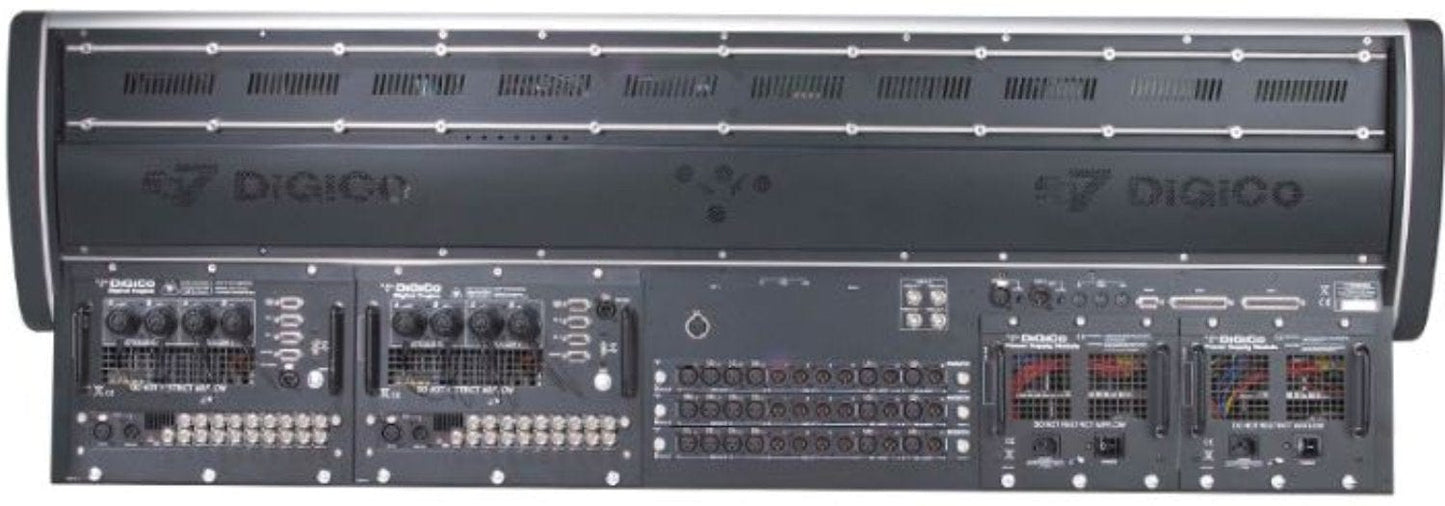

DiGiCo X-SD7-WS-O SD7 Digital Mixing Console with HMA Optics
The DiGiCo X-SD7-WS-OP is a professional mixing console, which is an ideal solution for touring, professional installations and broadcast. This model has 52 faders, 256 processing paths, 128 output mixing buses, a 32x32 matrix, 36 CG / VCA, FX, 4 redundant MADI, and 2 power supplies.
Features:
- With HMA Optics which provides high-speed, fiber-optic audio transmission
- Dual Redundant Engines that ensures seamless operation with built-in redundancy for fail-safe performance.
- 52 Motorized Faders that allows for intuitive control over multiple channels
- 256 Processing Channels that offers extensive audio channel processing to handle complex, large-scale productions.
- 128 Output Buses that supports a high number of output buses for flexible routing and mixing options.
- Quantum audio processors for enhanced processing power and low-latency performance.
- High-resolution touchscreens for easy navigation and control of various mixing parameters.
Specifications:
- Dual Engine
- 52 faders
- 256 processing paths
- 128 output mixing buses
- 32x32 matrix, 36 CG/VCA, FX
- 4 redundant MADI
- 2 power supplies
- 32 32-band graphic equalizers
- 12 mic inputs
- 12 line outputs
- 12 AES I/O mono stream
- OpticalCon optics
- Touring case: 150x87x50 cm, 133 kg
- Dual Engine
- 52 faders
- 256 processing paths
- 128 output mixing buses
- 32x32 matrix, 36 CG/VCA, FX
- 4 redundant MADI
- 2 power supplies
- 32 32-band graphic equalizers
- 12 mic inputs
- 12 line outputs
- 12 AES I/O mono stream
- OpticalCon optics
- Touring case: 150x87x50 cm, 133 kg
